Part Number: SS-5GL-2
Manufacturer: OMRON ELECTRONIC COMPONENTS
Country of Origin: ID
Unit of Measure: Each (EA)
ECCN: EAR99
Package Type: Various models available
Datasheet: Download Datasheet

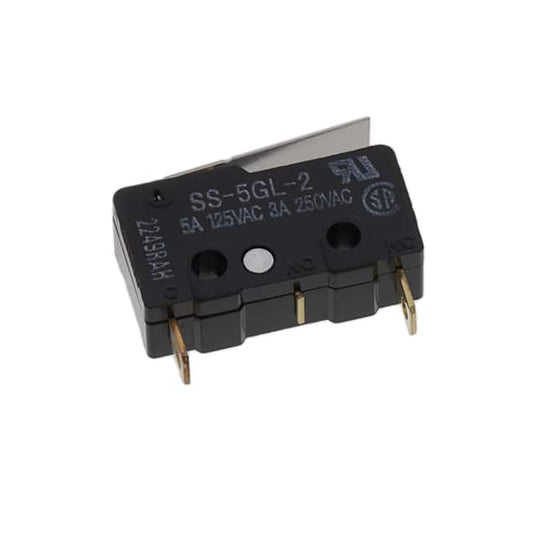

The OMRON SS-5GL-2 is a high-reliability, subminiature basic switch designed for secure and durable operation in various electronic applications. It offers a wide range of models with operating forces from low to high, suitable for interlock and security functions.
High Durability: Capable of 30,000,000 operations thanks to dual split springs ensuring stability and longevity.
Contact Configurations: Available in SPDT, SPST-NC, and SPST-NO contact forms.
Operating Force: Models with 0.25 N (25 gf), 0.49 N (50 gf), and 1.47 N (150 gf) forces, suitable for various actuation requirements.
Terminals: Solder, quick-connect (#110), and PCB terminals are supported.
Heat Resistance: Standard (85°C) or heat-resistant (120°C) models available.
Contact Gap: 1 mm minimum contact gap models available for interlock applications.
RoHS Compliant: Yes
Technical Specifications
Ratings
Model
Rated Voltage
Current
Resistive Load
SS-10
250 VAC
10.1 A
Resistive Load
SS-5
125 VAC / 250 VAC
5 A / 3 A
Resistive Load
SS-01
125 VAC
0.1 A
DC Voltage
SS-01
30 VDC
0.1 A
SS-5F
250 VAC
3 A
30 VDC
SS-5F
5 A
Operating Characteristics
Item
Model
Max Operating Force
Min Releasing Force
Overtravel
Durability (Mechanical)
Electrical Operations
Operating Force
OF 1.47 N
1,000 m/s²
300 m/s²
1.2 mm
10 million operations
50,000 operations
Operating Force
OF 0.49 N
500 m/s²
200 m/s²
1.2 mm
10 million operations
50,000 operations
Operating Force
OF 0.25 N
500 m/s²
200 m/s²
1.2 mm
10 million operations
50,000 operations
Additional Features
Insulation Resistance: 100 MΩ at 500 VDC
Dielectric Strength: 1,000 VAC between terminals
Vibration Resistance: Up to 55 Hz, 1.5 mm amplitude
Shock Resistance: Up to 1,000 m/s² for durability
Operating Temperature: -25°C to 85°C
RoHS Compliant and UL/CSA approved models available
For more detailed specifications, please refer to the datasheet. If further details are required, please search the internet for the part number SS-5GL-2.
