Options for 30kg.cm@12V / 19.5kg.cm@7.4V torque
| PRODUCT TYPE | ST3215 serial bus servo | ST3215-7.4V serial bus servo |
| TORQUE | 30kg.cm @12V | 19.5kg.cm @7.4V |
| ROTATION ANGLE | 360° (0~4095) | |
| POSITION SENSOR RESOLUTION | 360° / 4096 | |
| MECHANISM LIMITED ANGLE | No Limit | |
| OPERATING VOLTAGE | 6 ~ 12.6 V | 4V ~ 7.4V |
| GEAR | High precision metal gear | |
| NO-LOAD SPEED | 0.222sec / 60° (45RPM) @12V | 0.192sec / 60° (52RPM) @7.4V |
| ENCODER TYPE | 360° Magnetic Encoder | |
| ID RANGE | 0 ~ 253 | |
| BAUDRATE | 38400bps ~ 1Mbps (1Mbps by default) | |
| FEEDBACK | Position, Load, Speed, Input Voltage | |
| NO-LOAD CURRENT | 180 mA | 150 mA |
| LOCKED-ROTOR CURRENT | 2.7A | 2.5A |
| kt | 11kg.cm/A | 7.8kg.cm/A |
Servos will provide various feedback like position, speed, torque lock, operating mode (servo mode, servo motor mode, etc.) for advanced projects requiring closed-loop automatic control.
Ideal choice for building quadruped robots, hexapod walkers, robotic arms and other robotic projects requiring multiple servos. (This product provides the open source model of the quadruped robots as shown in the picture below.)
* images here are for reference ONLY
Allows Controlling Up To 253 Serial Bus Servos At The Same Time
Note: though one channel UART is able to control up to 253 serial bus servos, due to the high power of the servos, it is necessary to consider whether the power supply solution is enough when using too many servos. For reference only, the servo driver board is NOT included
Up To 30kg.Cm Torque On 12V version, Suitable For Building Quadruped Robots, Hexapod Walkers, and Robotic Arms; Up To 19.5kg.Cm Torque On 7.4V version, offering stable and efficient performance in small-to-medium robotics projects. Users can flexibly select options based on their specific requirements.
* images here are for reference ONLY

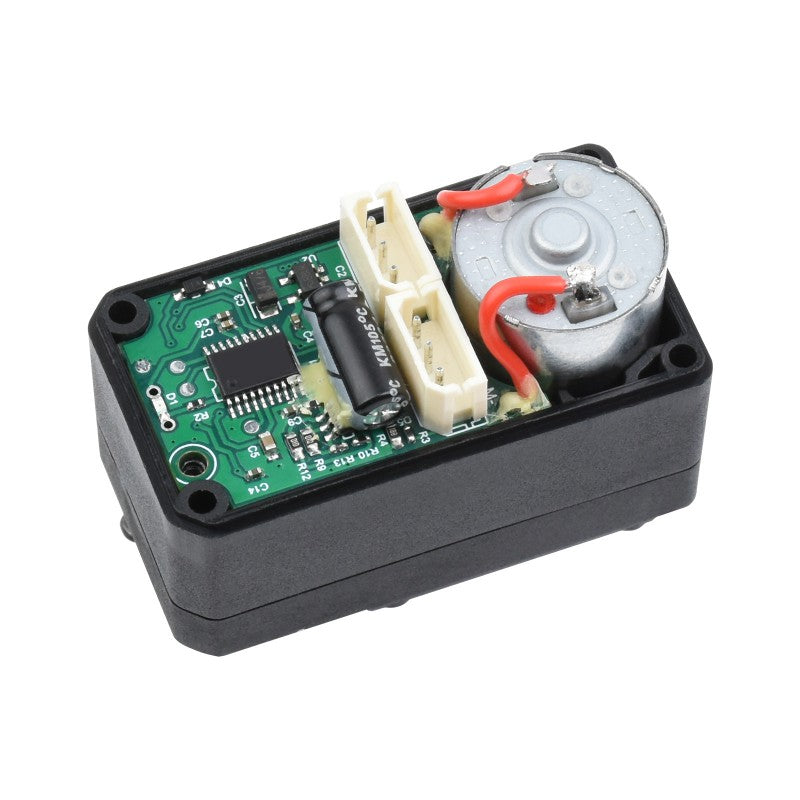

Adopts 12-bit high-precision magnetic encoding angle sensor. Compared with the potentiometer, the angle is enlarged to 360°, and the resolution is increased by 4 times. Since there is a gap and no friction between the magnetic encoder and the radial magnet, the lifetime of the servo is effectively extended.
The Speed And Acceleration Values Can Be Set, And The Motion Effect Is Softer
Actual Effect
Motion Effect Diagram

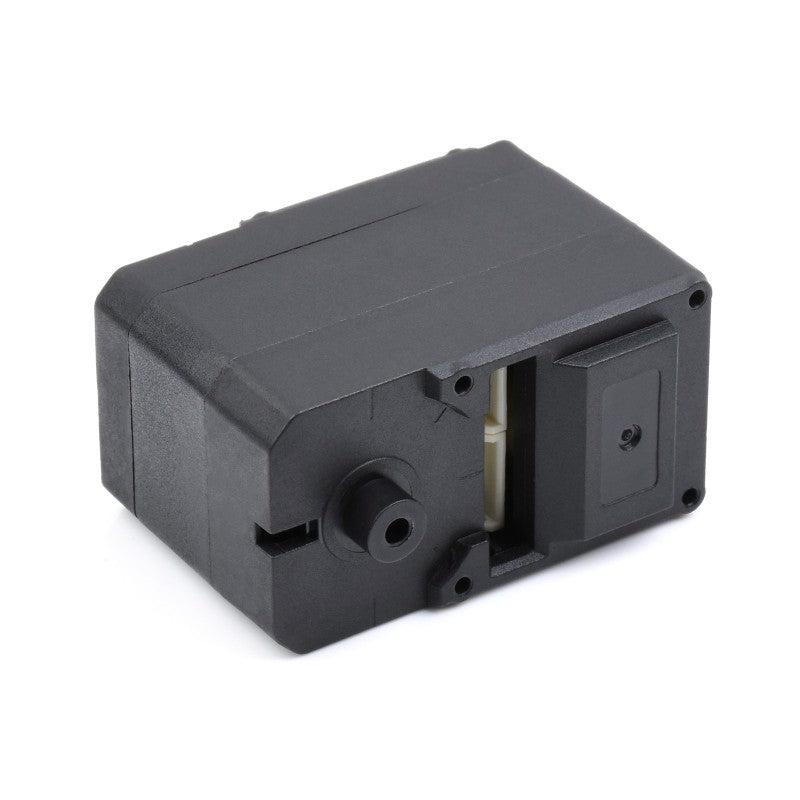

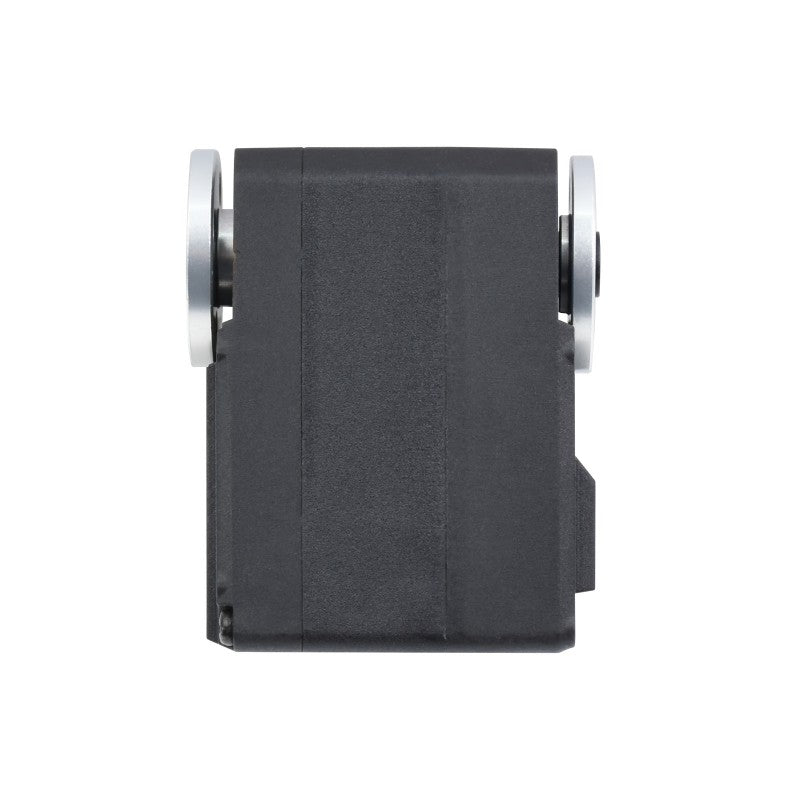

The case adopts higher intensity engineering plastics, dual shaft and low profile design, shortening the plane spacing of the double-shaft servo wheel, and the overall structure is more compact, which can make the appearance of the product more beautiful.
1. In the default program, a hotspot will be created automatically after the servo driver board is turned on. Use your mobile phone to connect to this hotspot, open the browser, and enter the IP address to enter the control interface.
2. Click Release to unlock, then turn the servo to the middle position where you need to set
3. Click Set Middle Position then comfirm.
4. Turn the servo to any angle, then click Middle, and the servo will automatically return to the middle position initially set.
* images here are for reference ONLY
Precise Rotation Angle Control On Servo Mode
Continuous Rotation On Motor Mode
* images here are for reference ONLY
Nylon and fiberglass case
Improved heat-resistance, size stability, rigidity, and mechanical performance

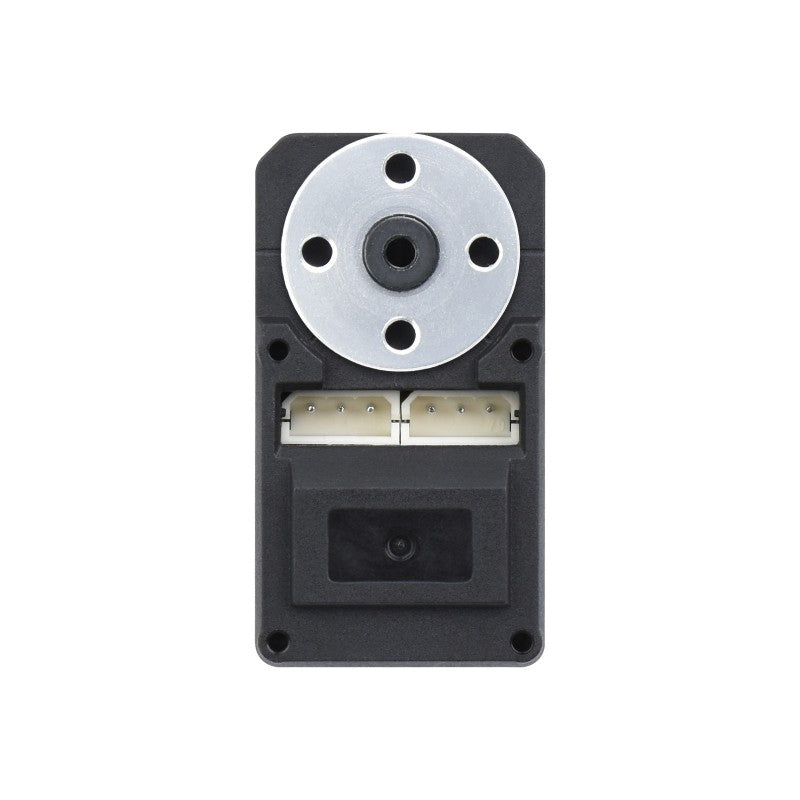

High strength aluminum servo wheels
Using T6061 aluminum alloy, good corrosion-resistance
High precision copper and steel gears
Ingenious combination of the two, lower operating noise, better stability and mechanical performance
We provide the open-source web control demo of the servo driver board and a secondary development tutorial, which can be directly used for remote setting and remote control of the servo. At the same time, we also provide a 3D model for you to build your own project quickly
Weight: 0.07 kg

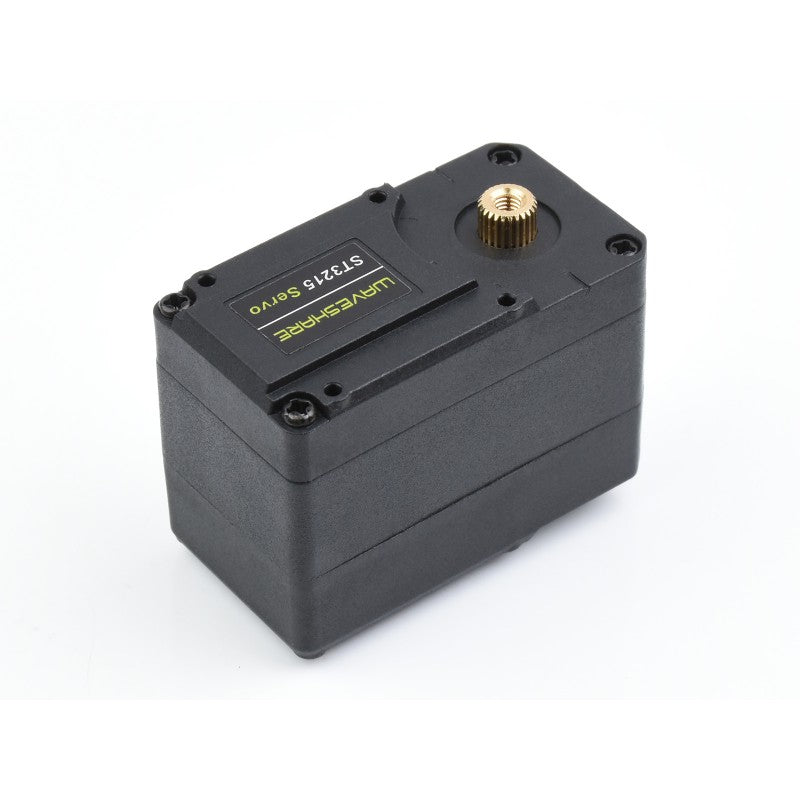

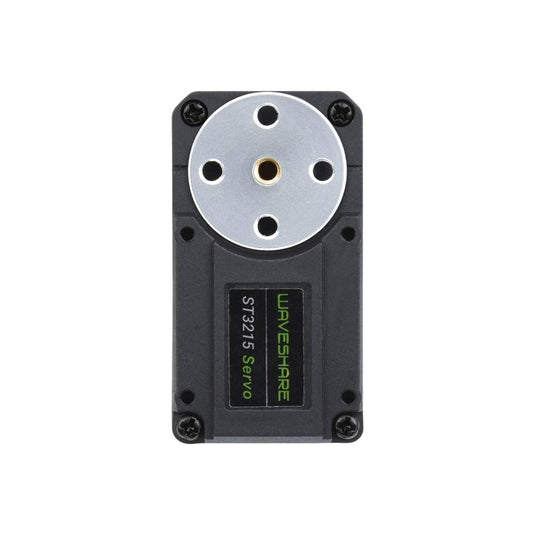

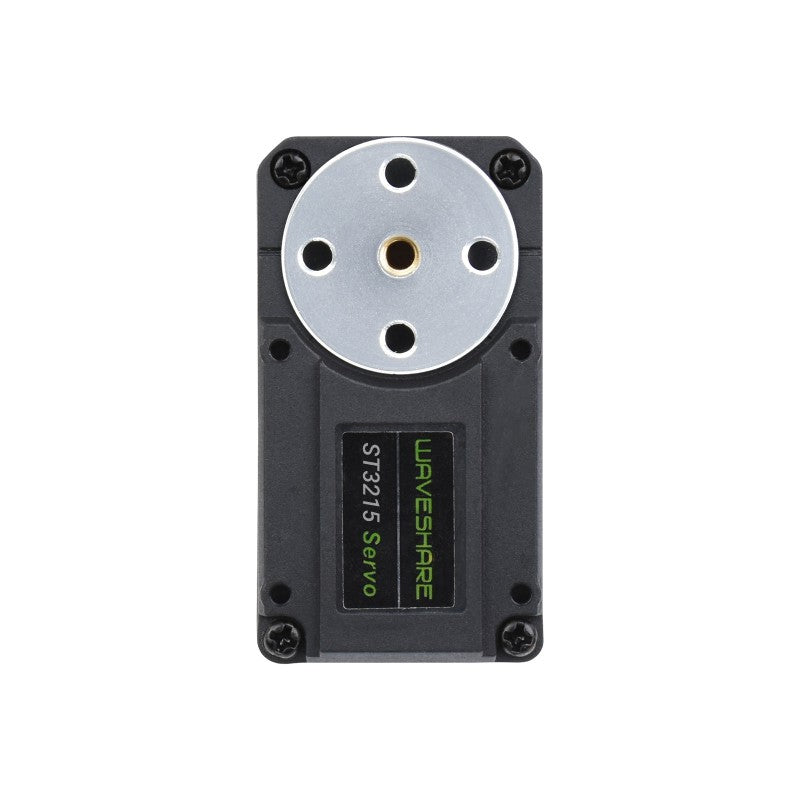

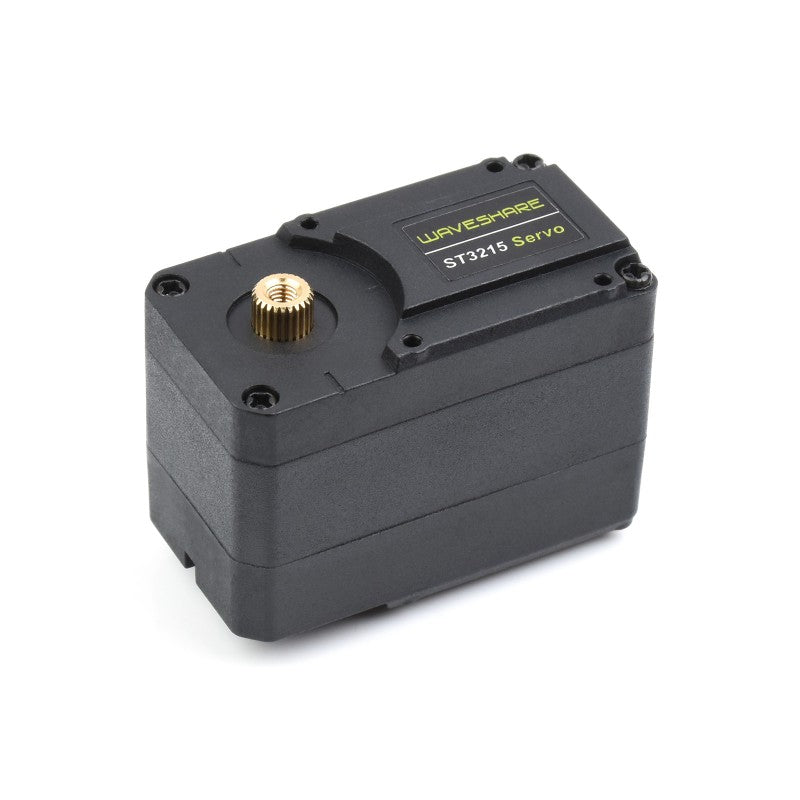

ST3215 Servo

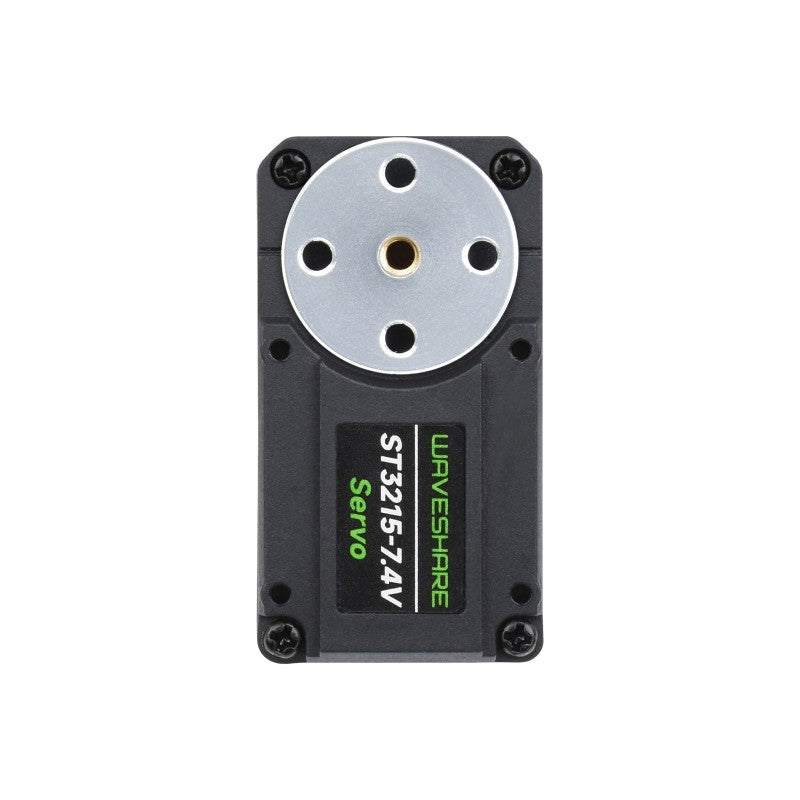

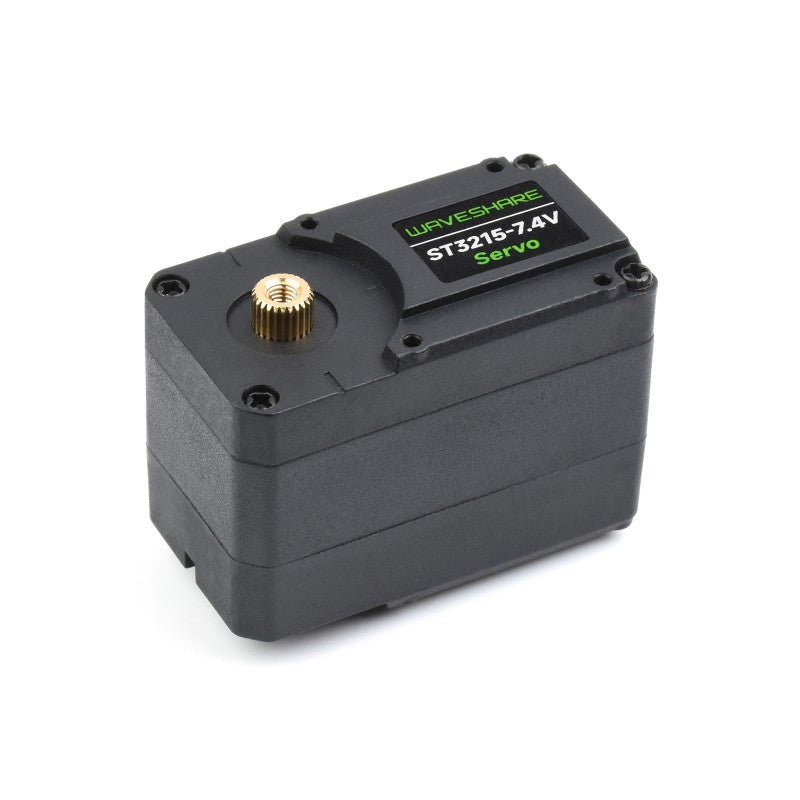

ST3215-7.4V Servo
