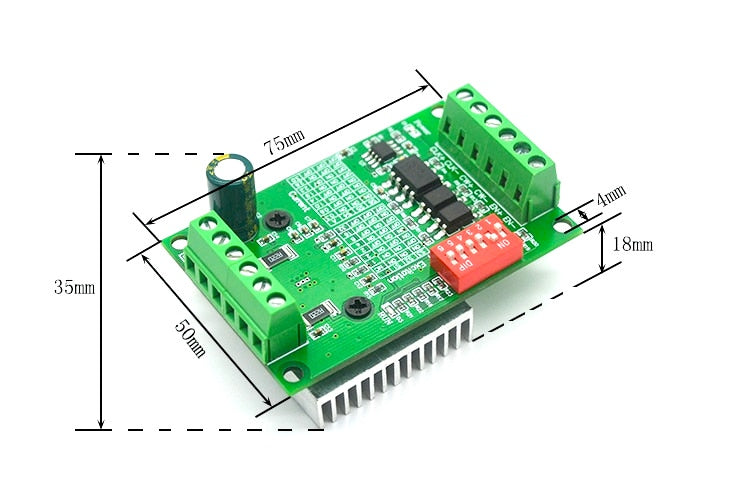

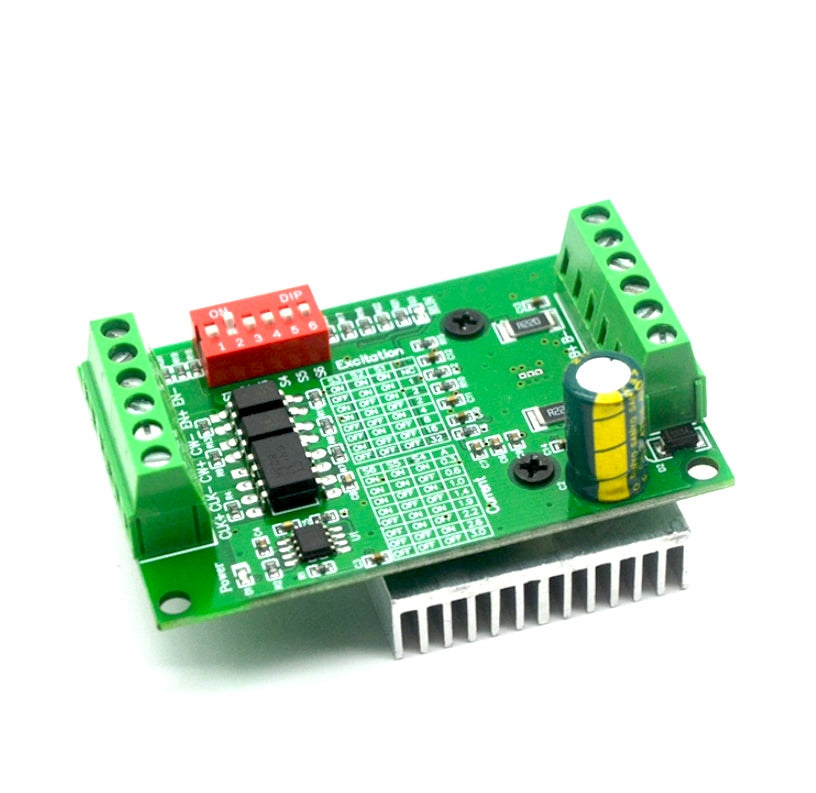

The TB6560-3 Axis Stepper Motor Driver is a excellent microstepping driver that uses TOSHIBA TB6560 Chip, based on pure-sine current control technology. Owing to the above technology and the self-adjustment technology (self-adjust current control parameters) for different motors, the driven motors can run with smaller noise, lower heating, smoother movement and have better performances at higher speed than most of the drives in the markets. It is suitable for driving 2-phase and 4-phase hybrid stepping motors. Perfect for CNC or 3D printing applications.
Operating Voltage: DC 9V-32V; typical - 12V, 24V
Low voltage shutdown, overheating shutdown and overcurrent protection circuits to ensure optimal performance
Maximum Current Rating: 3A
Two-phase / four-phase / four-wire / six-wire stepper motor suitable for 42,57 stepping within 4A

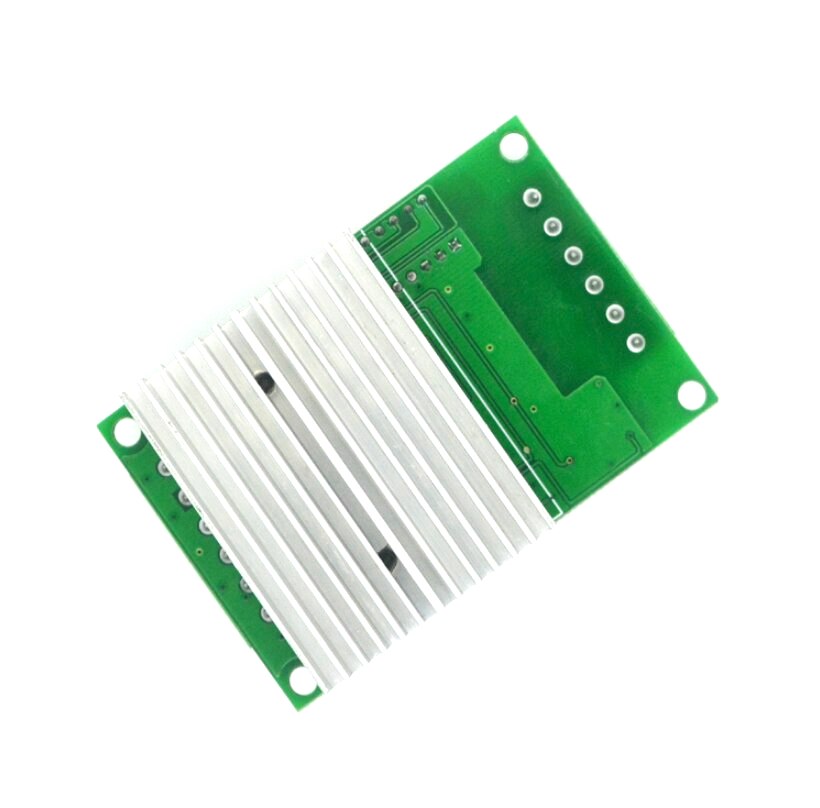

With the large heat sink to ensure good heat dissipation 6N137 high-speed OptoCoupler, to ensure a high speed without step out
Automatic half-flow function
Subdivision: full step, half step, 1/4 step, 1/8 step, 1/16 step, 1/32 step, maximum 32 subdivision
