MKS TMC2226 Stepper Motor Driver

SKU: ELC4024

ā‚¹ 699.99 ā‚¹ 999.99

In stock | Ready to ship

āš  Only a few left in stock. Order soon.
ā± High demand right now.
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
MKS TMC2226 Stepper Motor Driverā‚¹ 699.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

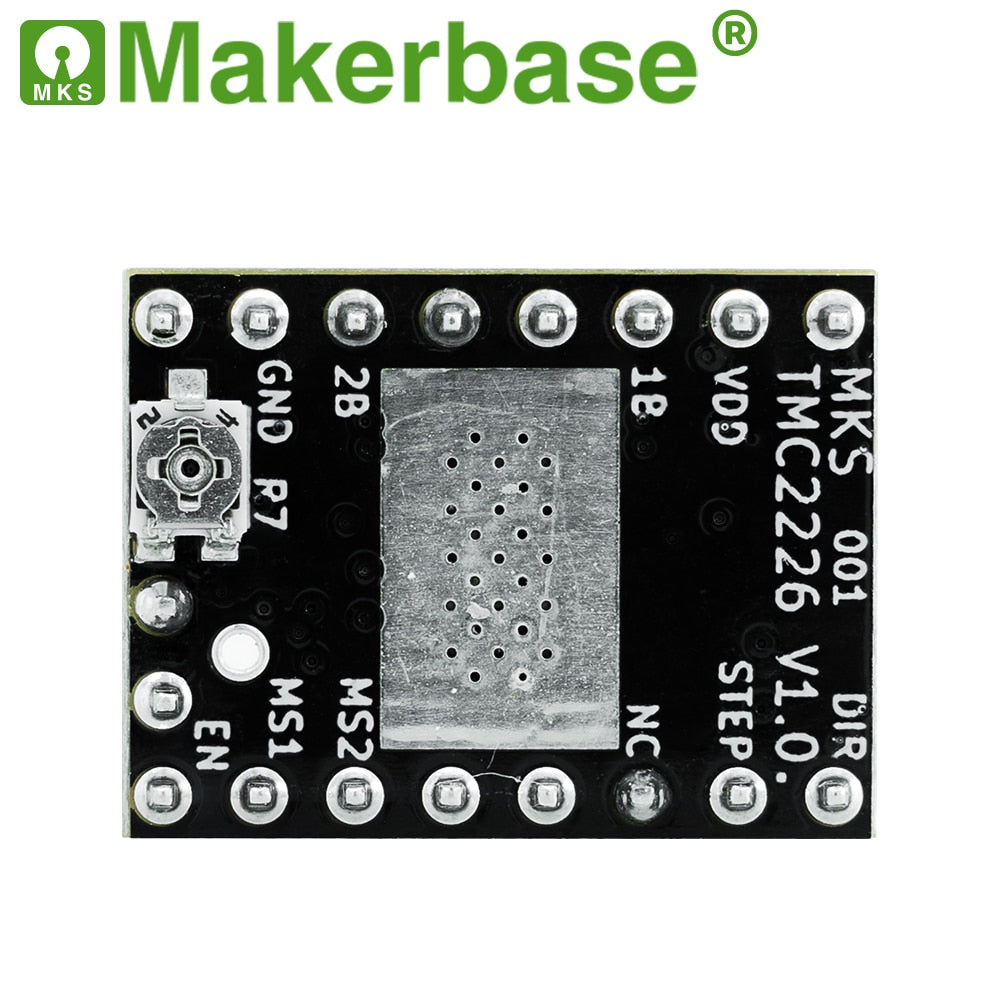

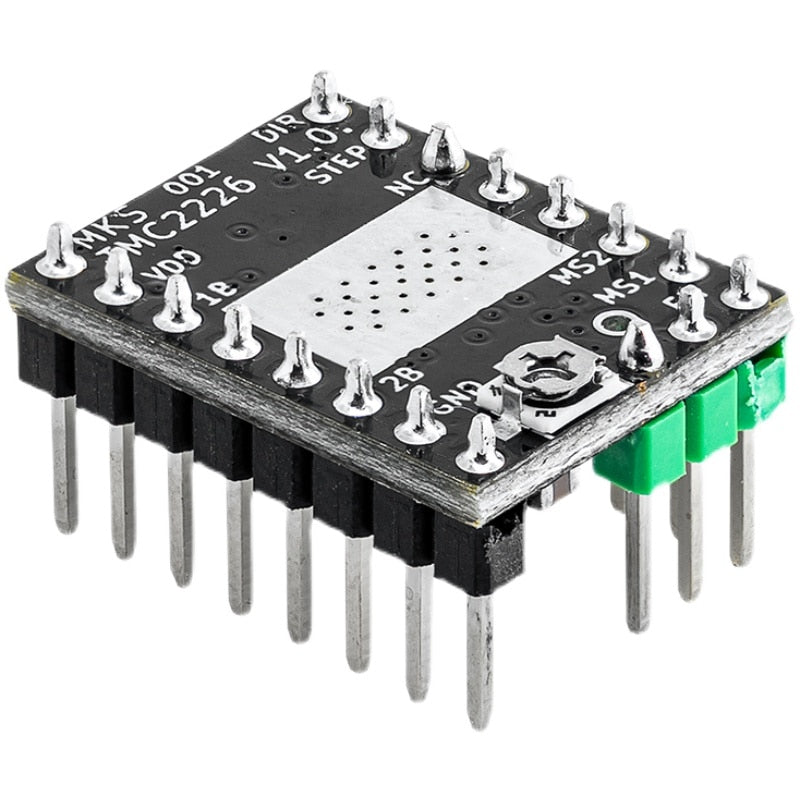

The MKS TMC2226 is a low noise, high current ability, UART mode supported, sensorless homing stepper driver in the same packaging as the standard step stick drivers like the A4988.Ā  The driver is powered by the TMC2226 chip which is designed and manufactured by Trinamic in Germany.Ā  This chip is the upgrade to the popular TMC2209 and TMC2225 drivers.

Specifications:

  • Stepper Driver Model: TMC2226
  • Maximum Current: 2.5A
  • Micro Stepping: Up to 64 micro stepping
  • UART mode supported
  • Sensorless homing supported
  • Large heat sink included for proper heat dissipationĀ

The TMC2226 is an ultra-silent motor driver IC for two phase stepper motors. TRINAMICs sophisticated StealthChop2 chopper ensures noiseless operation, maximum efficiency and best motor torque. Its fast current regulation and optional combination with SpreadCycle allow highly dynamic motion while adding. StallGuard for sensorless homing. The integrated power MOSFETs handle motor currents up to 2A RMS with protection and diagnostic features for robust and reliable operation. A simple to use UART interface opens up tuning and control options. Store application tuning to OTP memory. Industriesā€™ most advanced STEP/DIR stepper motor driver family upgrades designs to noiseless and most precise operation for cost-effective and highly competitive solutions.

Features

  • 2-phase stepper motors up to 2.8A coil current (peak), 2A RMS
  • STEP/DIR Interface with 8, 16, 32 or 64 microstep pin setting
  • Smooth Running 256 microsteps by MicroPlyerā„¢ interpolation
  • StealthChop2ā„¢ silent motor operation
  • SpreadCycleā„¢ highly dynamic motor control chopper
  • StallGuard4ā„¢ load and stall detection for StealthChop
  • CoolStepā„¢ current control for energy savings up to 75%
  • Low RDSon, Low Heat-Up LS 170mĪ© & HS 170mĪ© (typ. at 25Ā°C)
  • Voltage Range 4.75ā€¦ 29V DC
  • Low Power Standby to fit standby energy regulations
  • Internal Sense Resistor option (no sense resistors required)
  • Passive Braking, Freewheeling, and automatic power down
  • Single Wire UART & OTP for advanced configuration options
  • Integrated Pulse Generator for standalone motion

Technical Specifications

Model TMC2226
Interface Step/Dir
Configuration CFG Pins or UART
Native Microsteps up to 1/256
microPlyer Microsteps 1/256
Logic Voltage (VIO) 3-5V
Motor Voltage (VM) 4..75-29V
Motor Phase Current max 2A RMS, 2.8A Peak
Internal V- Regulator enabled
RDSon <=0.17 Ohm
stealthChop (quiet) yes
spreadCycle yes
coolStep yes
stallGuard yes
dcStep no

Ā

Ā


    Does the MKS TMC2226 support UART mode and sensorless homing?
    Yes. It supports a native UART interface for configuration and control, and provides StallGuard4 based sensorless homing with StealthChop2 for quiet operation.
    What are the current ratings and how is heat managed?
    The driver supports motor currents up to 2A RMS (2.8A peak) with a maximum coil current of 2.5A, and it includes a large heat sink for proper heat dissipation.
    What voltage range and microstepping options does it support?
    It operates from 4.75 to 29 V DC and supports 8, 16, 32 or 64 microsteps via pin settings, plus up to 1/256 microsteps with MicroPlyer interpolation.
    What form factor and motor types is it compatible with?
    It is packaged in the same form factor as standard step stick drivers like the A4988, designed for two phase stepper motors.
    What are the main features and how do I configure the driver?
    Key features include StealthChop2 silent operation, SpreadCycle dynamic motor control, StallGuard4 load and stall detection, CoolStep current control, and an optional internal sense resistor. It also supports Single Wire UART and OTP memory for advanced configuration and tuning storage.
