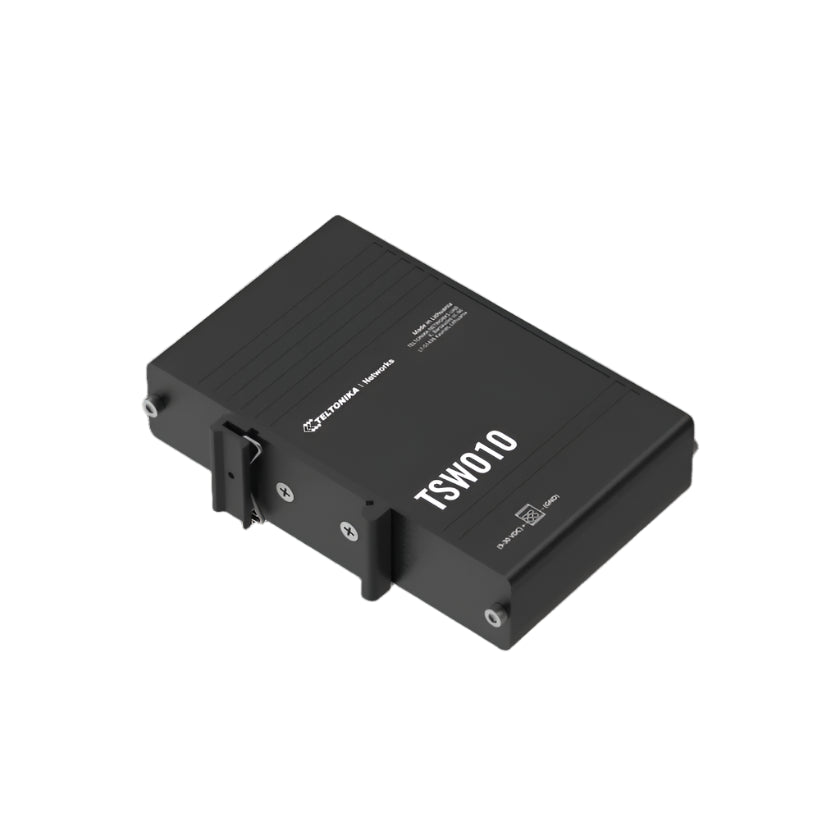

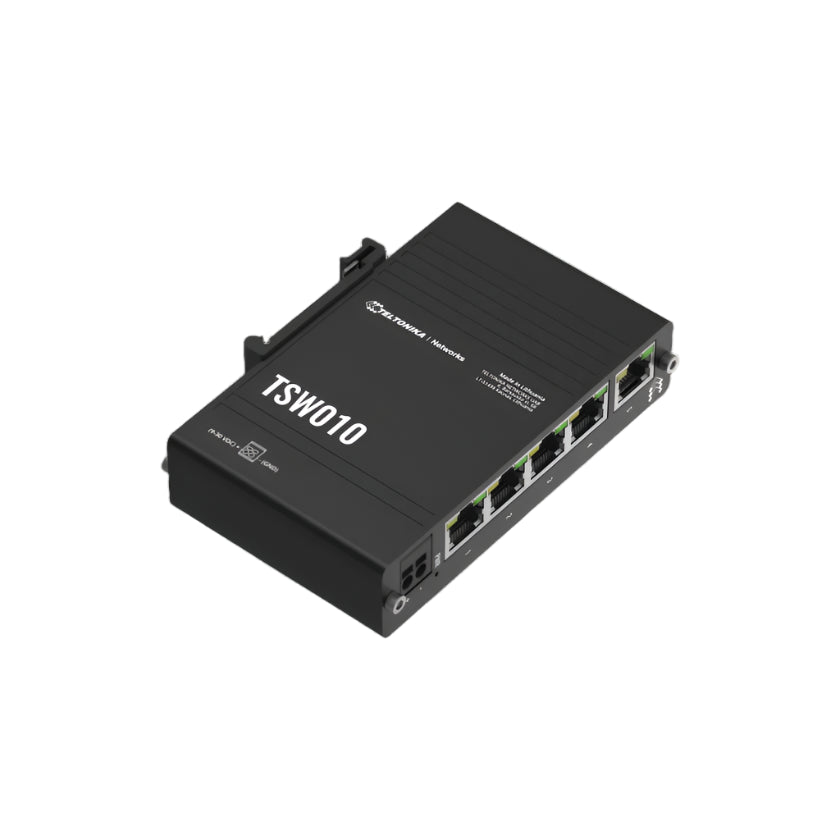

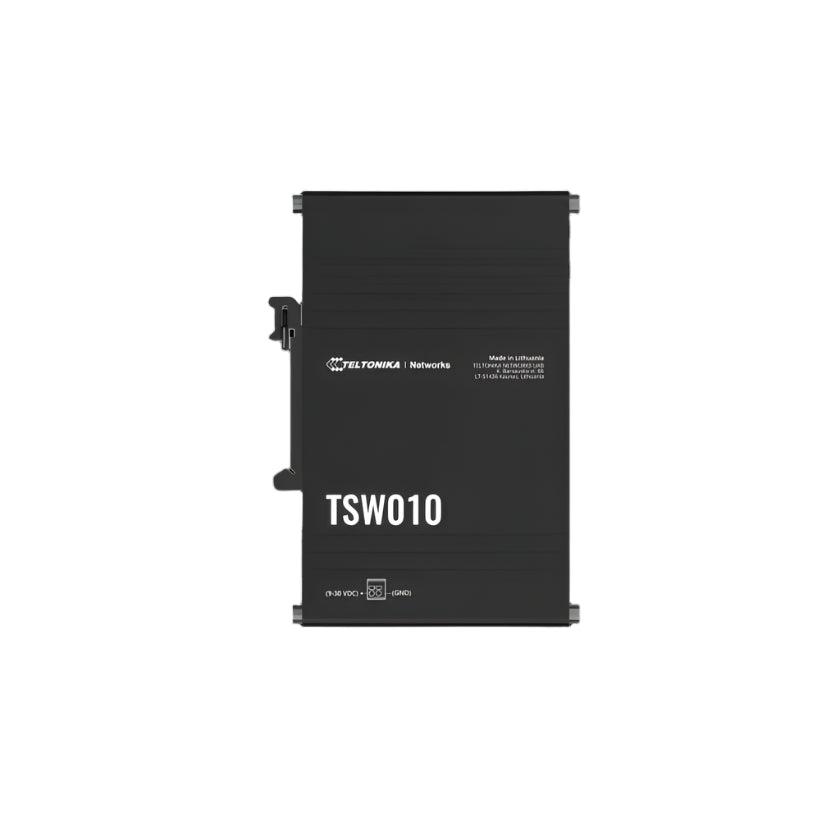

TSW010 - Din Rail Ethernet Switch

SKU: ELC8740

₹ 4,449.99 ₹ 6,499.99

In stock | Ready to ship

⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
TSW010 - Din Rail Ethernet Switch₹ 4,449.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Standard package*

  • TSW010
  • QSG (Quick Start Guide)
  • Packaging box


*Standard package contents may differ based on standard order codes.

Ethernet

Specification Details
ETH Ports 5 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 Series Standards 802.3i, 802.3u, 802.3x, 802.3az

Performance Specifications

Specification Details
Bandwidth (Non-blocking) 1 Gbps
MAC Address Table Size 2K entries
Jumbo Frame Support 2048 bytes

Power

Specification Details
Power Connector 2-pin industrial DC power socket
Input Voltage Range 9 – 30 VDC
PoE (Passive) Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at, and 802.3bt standards, Mode B, 9 - 30 VDC
Power Consumption Idle: 0.3 W / Max: 0.9 W

Physical Interfaces

Specification Details

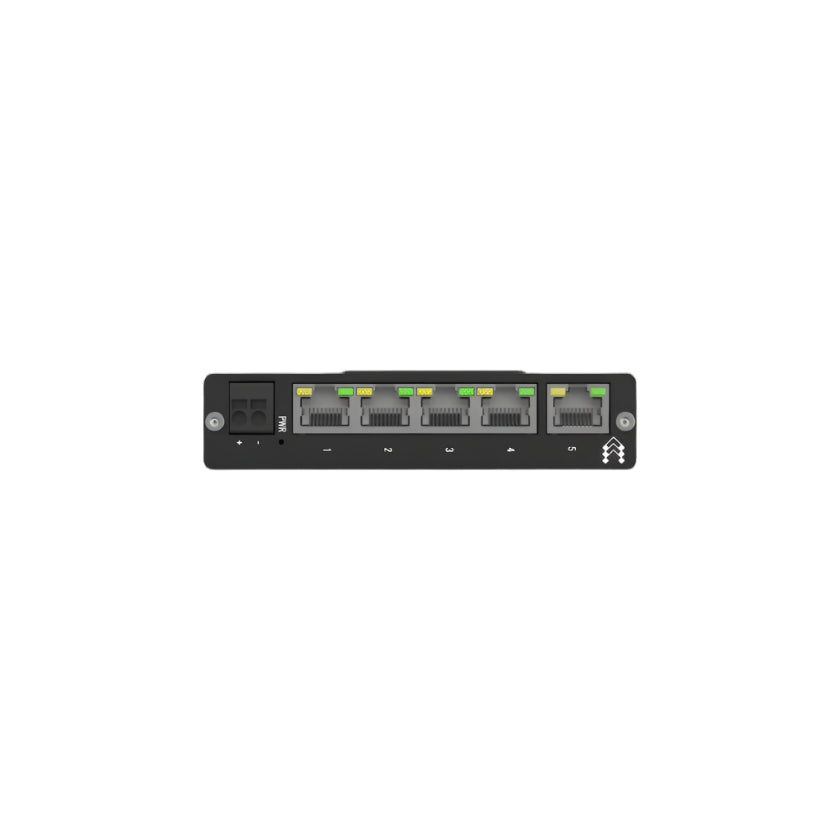

Ethernet 5 x RJ45 ports, 10/100 Mbps
Status LEDs 1 x Power LED, 10 x ETH status LEDs
Power 1 x 2-pin industrial DC power socket

Physical Specification

Specification Details
Casing Material Aluminium housing
Dimensions (W x H x D) 113.1 x 27.4 x 80.5 mm
Weight 146.5 g
Mounting Options Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)

Operating Environment

Specification Details
Operating Temperature -40 °C to 75 °C
Operating Humidity 5% to 95% non-condensing
Ingress Protection Rating IP30

Regulatory & Type Approvals

Regulatory Details
Regulatory Certifications CE, UKCA, EAC, FCC, IC, CB, RCM, CITC, ANRT, SDPPI (POSTEL), Kenya, REACH, RoHS, WEEE

EMC Emissions & Immunity

Standards Details
EMC Standards EN 55032:2015 + A11:2020 + A1:2020, EN 55035:2017 + A11:2020
ESD EN 61000-4-2:2009
Radiated Immunity EN IEC 61000-4-3:2020
EFT EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017
CS EN 61000-4-6:2014

Safety Standards

Standards Details
CE Safety Standards EN IEC 62368-1:2020 + A11:2020
RCM Safety Standards AS/NZS 62368.1:2022
CB Safety Standards IEC 62368-1:2018

Downloads

Manual & Documentation


Links

TSW010 QUICK START GUIDE (EN)
TSW010 USER MANUAL
CERTIFICATIONS & APPROVALS
PRODUCT CHANGE NOTIFICATIONS
TSW010 3D MODELS

What is the port configuration and maximum network speed of the switch?
It has 5 x 10/100 Mbps Ethernet ports with auto MDI/MDIX and a non blocking bandwidth of 1 Gbps.
How can the device be powered and is PoE supported?
Power can be supplied via a 2 pin industrial DC power socket with 9 to 30 VDC. It also supports passive PoE over ETH1 but is not compatible with IEEE 802.3af, 802.3at or 802.3bt standards.
What mounting options are available for this switch?
The unit includes an integrated DIN rail bracket and can be mounted on a wall or flat surface with an additional kit.
What are the operating environment specifications?
It operates from -40 C to 75 C and 5% to 95% non-condensing humidity, with an aluminium housing and IP30 rating.
What standards and regulatory approvals does it carry?
It supports IEEE 802.3i, 802.3u, 802.3x and 802.3az. It carries regulatory approvals such as CE, UKCA, EAC, FCC, IC, RoHS and WEEE, and has a 2K MAC address table with jumbo frames up to 2048 bytes.
