TSW114 - Gigabit Din Rail Ethernet Switch

SKU: ELC8745

ā‚¹ 7,349.99 ā‚¹ 10,799.99

Out of stock

šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
ā± This is a pre-order item. We'll ship it as soon as it's back in stock.
TSW114 - Gigabit Din Rail Ethernet Switchā‚¹ 7,349.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Description

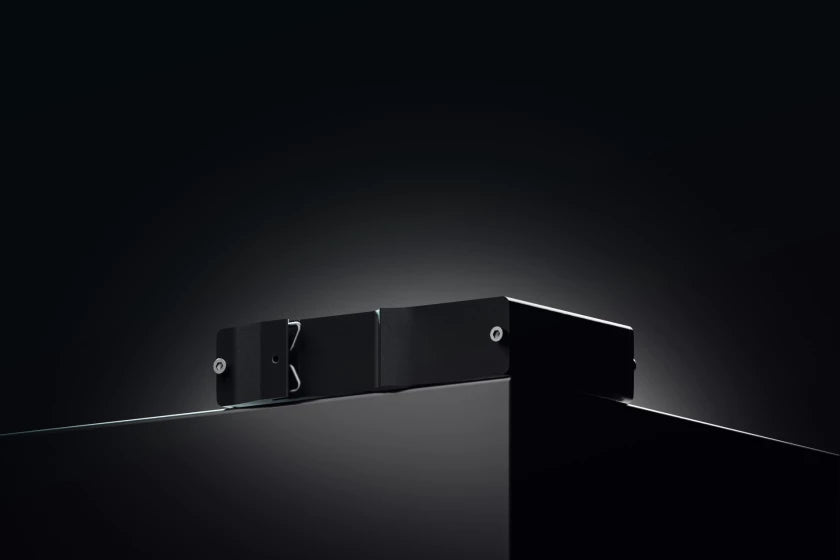

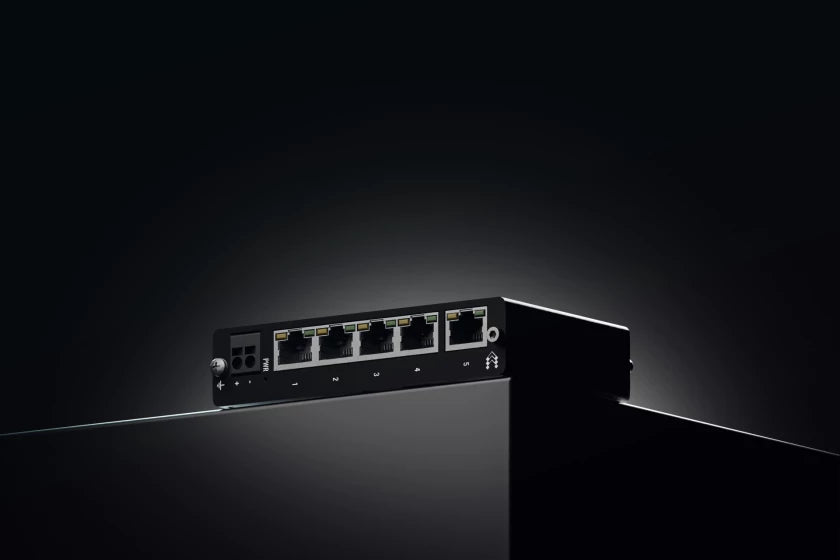

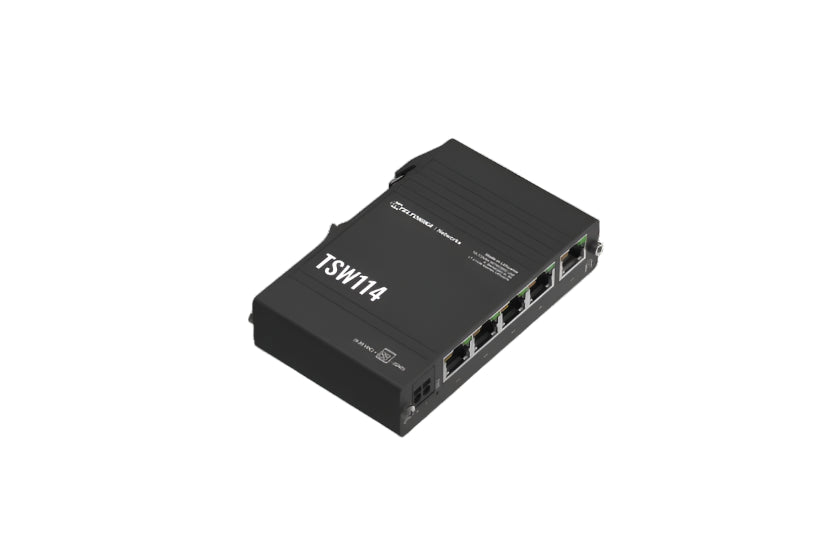

TSW114 is an affordable way to simplify your connectivity with its plug and play nature and 5 x Gigabit Ethernet ports that provide stable and reliable connectivity for high-bandwidth solutions. The Ethernet switch has front-facing ports and an integrated DIN rail bracket to enable easy installation across many industrial environments - especially control cabinets.

Standard package*

  • TSW114
  • QSG (Quick Start Guide)
  • Packaging box

*Standard package contents may differ based on standard order codes.

Ā

Features

EthernetĀ

Specification Details
ETH Ports 5 x ETH ports, 10/100/1000 Mbps
Features Supports auto MDI/MDIX crossover
IEEE 802.3 Series Standards 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

Ā

Performance

Specification Details
Bandwidth (Non-blocking) 10 Gbps
Packet Buffer 128 KB
MAC Address Table Size 2K entries
Jumbo Frame Support 9216 bytes

Ā

Performance

Specification Details
Bandwidth (Non-blocking) 10 Gbps
Packet Buffer 128 KB
MAC Address Table Size 2K entries
Jumbo Frame Support 9216 bytes

Ā

Power

Specification Details
Connector 2-pin industrial DC power socket
Input Voltage Range 9 ā€“ 30 VDC
PoE (Passive) Possibility to power up through ETH1 port, not compatible with IEEE 802.3af/at/bt standards, Mode B, 9 - 30 VDC
Power Consumption Idle: 0.3 W / Max: 2.3 W


Physical Interfaces

Specification Details
Ethernet Ports 5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs 1 x Power LED, 10 x ETH status LEDs
Power Connector 1 x 2-pin industrial DC power socket
Other 1 x Grounding screw

Ā

EMC Emissions & Immunity

Specification Standards
Standards EN 55032:2015 + A11:2020 + A1:2020, EN 55035:2017 + A11:2020
ESD EN 61000-4-2:2009
Radiated Immunity EN IEC 61000-4-3:2020
EFT EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017
CS EN 61000-4-6:2014


Safety Standards

Certification Standards
CE EN IEC 62368-1:2020 + A11:2020
RCM AS/NZS 62368.1:2022
CB IEC 62368-1:2018

Ā

Downloads

Manual & Documentation


Links

Ā

What is the port configuration and maximum speed?
The device has 5 x RJ45 ports with 10/100/1000 Mbps support and auto MDI/MDIX crossover. It offers a non-blocking bandwidth of 10 Gbps.
How is power supplied and can it use passive PoE?
Power is supplied via a 2 pin industrial DC socket with 9 to 30 VDC input. Passive PoE is possible through the ETH1 port in Mode B, but it does not support IEEE 802.3af, 802.3at or 802.3bt standards.
How is the device installed in industrial environments?
It features front facing ports and an integrated DIN rail bracket for easy mounting in control cabinets and other industrial enclosures.
What safety and EMC standards does it meet?
It meets EMC standards EN 55032 and EN 55035 and immunity standards EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5 and EN 61000-4-6, as well as safety standards EN IEC 62368-1 and related CE and CB approvals.
What is included in the standard package?
The standard package includes the TSW114 unit and a Quick Start Guide in a packaging box. Contents may differ based on standard order codes.
