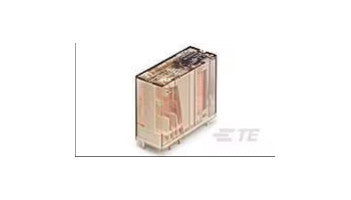

The V23047-A1110-A501 is a force-guided relay designed for safety-critical applications. Manufactured by TE Connectivity / POTTER-BRUMFIELD, this relay features a monostable design with two Form C DPDT contacts, rated for 6 A contact current. It operates with a 110 VDC coil voltage and supports contact voltages up to 250 VAC, ensuring reliable switching performance in demanding environments.
Key Features
Force-guided relay with 2 contacts (21)
Configuration: 2 Form C DPDT-CO
Contact Rating: 6 A
Coil Voltage: 110 VDC
Contact Voltage: 250 VAC
Coil Power: 0.7 W
Insulation dielectric strength: 1500 Vrms between open contacts, 3000 Vrms between adjacent contacts
