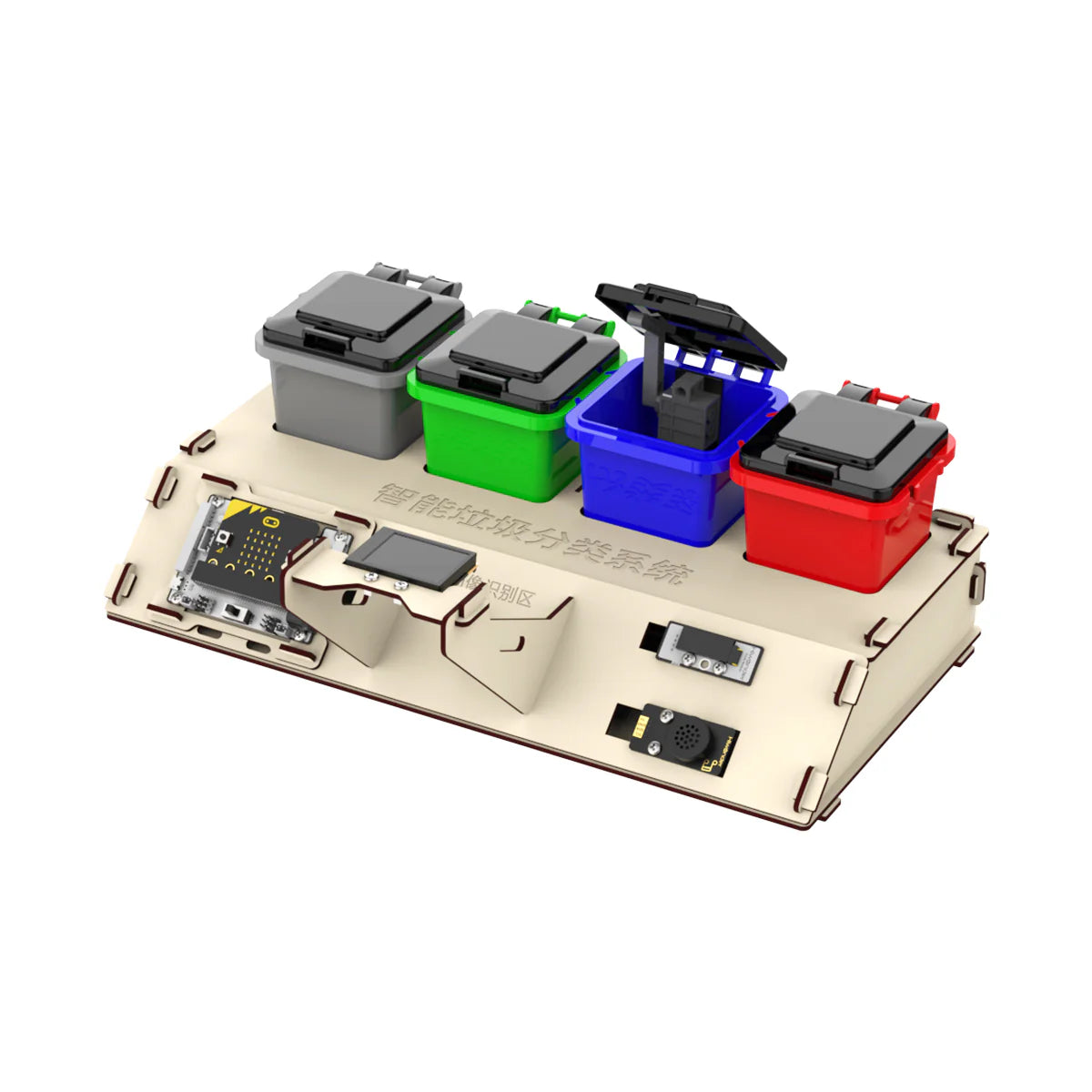

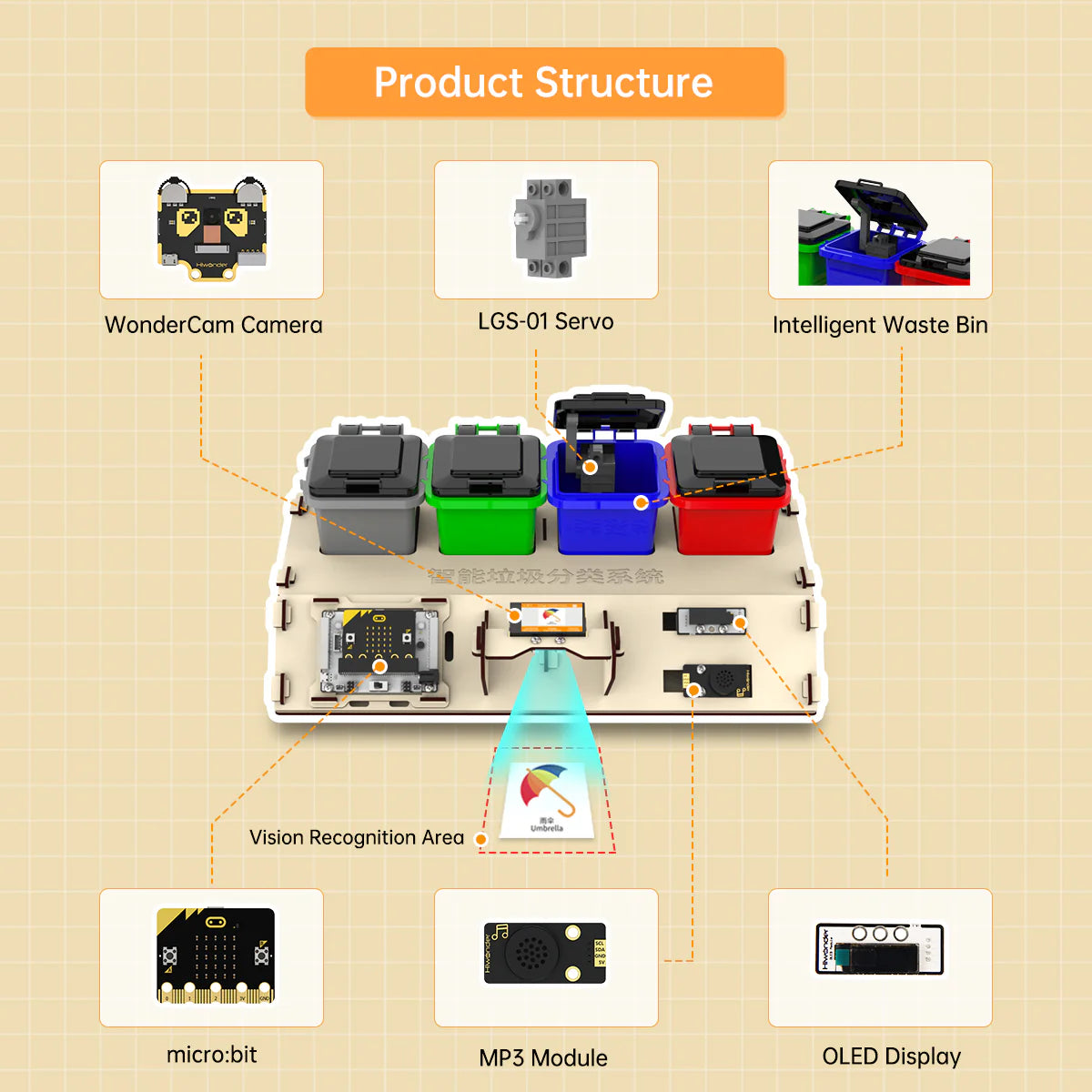

Powered by micro:bit, AI vision waste sorting robot kit is equipped with WonderCam AI vision camera, OLED display, voice broadcast system and 12 built-in trained models of waste sorting. It recognizes the waste category through WonderCam. After recognition, the result is announced by MP3 module and OLED display, and the corresponding waste bin opens at the same time.It is a nice tool applied to AI project learning and demonstration! This kit lets you learn artificial intelligence in simulated waste sorting scenario. In this way, you can better comprehend how to combine artificial intelligence and our daily life!
> Powered by micro:bit
> Loaded with Hiwonder WonderCam vision camera

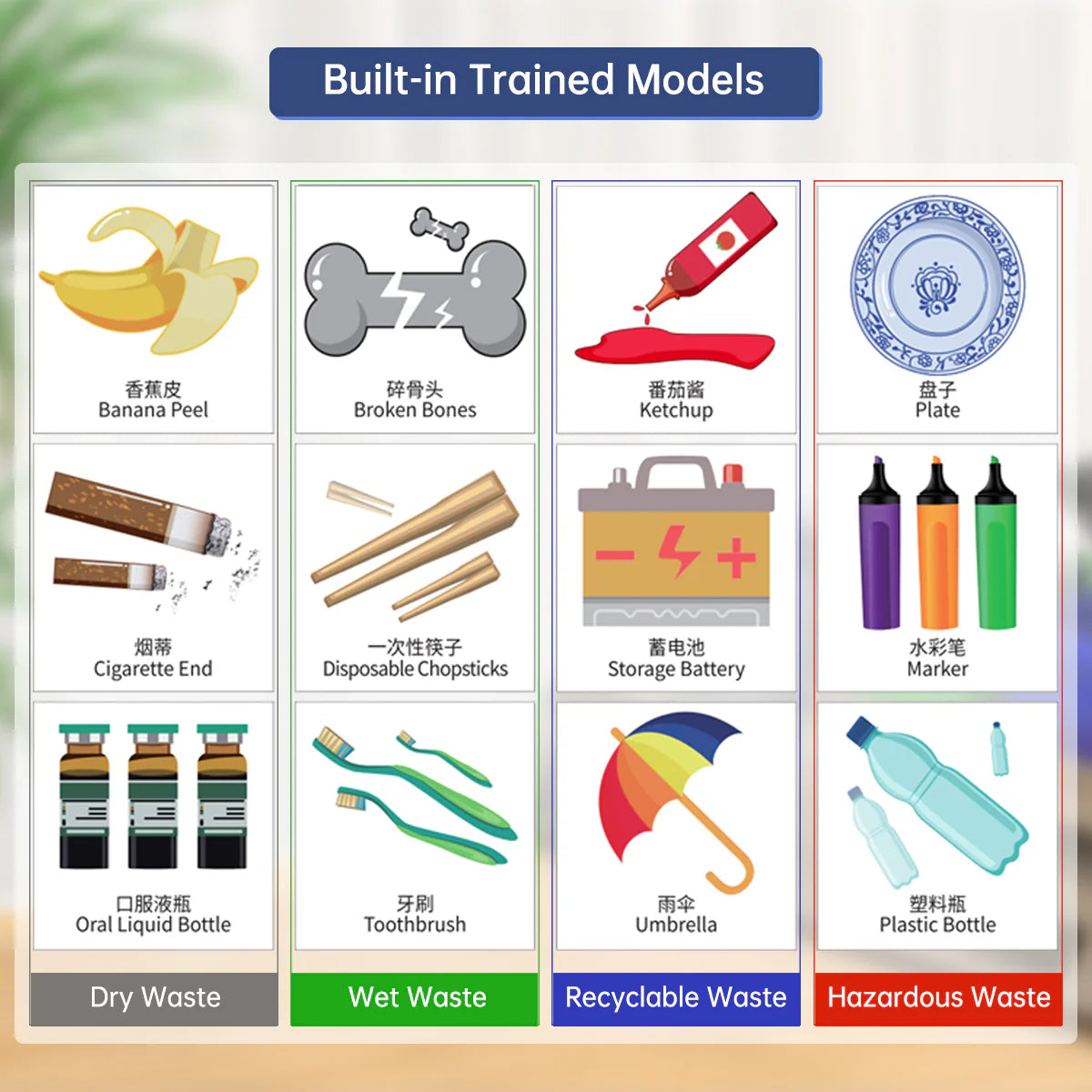

> Involve 12 built-in trained models of waste sorting
> Classification result will be broadcast by MP3 module and displayed on OLED
Ā
Ā

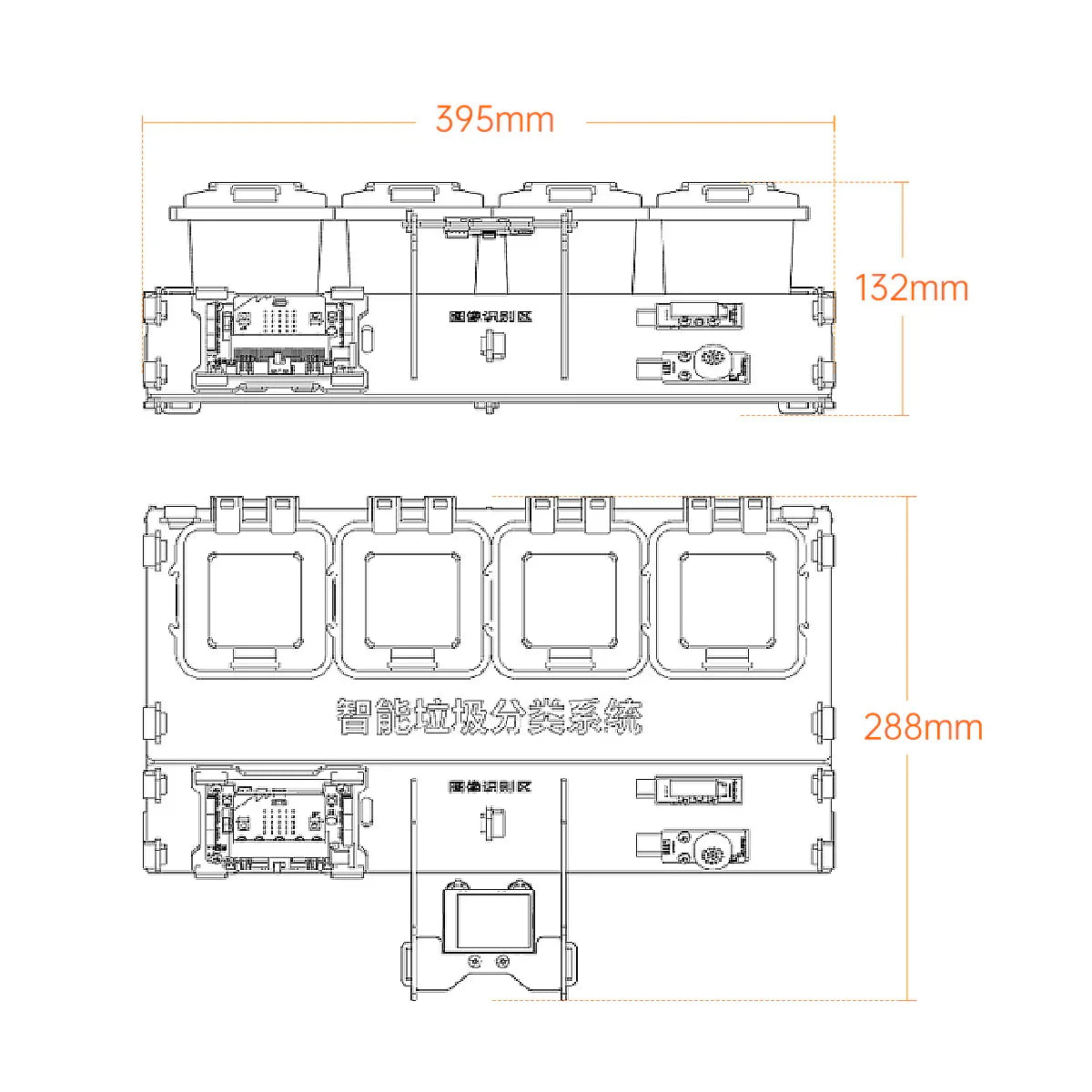

Dimensional Diagram
Ā
Dimensional Diagram
Ā
Ā
| Item | Specification |
|---|---|
| Size | 395 Ć 288 Ć 132 mm |
| Weight | About 0.9 kg |
| Power Supply | 3.7V 18650 battery (1200mAh) |
| Camera | WonderCam AI Vision Module |
| Control System | micro:bit |
| Processor | Kendryte K210 |
| Camera Resolution | 2 megapixel |
| Image Sensor | 0V2640 (2 megapixel) |
| Supply Voltage | 5.0V |
| Working Current | 300mA (Typical: facial recognition, 100% backlight, fill light off) |
| Connectors | I2C |
| Display | 2.0 IPS, resolution 320Ć240 |
| Built-in Functions | Facial recognition, image classification, feature learning, color recognition, vision line following, tag recognition, number recognition, landmark recognition |
| Module Dimension | 52 mm Ć 50 mm |
| Display Dimension | 41 mm Ć 31 mm |
| Product Weight | 24g |
Ā
Ā
Ā
Ā
Ā
No reviews yet. Be the first to share your experience!
Fill out the form below and our team will get back to you with bulk pricing.
