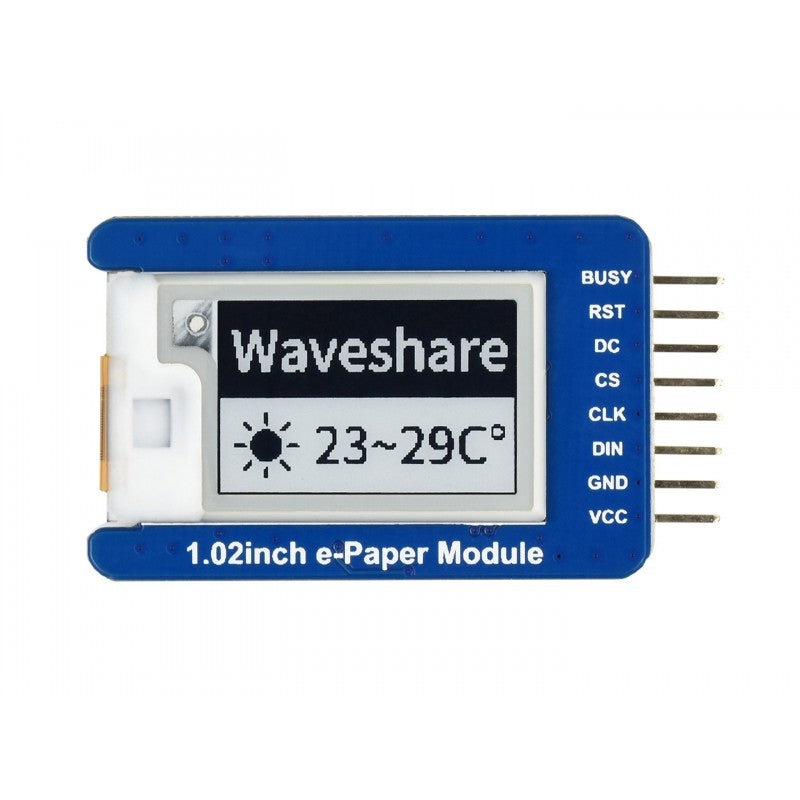

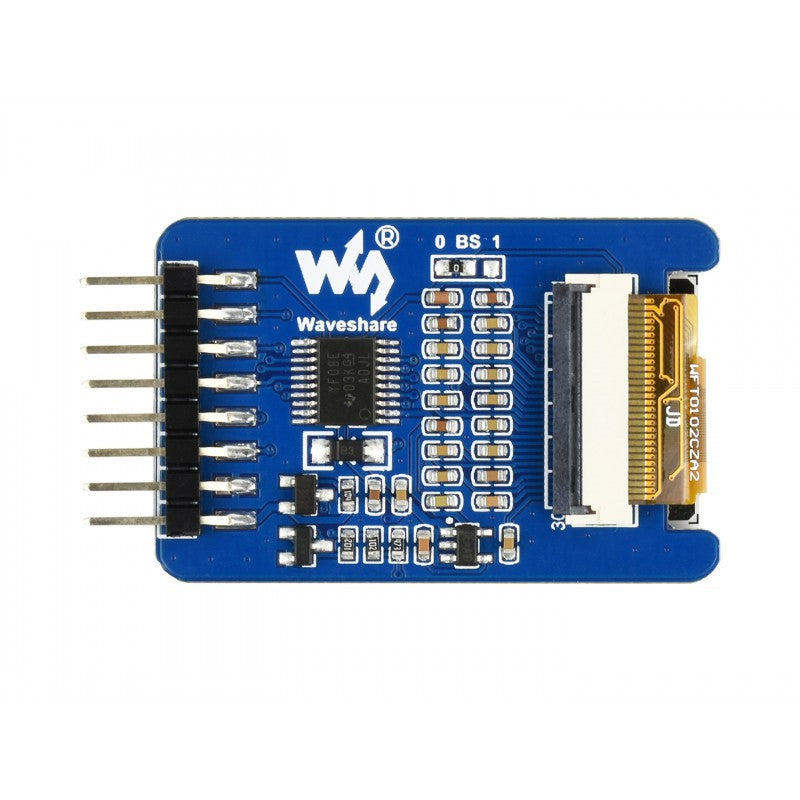

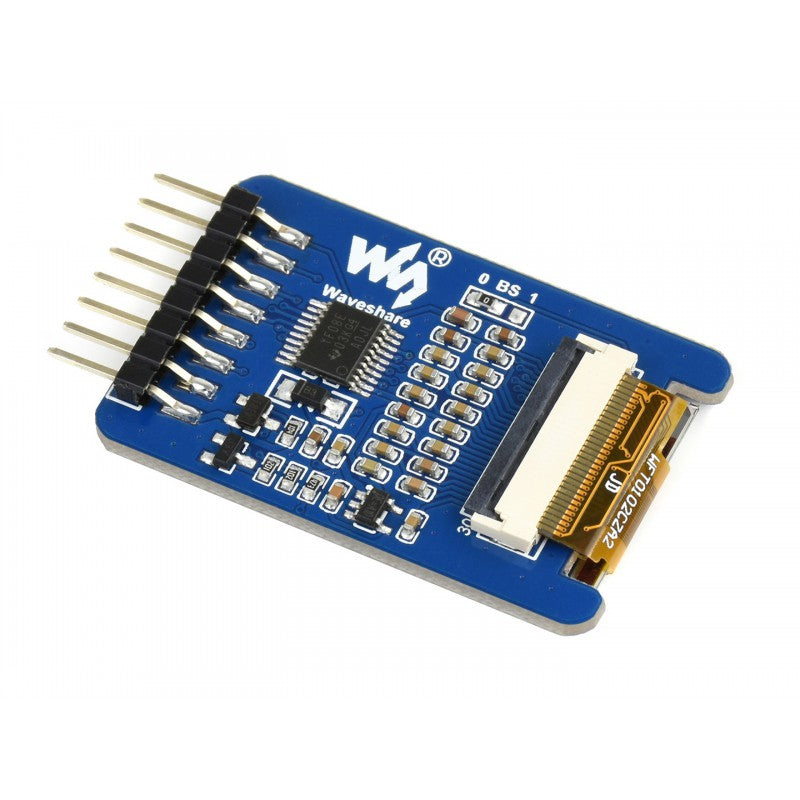

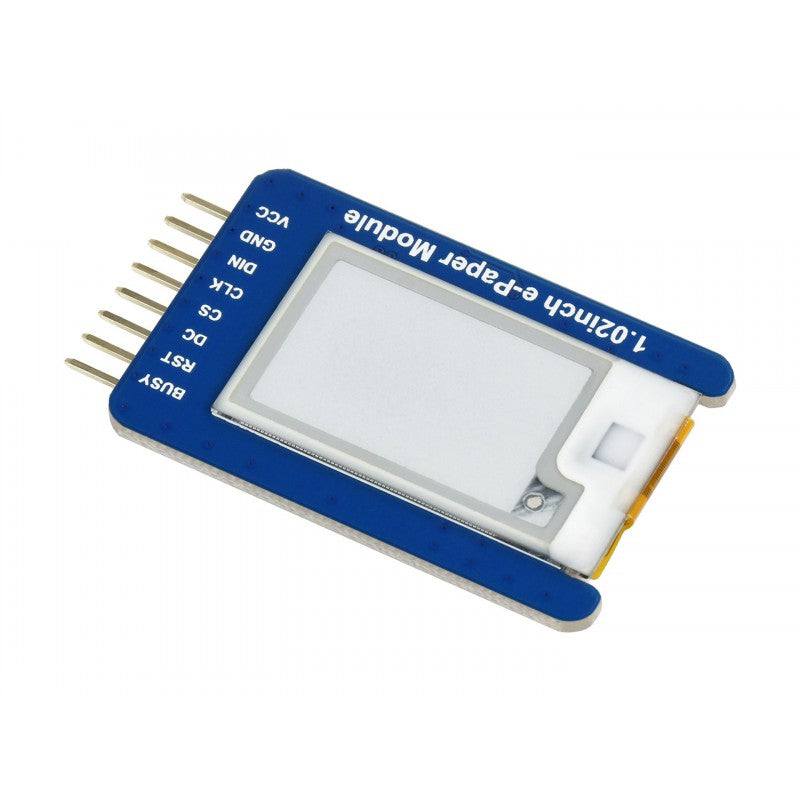

Waveshare 128×80 1.02inch E-Ink display module, black/white dual-color
128×80, 1.02inch E-Ink Display Module, Black/White Dual-Color, SPI Interface
This is an E-Ink display module, 1.02inch, 128×80 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.
Features:
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
SPI control interface, for working with host boards such as Raspberry Pi/Jetson Nano/Arduino/Nucleo
Onboard voltage translator, compatible with 3.3V/5V MCUs
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications:
Operating voltage: 3.3V / 5V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 42mm × 27mm
Display size: 21.76mm × 14mm
Dot pitch: 0.175 × 0.17
Resolution: 128 × 80
Display color: black, white
Grey scale: 2
Full refresh time: 2s
Refresh power: 26.4mW(typ.)
Standby power: <0.017mW
Viewing angle: >170°
Interface
VCC - 3.3V / 5V power input
GND - Ground
DIN - SPI MOSI pin
CLK - SPI SCK pin
CS - SPI chip selection, low active
DC - Data/Command selection (high for data, low for command)
RST - External reset, low active
BUSY - Busy status output, low active
Dimensions:
