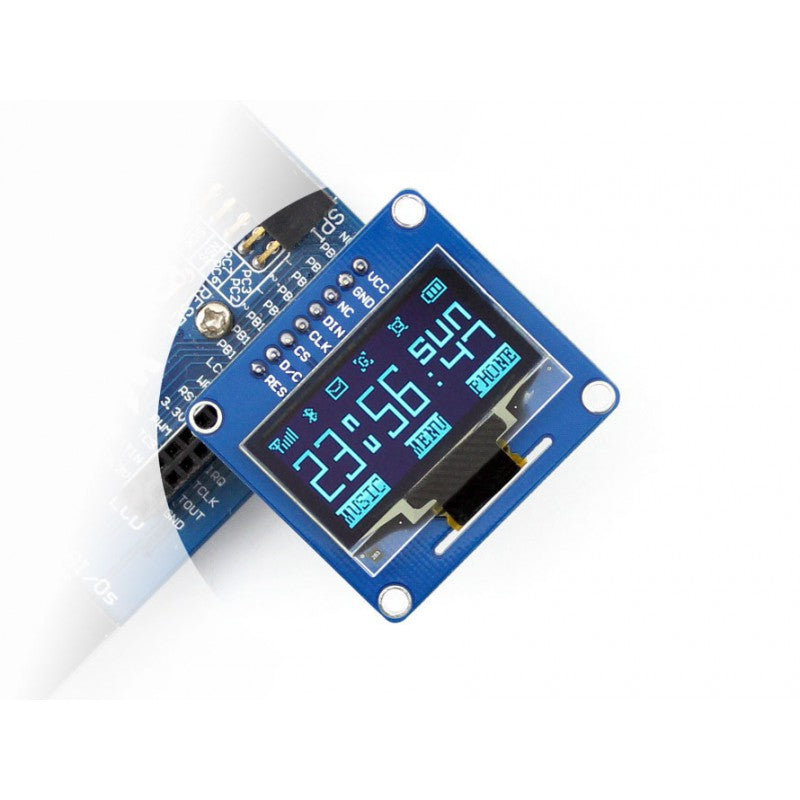

Waveshare 1.3 inch OLED with Vertical Pin header
1.3inch OLED, SPI/I2C Interfaces, Straight/Vertical Pin header

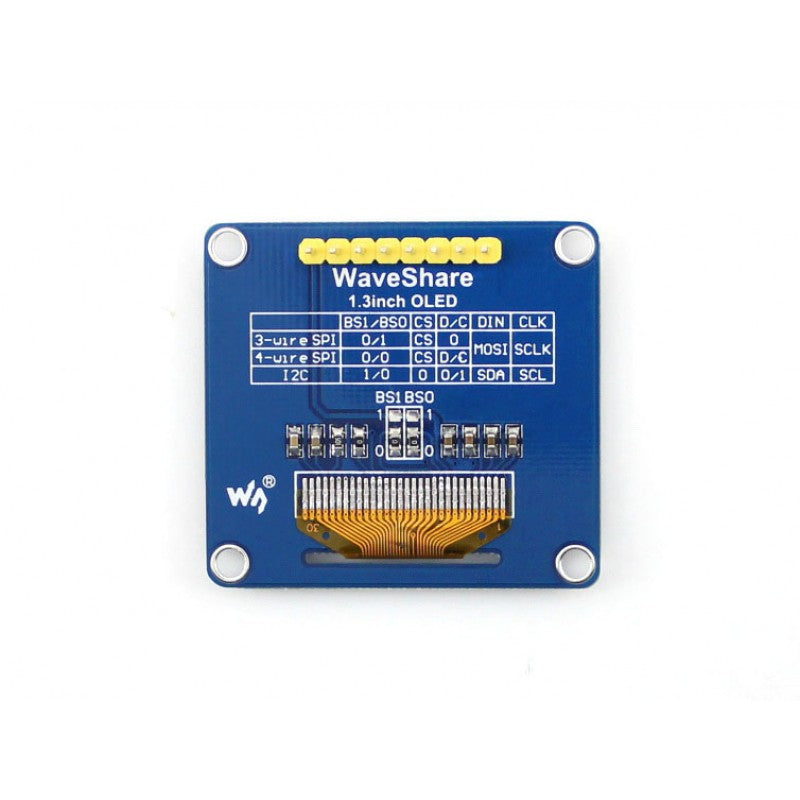

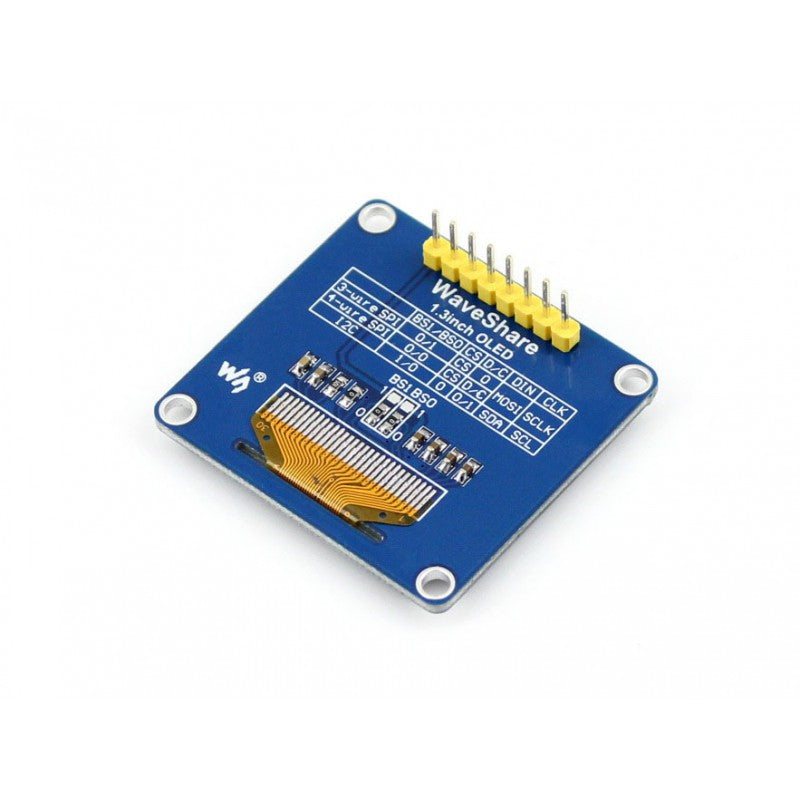

The OLED module provides three drive interfaces: 3-wire SPI, 4-wire SPI, and I2C interface respectively. There are two resistors that can be soldered on the back of the module
Features:
Driver Chip: SH1106
Interface: 3-wire SPI, 4-wire SPI, I2C
Resolution: 128X64
Display Size: 1.3inch
Colors: Blue
Visible Angle >160°
Operating Temperature (℃): -30~70
Storage Temperature (℃): -30~80
Operating Voltage: 3.3V / 5V
Applicability: Hardware platforms such as Raspberry Pi/Jetson Nano/Arduino/STM32

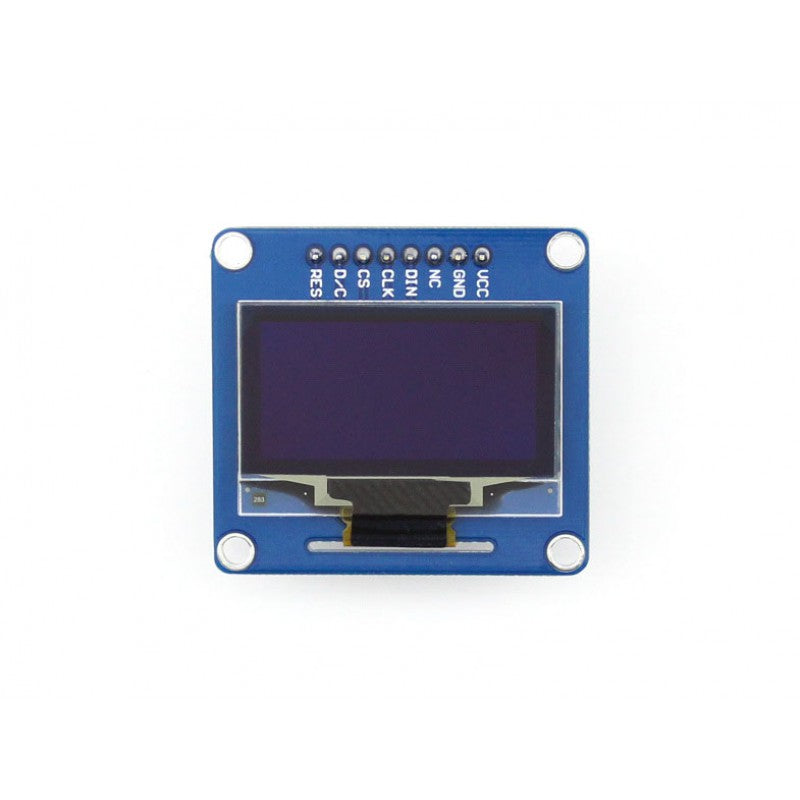

Interface
VCC - 3.3V / 5V power input
GND - Ground
NC: No Connection
DIN - Data Input / SPI MOSI pin
CLK - Clock / SPI SCK pin
CS - SPI chip selection, low active
DC - Data/Command selection (high for data, low for command)
RST - External reset, low active
Development resources: demo codes, schematic, datasheets, etc. Wiki: www.waveshare.com/wiki/1.3inch_OLED_(B)
