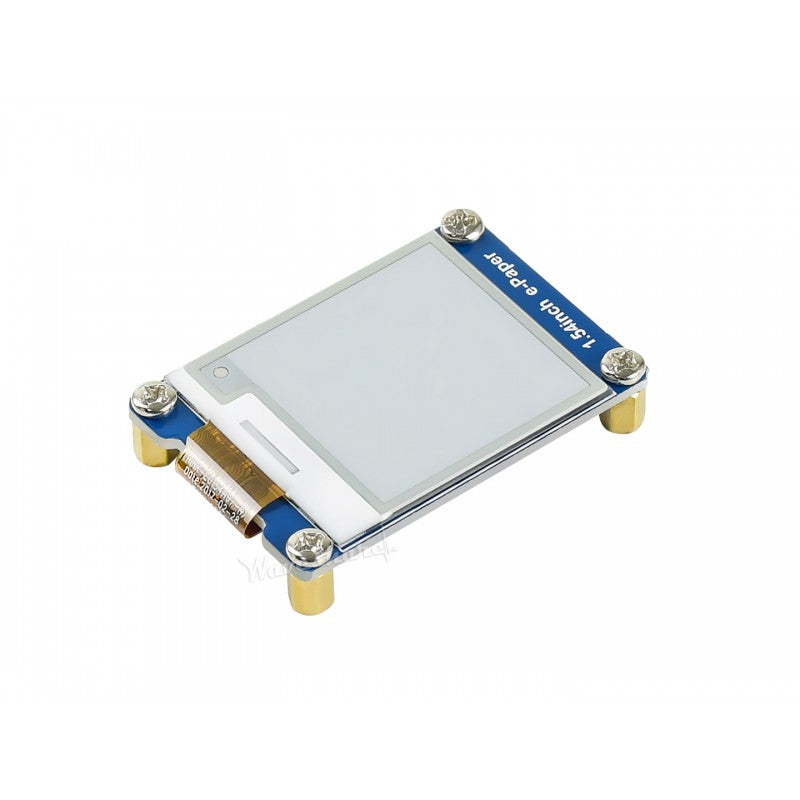

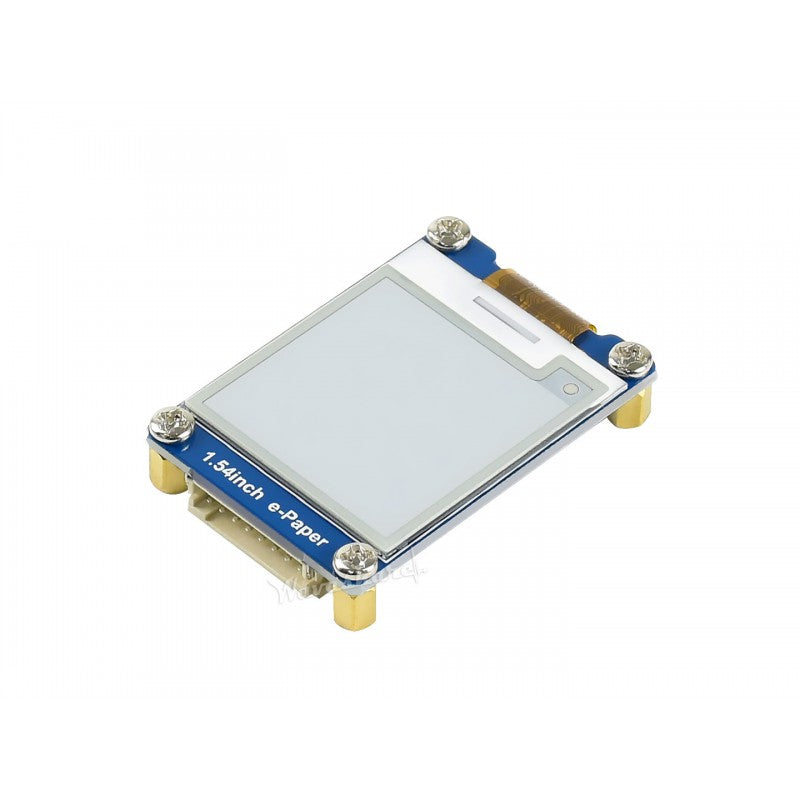

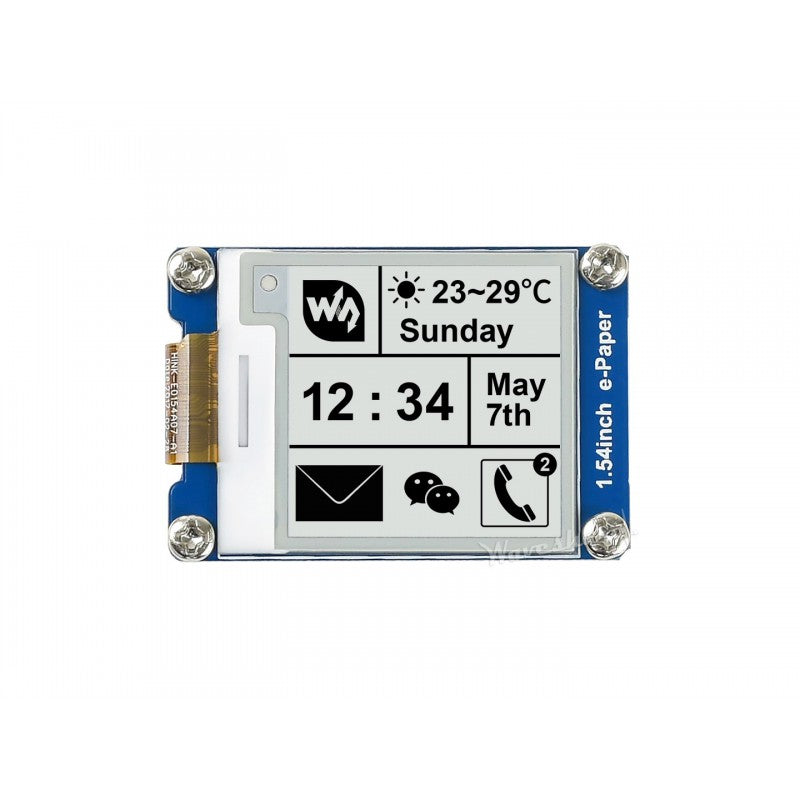

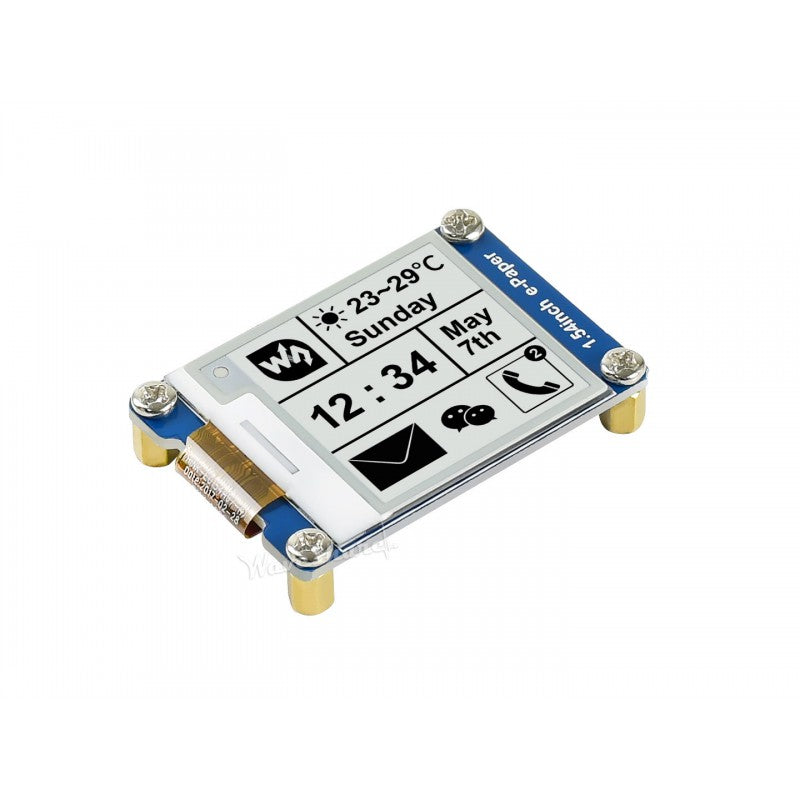

200x200, 1.54inch E-Ink Display Module, SPI Interface
This is an E-Ink display module, 1.54inch, 200x200 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Ā Features:
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.
- Onboard voltage translator, compatible with 3.3V/5V MCUs
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications:
- Operating voltage: 3.3V/5V
- Interface: 3-wire SPI, 4-wire SPI
- Outline dimension: 48mm Ć 33mm
- Display size: 27.6mm Ć 27.6mm
- Dot pitch: 0.138 Ć 0.138
- Resolution: 200 Ć 200
- Display color: black, white
- Grey level: 2
- Partial refresh time: 0.3s
- Full refresh time: 2s
- Refresh power: 26.4mW(typ.)
- Standby power: <0.017mW
- Viewing angle: >170Ā°

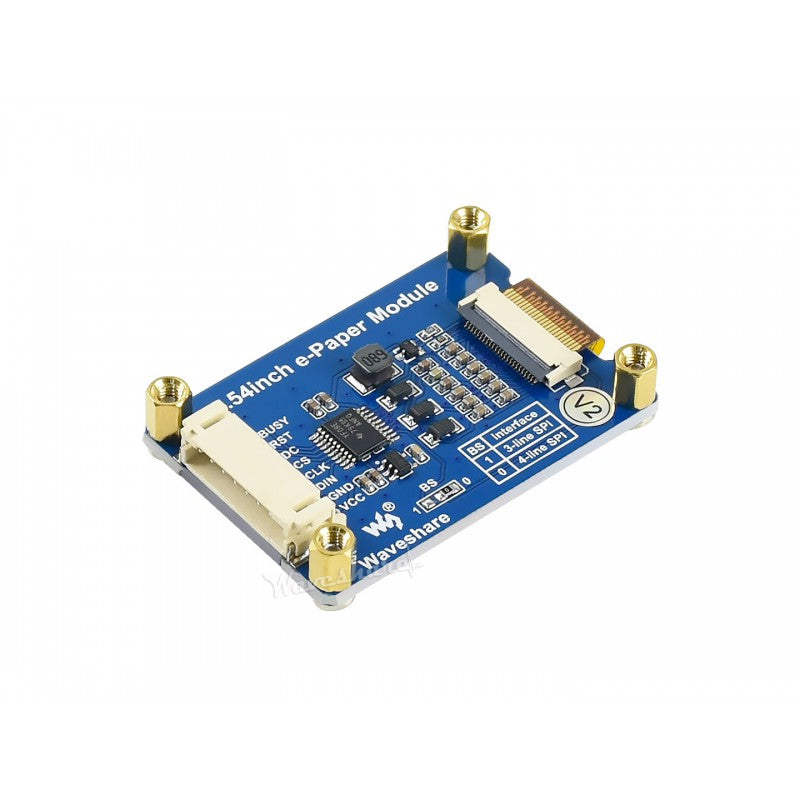

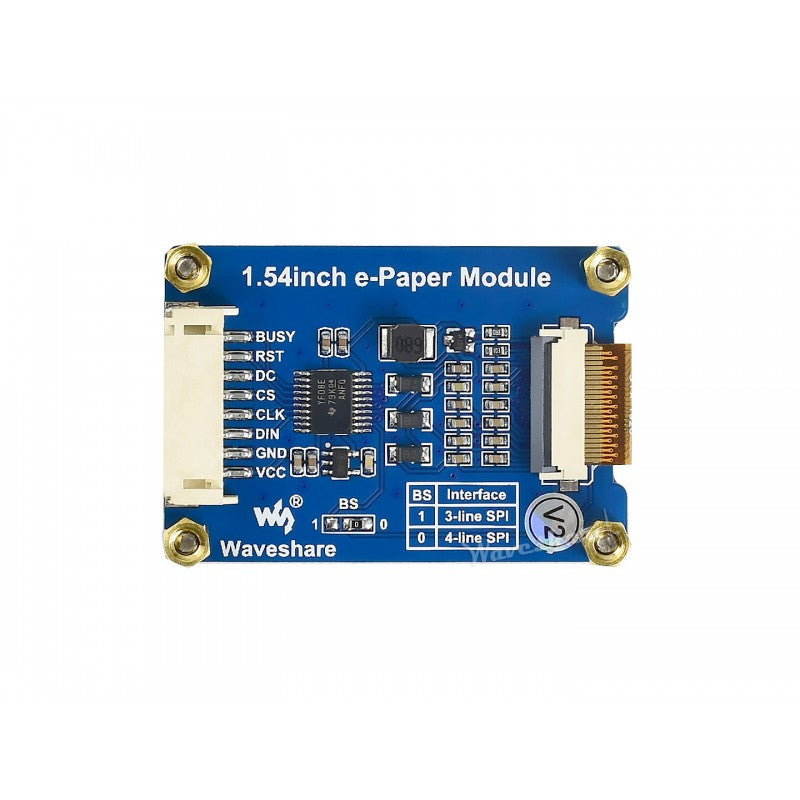

Interface
- VCC - 3.3V / 5V power input
- GND - Ground
- DIN - Data Input / SPI MOSI pin
- CLK - Clock / SPI SCK pin
- CS - SPI chip selection, low active
- DC - Data/Command selection (high for data, low for command)
- RST - External reset, low active
- BUSY -Ā Busy status output, high active
Package Contains: 1xĀ 1.54inch E-Ink display module
Outline Dimensions
Ā
Development resources:Ā
Wiki :Ā www.waveshare.com/wiki/1.54inch_e-Paper_Module
What is the display size and resolution of this module?
It is a 1.54 inch E-Ink display with a 200 x 200 resolution and a 27.6 mm x 27.6 mm active area.
What interfaces and voltage levels does it support?
The module uses 3 wire or 4 wire SPI and operates at 3.3V or 5V. An onboard voltage translator allows connection to 3.3V or 5V MCUs.
How fast are the refreshes and how much power does it use?
Partial refresh time is 0.3 seconds and full refresh time is 2 seconds. Refresh power is typ 26.4 mW and standby power is less than 0.017 mW.
What development resources are available and which platforms can be used?
Development resources and a manual are provided with examples for Raspberry Pi, Jetson Nano, Arduino, and STM32.
What is included in the package and what are notable display features?
Package contains 1 x 1.54 inch E-Ink display module. It has no backlight, ultra low power consumption, long content retention without power, and supports partial refresh.
