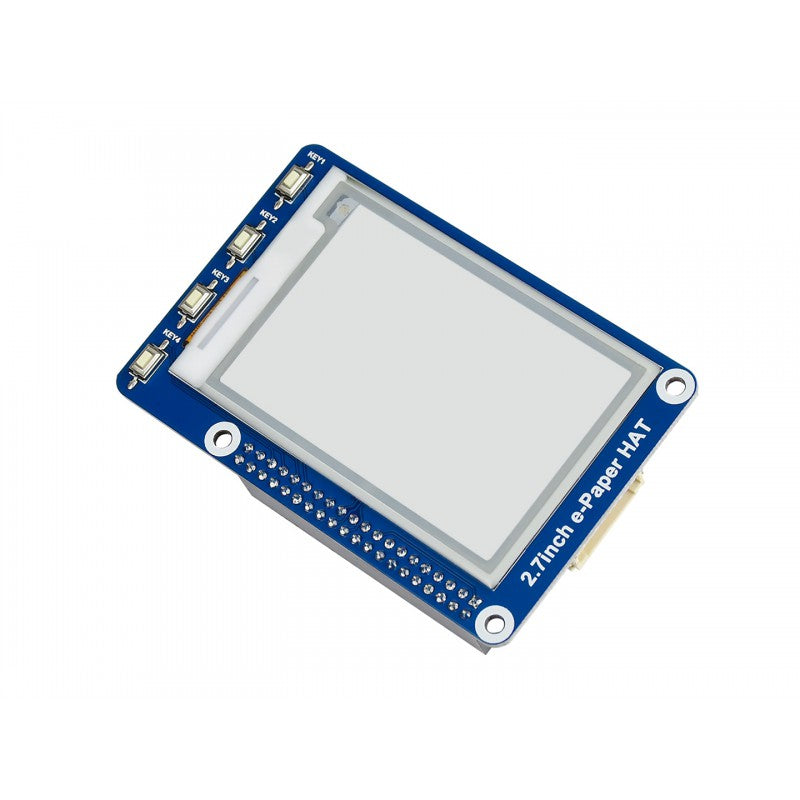

Waveshare 2.7inch E-Ink display HAT for Raspberry Pi 264x176
264x176, 2.7inch E-Ink Display HAT For Raspberry Pi, SPI Interface
This is an E-Ink display HAT for Raspberry Pi, 2.7inch, 264x176 resolution, with embedded controller, communicating via SPI interface.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features:
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing

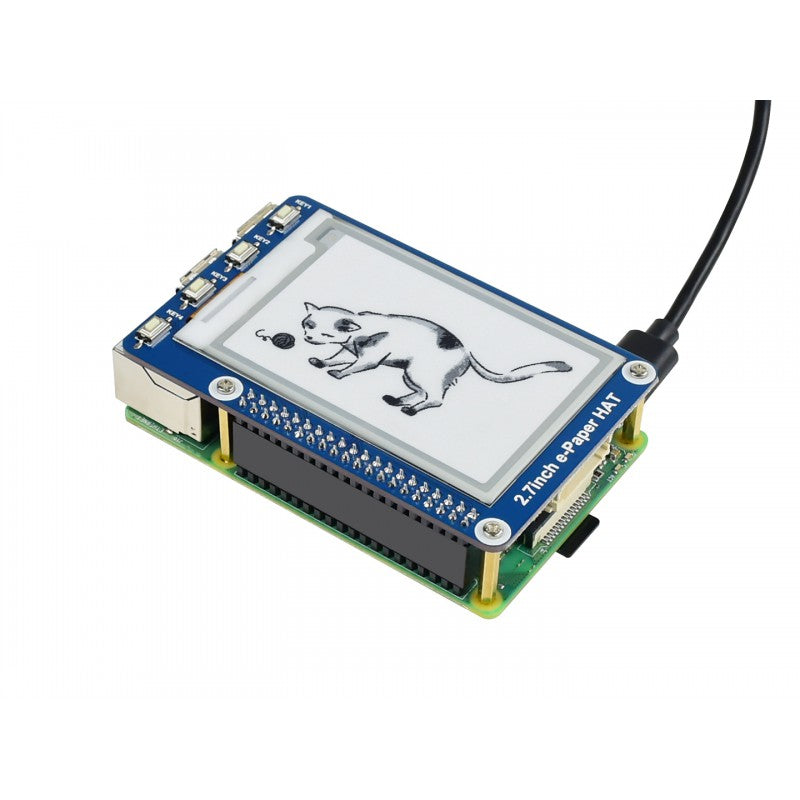

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano

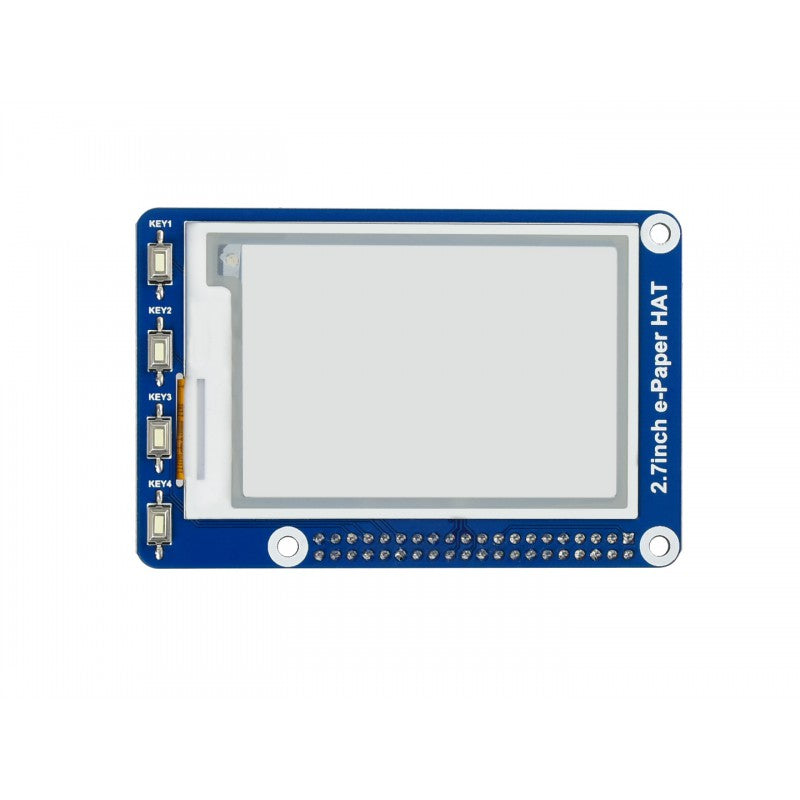

Onboard 4x Keys
SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
Onboard voltage translator, compatible with 3.3V/5V MCUs
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications:
Operating voltage: 3.3V/5V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 85mm × 56mm
Display size: 57.288mm × 38.192mm
Dot pitch: 0.217 × 0.217

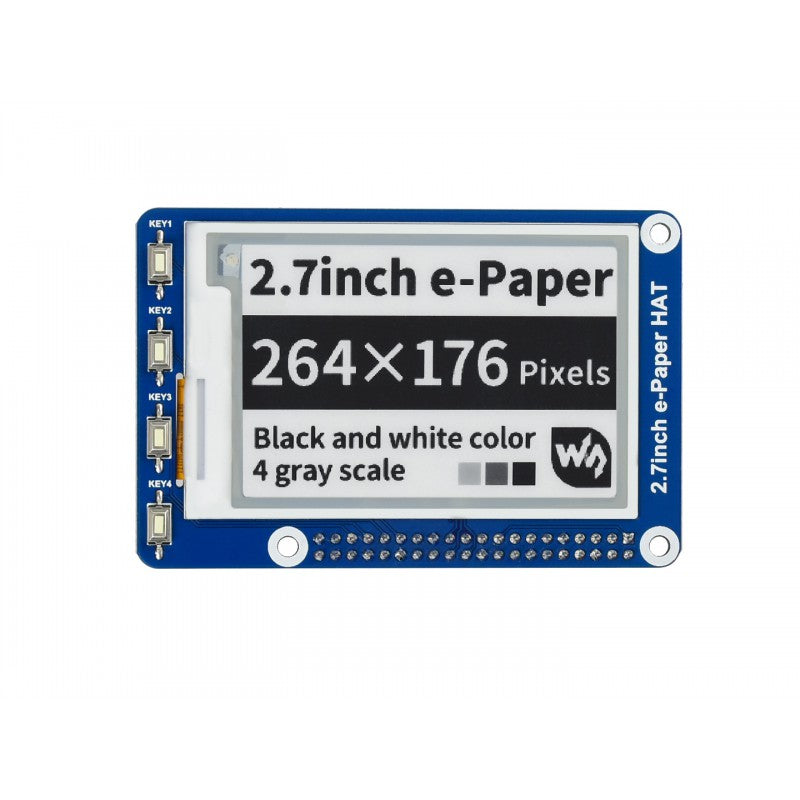

Resolution: 264 × 176
Display color: black, white
Grey scale: 4
Full refresh time: 6s
Refresh power: 24mW(typ.)
Standby power: <0.017mW
Viewing angle: >170°

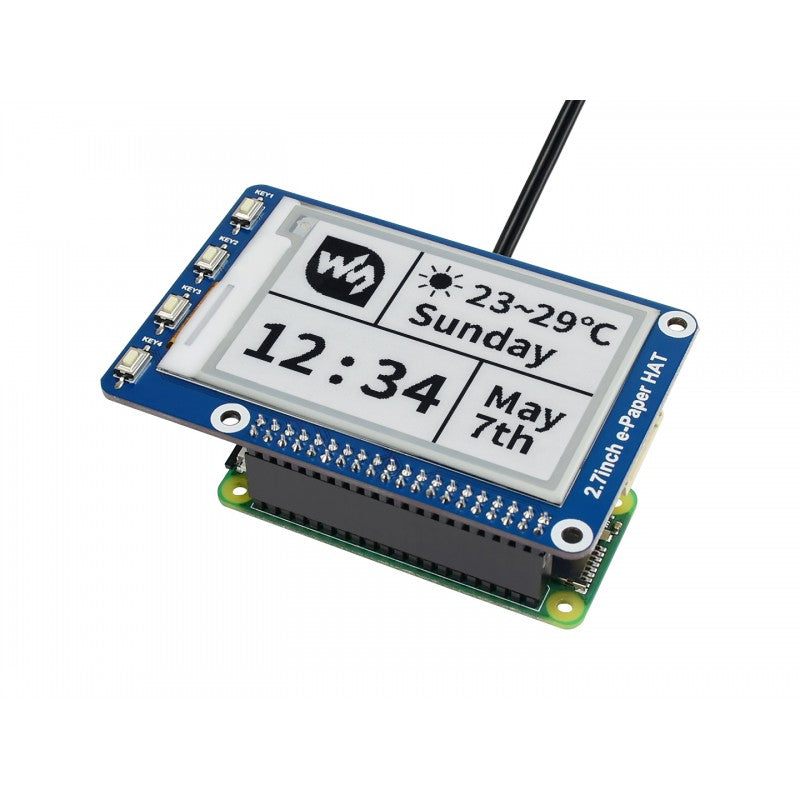

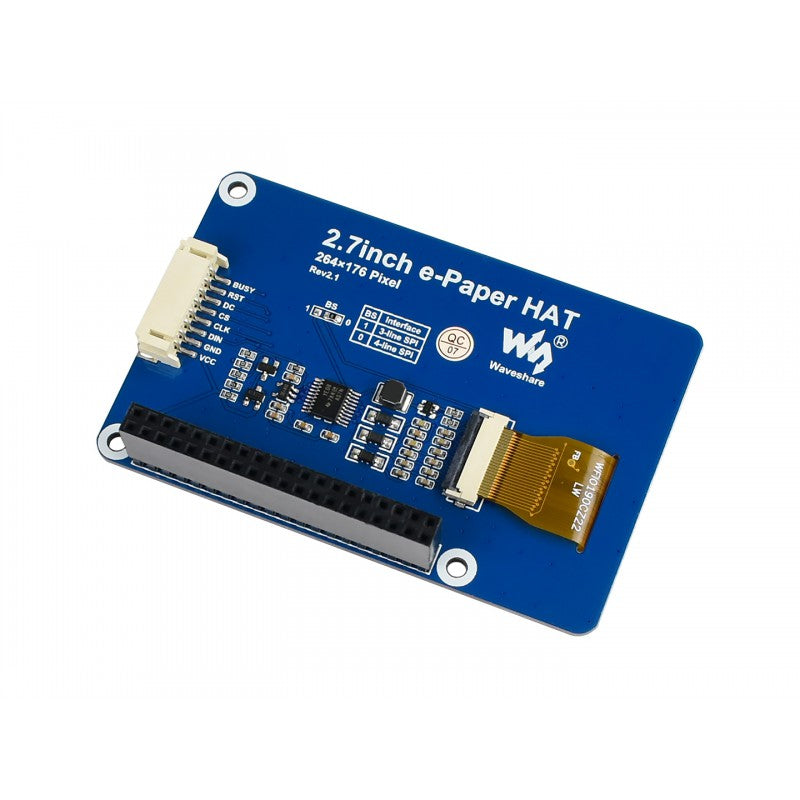

Interface
VCC - 3.3V / 5V power input
GND - Ground
DIN - Data Input / SPI MOSI pin
CLK - Clock / SPI SCK pin
CS - SPI chip selection, low active
DC - Data/Command selection (high for data, low for command)
RST - External reset, low active
BUSY - Busy status output, high active
Package Contains: 1x 1.54inch E-Ink display module
Development resources: Wiki : www.waveshare.com/wiki/2.7inch_e-Paper_HAT
