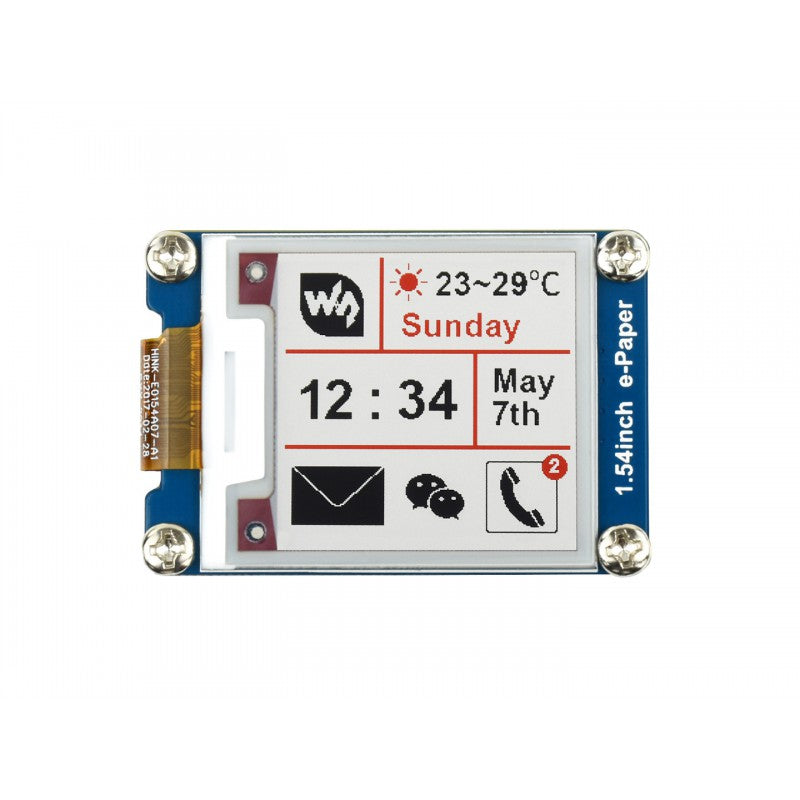

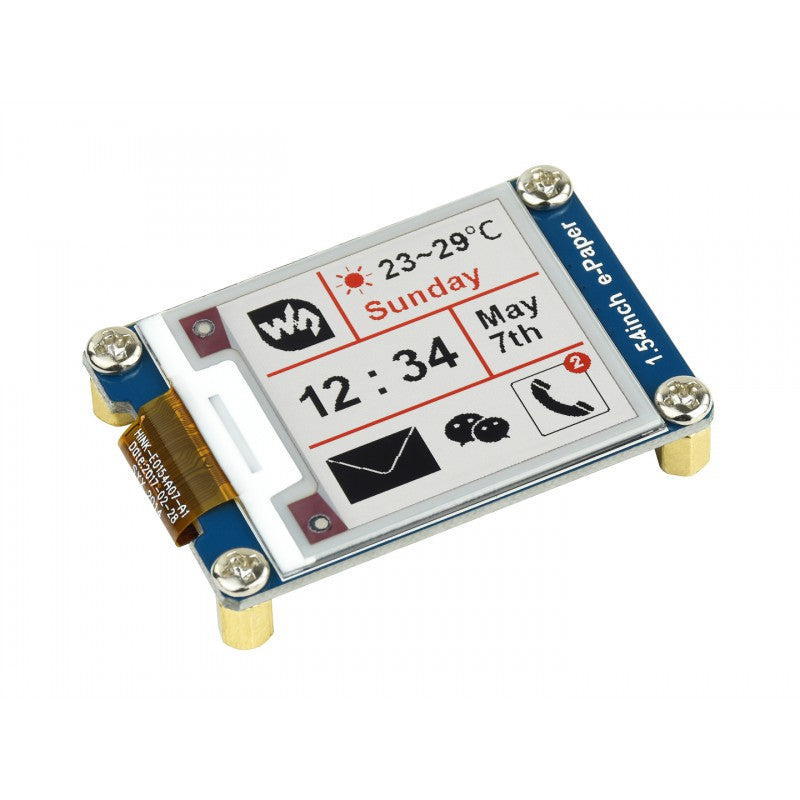

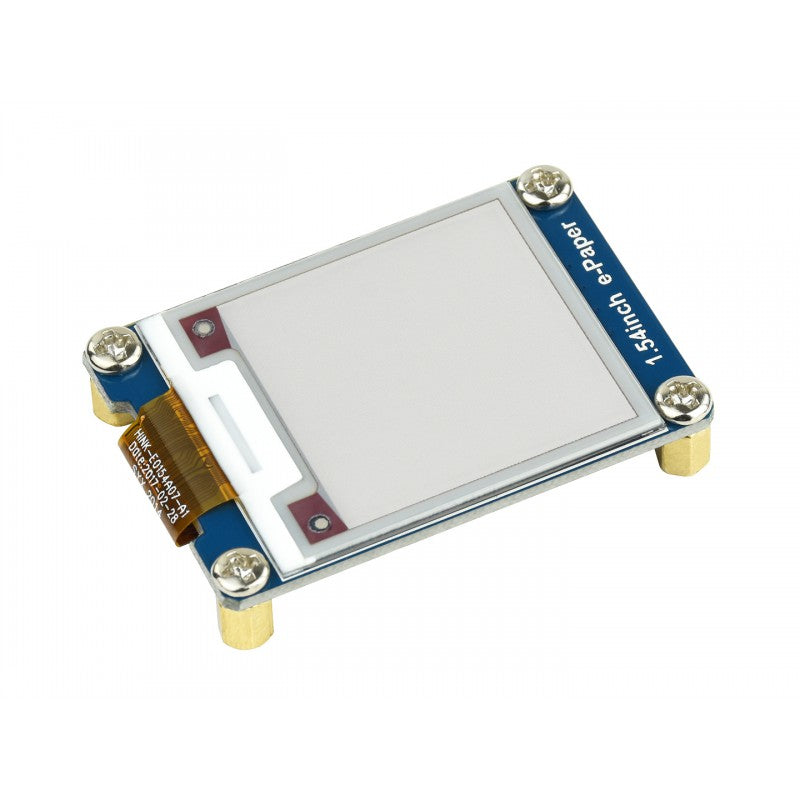

Waveshare 200x200 1.54inch E-Ink display module - three color
200x200, 1.54inch E-Ink Display Module, Three-Color, SPI Interface
This is an E-Ink display module, 1.54inch, 200x200 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features:
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
SPI interface, for connecting with controller boards like Raspberry Pi/Nucleo, etc.
Onboard voltage translator, compatible with 3.3V/5V MCUs
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/STM32)
Specifications:
Operating voltage: 3.3V/5V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 48mm × 33mm
Display size: 27.6mm × 27.6mm
Dot pitch: 0.138 × 0.138
Resolution: 200 × 200
Display color: black, red, white
Grey level: 2
Partial refresh time: 0.3s
Full refresh time: 2s
Refresh power: 26.4mW(typ.)
Standby power: <0.017mW
Viewing angle: >170°

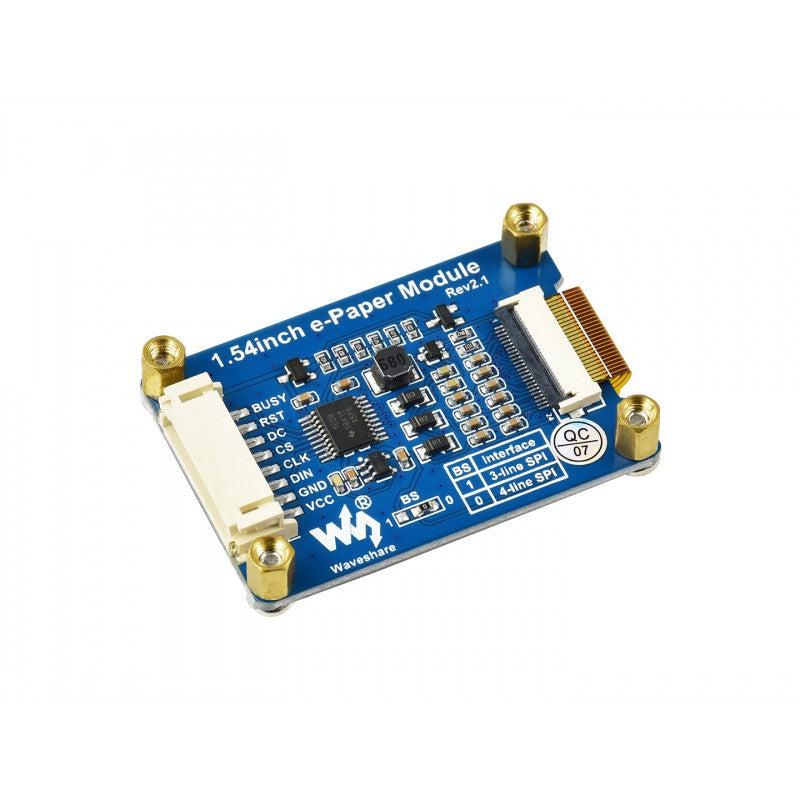

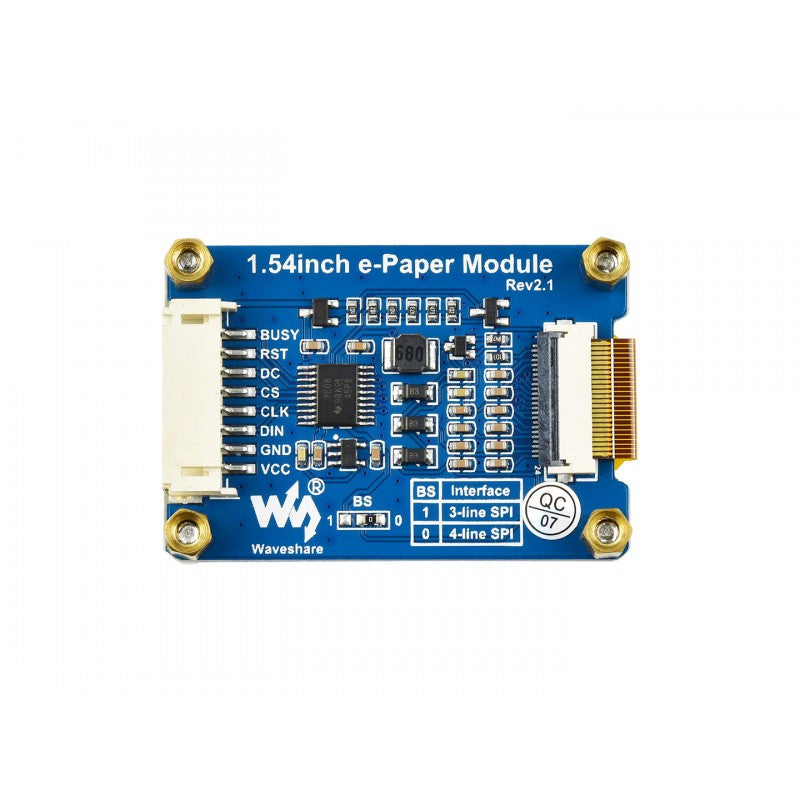

Interface
VCC - 3.3V / 5V power input
GND - Ground
DIN - Data Input / SPI MOSI pin
CLK - Clock / SPI SCK pin
CS - SPI chip selection, low active
DC - Data/Command selection (high for data, low for command)
RST - External reset, low active
BUSY - Busy status output, high active
Package Contains: 1x 1.54inch E-Ink display module
Outline Dimensions
Development resources: Wiki : www.waveshare.com/wiki/1.54inch_e-Paper_Module_(B)
