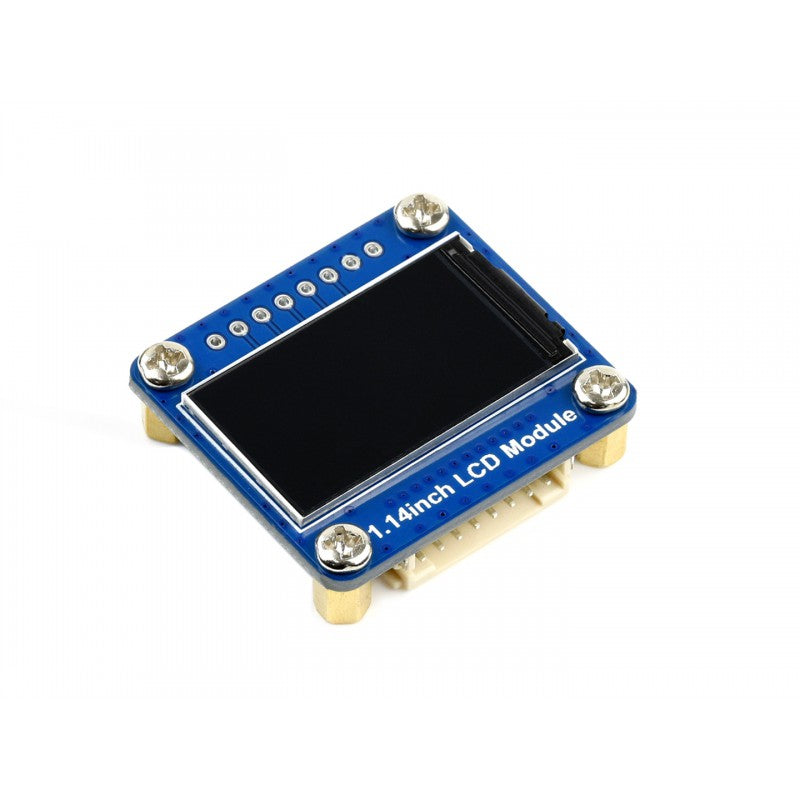

Waveshare 240×135, General 1.14inch LCD Display Module, IPS, 65K RGB
1.14inch LCD Display Module, IPS Screen, 65K RGB Colors, 240×135 Resolution, SPI Interface
Embedded ST7789 Driver, Using SPI Bus
Features:

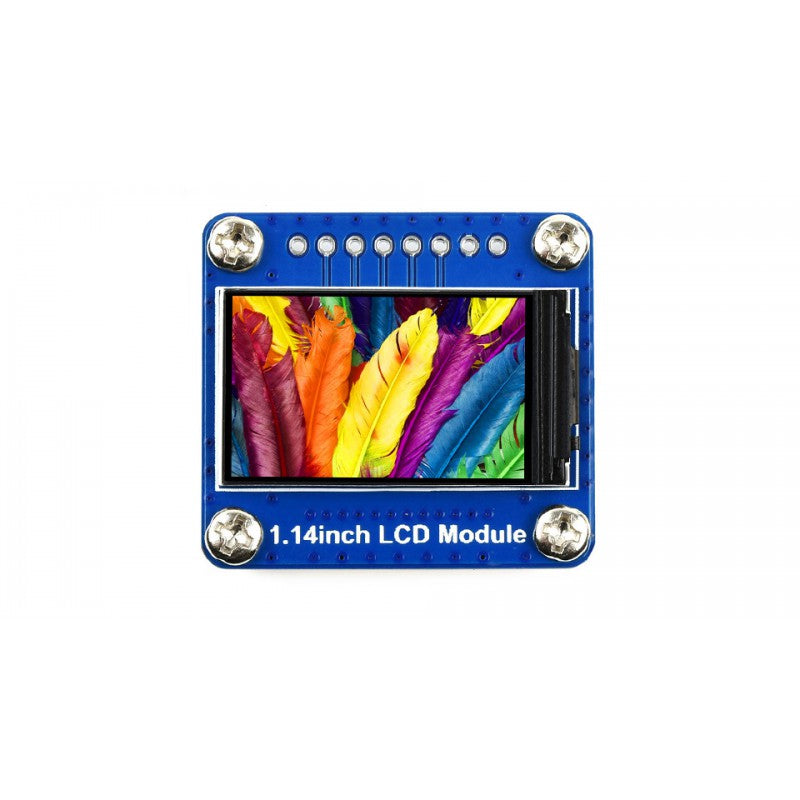

240×135 resolution, 65K RGB colors, clear and colorful displaying effect
SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
Comes with development resources (examples for Raspberry Pi/Arduino/STM32)
Specifications:
Operating voltage: 3.3V / 5V
Interface: 3-wire SPI, 4-wire SPI
Display Panel: IPS
Driver: ST7789
Resolution: 240 × 135 pixels
Display Size: 24.91 × 14.86mm
Pixel Size: 0.1101 × 0.1035mm

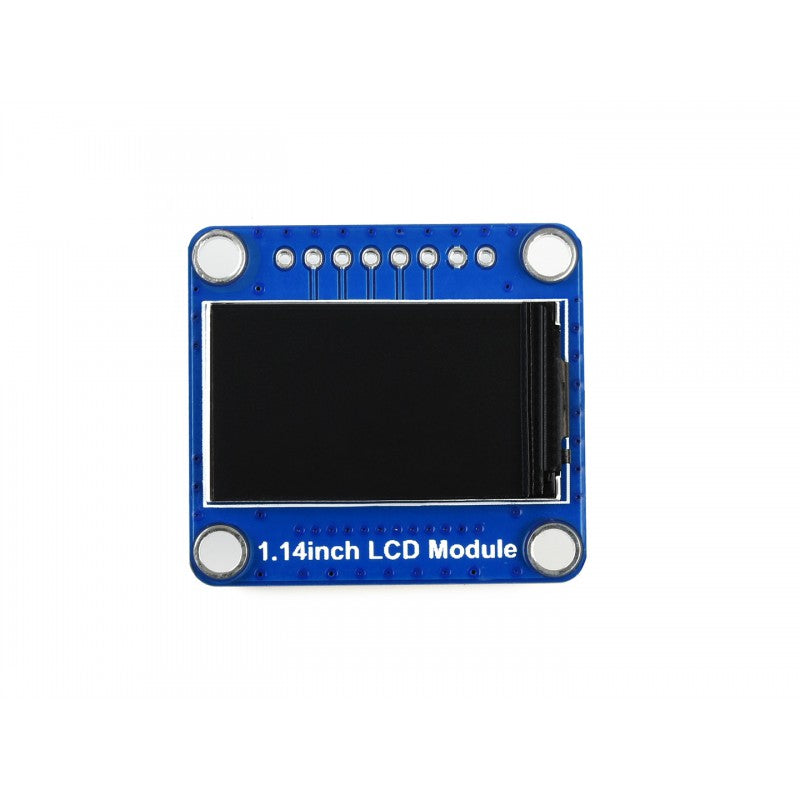

Dimensions: 35.00 × 32.00mm

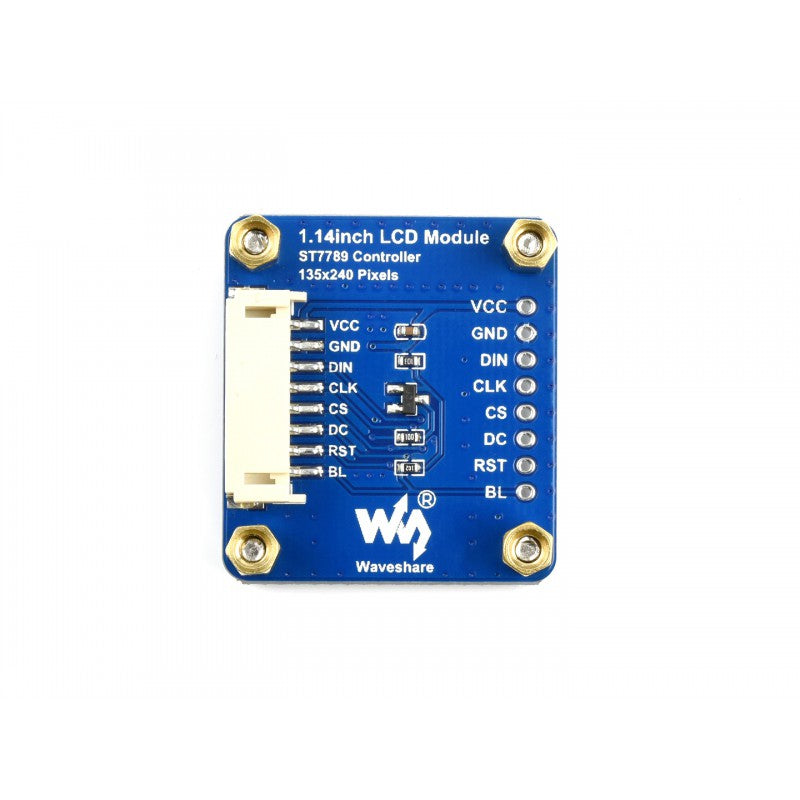

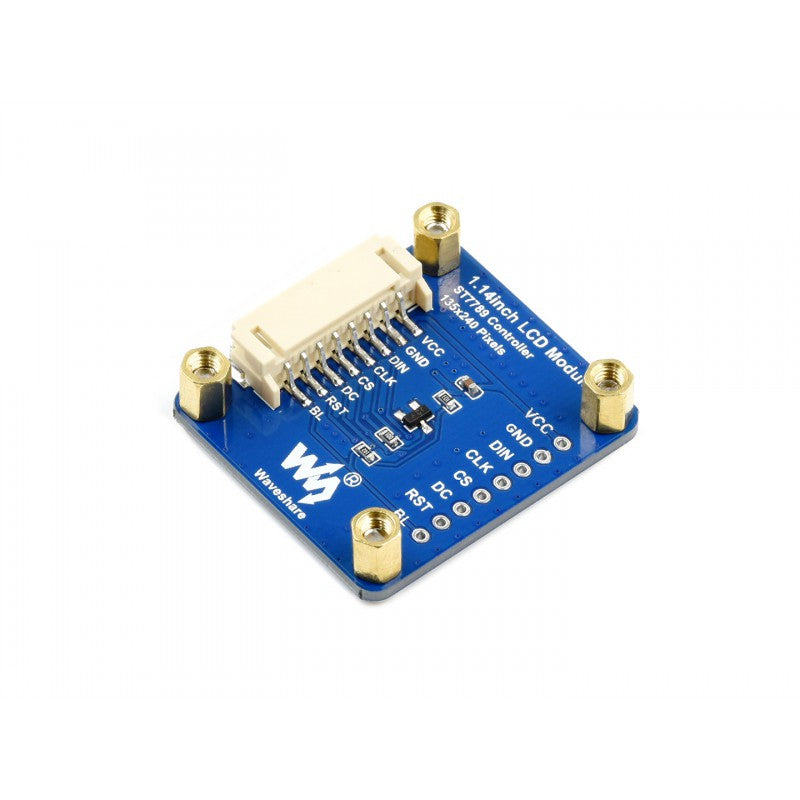

Interface
VCC - 3.3V / 5V power input
GND - Ground
DIN - SPI MOSI pin
CLK - SPI SCK pin
CS - SPI chip selection, low active
DC - Data/Command selection (high for data, low for command)
RST - External reset, low active
BL - Backlight
Controlled Via SPI Bus
Supports Controller Boards Like Raspberry Pi/Arduino/STM32

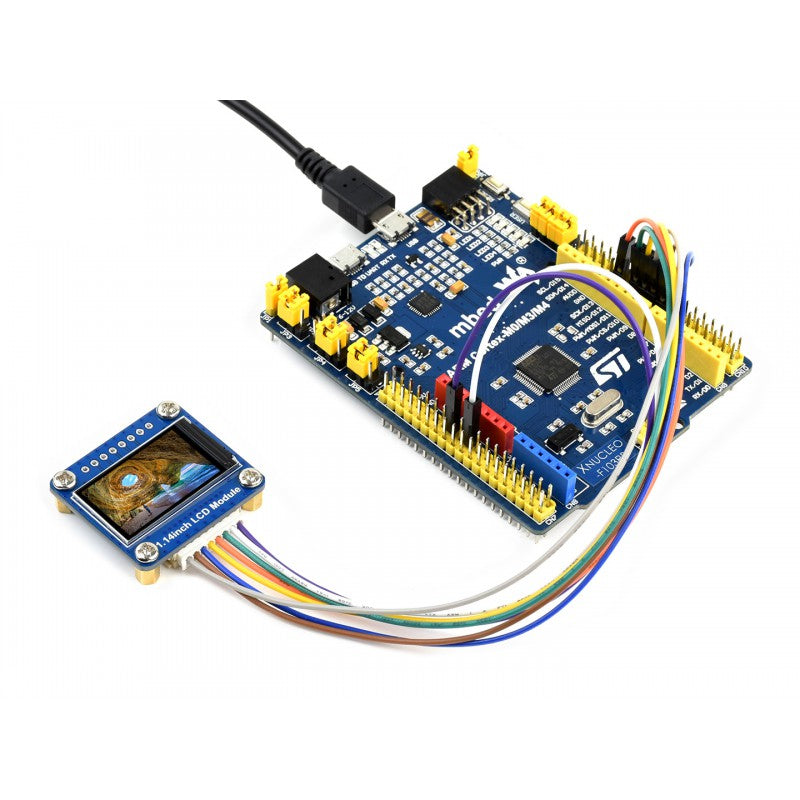

Hardware Connection
