Waveshare 4.2inch NFC-Powered e-Paper Evaluation Kit
NFC E-Paper Eval Kit 4.2"

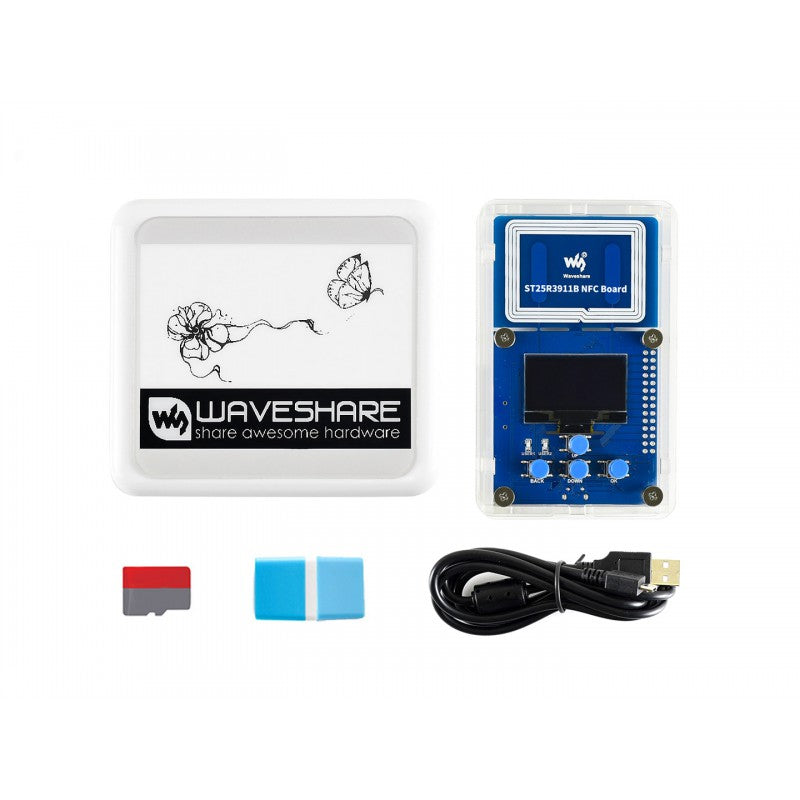

4.2" NFC-Powered E-Paper Evaluation Kit
Comes With NFC-Powered E-Paper, NFC Reader, Micro SD Card, And Essential Accessories, Ready-To-Use

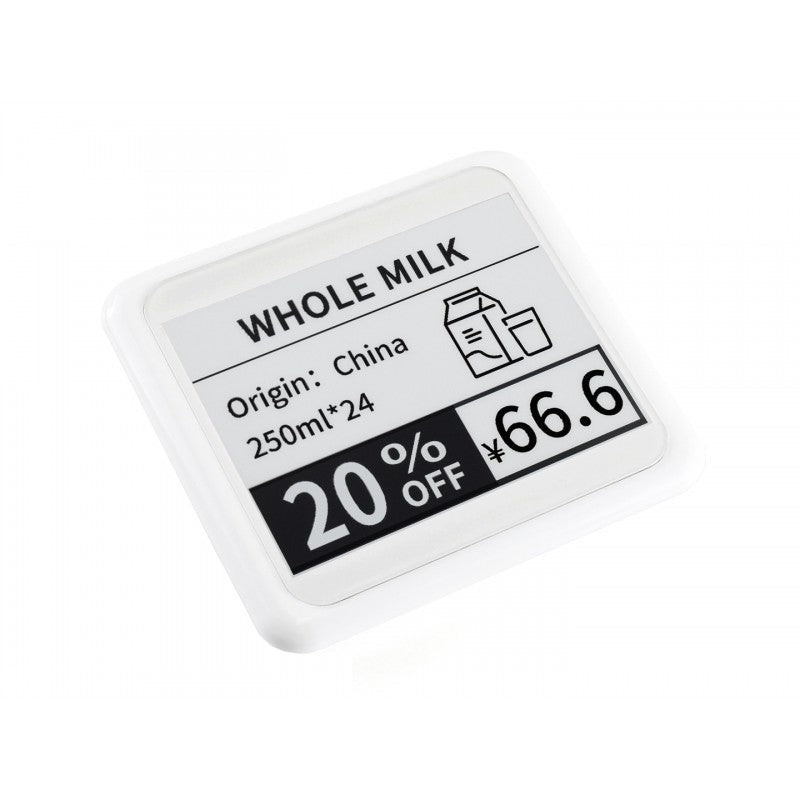

4.2" NFC-Powered E-Paper
Adopts Novel Passive NFC Technology
Wireless NFC-Powered Display Refreshing
Passive NFC Solution, No Battery Required, No Messy Wiring, Stable Operation
How It Works
To Refresh The Display Content,

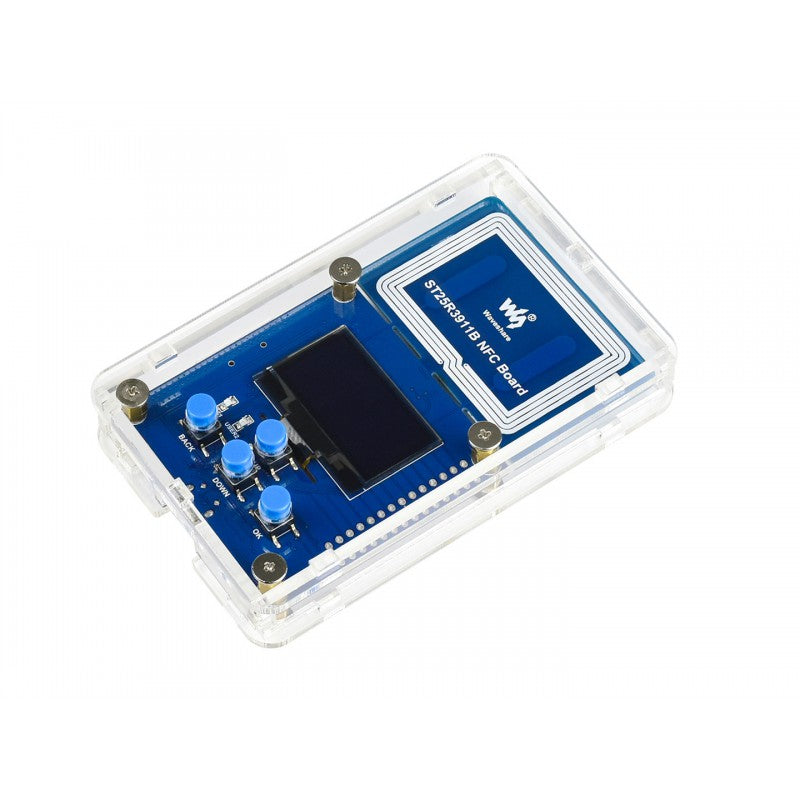

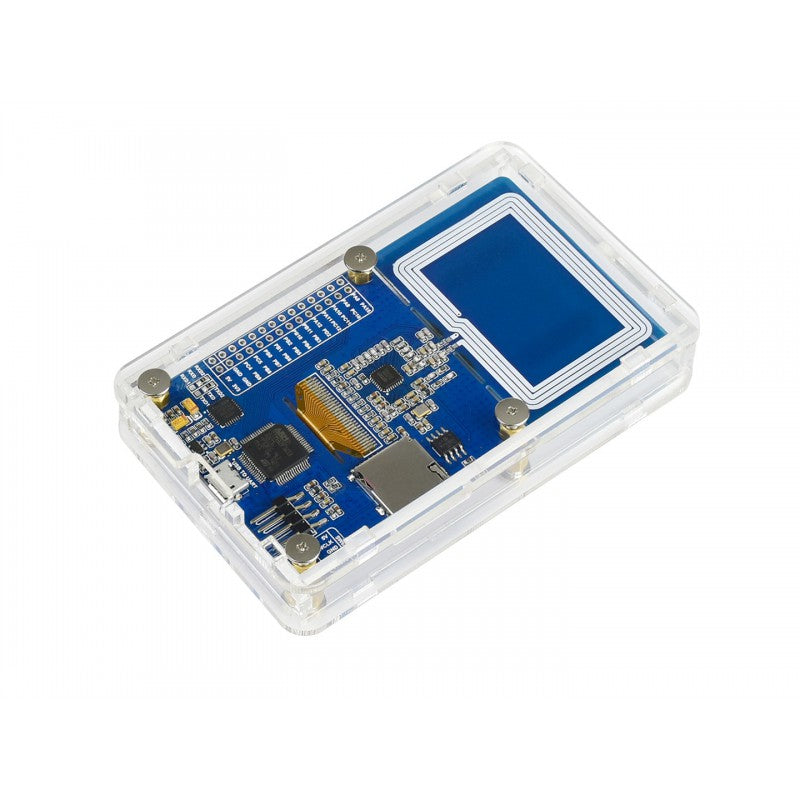

NFC Board Introduction
ST25R3911B NFC Chip, AT32F413RBT7 Controller,
AT32F413RBT7
Core: ARM® 32-bit Cortex™-M4F
Operating Frequency: 200MHz
Operating Voltage: 2.0V-3.6V
Package: LQFP64
Memories: 128kB Flash, 32kB SRAM
Communication Interfaces: 2 x SPI, 5 x USART, 2 x I2C, 2 x CAN, 1 x USB, 1x SDIO
AD & DA Converters: 2 x AD (12-bit, shares 16 channels)
ST25R3911B: NFC chip, aka AS3911B
23LC1024: SRAM, 1Mbit
CP2102: USB TO UART converter, for debugging
SPX3819: 3.3V voltage regulator
1.3" OLED: blue display, 128×64 pixels, SH1106 driver
4x user buttons: 2x user indicators MCU unused pins USB TO UART port Micro SD slot SWD programming interface NFC induction coil UART pin configuration
RXD: connected to RXD2 by default, changeable to RXD1 via 0Ω resistor
TXD: connected to TXD2 by default, changeable to TXD1 via 0Ω resistor
Features:
Rounded Metal Border, Nice Looking, Stunning Quality
Passive NFC Solution, No Battery Required, No Messy Wiring
Wireless Powering & Data Transfer
Features Corner Hang Hole, Ideal For Handbag Decoration, Key Fob, Etc.
Suitable For Smartphone / Key Fob, Contact Card QR Code, Hanging Ornament...

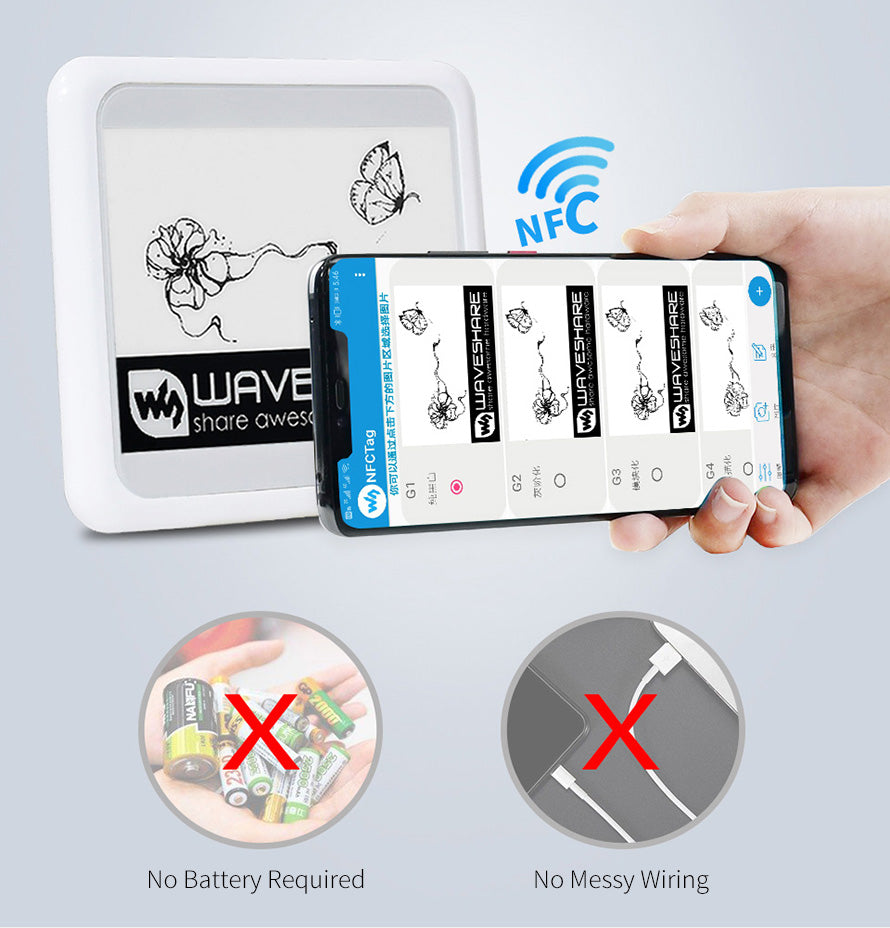

Wireless Powering & Data Transfer
To Refresh The Display Content, Use A Smart Phone With NFC Function, Or An NFC Reader, Close To The E-Paper, It'll Be Done In A Few Seconds
Specifications
Power Supply: Wireless
Grey Scale: 2
Display Color: Black / White
Refresh Time: 4s (data transfer time is not included)
Dot Pitch: 0.212×0.212
Display Size: 84.8mm×63.6mm
Resolution: 400×300
Outline Dimension: 105.1mm×94.1mm
Viewing Angle >170°
Package Contains: 1x Waveshare 4.2inch NFC-Powered e-Paper Evaluation Kit
Development resources: Wiki: www.waveshare.com/wiki/4.2inch_NFC-Powered_e-Paper
