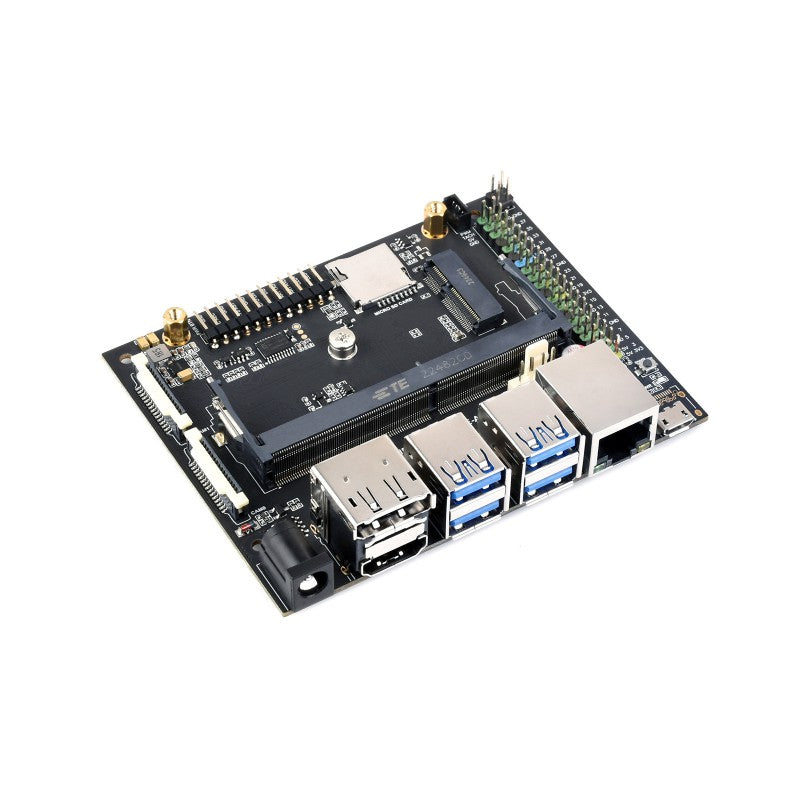

Waveshare Jetson Nano Carrier Board

SKU: WVSH0482

₹ 4,599.99 ₹ 9,999.99

In stock | Ready to ship

⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Waveshare Jetson Nano Carrier Board₹ 4,599.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Jetson Nano Carrier Board

Alternative solution of B01 kit



Based on AI computers Jetson Nano, providing almost the same peripheral interfaces, size and thickness as the Jetson Nano Developer Kit (B01), more convenient for upgrading the core module. By utilizing the power of core module, it is qualified for fields like image classification, object detection, segmentation, speech processing etc. and can be used in sorts of AI projects.



Comparing the Appearance

compatible with expansion modules and cases of the Jetson Nano Developer Kit (B01)

Jetson Nano Developer Kit (B01)

JETSON-NANO-DEV-KIT



Comparing the Storage Solution

Default Storage

Jetson Nano Developer Kit (B01)
The Nano module included in the B01 kit has no storage onboard, external TF card is required to be used as the system startup disk

JETSON-NANO-DEV-KIT
Includes a Nano module with onboard 16GB eMMC, more stable reading/writing, no extra TF card required for startup disk, providing adequate space for installing system image and development/study requirement in most cases



External Storage Option

Jetson Nano Developer Kit (B01)
The B01 kit requires an external TF card to be used as the system startup disk

JETSON-NANO-DEV-KIT
Comes with a 64GB TF card, no need to purchase separately, competent for complicate development projects



Comparing the Specifications


  Jetson Nano Developer Kit (B01) JETSON-NANO-DEV-KIT
GPU 128-core Maxwell
CPU Quad-core ARM A57 @ 1.43 GHz
Memory 4 GB 64-bit LPDDR4 25.6 GB/s
Storage TF card
(NOT included)		 16GB eMMC + 64GB TF card
Video Encoder 250 MP/s
1x 4K @ 30 [HEVC]
2x 1080p @ 60 [HEVC]
4x 1080p @ 30 [HEVC]
Video Decoder 500 MP/s
1x 4K @ 60 [HEVC]
2x 4K @ 30 [HEVC]
4x 1080p @ 60 [HEVC]
8x 1080p @ 30 [HEVC]
Camera 2x MIPI CSI-2 DPHY lanes
Connectivity Gigabit Ethernet, M.2 Key E expansion connector
Display HDMI and DP
USB 4x USB 3.0, USB 2.0 Micro-B
Extension Interfaces GPIO, I2C, I2S, SPI, UART
Dimensions 100 × 80 × 29mm
Other 260-pin connector



Compatible with Jetson Nano Module



Play around with Binocular Vision

Supports 2-lanes CSI Camera, suitable for binocular vision applications such as parallax algorithm ranging, facial recognition, organism detection, VR video recording...



Dual 4K Outputs

supports DisplayPort and HDMI high definition ports



4x high speed USB3.0

USB3.0 high speed data transmission, allows more USB peripherals



Color-coded 40PIN GPIO header

color-coded header pins with clear labels, handy for use

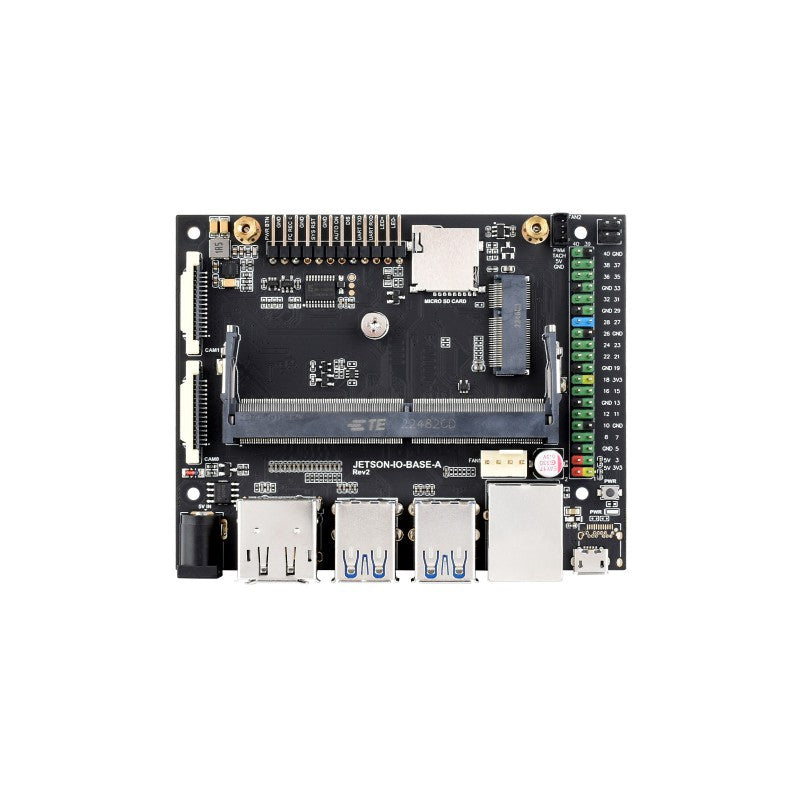

  1. Core module socket
  2. TF card slot
  3. M.2 Key E connector
  4. 1.25mm Fan header
  5. PoE pins: PoE module is not included
  6. 40PIN GPIO header
  7. 2.54mm Fan header
  8. Micro USB port: for 5V power input or for USB data transmission
  9. Gigabit Ethernet port: 10/100/1000Base-T auto-negotiation, supports PoE if external PoE module is connected
  10. 4x USB 3.0 port
  11. HDMI output port
  12. DisplayPort connector
  13. DC jack: for 5V power input
  14. 2x MIPI CSI camera connector
  15. Multi-function 12PIN header
  16. PWR button: Power ON/OFF control (same function as the PWR BTN pin)



Outline Dimensions




Resources

Wiki: JETSON-NANO-DEV-KIT



Package Contains

Weight: 0.081 kg

JETSON-IO-BASE-A

  1. JETSON-IO-BASE-A (carrier board)
1
What is this carrier board used for and which modules is it compatible with?
It is a carrier board that serves as an alternative solution to the B01 kit for Jetson Nano modules, providing similar interfaces and form factor for upgrading the core module and running AI projects.
How is storage managed and is a startup disk included?
The B01 kit uses an external TF card as the system startup disk. Depending on the module, onboard storage may vary, and some package variants include a 64 GB TF card for startup and development.
What are the main display and connectivity options?
It supports dual 4K outputs through HDMI and DisplayPort, and provides 4x USB 3.0 ports, Gigabit Ethernet, and expansion via the M.2 Key E connector and GPIO headers.
What power options and cooling features are provided?
Power is supplied via a 5V input through a DC jack or a Micro USB port. A 1.25 mm fan header is provided for cooling, and there is a PWR button to turn the board on and off.
What are the physical dimensions and what is included in the package?
The board measures 100 by 80 by 29 mm. The package contains the JETSON-IO-BASE-A base carrier board.
