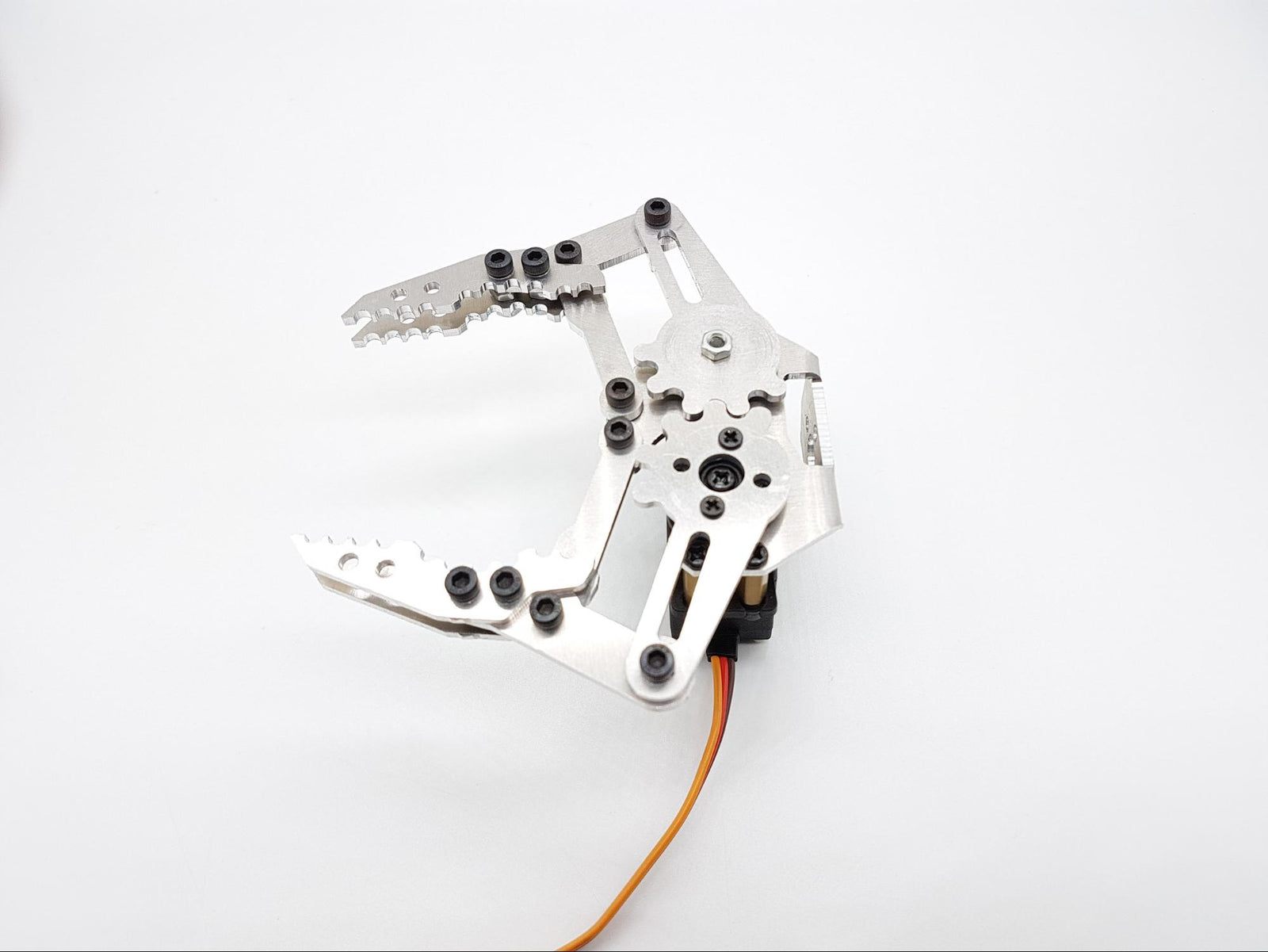

Mechanical Gripper for Robot Arm with MG996R Servo

Mechanical Gripper for Robot Arm with MG996R Servo

2 comments

Components Required:

  1. DIY Kit
  2. Arduino Uno
  3. Jumpers

Software Required:

  1. Arduino IDE

In this tutorial, we will learn how to make a mechanical claw for your robotic arm. We are using the MG99R metal servo, to control the claw, which is perfect for handling rigorous tasks. Weighing only 60 grams, and providing a maximum angular spacing of 50mm (5cm), this can be used for a wide variety of applications.


Step wise Assembly:

Upload and Run the Code

Connect the Arduino to the computer using the USB Cable.

Open Arduino IDE software

Select the appropriate board under Tools > Board

Select the appropriate Serial Port under Tools > Port



Here is an example code that you can upload. It will open and close the claw periodically after 1 second. Calibrate the open and close angles of the mechanical claw by changing the appropriate angles in OpenClaw() and CloseClaw() functions.




Author: Nakul Garg
