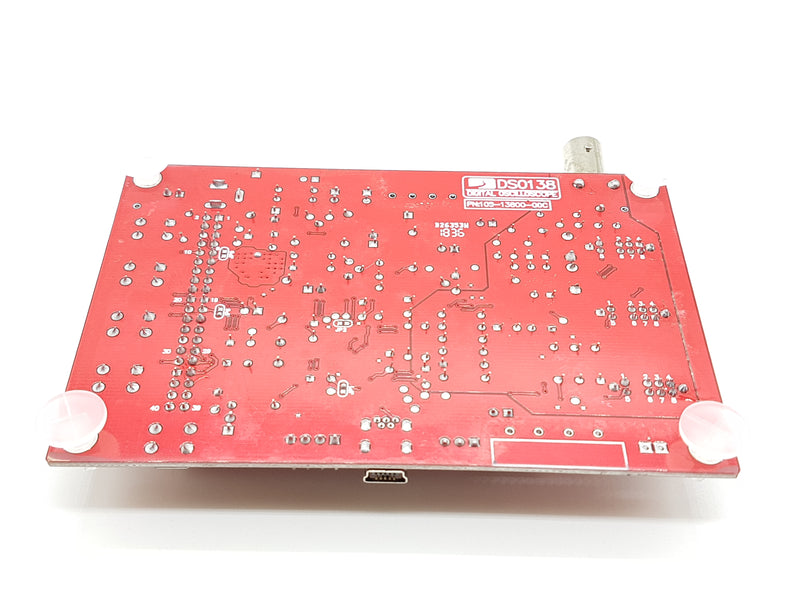

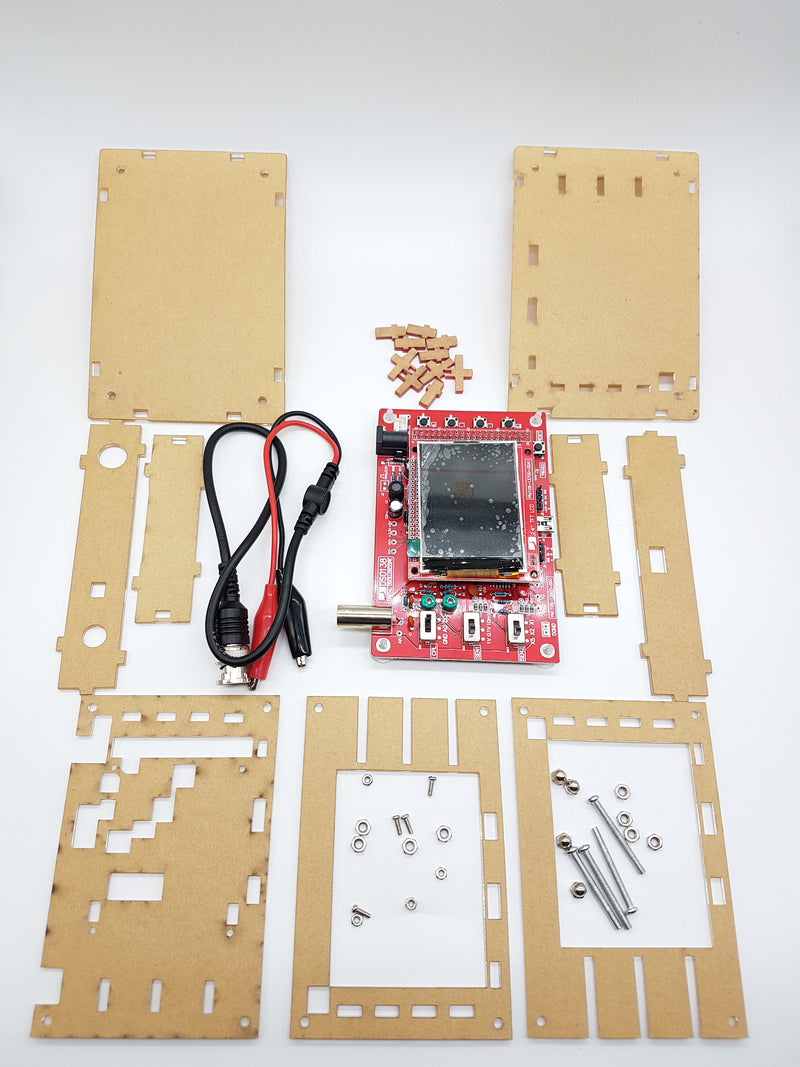

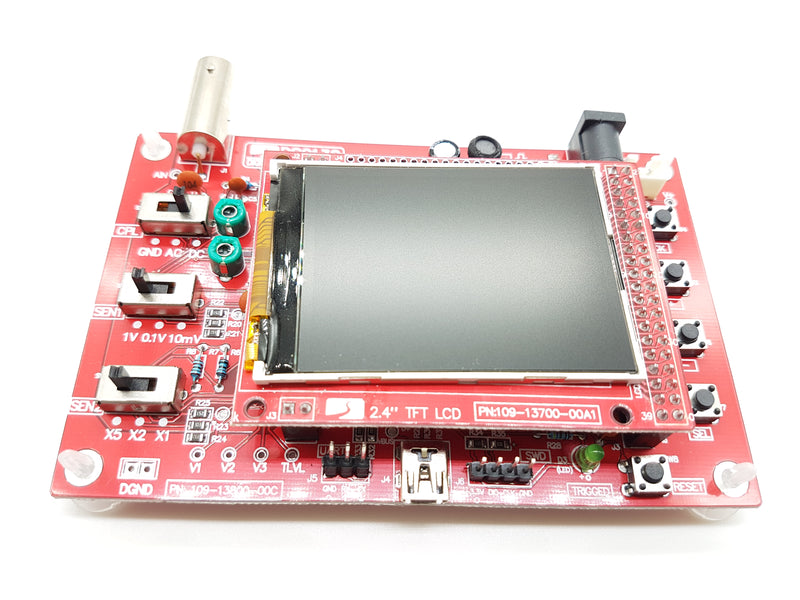

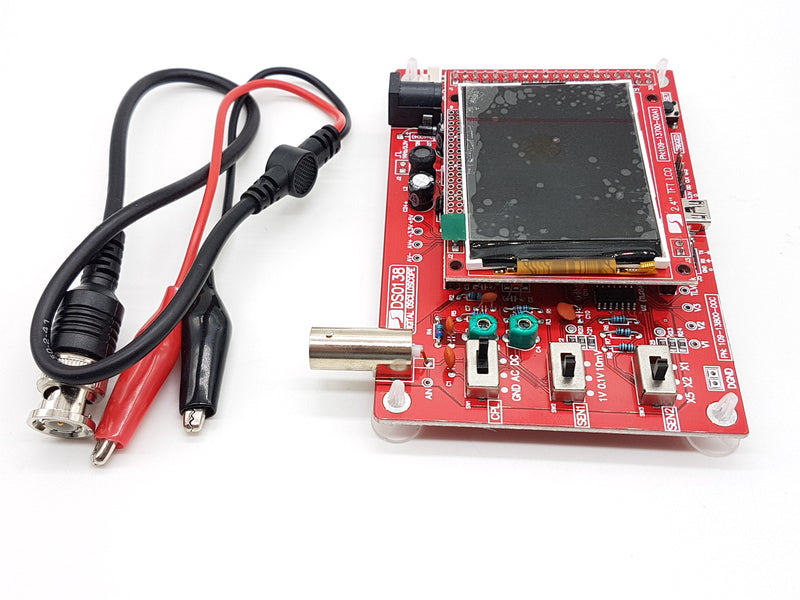

DSO138 Digital Oscilloscope with 2.4 "TFT screen with Acrylic Case (optional)

• Material: Acrylic
• Product weight: 156 g / 5.52 oz
• Power Input: DC 9V(Power adapter is not included)
• Maximum real-time sampling rate: 1Msps
• Accuracy: 12Bit
• Sampling buffer depth: 1024 bytes
• Analog bandwidth: 0 -200KHz
• Vertical Sensitivity: 10mV/Div -5V/Div (1-2-5 progressive manner)
• Adjustable vertical displacement, and with instructions
• Input impedance: 1MΩ
• Maximum input voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)
• Coupling modes include DC/AC/GND
• The horizontal time base range: 10μs/Div - 50s/Div (1-2-5 progressive manner)

Features:

• With automatic, regular and one-shot mode,easy to capture the moment waveform
• Available rising or falling edge trigger
• Adjustable trigger level position,and with instructions
• Observable trigger waveform before (negative delay)
• Can freeze at any time waveform display (HOLD function)
• Comes 1Hz /3.3V square wave test signal source
