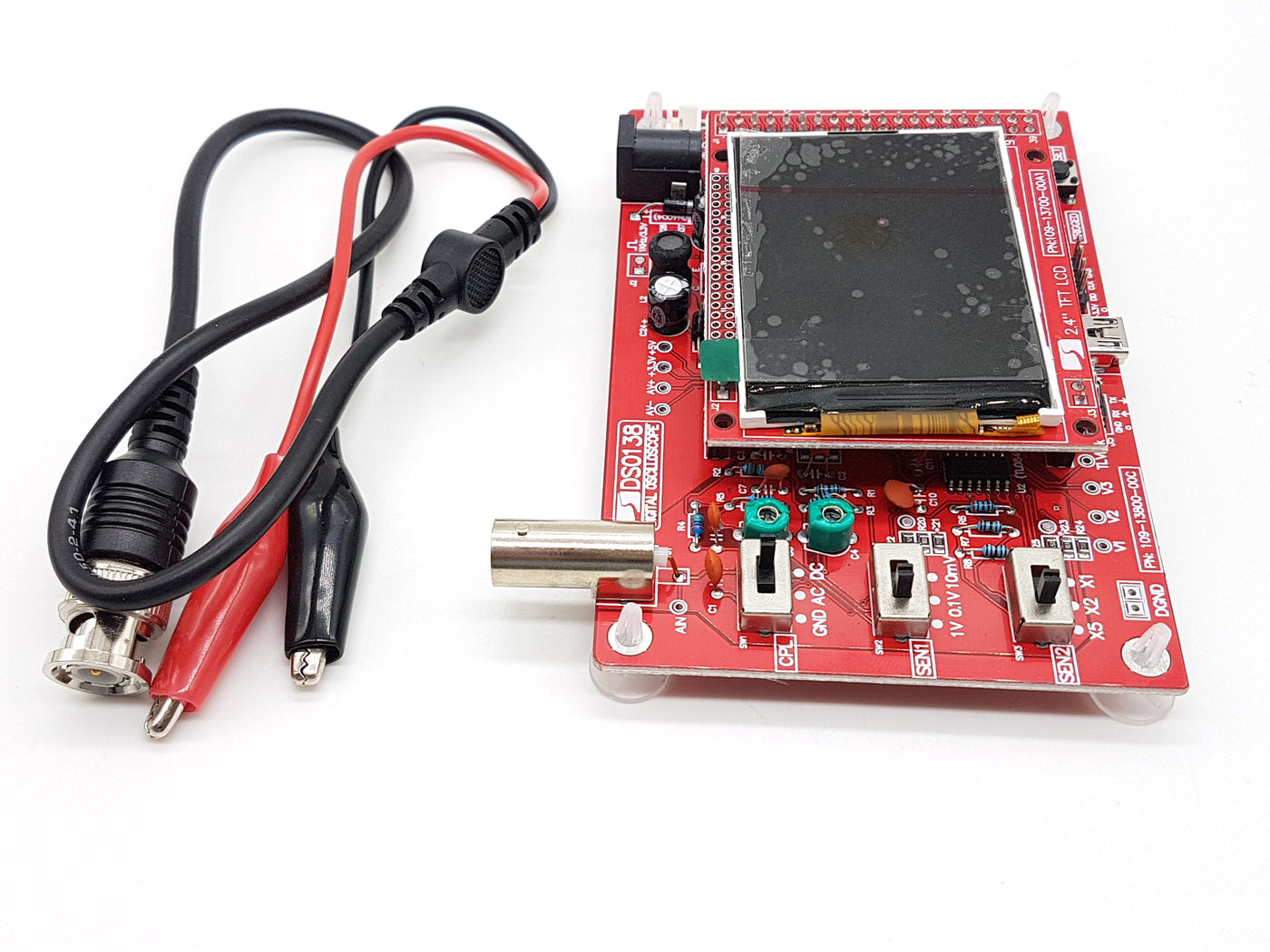

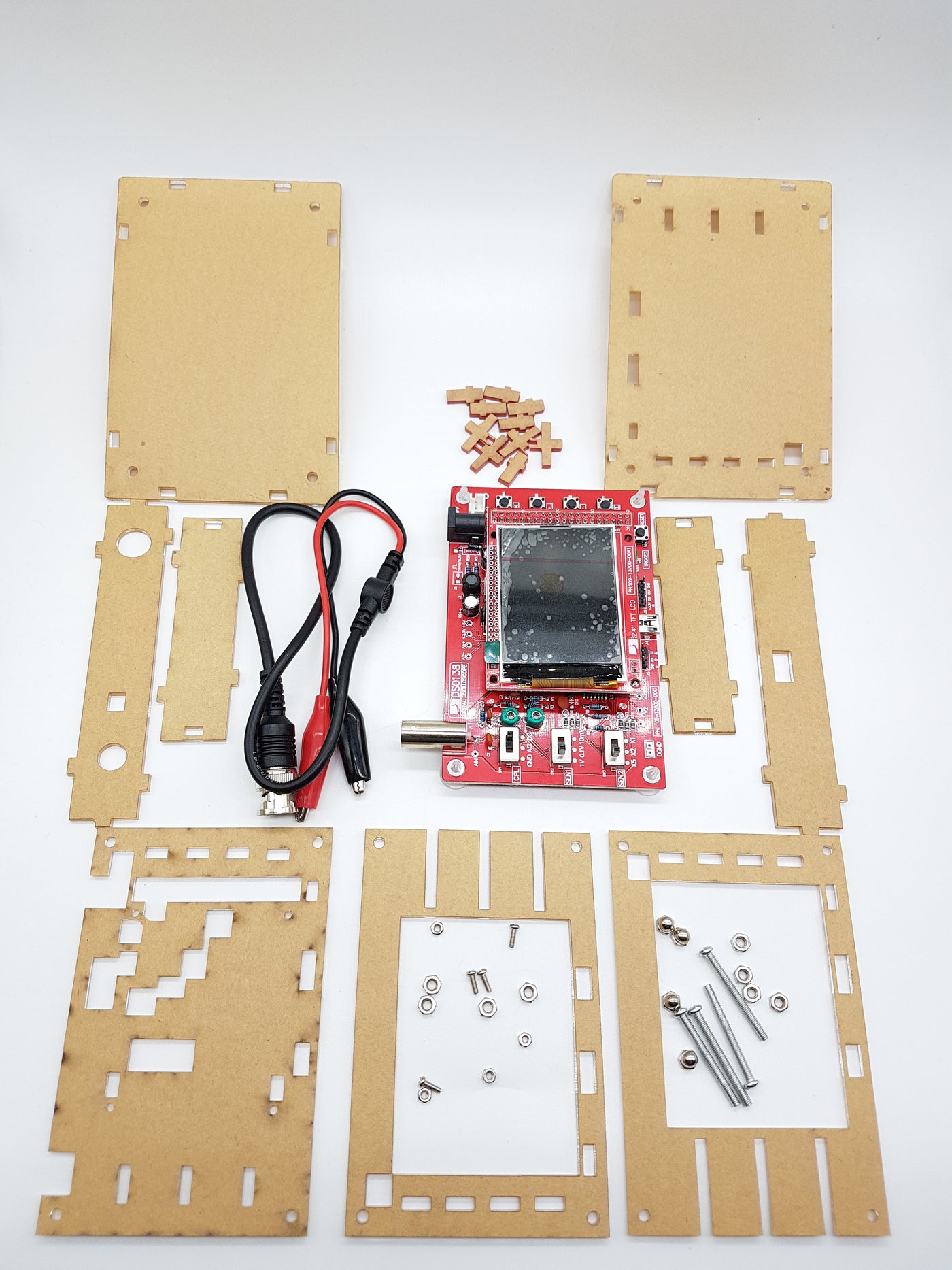

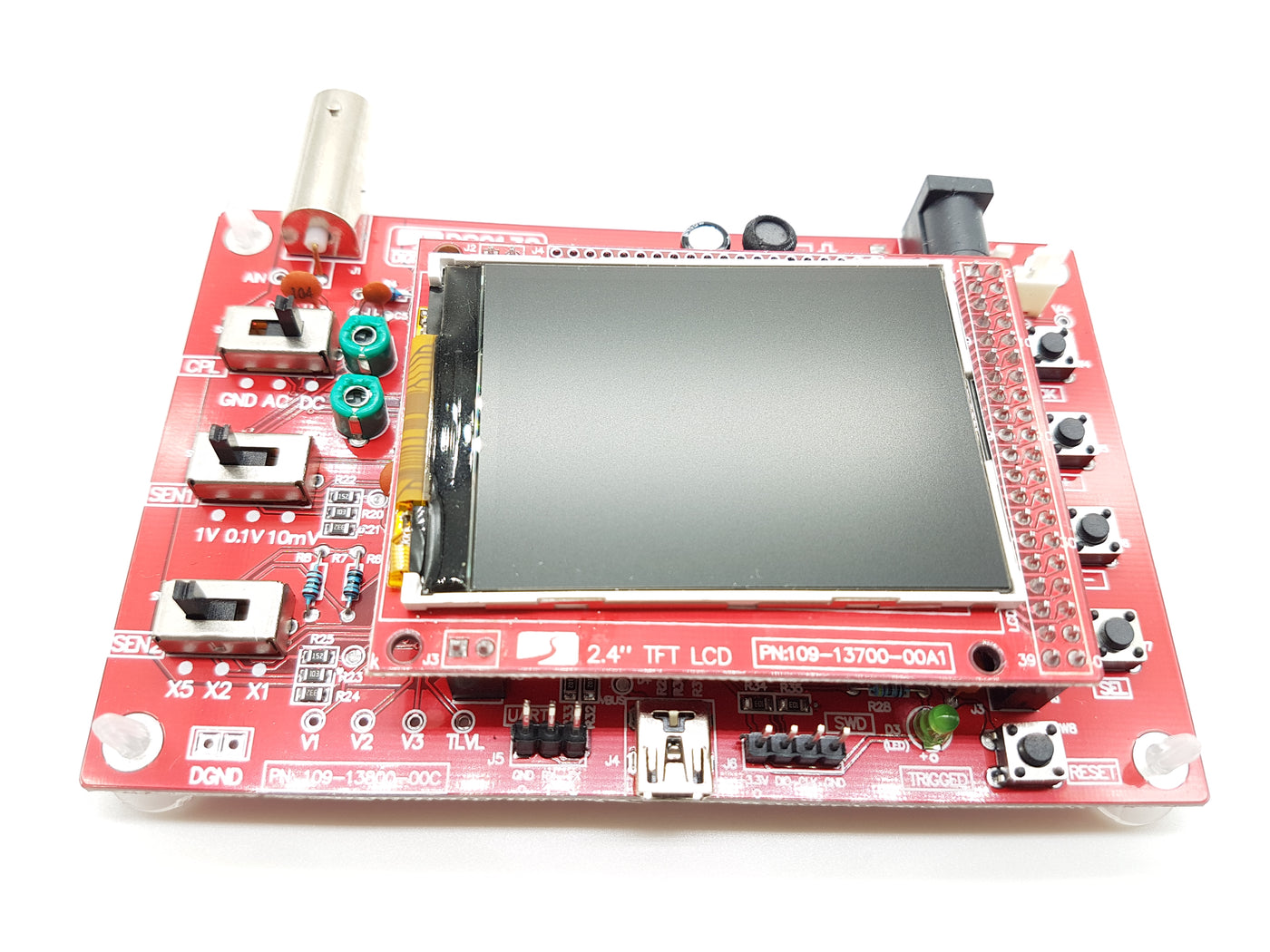

DSO138 Digital Oscilloscope with 2.4 "TFT screen with Acrylic Case (optional)

SKU: TOL4004-wCase

₹ 2,149.99 ₹ 2,800.00

In stock | Ready to ship

Select variant

With Case
⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
DSO138 Digital Oscilloscope with 2.4 "TFT screen with Acrylic Case (optional)With Case₹ 2,149.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini
Details:
  • Material: Acrylic
  • Product weight: 156 g / 5.52 oz
  • Power Input: DC 9V(Power adapter is not included)
  • Maximum real-time sampling rate: 1Msps
  • Accuracy: 12Bit
  • Sampling buffer depth: 1024 bytes
  • Analog bandwidth: 0 -200KHz
  • Vertical Sensitivity: 10mV/Div -5V/Div (1-2-5 progressive manner)
  • Adjustable vertical displacement, and with instructions
  • Input impedance: 1MΩ
  • Maximum input voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)
  • Coupling modes include DC/AC/GND
  • The horizontal time base range: 10μs/Div - 50s/Div (1-2-5 progressive manner)

Features:

  • With automatic, regular and one-shot mode,easy to capture the moment waveform
  • Available rising or falling edge trigger
  • Adjustable trigger level position,and with instructions
  • Observable trigger waveform before (negative delay)
  • Can freeze at any time waveform display (HOLD function)
  • Comes 1Hz /3.3V square wave test signal source
Specifications

Resources

Datasheet

Tutorial
What power supply does the device require and is the power adapter included?
It operates on DC 9V and the power adapter is not included.
What are the main measurement specifications such as sampling rate, bandwidth, and resolution?
Maximum real time sampling rate is 1 Msps, bandwidth 0 to 200 kHz, and 12 bit accuracy with a 1024 byte sampling buffer.
What are the input impedance and maximum input voltage for probes?
Input impedance is 1 M ohm. Maximum input voltage is 50 Vpp with 1:1 probe and 400 Vpp with 10:1 probe.
What trigger and time base features are available?
It supports automatic, regular and one shot modes with rising or falling edge trigger, adjustable trigger level, and the ability to pre view waveform before trigger and a HOLD function to freeze the display.
What accessories or case options are available?
An acrylic case is optional, and the package includes a 1 Hz 3.3 V square wave test signal source.
