Description
End of ordering: 2024 September 13
End of production: 2025 March 13
End of support: 2030 June 13
Replacement: RUT301
Standard package*
- Router RUT300
- 9 W PSU
- Ethernet cable (1.5 m)
- QSG (Quick Start Guide)
- Packaging box
*Standard package contents may differ based on standard order codes.
Feature
Ethernet
| Category | Details |
|---|---|

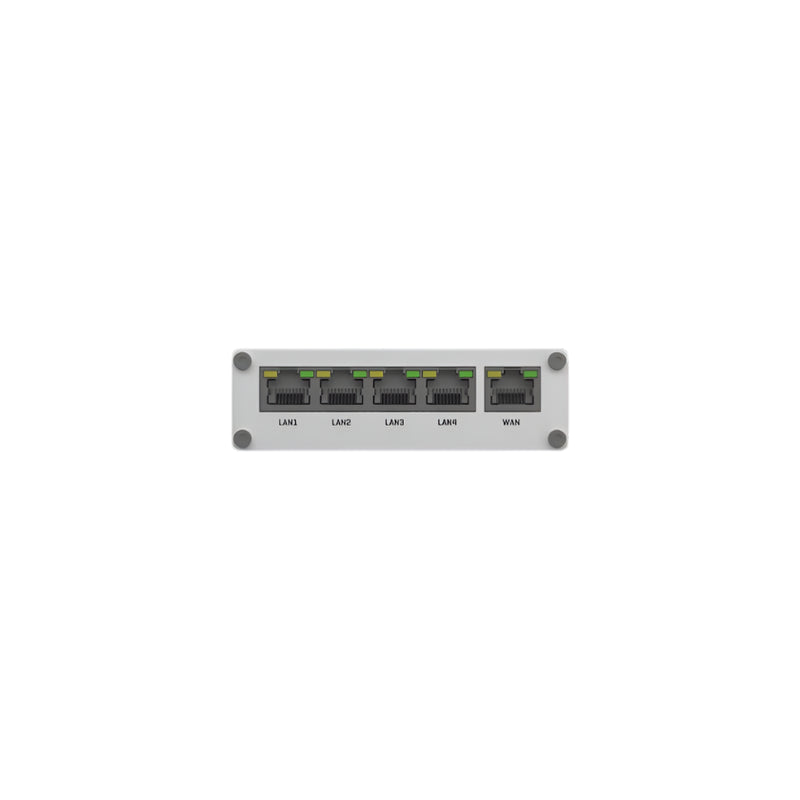

| WAN | 1 x WAN port 10/100 Mbps, IEEE 802.3, IEEE 802.3u, 802.3az compliant, supports auto MDI/MDIX |
| LAN | 4 x LAN ports, 10/100 Mbps, IEEE 802.3, IEEE 802.3u, 802.3az compliant, supports auto MDI/MDIX |
Network
| Feature | Details |
|---|---|
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, etc. |
| VoIP Passthrough | H.323 and SIP-alg protocol NAT helpers for proper VoIP packet routing |
| Connection Monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP link inspection |
| Firewall | Port forward, traffic rules, custom rules, TTL target customisation, firewall status page |
| Ports Management | View, enable, disable, auto-configure, or modify transmission speed of ports |
| Network Topology | Visual representation of connected devices |
| Hotspot | Captive portal, internal/external Radius server, SMS/SSO authentication, user/group limitations, custom themes |
| DHCP | Static and dynamic IP allocation, DHCP relay, server configuration, static leases |
| QoS/SQM | Traffic prioritisation by source/destination, service, protocol, or port; WMM and 802.11e support |
| DDNS | Supports >25 providers, manual configuration |
| Network Backup | VRRP, wired options, automatic failover |
| Load Balancing | Distribute traffic over multiple WAN connections |
| SSHFS | Mount remote file systems via SSH protocol |
Security
| Feature | Details |
|---|---|
| Authentication | Pre-shared keys, X.509 certificates, TACACS+, Radius authentication, IP blocking, random passwords |
| Firewall | Preconfigured rules via WebUI, unlimited custom rules via CLI, DMZ, NAT, NAT-T, NAT64 |
| Attack Prevention | DDOS (SYN flood, SSH, HTTP/HTTPS attack prevention), port scan protection (SYN-FIN, NULL, etc.) |
| VLAN | Port and tag-based VLAN separation |
| Web Filter | Blacklist/whitelist for website control |
| Access Control | SSH, Web interface, CLI, and Telnet access control |
| SSL Certificate Generation | Let's Encrypt and SCEP methods |
| 802.1x | Port-based network access control |
VPN
| Feature | Details |
|---|---|
| OpenVPN | Multiple clients and a server can run simultaneously, 27 encryption methods |
| OpenVPN Encryption | DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-GCM 128, AES-256-GCM 256, etc. |
| IPsec | XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES256, AES256GCM16, etc.) |
| GRE | GRE tunnel, GRE tunnel over IPsec support |
| PPTP, L2TP | Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support |
| Stunnel | Proxy designed to add TLS encryption functionality to existing clients and servers without changing the program’s code |
| DMVPN | Method of building scalable IPsec VPNs, Phase 2 and Phase 3, Dual Hub support |
| SSTP | SSTP client instance support |
| ZeroTier | ZeroTier VPN client support |
| WireGuard | WireGuard VPN client and server support |
| Tinc | Tinc offers encryption, authentication, and compression in its tunnels; Client and server support |
OPC UA
| Supported Modes | Details |
|---|---|
| Modes | Client, Server |
| Connection Types | TCP |
MODBUS
| Feature | Details |
|---|---|
| Supported Modes | Server, Client |
| Connection Types | TCP, USB |
| Custom Registers | MODBUS TCP custom register block requests, read/write to a file inside the router, used to extend MODBUS TCP Client functionality |
| Supported Data Formats | 8-bit: INT, UINT; 16-bit: INT, UINT; 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
Data to Server
| Feature | Details |
|---|---|
| Protocol | HTTP(S), MQTT, Azure MQTT, Kinesis |
| Data to Server | Extract parameters from multiple sources and protocols, send to a single server; Custom LUA scripting enables scripts to utilize the router's Data to server feature |
MQTT Gateway
| Feature | Details |
|---|---|
| Modbus MQTT Gateway | Allows sending commands and receiving data from MODBUS Server through MQTT broker |
DNP3
| Feature | Details |
| Supported Modes | TCP Master, DNP3 Outstation |
DLMS
| Feature | Details |
| DLMS Support | DLMS - standard protocol for utility meter data exchange |
| Supported Modes | Client |
| Supported Connection Types | TCP |
| COSEM | Allows scanning meter COSEM objects for automatic detection and configuration |
API
| Feature | Details |
| Teltonika Networks Web API | Expand your device's possibilities by using configurable API endpoints to retrieve or change data. |
| For more information, refer to: Teltonika API Documentation |
