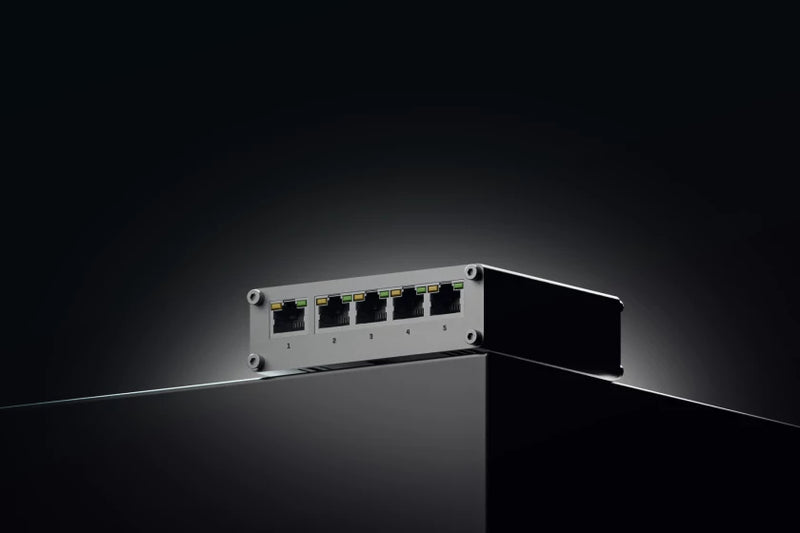

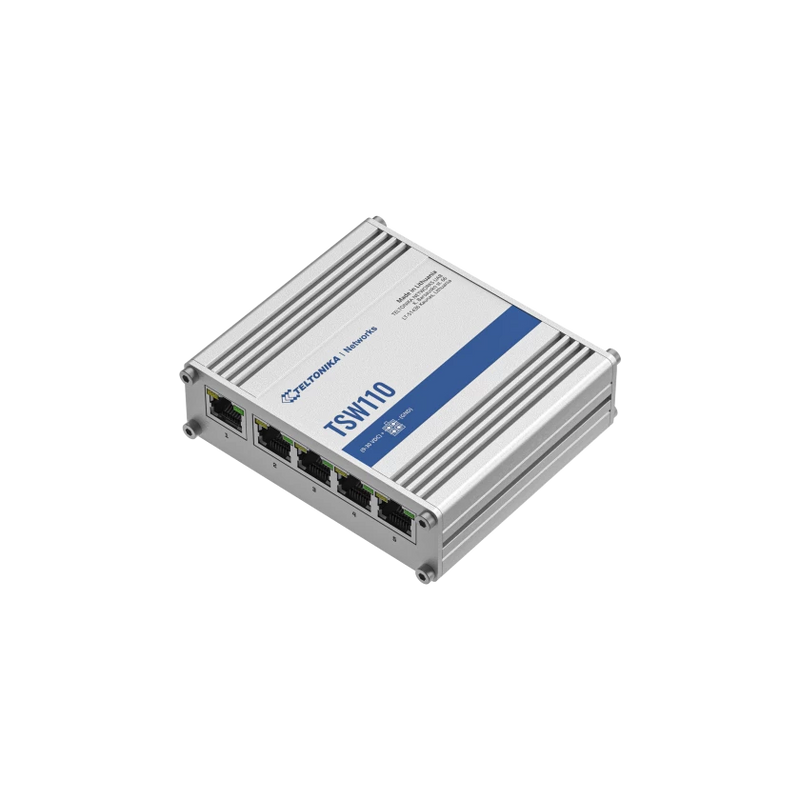

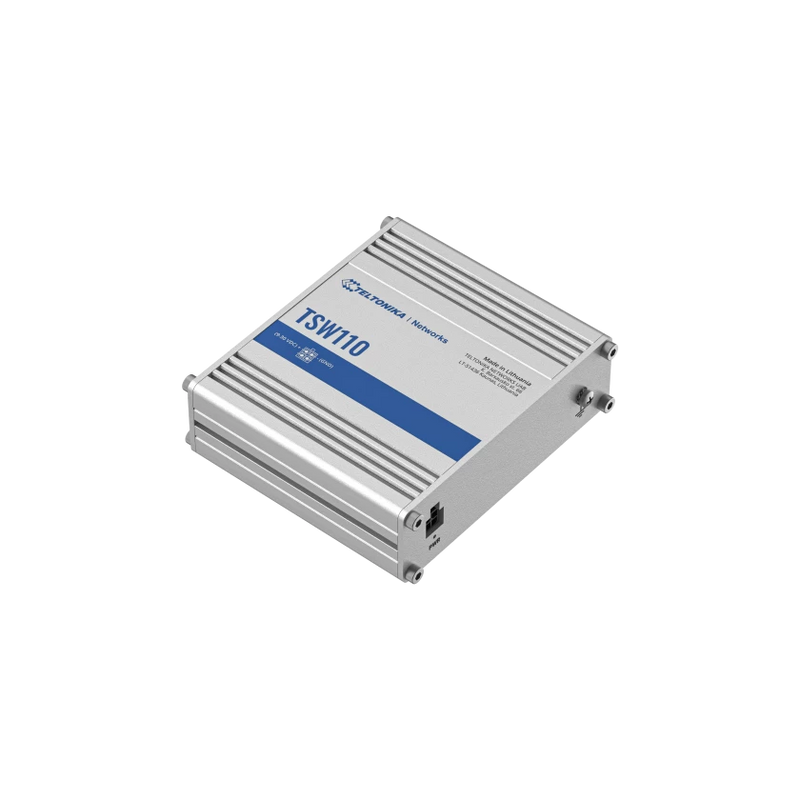

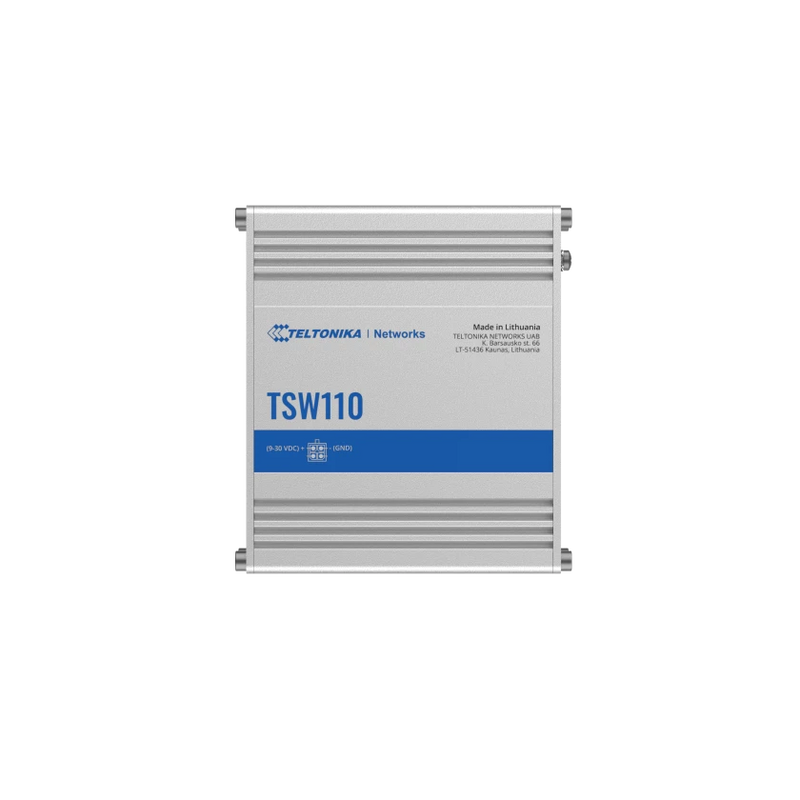

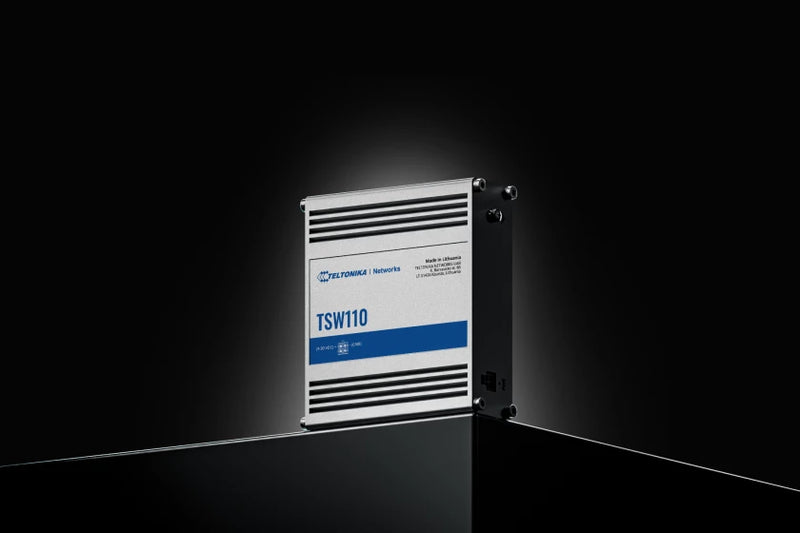

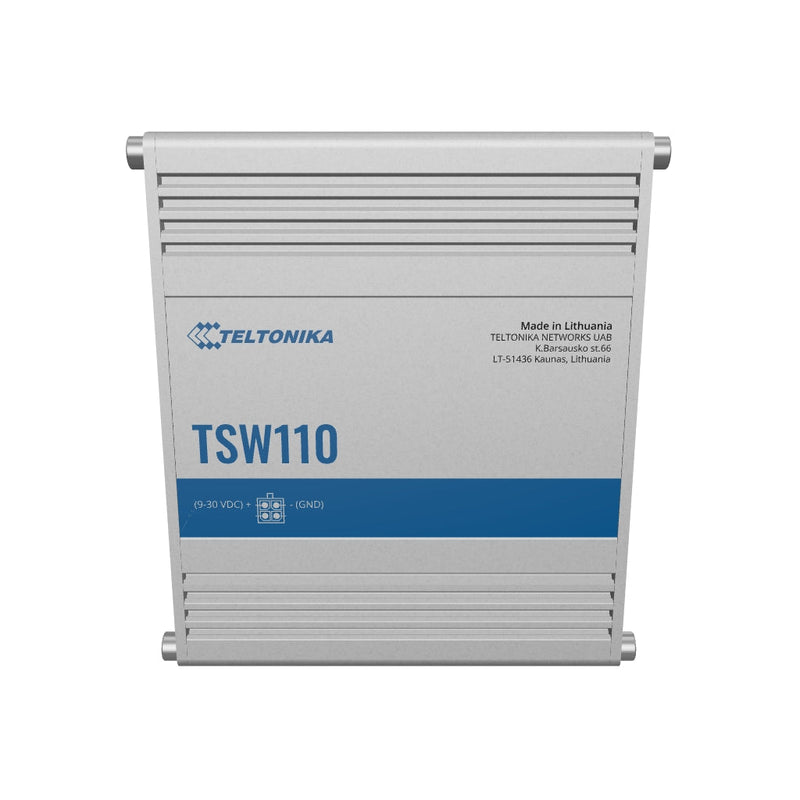

TSW110 - L2 Unmanaged Ethernet Switch
Description
TSW110 is an unmanaged layer 2 Ethernet switch. This tiny but rugged professional device enables industrial high-bandwidth applications with a reliable data connection. It has five Gigabit Ethernet ports to connect equipment to the network and supports wide power supply voltages (9-30 V).
Standard package*
TSW110
9 W PSU QSG (Quick Start Guide)
Packaging box
*Standard package contents may differ based on standard order codes.
Features
Category Specification
ETH Ports 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 Series Standards 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Performance Specifications
Category Specification
Bandwidth (Non-blocking) 10 Gbps
Packet Buffer 128 KB
MAC Address Table Size 2K entries
Jumbo Frame Support 9216 bytes
Power Specifications
Category Specification
Connector 4-pin industrial DC power socket
Input Voltage Range 9 – 30 VDC
PoE (Passive) Possibility to power up through ETH1 port (Mode B, 9 - 30 VDC)
Power Consumption < 0.4 W / < 1.8 W
Physical Interfaces
Category Specification

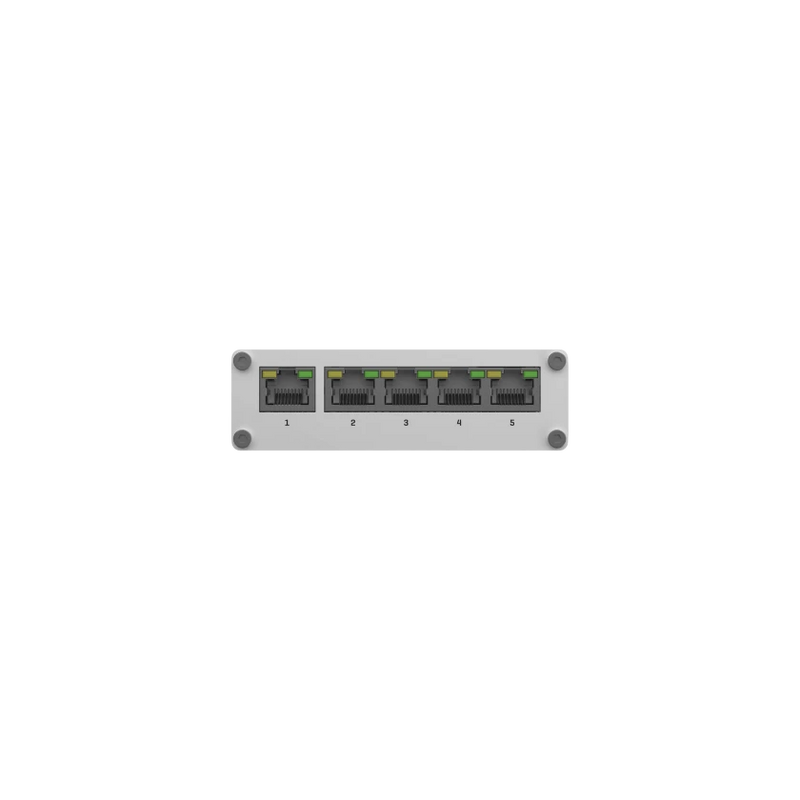

Ethernet Ports 5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs 1 x Power LED, 10 x ETH status LEDs

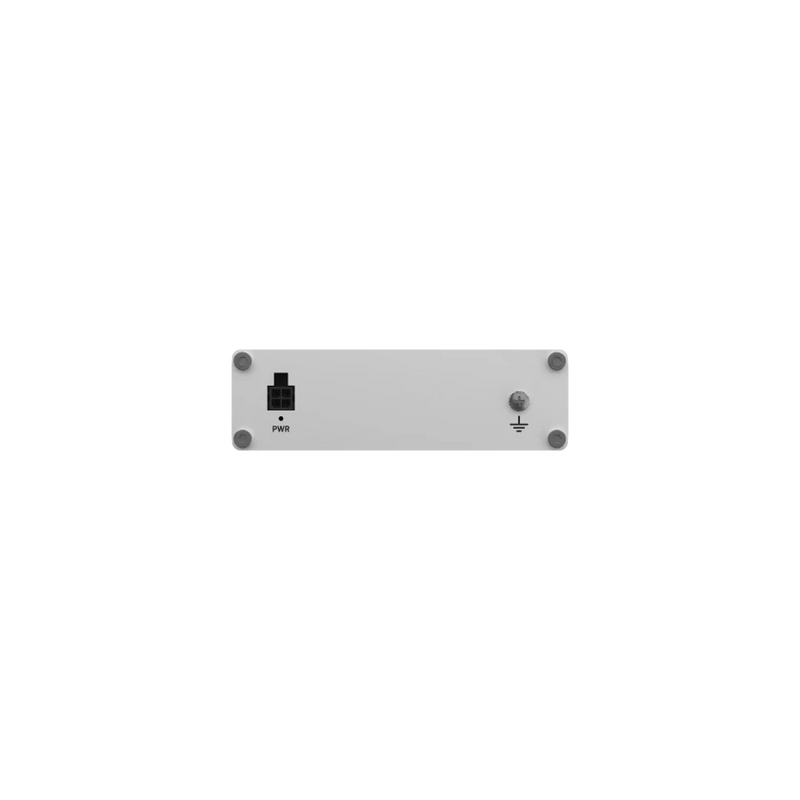

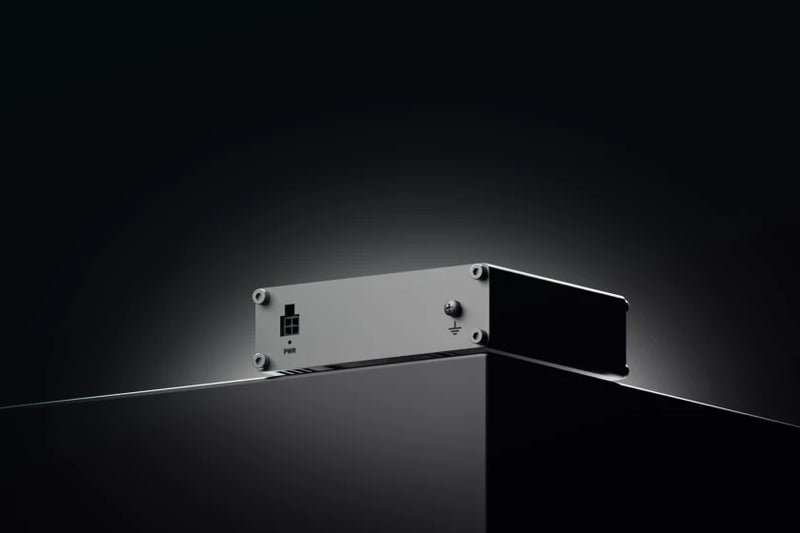

Power Connector 1 x 4-pin power connector
Other 1 x Grounding screw
Physical Specification
Category Specification
Casing Material Full aluminum housing
Dimensions (W x H x D) 100 x 30 x 85 mm
Weight 227 g
Mounting Options DIN rail, wall mount, flat surface (requires additional kit)
Operating Environment
Category Specification
Operating Temperature -40 °C to 75 °C
Operating Humidity 5% to 95% non-condensing
Ingress Protection Rating IP30
Regulatory & Type Approvals
Category Specification
Regulatory Approvals CE, UKCA, EAC, UCRF, ANRT, CITC, Kenya, FCC, IC, NOM, RCM, BSMI, CB
EMC Emissions & Immunity Standards
Category Specification
Standards EN 55032:2015 + A11:2020
Harmonic Emission EN 61000-3-3:2013 + A1:2019
Voltage Fluctuations EN IEC 61000-3-2:2019
Immunity to Disturbances EN 55035:2017
Electrostatic Discharge (ESD) EN 61000-4-2:2009
Radiated Immunity EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
Electrical Fast Transients (EFT) EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017
Conducted Susceptibility (CS) EN 61000-4-6:2014
Voltage Dips and Interruptions (DIP) EN 61000-4-11:2004 + A1:2017
Safety Standards
Category Specification
Safety Standards IEC 62368-1:2018, EN IEC 62368-1:2020 + A11:2020
