TE CONNECTIVITY/AMP BRAND Ring Terminal Connector M5 Stud Circular 10-12 AW
Part Number: 160134-2
Manufacturer: TE CONNECTIVITY/AMP BRAND
Country of Origin: NL
Unit of Measure: EA (Each)
ECCN: EAR99
Package Type: REEL
Datasheet: View Datasheet
Product Overview

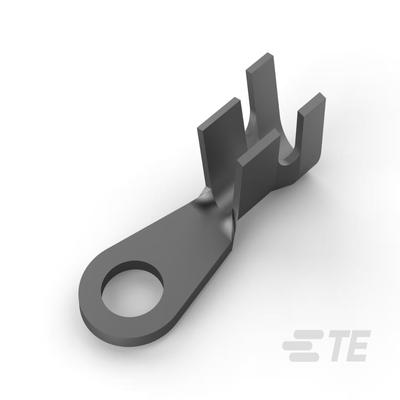

The TE CONNECTIVITY/AMP BRAND Ring Terminal Connector with M5 stud is designed for secure electrical connections in various electronic applications. This circular, open barrel terminal features tin plating and uninsulated construction, ensuring reliable performance and corrosion resistance.
Key Features
Product Type: Closed Ring Tongue Terminal
Wire Size Range: 12 – 10 AWG (6529 – 10382 CMA)
Stud Size: 1/4 inch (5.3 mm) diameter
Terminal Orientation: Straight
Body Material: Brass
Barrel Type: Open
Insulation Support: Uninsulated
Number of Holes: 1
Retention Type: Insulation Support
Stud Diameter: 5.3 mm (.209 in)
Stud Length: 24.13 mm (.95 in)
Thickness: 0.76 mm (.03 in)
Inside Barrel Diameter: 2.66 mm / 4.44 mm (.105 in)
Operating Temperature Range: -40°C to 110°C (-40°F to 230°F)
Packaging Quantity: 2200 units per reel
Specifications
Wire Insulation Support
With Dimensions: .15 in
Tin Plating Material
Tin
Compliance
EU RoHS Directive 2011/65/EU Compliant
EU ELV Directive 2000/53/EC Compliant
China RoHS 2 Directive
REACH Regulation (EC) No. 1907/2006 - No SVHC above threshold
Additional Information
For detailed application standards and further specifications, please refer to the product page on TE.com. The datasheet provides comprehensive technical details and CAD models for integration into your designs.
Disclaimers
This product complies with relevant European and international environmental standards. The provided information is based on current supplier data and may be subject to change. For more detailed specifications and support, please consult the datasheet or contact TE Connectivity.
