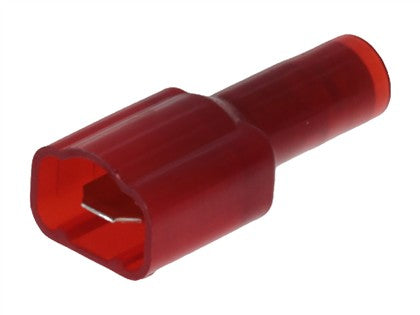

The MOLEX Avikrimp Quick Disconnect Male is a high-quality terminal designed for reliable electrical connections in industrial applications. Manufactured in the US, this component is compliant with RoHS standards and suitable for use with 18-22 AWG wires (0.80-0.35mm²). It features a fully insulated nylon (PA) body with a red resin color, ensuring safety and durability in various operating environments.
Key Features
Part Number: 19001-0005
Manufacturer: MOLEX
Country of Origin: US
Unit of Measure: Each (EA)
ECCN: EAR99
Package Type: Reel with adhesive tape
Product Category: Terminals & Splices | Terminals
Series: 19001
Gender: Male
Barrel Type: Closed
Material - Metal: Brass with Zinc Chromate plating
Wire Compatibility: 18, 20, 22 AWG; max insulation diameter 3.56mm
Operating Temperature Range: -65°C to +105°C
Flammability Rating: 94V-2
Glow-Wire Capable: No
Fully Insulated: Yes
Specifications
Part Number
190010005
Description
Avikrimp Quick Disconnect, Male, for 18-22 (0.80-0.35mm²), Mylar Tape, Tab 4.75 x 0.51mm Series Number: 19001
Material - Metal
Brass with Zinc Chromate plating
Color - Resin
Red
Tab Width
4.75mm
Tab Thickness
0.51mm
Wire Size (AWG)
18, 20, 22
Operating Temperature
-65°C to +105°C
Compliance & Certifications
RoHS Compliant (EU 2015/863)
UL: E79133
CSA: LR18689
Low-Halogen Status: Not Low-Halogen per IEC 61249-2-21
For detailed specifications and additional information, please refer to the datasheet linked above. Datasheet was not processed; please search the internet for the part number 19001-0005 for more details.
