200W BLDC 3-Phase Brushless Motor Driver With Potentiometer

SKU: ELC4026

₹ 999.99 ₹ 1,299.00

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
200W BLDC 3-Phase Brushless Motor Driver With Potentiometer₹ 999.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

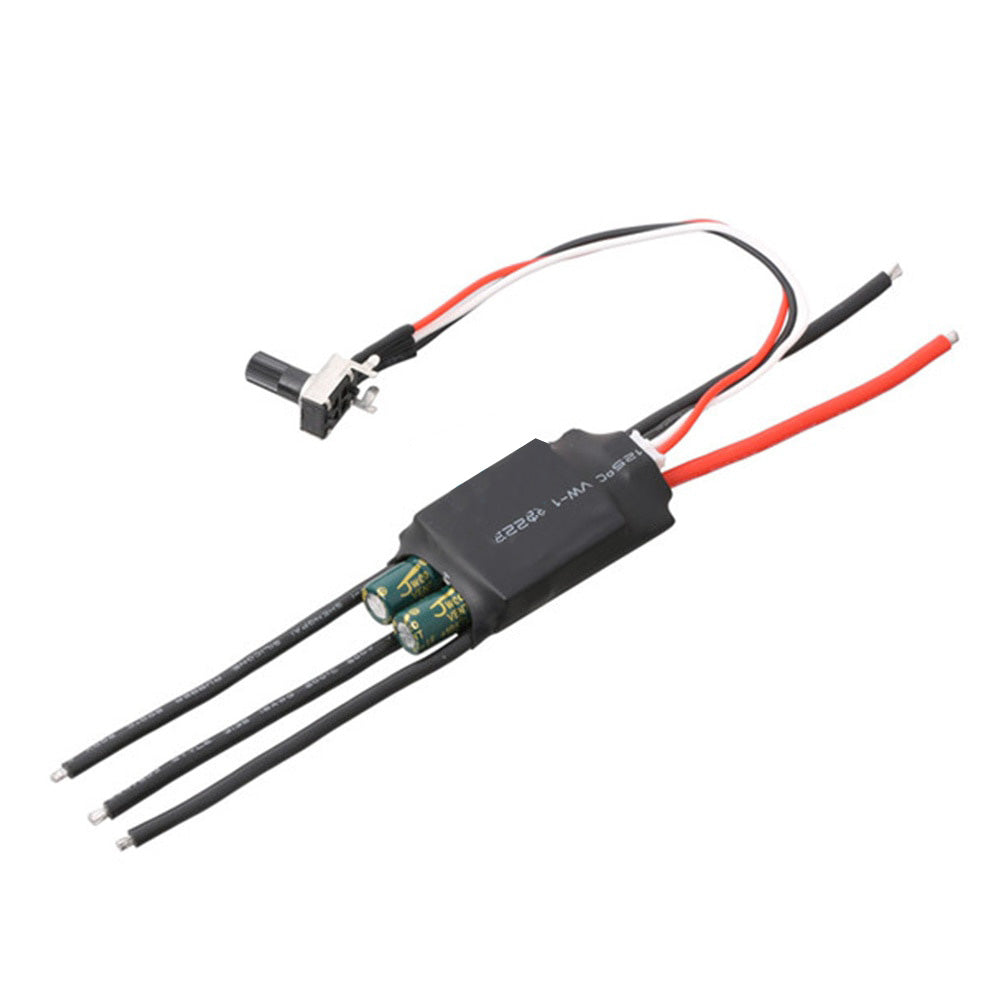

DC 7-24V 200W BLDC 3-Phase Brushless Motor Driver With Potentiometer

ESC is specially developed and designed for industrial control of electric tools such as air pumps, water pumps, oil pumps, fans, etc. that use DC three-phase brushless motors. It can operate for a long time with low power requirements and intermittently with medium to high power requirements.

When the ESC's external heat dissipation conditions are poor and the temperature exceeds 100 degrees, the power will be automatically reduced, and the temperature will return to normal when it drops below 100 degrees.

Features:

  • Model: X30A (potentiometer)
  • Working voltage: 7-24V
  • Drive current: rated 15A and 20A with fan cooling
  • Maximum speed: 224000 RPM (2 pole motor), 74000 RPM (6 pole motor), 40000 RPM (12 pole motor), 35000 RPM (14 pole motor).
  • Product size: 45mm X 26mm X 12mm (excluding wires and protruding capacitors)

Precautions:

  • There is no fuse in the power supply circuit on the motherboard. Reverse connection of the positive and negative poles of the power supply will cause permanent damage to some of the chips on the board.
  • There is motor blocking protection during normal operation. Because the power and current of the module are large, please do not artificially short-circuit when the module is not working normally. Once the lines are shorted, it may burn the line and the tube may burst
  • Do not connect the motor that is obviously inconsistent with the drive module voltage, current, or power, to avoid inexplicable "nonsensical" damage

 Connections:

  1. U V W phase line output is connected to the motor
  2. VCC GND main power supply (external DC power supply)

NOTE: This item is non-returnable due to the high power applications it is used for.

What voltage range does the driver support and what motors can it drive?
It operates from 7 to 24 volts DC and is designed for three phase brushless motors. The drive current is rated 15A and 20A with fan cooling, and maximum speeds depend on motor pole count: 224000 RPM for 2 poles, 74000 for 6 poles, 40000 for 12 poles, and 35000 for 14 poles.
What protection features does the unit provide?
It has motor blocking protection during operation and automatic power reduction when external cooling is poor and temperature exceeds 100 degrees, returning to normal when it drops below 100 degrees. There is no fuse in the power supply circuit and reversing polarity can permanently damage some chips on the board.
How should I connect power and the motor wires?
Connect the motor to the U V W phase outputs and connect VCC and GND to the external DC power supply. Do not reverse polarity as it can cause permanent damage to some chips.
Is this item non returnable?
Yes, this item is non returnable due to high power applications.
What are the physical specs and model details I should know?
The model is X30A with potentiometer. The physical size is 45 mm by 26 mm by 12 mm excluding wires and protruding capacitors.
