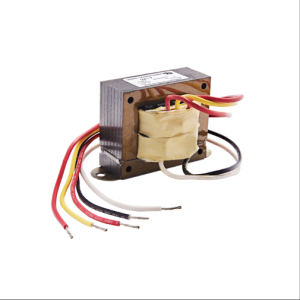

Enhance your electronic systems with the BEL/SIGNAL TRANSFORMER 241-7-24L, a high-quality power transformer designed for reliable power distribution and isolation. Manufactured in the Dominican Republic (COO: DO), this laminated power transformer offers superior performance for various industrial and commercial applications.
Product Features
Power Rating: 56 VA
Chassis Mount Design for easy installation
Split bobbin construction providing superior isolation and low capacitive coupling
Single or dual primary configurations (115 V or 115/230 V - 50/60 Hz)
Single center-tapped secondary with various voltage options
Dielectric Strength: 2500 Vrms Hipot
Insulation Class B (130°C), UL 1446 certified
UL Recognized to UL 506 / UL 5085, CSA 22.2, #66.1
