Ideal for Price Tags, Shelf Labels, Industrial Instruments...
Note: the driver board is optional, please refer to the Package Content for detailed part list
|

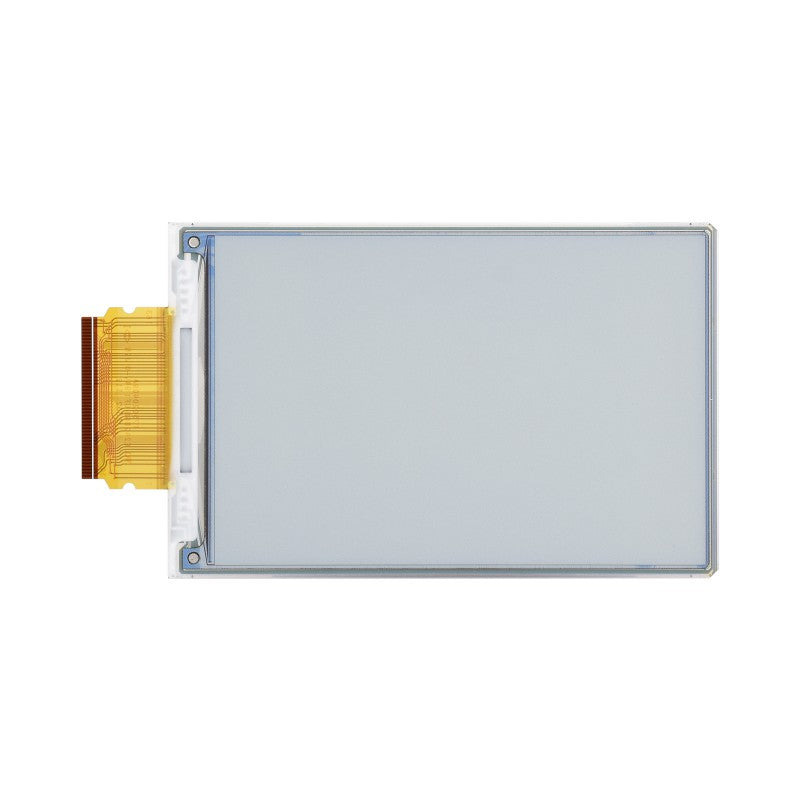

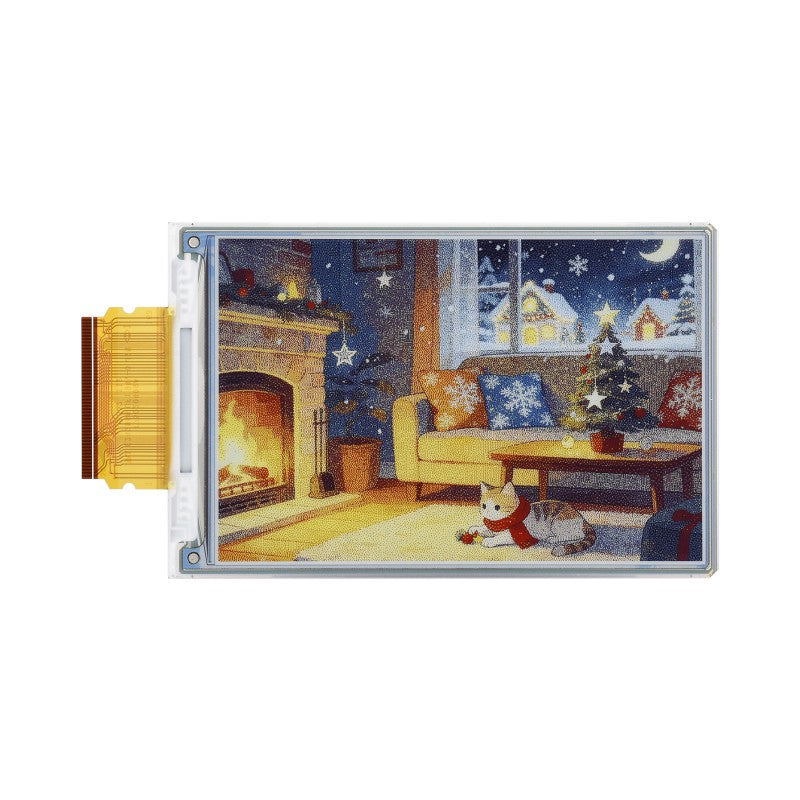

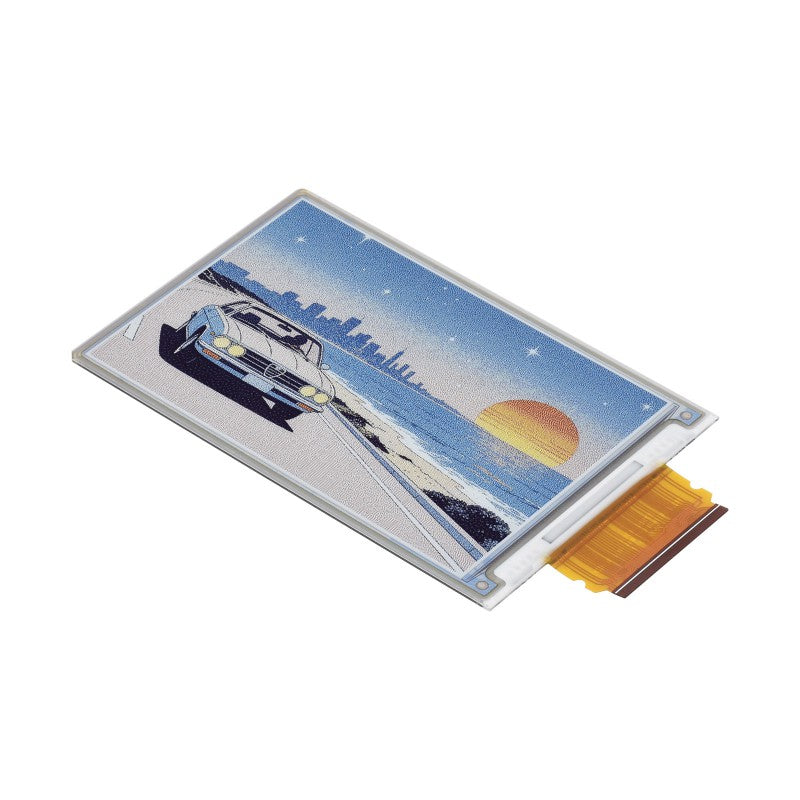

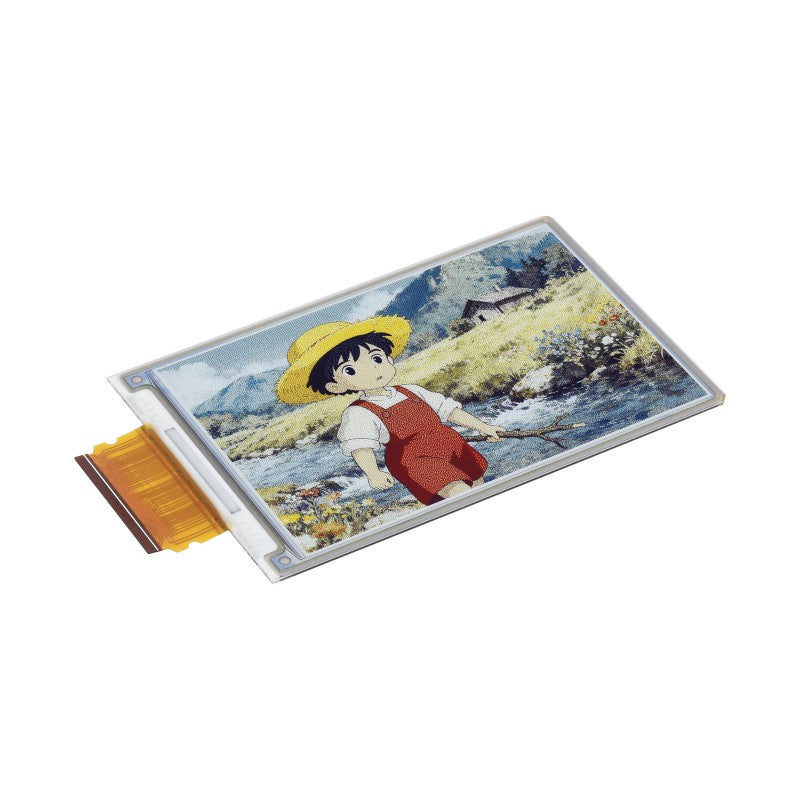

3.6inch e-Paper (E) |

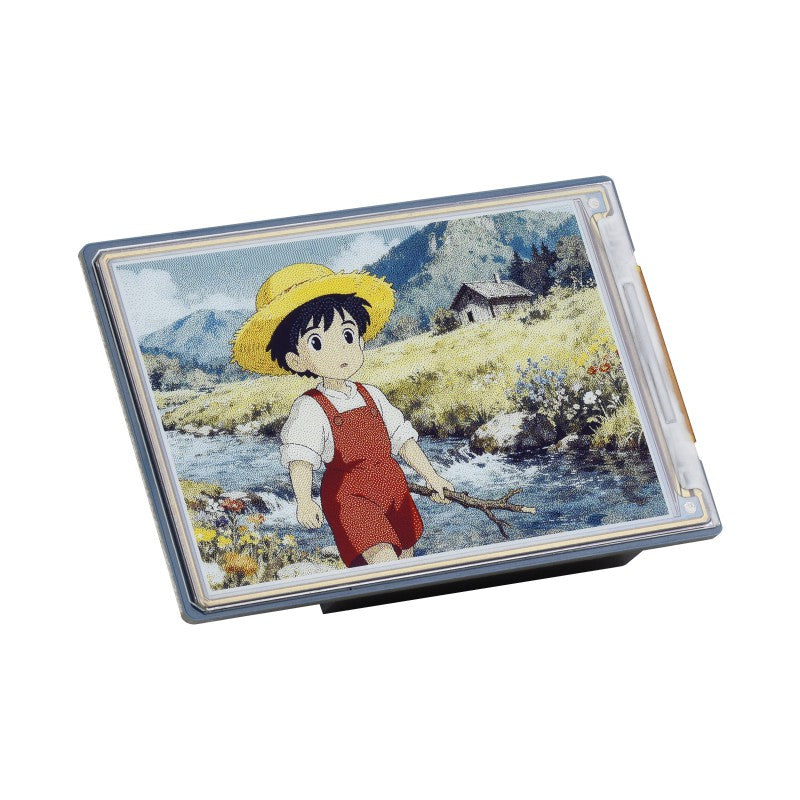

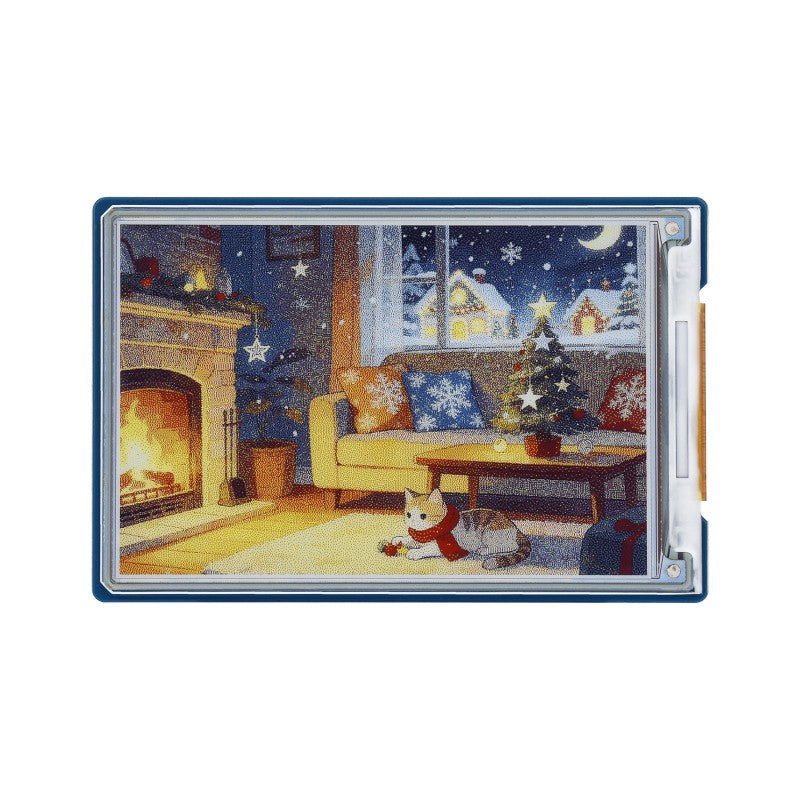

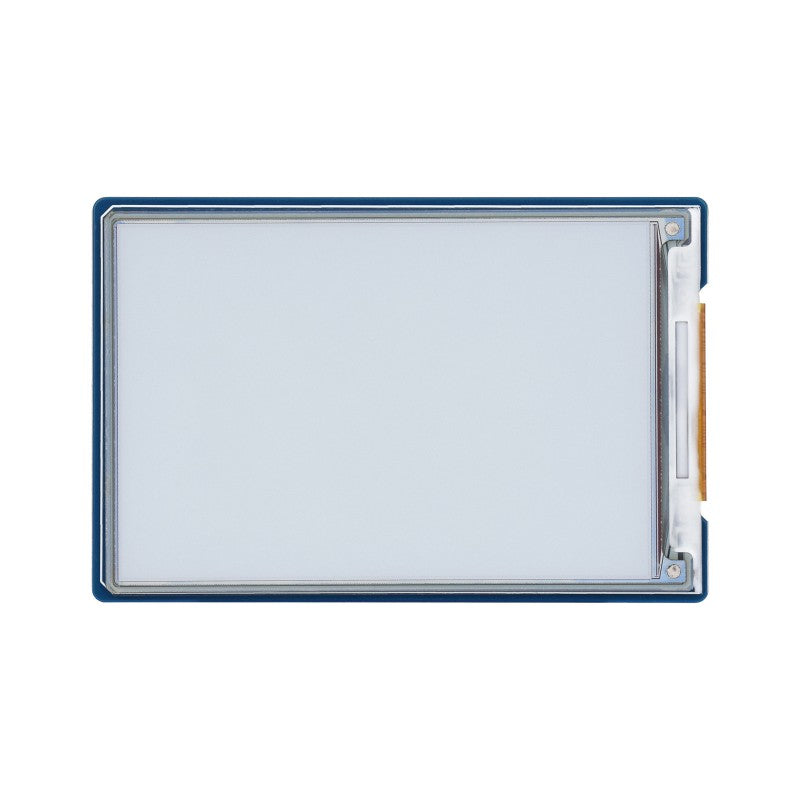

3.6inch e-Paper HAT+ (E) |
| No backlight, keeps displaying last content for a long time even when power down. |
| Ultra low power consumption, basically power is only required for refreshing. |
| Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi / Jetson Nano / Arduino / STM32 / ESP32). |
|
Optional for e-Paper driver board: 1. Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi series boards and Jetson Nano |
| Operating Voltage | Raw Display: 3.3V With Driver Board: 3.3V / 5V |
| Display Color | E6 Full Color (E Ink Spectra 6) |
| Interface | 3-Wire SPI, 4-Wire SPI |
| Grey Scale | 2 |
| Outline Dimensions | Raw Display: 86.60 × 56.00 × 0.78 mm With Driver Board: 89.50 × 59.00 mm |
| Full Refresh Time | 15s |
| Display Size | 76.20 × 50.80 mm |
| Refresh Power | < 100mW |
| Dot Pitch | 0.127 × 0.127 mm |
| Standby Current (Raw Display) | < 0.01μA (Almost None) |
| Resolution | 600 × 400 Pixels |
| Viewing Angle | > 170° |
E Ink Spectra 6 is a newly launched full color e-paper technology that brings fresh vitality to the e-paper industry with excellent color performance, high resolution and high contrast.
Adopts red, yellow, and blue as the primary colors, it offers more possibilities for e-paper color display, featuring high contrast and high saturation to make images clearer and colors brighter.
Spectra displays are made of millions of Microcups which suspend the four different colored particles in clear fluid.
|
By applying a negative charge the red particles rise to the top and become visible |
A split charge raises blue particles to the top and become visible |
The resolution is up to 200ppi, features a wider range of operating temperature and faster screen refresh time. And it is more power-saving, aligning with ESG trends for energy efficiency and carbon reduction
Using blue charged particles to produce six primary colors, and employing dithering technology to create vivid and saturated full color images.
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

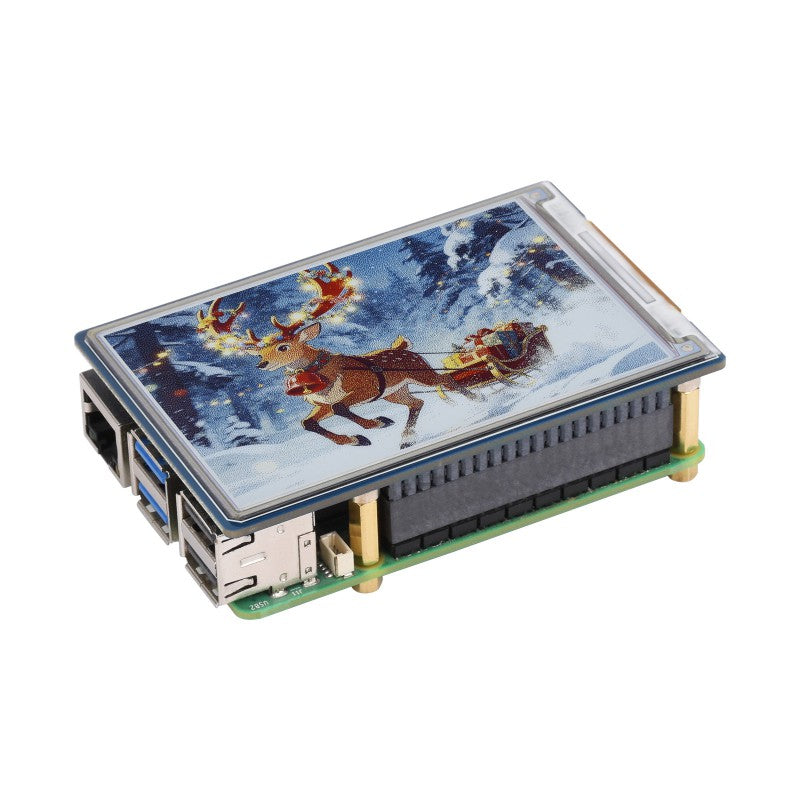

Standard Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards, Jetson Nano
* for reference only, the Raspberry Pi is NOT included.

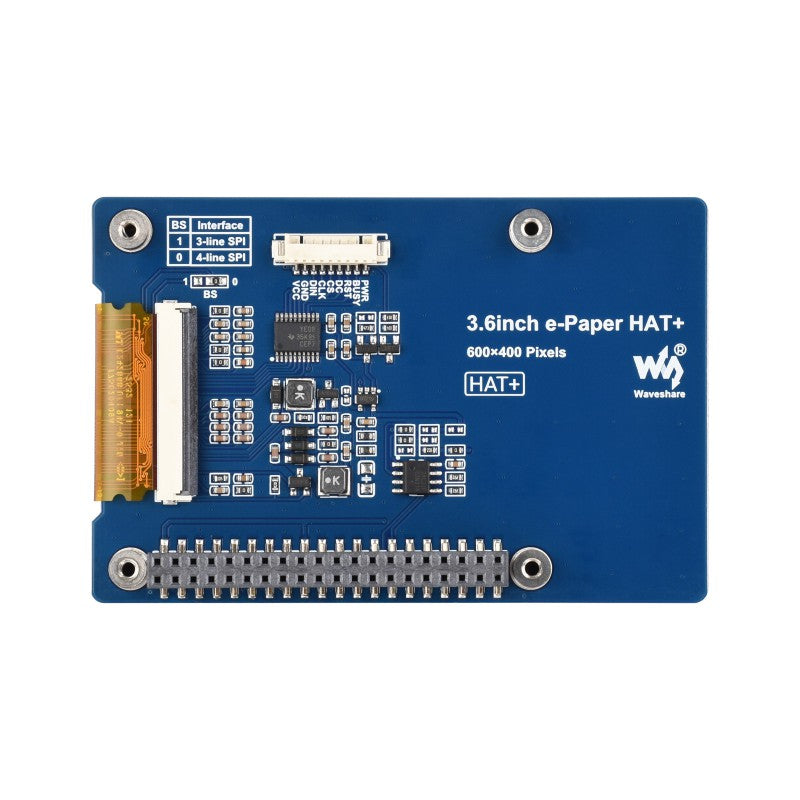

for use with controller boards like Raspberry Pi / Arduino / STM32 / ESP32
| Pin | Description |
|---|---|
| PWR | Power On/Off Control |
| BUSY | Busy Status Output Pin |
| RST | External Reset (Low Active) |
| DC | Data/Command Selection (High for Data, Low for Command) |
| CS | SPI Chip Select (Low Active) |
| CLK | SPI Clock (SCK) Pin |
| DIN | SPI MOSI (Master Out Slave In) Pin |
| GND | Ground |
| VCC | Power Input (3.3V / 5V) |
Compatible With 3.3V / 5V MCUs
Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...
3.6inch e-Paper (E)
3.6inch e-Paper HAT+ (E)
3.6inch e-Paper (E)
3.6inch e-Paper (E) x1
3.6inch e-Paper HAT+ (E)
3.6inch e-Paper HAT+ (E) x1
GH1.25 9PIN cable 20cm x1
Screws pack x1
