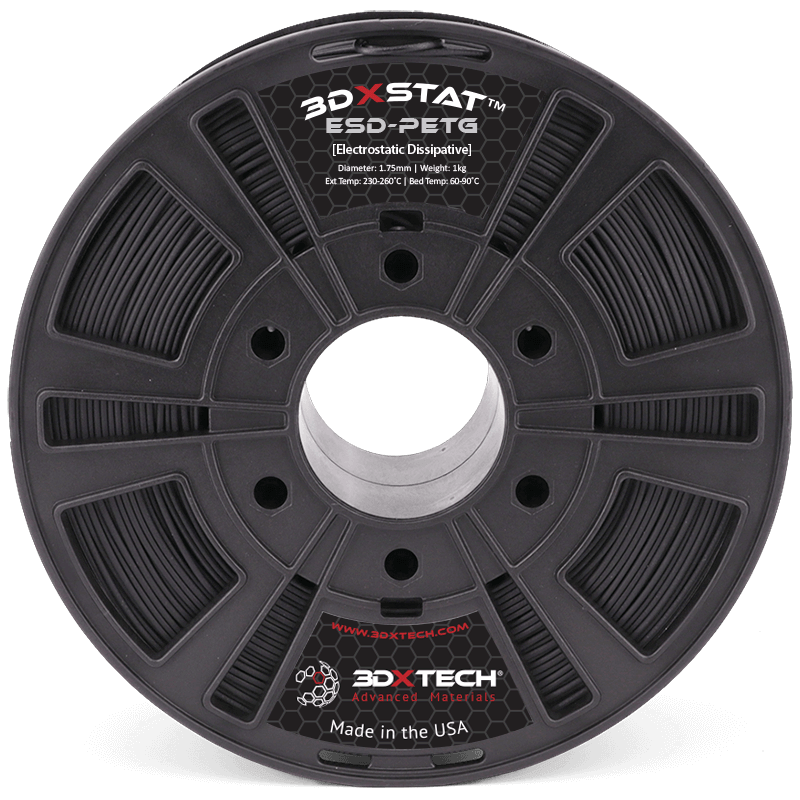

3DXSTAT ESD-PETG
3DXSTAT ESD-PETG is an advanced ESD-Safe compound designed for use in critical applications which require electrostatic discharge (ESD) protection. Made using cutting-edge multi-wall carbon nanotube technology, state of the art compounding technology, and precision extrusion processes. Target surface resistance: 10^4 to 10^9 Ohm. An alternative to Zortrax Z-ESD.
Benefits of PETG Include
Superior chemical resistance vs. ABS
Amorphous structure giving it low, near isotropic shrinkage
Low moisture absorption, 3x lower than ABS
Very low odor emitted while printing
Superior ductility vs. ABS
Wide processing range of 230-260°C
Benefits of 3DXSTAT™ Include
Consistent surface resistivity
Improved retention of impact & elongation
Low particulate contamination
Minimal contribution to outgassing and ionic contamination
Typical ESD-PETG Applications Include:
Semi-con: HDD Components, Wafer Handling, Jigs, Casings, & Connectors
Industrial: Conveying, Metering, and Sensing Applications
Target Conductivity for 3DXSTAT ESD-PETG:
10^7 to 10^9-ohm surface resistivity on 3DP sample using concentric ring test method.
Note: Internal studies have indicated that increased extruder temperatures can achieve higher levels of conductivity. Likewise, lower extruder temperatures have resulted in lower levels of conductivity. Each printer is set-up differently as well as varied part geometry. Therefore, expect some trial time to understand how this filament works in your specific printer / application. However, please do not exceed 270°C to reduce the risk of polymer degradation.
Surface Conductivity as a Function of Extruder Temperature:
The surface resistance of the printed ESD-safe part will vary depending on the printer’s extruder temperature. For example, if your testing indicates the part is too insulative, then increasing the extruder temperature will result in improved conductivity. Therefore, the surface resistance can be ‘dialed-in’ by adjusting the extruder temperature up or down depending on the reading you receive on your part.
Filament Specifications:
1.75mm and 2.85mm +/- 0.05mm in diameter
Recommended Print Settings:
Extruder: 230-260°C
Bed Temp: 60-90°C
Bed Prep: Magigoo Bed Prep Adhesive and 3DXTECH Polyimide Tape work best for us.
Heated Chamber: Not required
Supports: Water soluble AquaTek X1 USM works great for complex parts.
Drying Instructions: 65°C for 4 hours.
