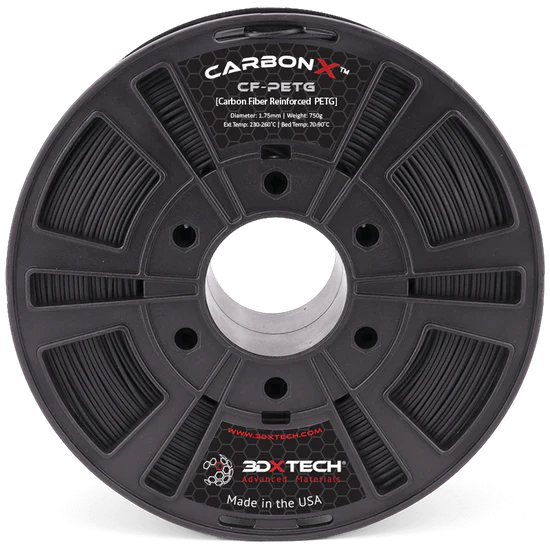

CarbonX™ PETG+CF is made using our high-flow PETG and premium high-modulus carbon fiber. This material offers ease of printing, strength & stiffness, excellent dimensional stability, and an amazing surface finish.
CarbonX™ PETG+CF is made in the USA using premium PETG and High-Modulus Carbon Fiber (not carbon powder or milled carbon fiber). CarbonX™ PETG+CF is an improved CF reinforced 3D printing filament vs. the competition. This filament is ideal for anyone that desires a structural component with high modulus, excellent surface quality, dimensional stability, lightweight, and ease of printing.
Benefits of CarbonX™ PETG+CF Include:
Superior chemical resistance vs. ABS
Amorphous structure giving it low, near isotropic shrinkage
Low moisture absorption, 3x lower than ABS
Very low odor while printing
Wide processing range from 230-270°C
Chemical Resistance of PETG:
Unstressed tensile bars molded of PETG exhibit good resistance to dilute aqueous solutions of mineral acids, bases, salts, and soaps, and to aliphatic hydrocarbons, alcohols, and a variety of oils. Halogenated hydrocarbons, short-chain length ketones, and aromatic hydrocarbons dissolve or swell the plastic.
This product contains 750 grams of filament. 2.85mm Available on order only. (Lead time: <7 days)
Specifications
1.75mm and 2.85mm +/- 0.05mm in diameter
Recommended Print Settings:
Extruder: 230-260°C
Bed Temp: 70-90°C
Nozzle: We currently recommend ahardened steel nozzlewith a minimum diameter of 0.4mm.
Other: Ideal layer height is 60% of nozzle diameter. We do not recommend printing layers smaller than 0.2mm with carbon fiber reinforced filaments.
Bed Prep:Magigoo Bed Prep Adhesivegives us the best results
Heated Chamber: Not required
Supports: Water-solubleAquaTek X1 USMworks great for complex parts.
Drying Instructions: 65°C for 4 hours.
Carbon Fiber
What Is It?
Fibers 5-10 micrometers wide made of carbon. The fibers are aligned following the axis of the material. This, along with their physical makeup, are what gives this material its excellent properties.
What Does It Do?
Carbon Fibers demonstrate a lot of desirable material properties:
High stiffness
High tensile strength
High heat tolerance
High chemical resistance
Low weight
Low thermal expansion
How Does It Work?
Reinforcing plastic with carbon fibers produces a 3D printing filament that exhibits the best properties of both the carbon fibers and the plastic of choice.
What Is It Good For?
Ideal for any applications which require lightweight and rigidity. Carbon fiber reinforced parts, designed to use less material and save weight, is extremely popular in aerospace, civil engineering, the military, and motorsports.
Abrasive Material
This material is particularly abrasive among 3D printing filaments. Users may find standard brass nozzles are chewed through very quickly compared to standard wear and tear. When worn through, the nozzle diameter will widen inconsistently and the printer will experience extrusion issues. Because of this, it'sstrongly recommendedthis material be printed through a hardened steel nozzle rather than a softer metal.Hardened steel nozzlescan often be inexpensive and easily installed depending on your printer manufacturer's instructions.
