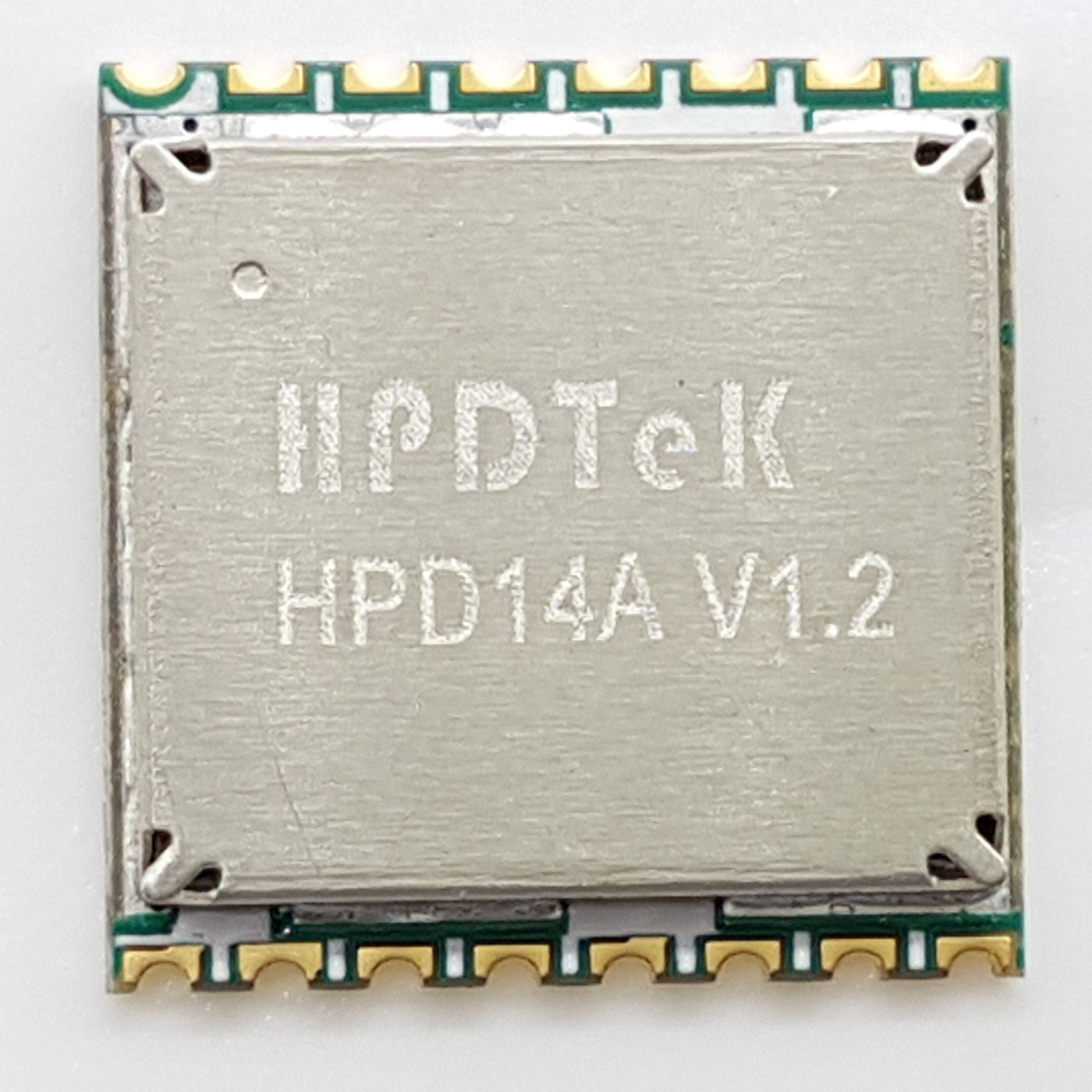

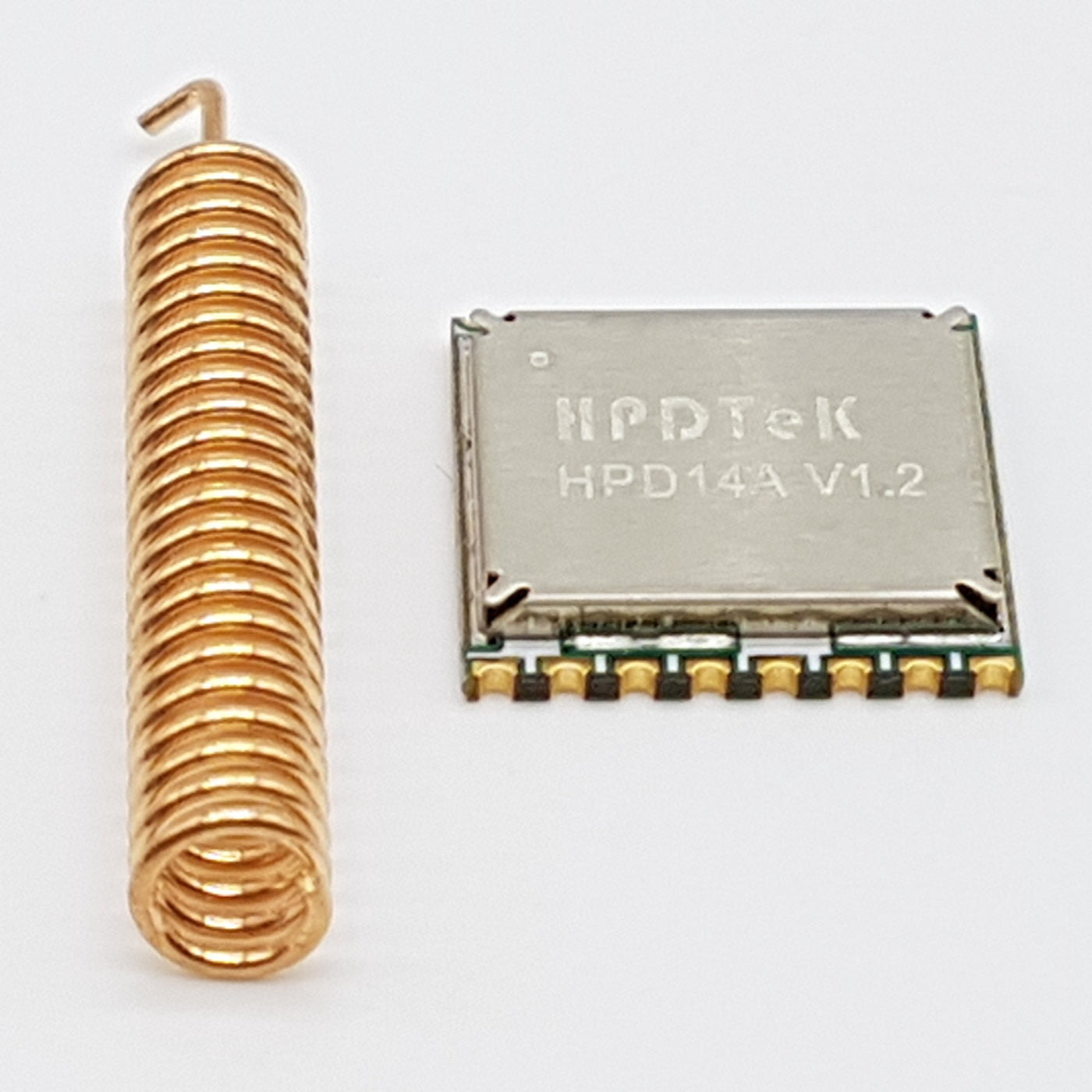

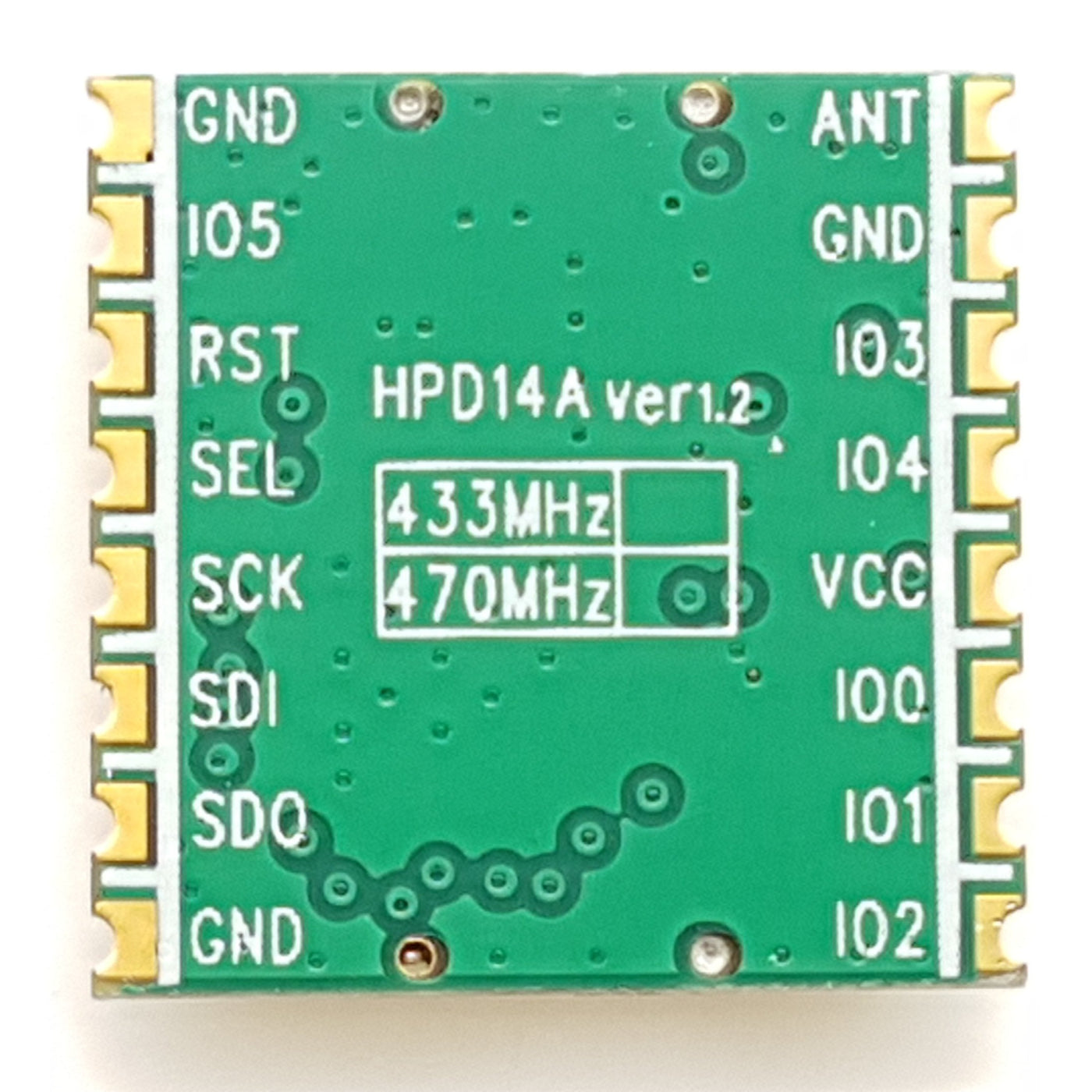

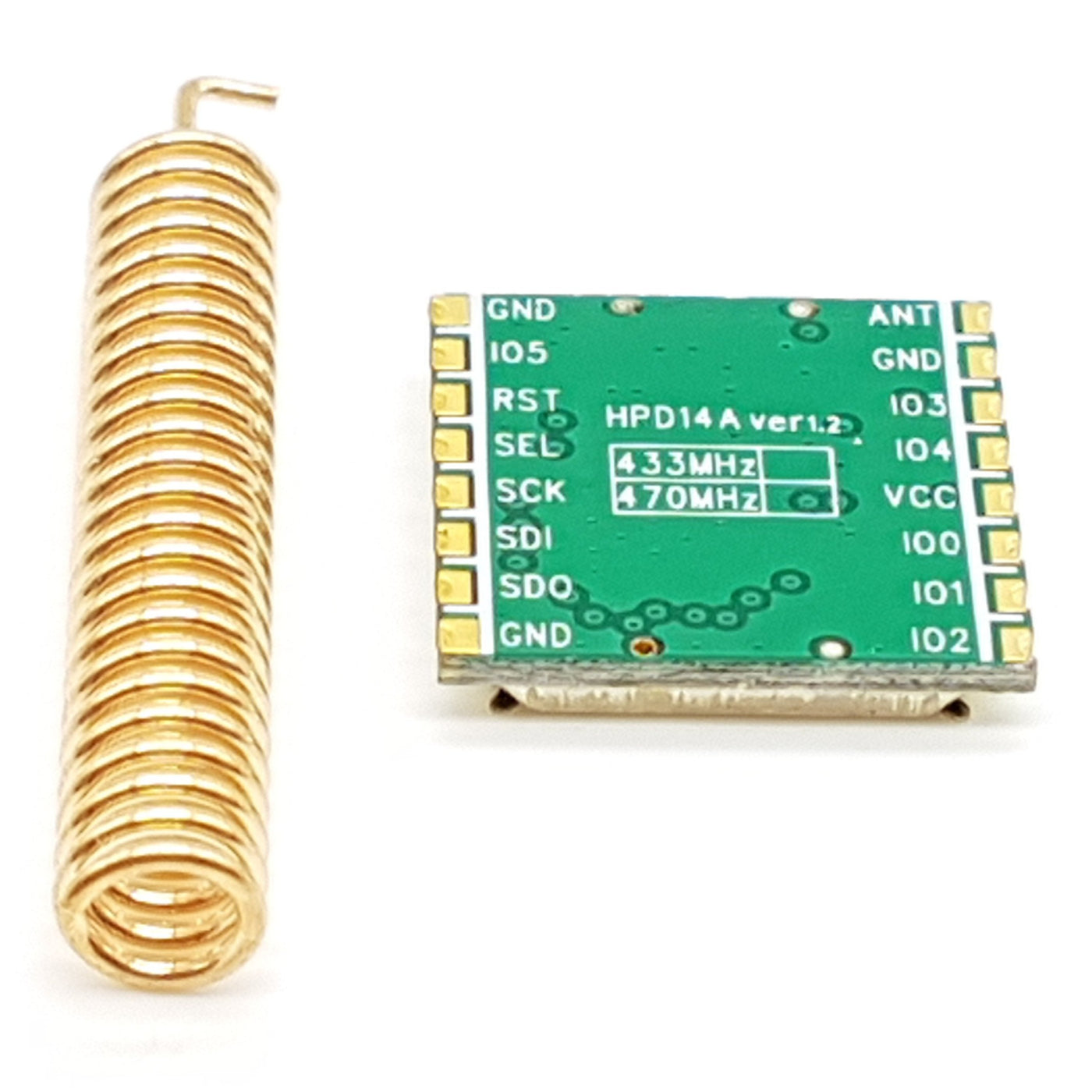

868Mhz Lora SX1278 Long Range RF Wireless Module
Features:
Frequency Range: 433MHz Modulation: FSK/GFSK/MSK/LoRa SPI Data Interface Sensitivity: -136dBm Output Power: +20dBm Data Rate: <300 kbps 127dB dynamic Range RSSI Excellent blocking immunity Preamble detection Automatic RF sense and CAD monitor Built-in bit synchronizer for clock recovery Packet engine up to 256 bytes with CRC Working Temperature: -40°C ~+80°C Build-in temperature sensor Standby current: ≤ 1uA Supply voltage: 1.8~3.6V
Specifications
Resources Datasheet
Library
Sample Code
Tutorial VIDEO
VIDEO
