The 460PCS JST Connector Kit is a comprehensive assortment of compact wire-to-board connectors designed for electronics prototyping, PCB assembly, robotics, drones, RC projects, battery connections, LED applications, embedded systems, and general electronic projects.
This product is available in two connector variants: JST-PH 2.0mm and JST-XH 2.54mm. Please select the required connector series and pitch according to your application before ordering.

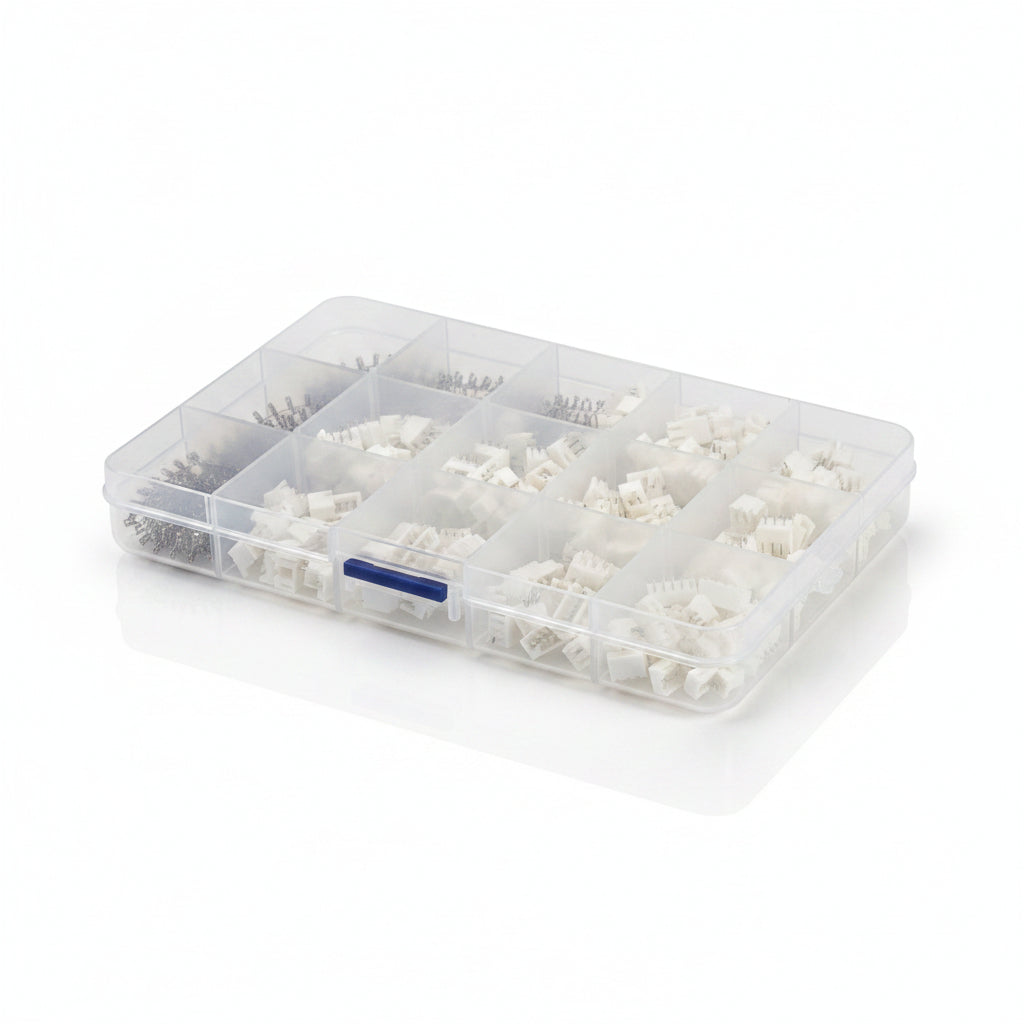

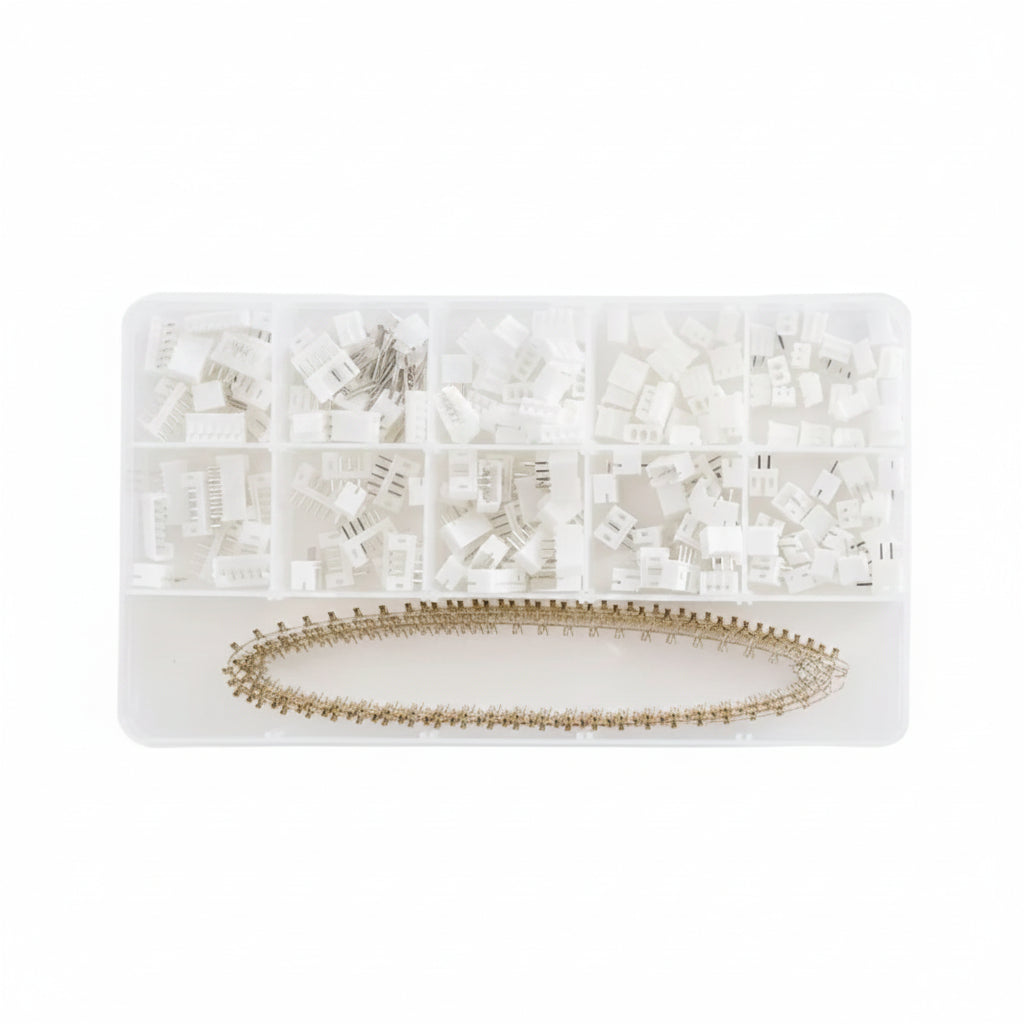

Each kit includes 2-pin to 6-pin connector housings in both mating configurations along with crimp terminals, allowing you to create custom wires, connectors, and cable harnesses. The components are supplied in a compartmentalized storage box for convenient sorting, identification, and storage.
The connector housings are suitable for applications where a compact and reliable detachable connection is required. The included crimp terminals can be attached to wires and inserted into the connector housings to create customized cable assemblies.
This connector kit is suitable for engineers, technicians, students, makers, hobbyists, and electronics enthusiasts working on robotics, IoT devices, development boards, battery-powered projects, drones, RC systems, PCB connections, and circuit prototyping.
| Variant | Connector Series | Pitch | Total Pieces |
|---|---|---|---|
| JST-PH | PH Series | 2.0mm | 460 PCS |
| JST-XH | XH Series | 2.54mm | 460 PCS |
Note: The connector pitch and housing dimensions differ between the PH 2.0mm and XH 2.54mm variants. These variants are not directly interchangeable. Select the variant that matches the connector used in your project.

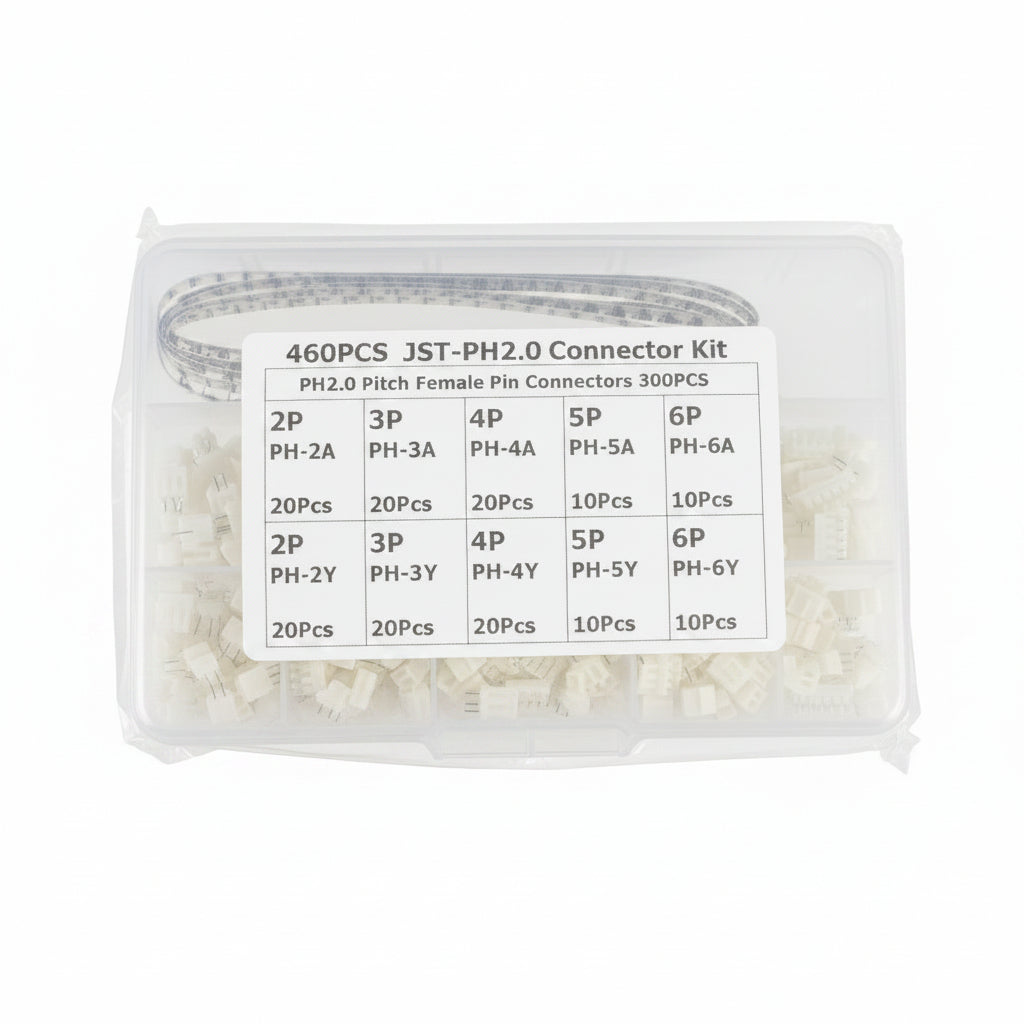

| Connector Type | Quantity |
|---|---|
| PH-2A (2-Pin) | 20 PCS |
| PH-3A (3-Pin) | 20 PCS |
| PH-4A (4-Pin) | 20 PCS |
| PH-5A (5-Pin) | 10 PCS |
| PH-6A (6-Pin) | 10 PCS |
| PH-2Y (2-Pin) | 20 PCS |
| PH-3Y (3-Pin) | 20 PCS |
| PH-4Y (4-Pin) | 20 PCS |
| PH-5Y (5-Pin) | 10 PCS |
| PH-6Y (6-Pin) | 10 PCS |
| PH2.0 Crimp Terminals | 300 PCS |

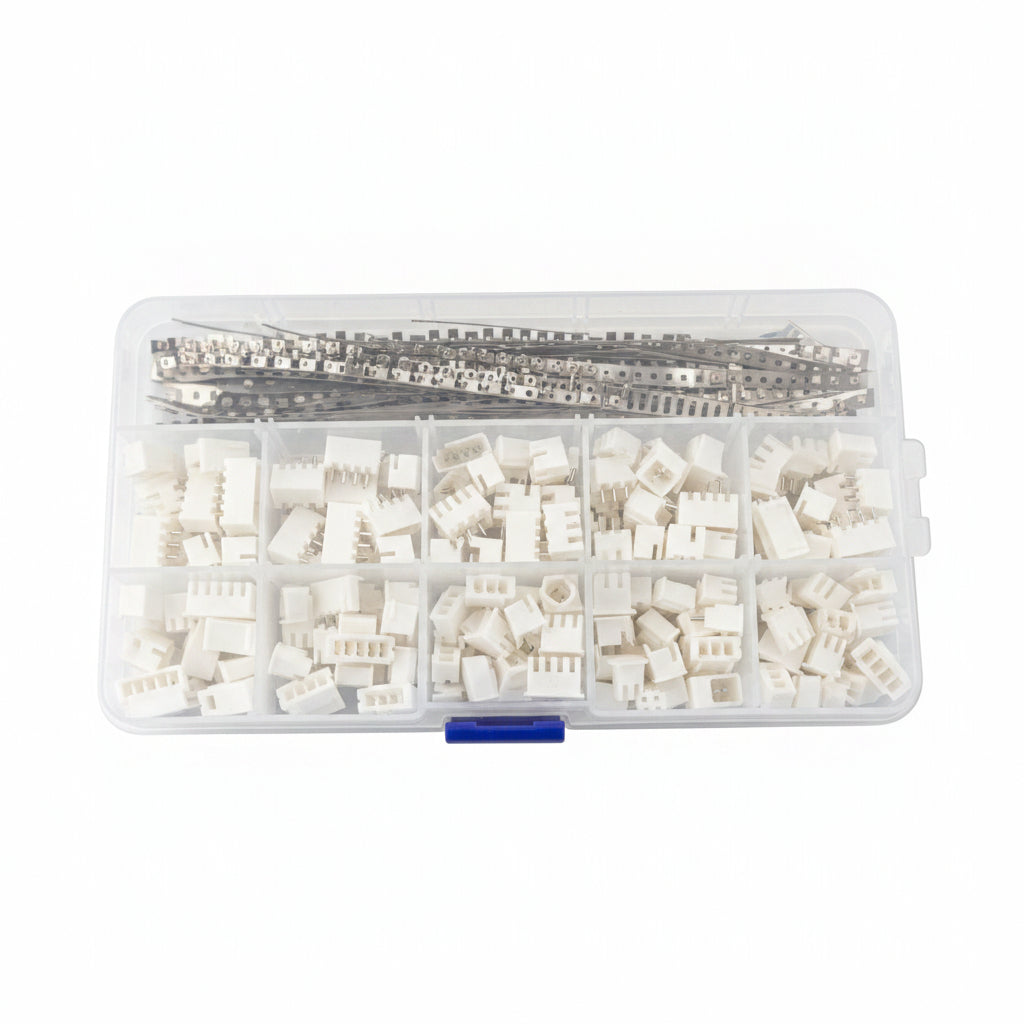

| Connector Type | Quantity |
|---|---|
| XH-2A (2-Pin) | 20 PCS |
| XH-3A (3-Pin) | 20 PCS |
| XH-4A (4-Pin) | 20 PCS |
| XH-5A (5-Pin) | 10 PCS |
| XH-6A (6-Pin) | 10 PCS |
| XH-2Y (2-Pin) | 20 PCS |
| XH-3Y (3-Pin) | 20 PCS |
| XH-4Y (4-Pin) | 20 PCS |
| XH-5Y (5-Pin) | 10 PCS |
| XH-6Y (6-Pin) | 10 PCS |
| XH2.54 Crimp Terminals | 300 PCS |
Important: Please verify the required connector pitch before purchasing. The JST-PH 2.0mm and JST-XH 2.54mm variants have different pitches and are intended for different mating connectors.
