47272-0001
Product Overview

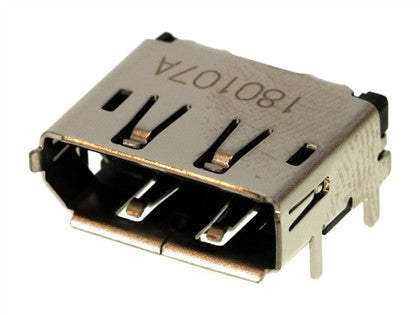

The MOLEX 47272-0001 is a high-quality 0.50mm pitch DisplayPort receptacle designed for reliable signal transmission in electronic applications. This right-angle, surface-mount connector features 20 circuits and is compliant with RoHS standards, ensuring environmentally friendly manufacturing. It is ideal for wire-to-board connections in various electronic devices requiring high-speed data transfer.
Key Features
Part Number: 47272-0001
Manufacturer: MOLEX
Country of Origin: CN
Unit of Measure: EA (Each)
ECCN: EAR99
Package Type: Reel
Product Category: Connectors | HDMI, DisplayPort & DVI Connectors
RoHS Compliant: Yes
Waterproof / Dustproof: No
Gender: Female
Color - Resin: Black
Material - Metal: Copper Alloy
Plating - Mating: Gold (0.76µm min)
Plating - Termination: Matte Tin (1.016µm min)
Operating Temperature Range: -20°C to +85°C
Waterproof / Dustproof: No
Waterproof / Dustproof: No
Application: Wire-to-Board
With EMI Shield: Yes
Ports: 1
Circuits: 20
Voltage - Max: 40V AC
Current - Max per Contact: 0.5A
Orientation: Right Angle
Surface Mount: Yes
Panel Mount: Without Flange
PCB Locator & Retention: Yes
Keyed & Polarized: Yes
Max Reflow Process: 250°C for 10 seconds
Specifications
Circuits (Loaded)
20
Circuits (Maximum)
20
Color - Resin
Black
Flammability
94V-0
Material - Metal
Copper Alloy
Material - Plating Mating
Gold
Material - Plating Termination
Matte Tin
Temperature Range - Operating
-20° to +85°C
Additional Details
Designed for high-speed data transfer with 20 circuits
Includes latch holes, peg, and solder tab of shell for secure mounting
Lead-Free Series suitable for environmentally conscious manufacturing
Compatible with DisplayPort male-to-male cable assemblies (Part Number: 68783)
Compliance & Resources
This product complies with EU RoHS (https://www.molex.com/bin/molex/rohspdf?partNumber=472720001) and other industry standards. For detailed specifications, drawings, 3D models, and datasheets, please visit the official datasheet .
Note
Datasheet was not processed, please search the internet for the part number 47272-0001 for more details.
