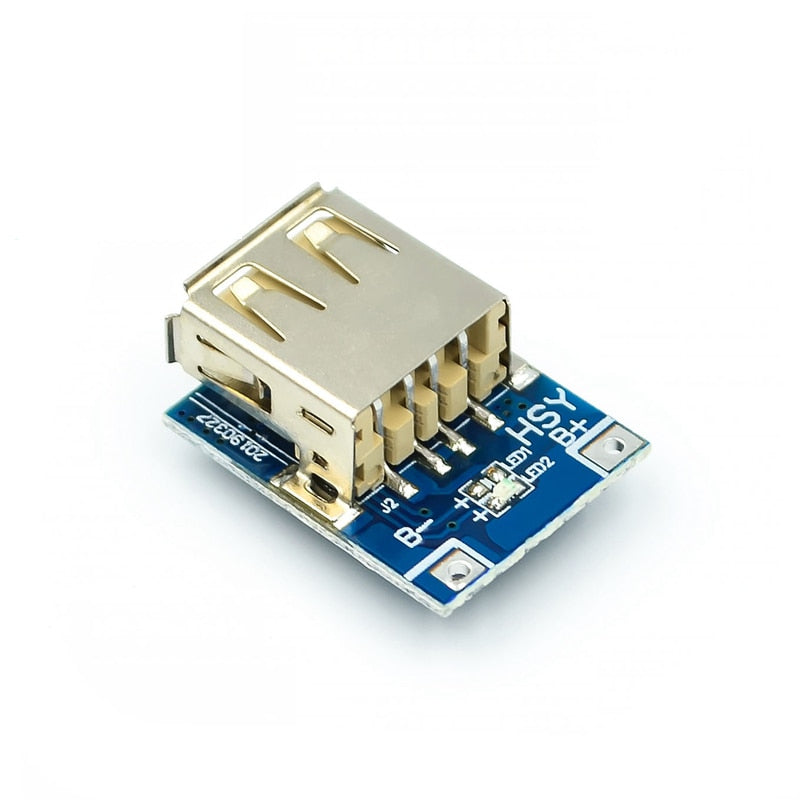

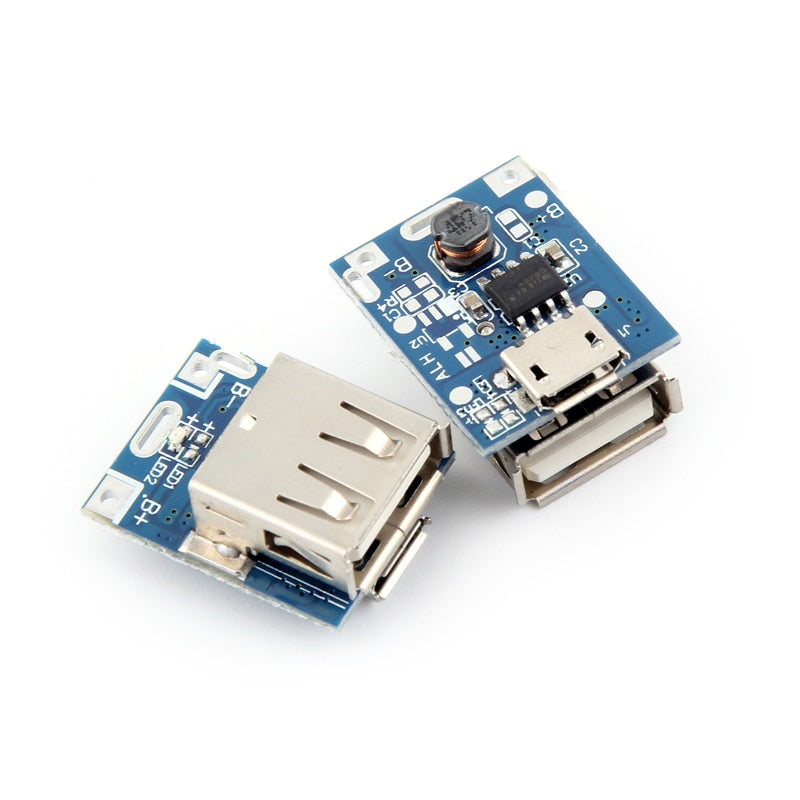

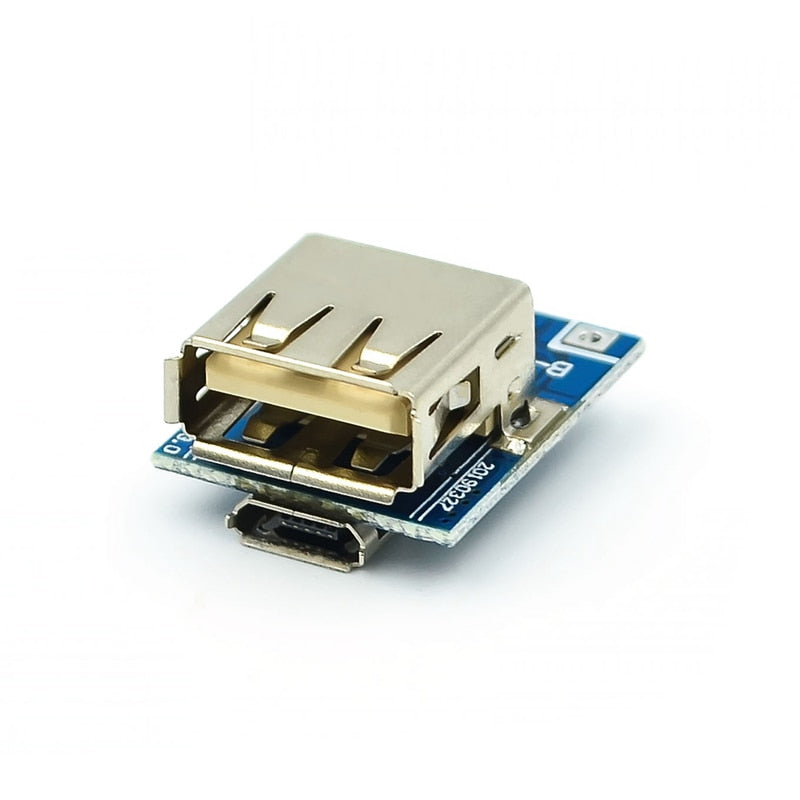

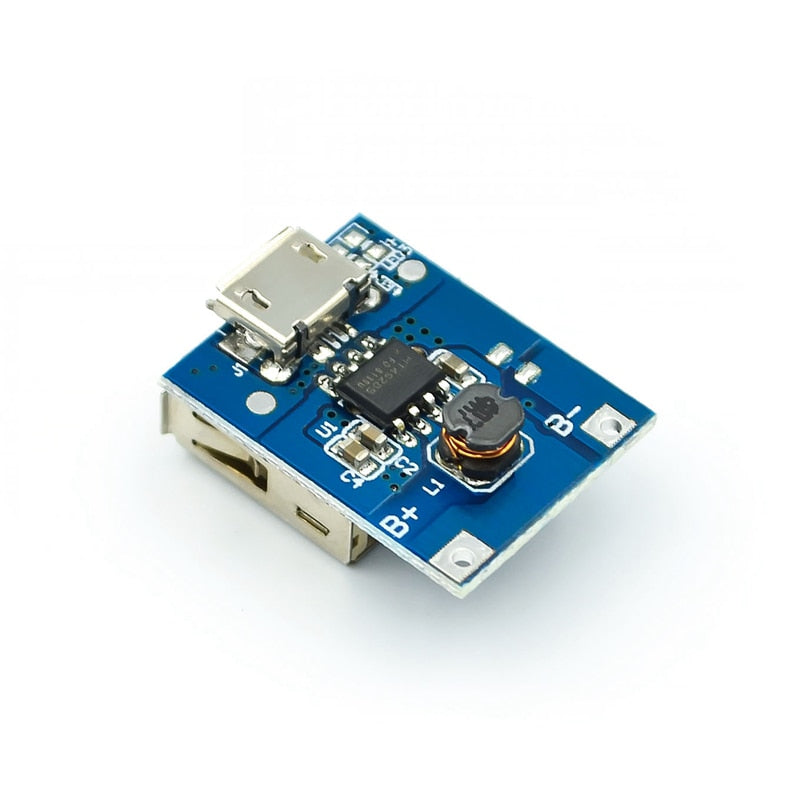

5V Boost Step Up Power Module with Battery Charging Protection (1 piece)

SKU: ELC5059

₹ 44.99 ~~₹ 59.99~~

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

5V Boost Step Up Power Module with Battery Charging Protection (1 piece)₹ 44.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

Charge and discharge status indication
Built-in charging and discharging power MOS
Input voltage: 3.7V~5.5V
Charging current: up to 1A
Output current: up to 1A
Output voltage: 5V
BAT discharge termination voltage: 2.9V
Preset 4.2V charging voltage with an accuracy of ±1%
Discharge efficiency: 85% (input 3.7V, output 5V/1A)
Maximum 8uA standby current
Integrated charge management and discharge management
Intelligent temperature control and over temperature protection
Integrated output overvoltage protection, short circuit protection, heavy duty protection
Integrated overcharge and overdischarge protection
Supports turbulence mode and zero voltage charging

What input power and output specs does this module support?

It accepts an input voltage from 3.7 V to 5.5 V and provides a 5 V output up to 1 A. Standby current is up to 8uA.

What protection and safety features are built into the module?

It includes integrated charge management and discharge management. It also provides intelligent temperature control and over temperature protection, plus overvoltage protection, short circuit protection, heavy duty protection, and overcharge and overdischarge protection.

What are the charging voltage and battery termination settings?

The charging voltage is preset to 4.2 V with an accuracy of plus or minus 1 percent. BAT discharge termination voltage is 2.9 V.

How efficient is the module and are there any temperature protections?

Discharge efficiency is 85 percent when using input 3.7 V and output 5 V at 1 A. It also features intelligent temperature control and over temperature protection.

Is warranty or return information available for this product?

Warranty details are not provided in the product information.

A

Admin

Welcome to the discussion thread for 5V Boost Step Up Power Module with Battery Charging Protection (1 piece)
Feel free to ask questions, share tips or report issues.

Category: View all power module

Fill out the form below and our team will get back to you with bulk pricing.

Description

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

Charge and discharge status indication
Built-in charging and discharging power MOS
Input voltage: 3.7V~5.5V
Charging current: up to 1A
Output current: up to 1A
Output voltage: 5V
BAT discharge termination voltage: 2.9V
Preset 4.2V charging voltage with an accuracy of ±1%
Discharge efficiency: 85% (input 3.7V, output 5V/1A)
Maximum 8uA standby current
Integrated charge management and discharge management
Intelligent temperature control and over temperature protection
Integrated output overvoltage protection, short circuit protection, heavy duty protection
Integrated overcharge and overdischarge protection
Supports turbulence mode and zero voltage charging
