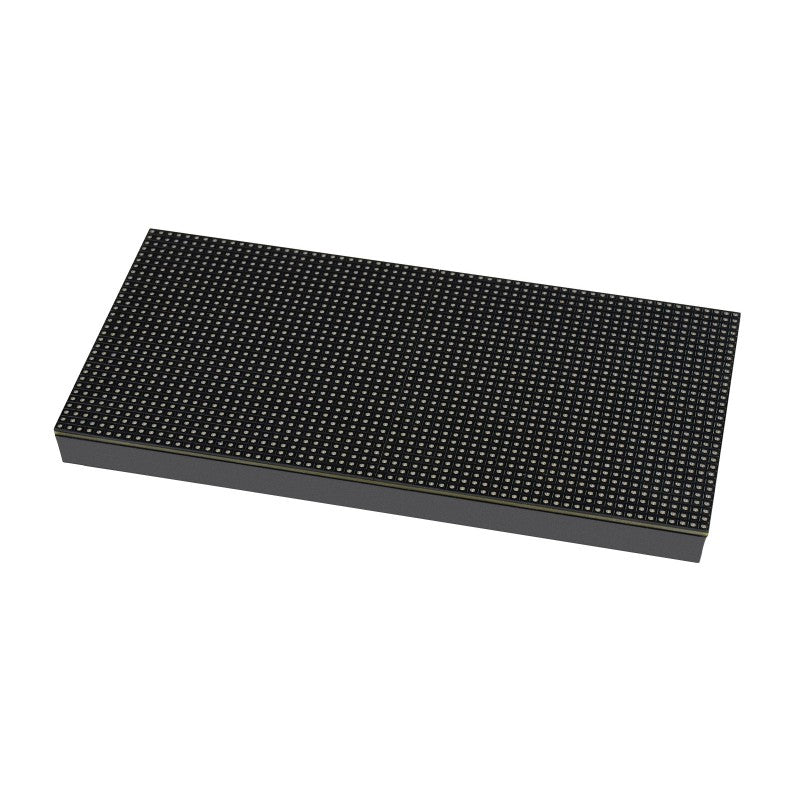

64×32 RGB Full-Color 3mm LED Matrix Panel

SKU: WVSH0045

₹ 2,699.99 ₹ 3,999.99

In stock | Ready to ship

⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
64×32 RGB Full-Color 3mm LED Matrix Panel₹ 2,699.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

64 × 32 Full-Color LED Matrix Panel

2048 Individual RGB LEDs, 3mm Pitch

Supports Raspberry Pi Pico, ESP32, Arduino...

* the product includes the display only and requires a host controller, such as Raspberry Pi, Pico, ESP32, or Arduino for display output.

Features

  • 2048 individual RGB LEDs, full-color display, adjustable brightness

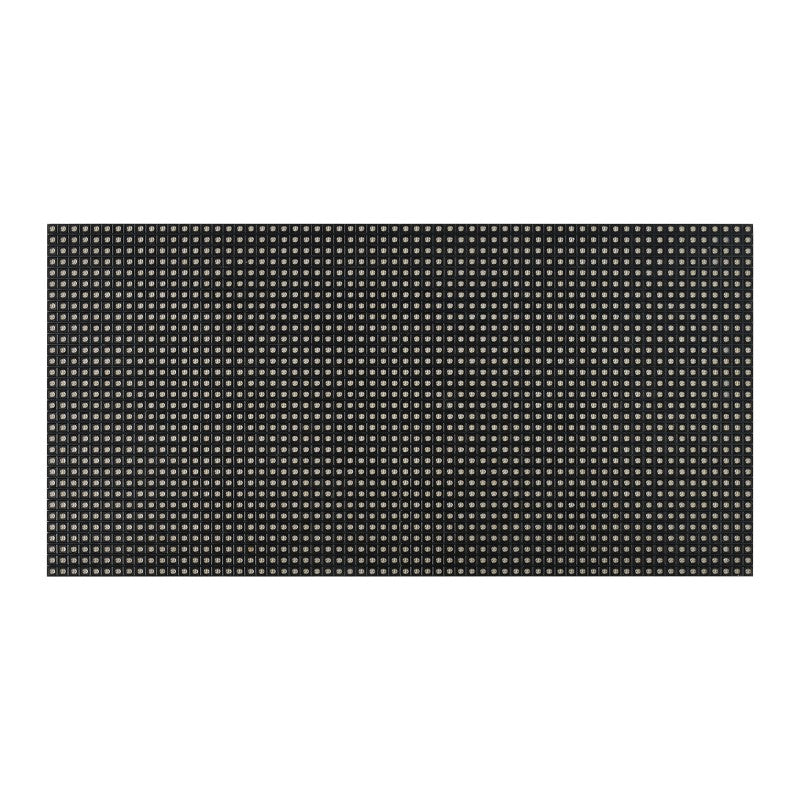

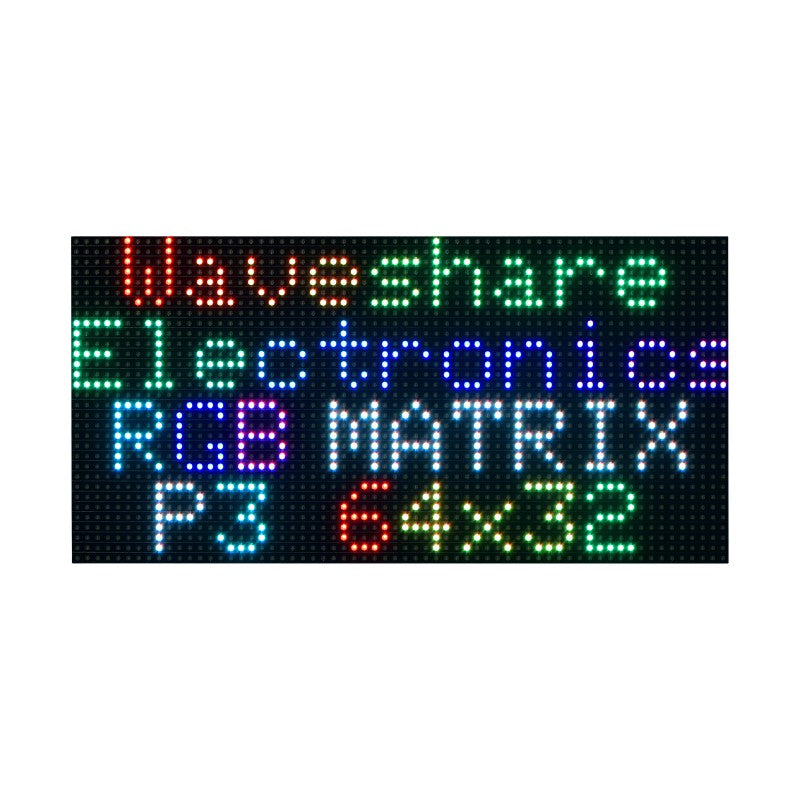

  • 64×32 pixels, 3mm pitch, allows displaying text, colorful image, or animation
  • 192×96mm dimensions, moderate size, suitable for DIY desktop display or wall mount display
  • Onboard two HUB75 header, one for controller data input, one for output, chain support
  • Provides open source development resources and tutorials, for use with Raspberry Pi Pico, ESP32, Arduino, and so on

Specifications

DIMENSIONS 192mm × 96mm
PIXELS 64×32=2048 DOTS
PITCH 3mm
PIXEL FORM 1R1G1B
VIEWING ANGLE ≥160°
CONTROL TYPE synchronization
DRIVING 1/16 scan
HEADER HUB75
POWER SUPPLY 5V / 2.5A (VH4 header input)
POWER ≤12W

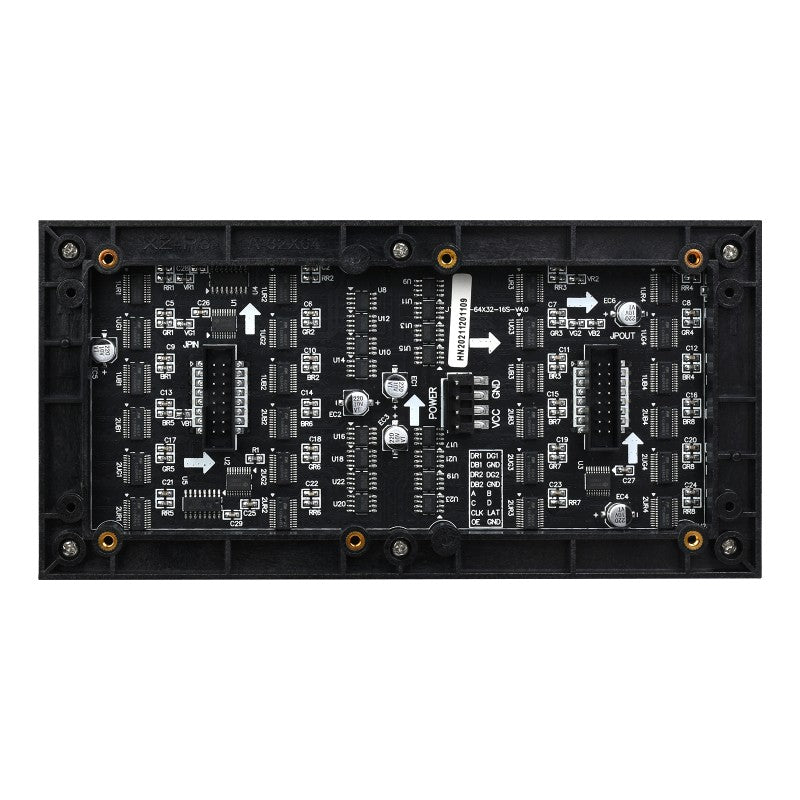

Header Definition

PIN DESCRIPTION PIN DESCRIPTION
VCC 5V power input GND Ground
R1 R higher bit data R2 R lower bit data
G1 G higher bit data G2 G lower bit data
B1 B higher bit data B2 B lower bit data
A A line selection B B line selection
C C line selection D D line selection
E E line selection CLK clock input
LAT/STB latch pin OE output enable


Chainable Design

Multi LED Matrix Panel Can Be Chained Together To Build A Larger Panel
Via HUB75 Input/Output Header


Each RGB LED matrix panel requires a standalone 5V/2.5A or above power supply, when they're chained to display.

Usage Scenarios

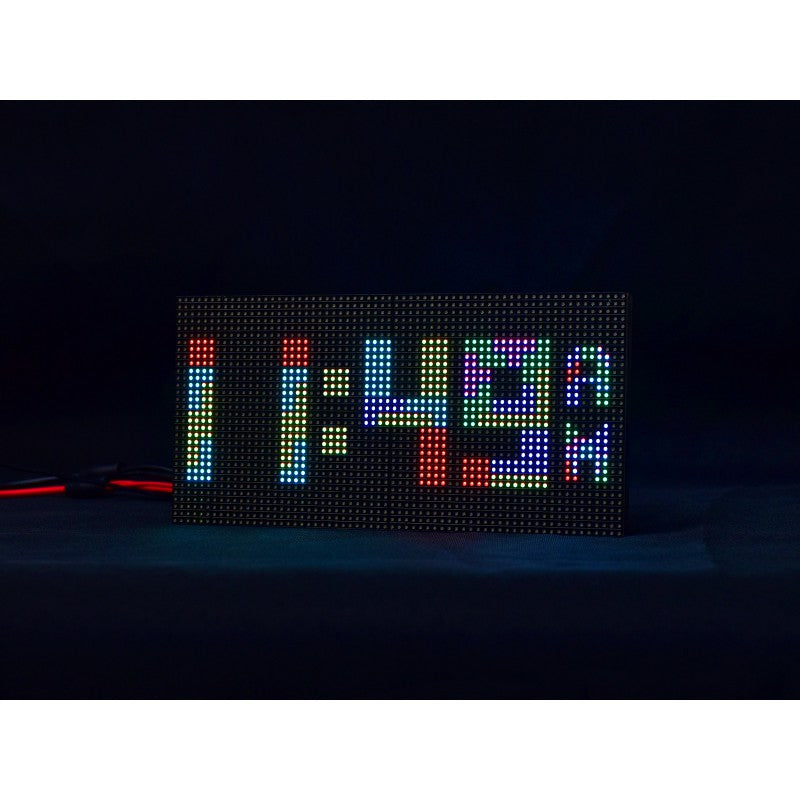

DIY Maker Desktop Or Wall Mount Display, Signboard, Environment Monitor...

Dimensions


Package Content

> RGB-Matrix-P3-64x32 LED matrix and accessories x1
> 16P wire ~30cm x1
> Dark brown acrylic front panel x1
> Power supply terminal adapter x1
> Magnetic bolt 4pcs x1
> Double-sided tape


Resources

What are the key specifications of this 64x32 RGB LED Matrix Panel?
It features 64x32 pixels (2048 RGB LEDs) with a 3 mm pitch and a 192 by 96 mm footprint. It uses a 5 V supply up to 12 W and requires 2.5 A or more. It supports chaining via HUB75 headers for input and output.
Which platforms and controllers are supported by this panel?
It is compatible with Raspberry Pi Pico, ESP32, and Arduino via the HUB75 interface. The panel provides two HUB75 headers for data input and output and can be chained.
Can you chain multiple panels to build a larger display?
Yes, the design is chainable via the HUB75 input output header. Each panel requires a standalone 5 V power supply of 2.5 A or more when used in a chain.
What is included in the package?
The package includes the RGB Matrix Panel, a 16P wire about 30 cm, a dark brown acrylic front panel, a power supply terminal adapter, four magnetic bolts, and double sided tape.
Where can I find setup resources and tutorials for this panel?
Open source development resources and tutorials are available, with a WIKI at RGB-Matrix-P3-64x32.
