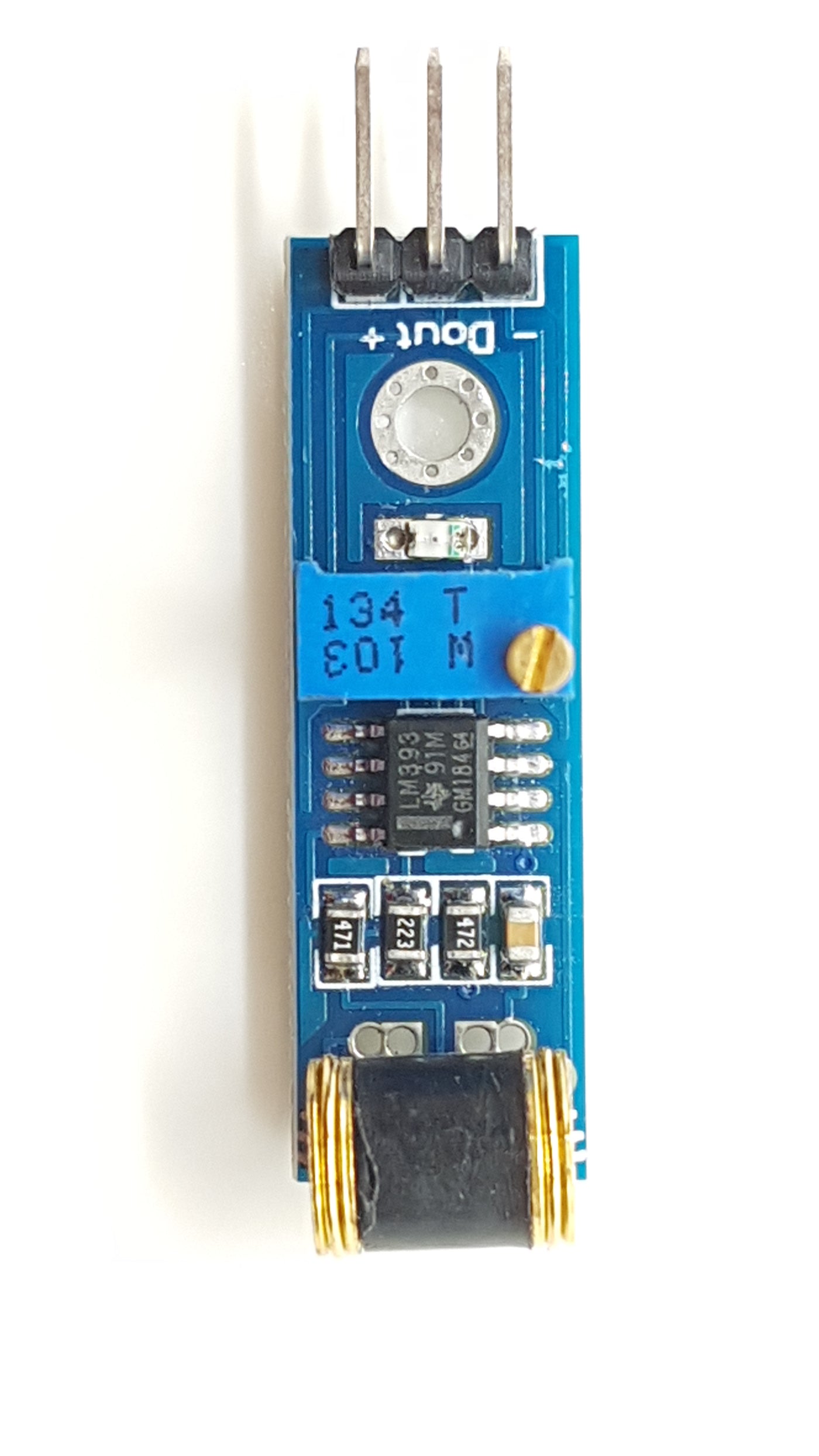

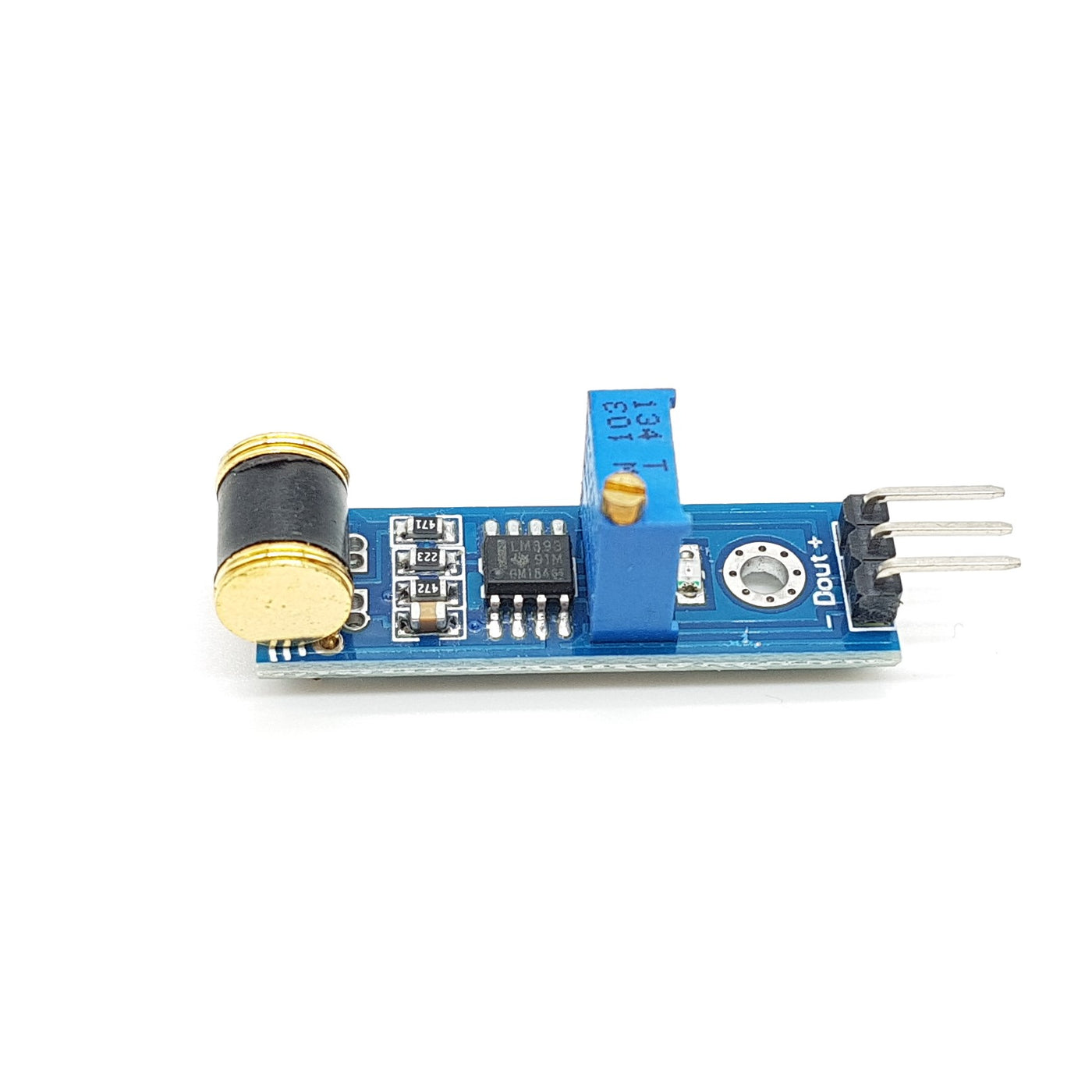

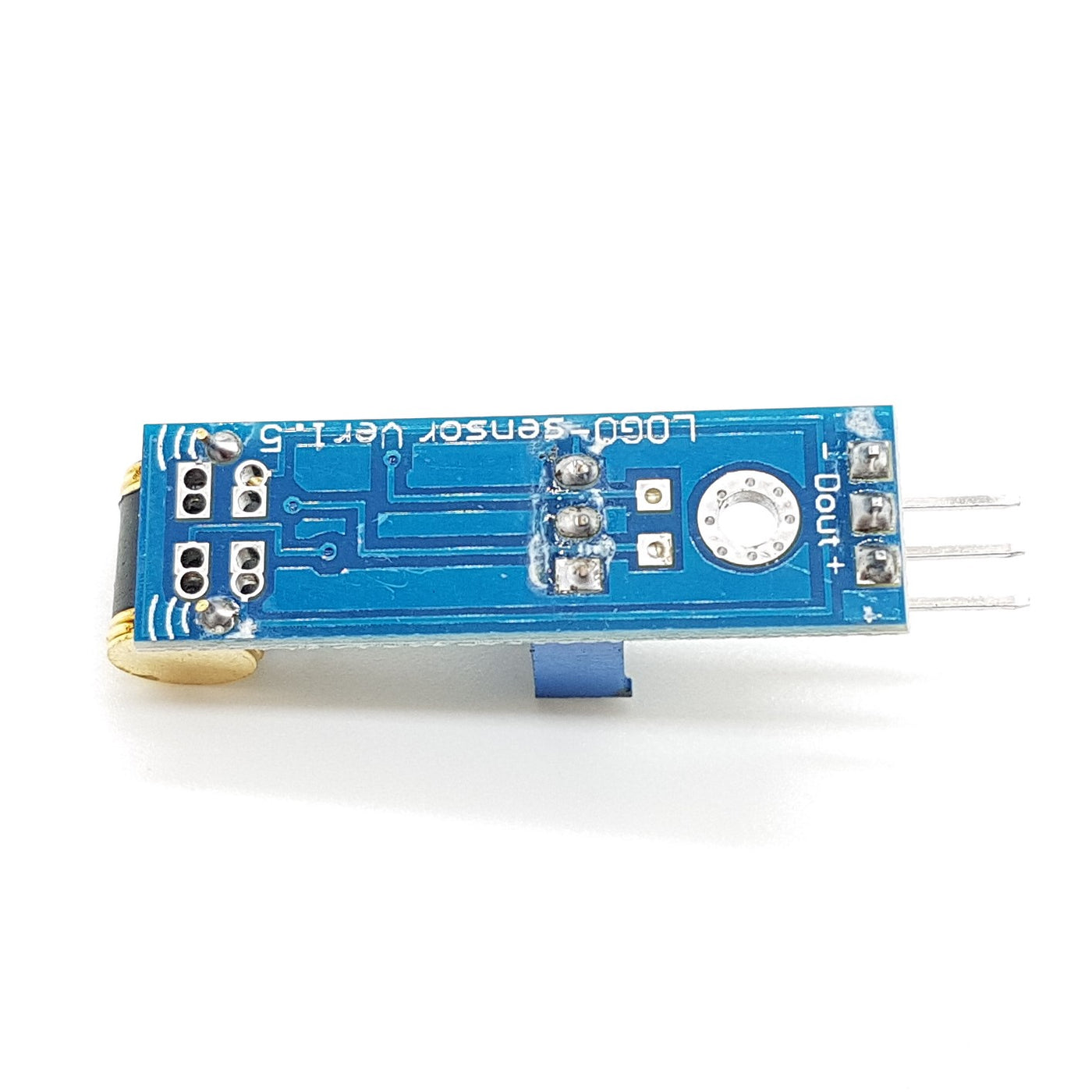

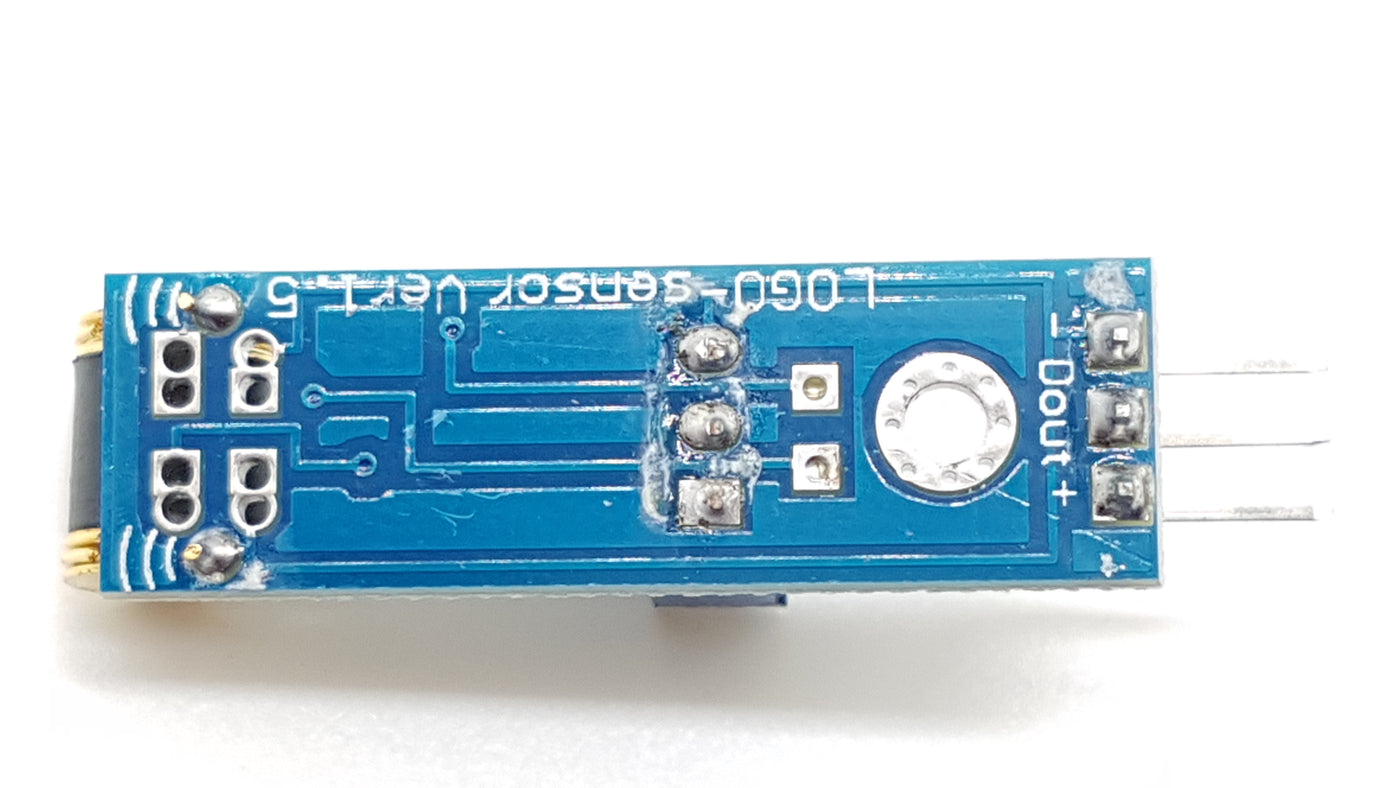

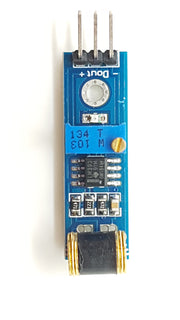

801S Vibration Sensor Module

SKU: ELC1008

ā‚¹ 185.99 ā‚¹ 349.99

In stock | Ready to ship

Select variant

Digital
āš  Only a few left in stock. Order soon.
ā± High demand right now.
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
801S Vibration Sensor ModuleDigitalā‚¹ 185.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

This Vibration sensor is based on the high precision vibration sensor 801S, it has 2 outputs, includes TTL and analog output, the sensitivity of TTL output can be adjusted by the on-board potentiometer, you can also read the analog output with any ADC to get the vibration condition.

  • Size: 20mm X 32mm X 11mm
  • Operating Voltage: 5V
  • Sensitivity can be adjusted using Potentiometer

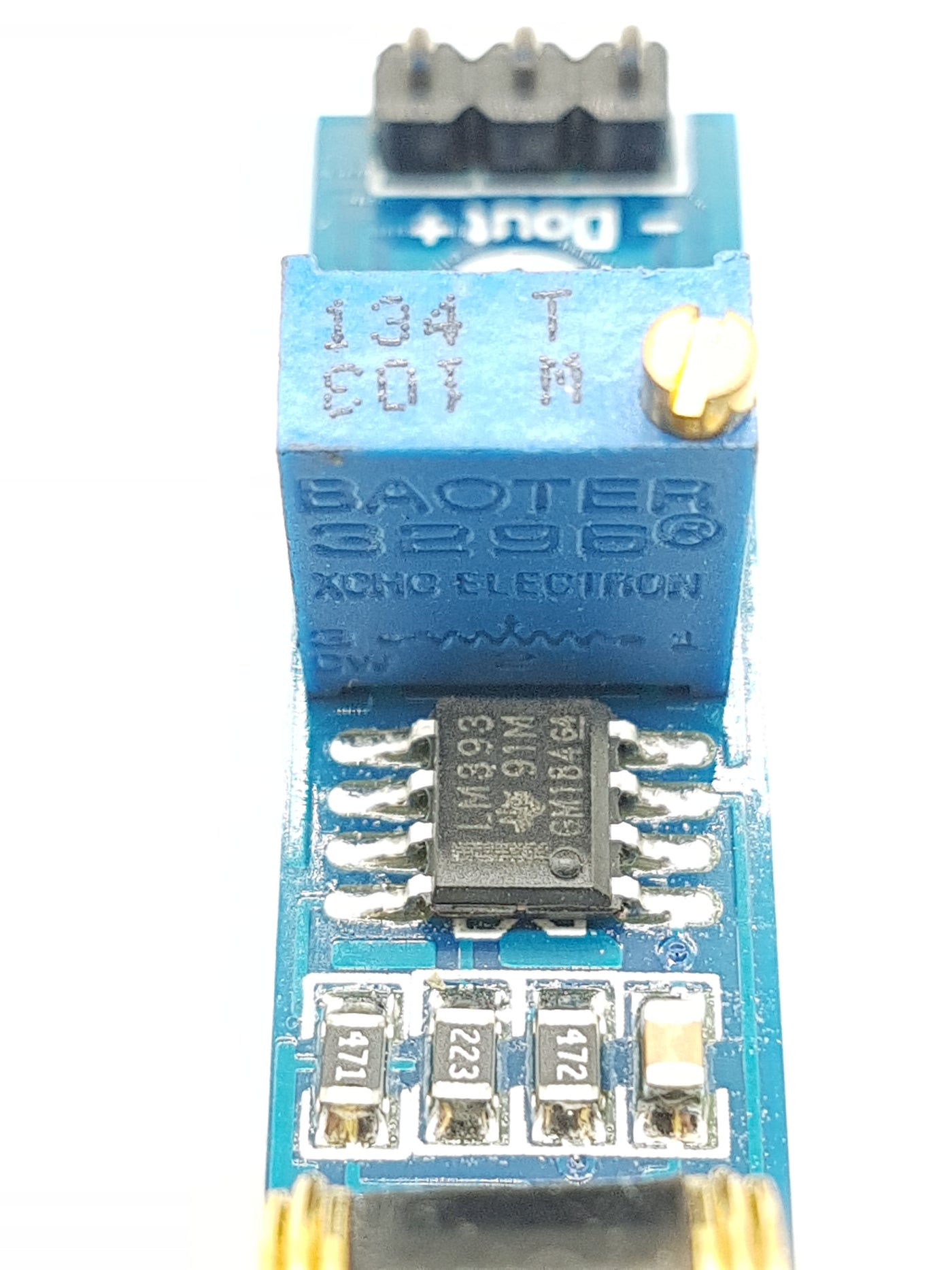

  • The main chip: LM393, 801S
  • With the signal output instructions
  • With analog and TTL level signal output signal output
  • The output valid signal is high, the light goes out
  • Sensitivity adjustable (fine tuning)
  • Vibration detection range, non-directional
  • With mounting holes, firmware installation flexible and convenient
SpecificationsĀ
Resources
Tutorials

Ā

    What outputs does this module provide and how can they be used?
    It offers two outputs: TTL level digital output and an analog output. The TTL output sensitivity is adjustable by the on-board potentiometer, and the analog output can be read with any ADC to determine vibration.
    What power supply is required to operate the module?
    The device operates at 5V. The TTL output provides a digital signal and the analog output can be connected to an ADC or microcontroller input.
    How can I adjust the sensitivity of the sensor?
    Sensitivity is adjustable using the on-board potentiometer. Fine tuning allows the module to match your vibration conditions.
    What are the physical features and mounting options?
    The module dimensions are 20 mm x 32 mm x 11 mm and it includes mounting holes for easy installation. It detects vibrations in a non directional manner.
    What is the main chip and what signals does it output?
    The module uses a LM393 driven 801S sensor and provides both analog and TTL level outputs for vibration sensing.
