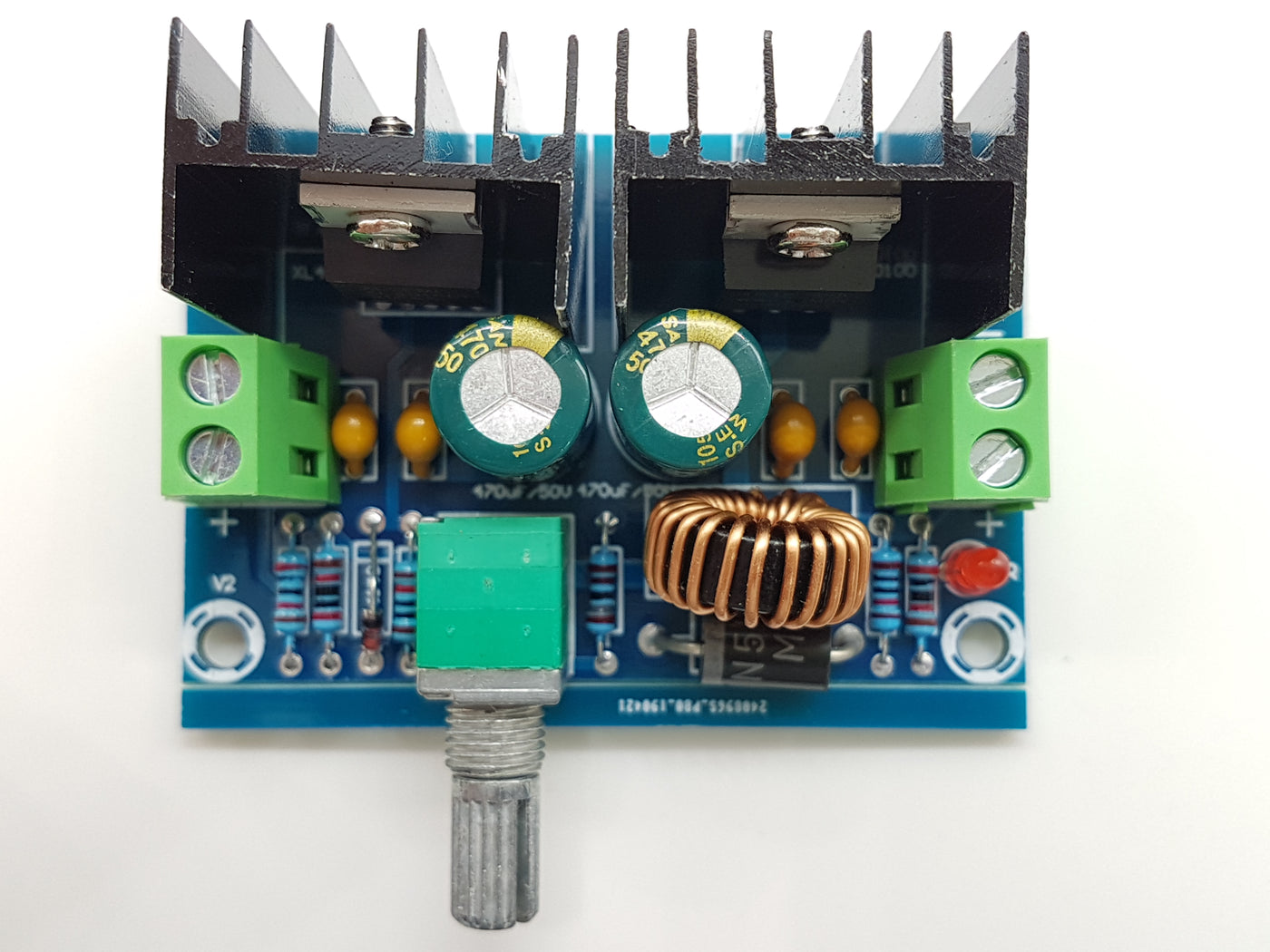

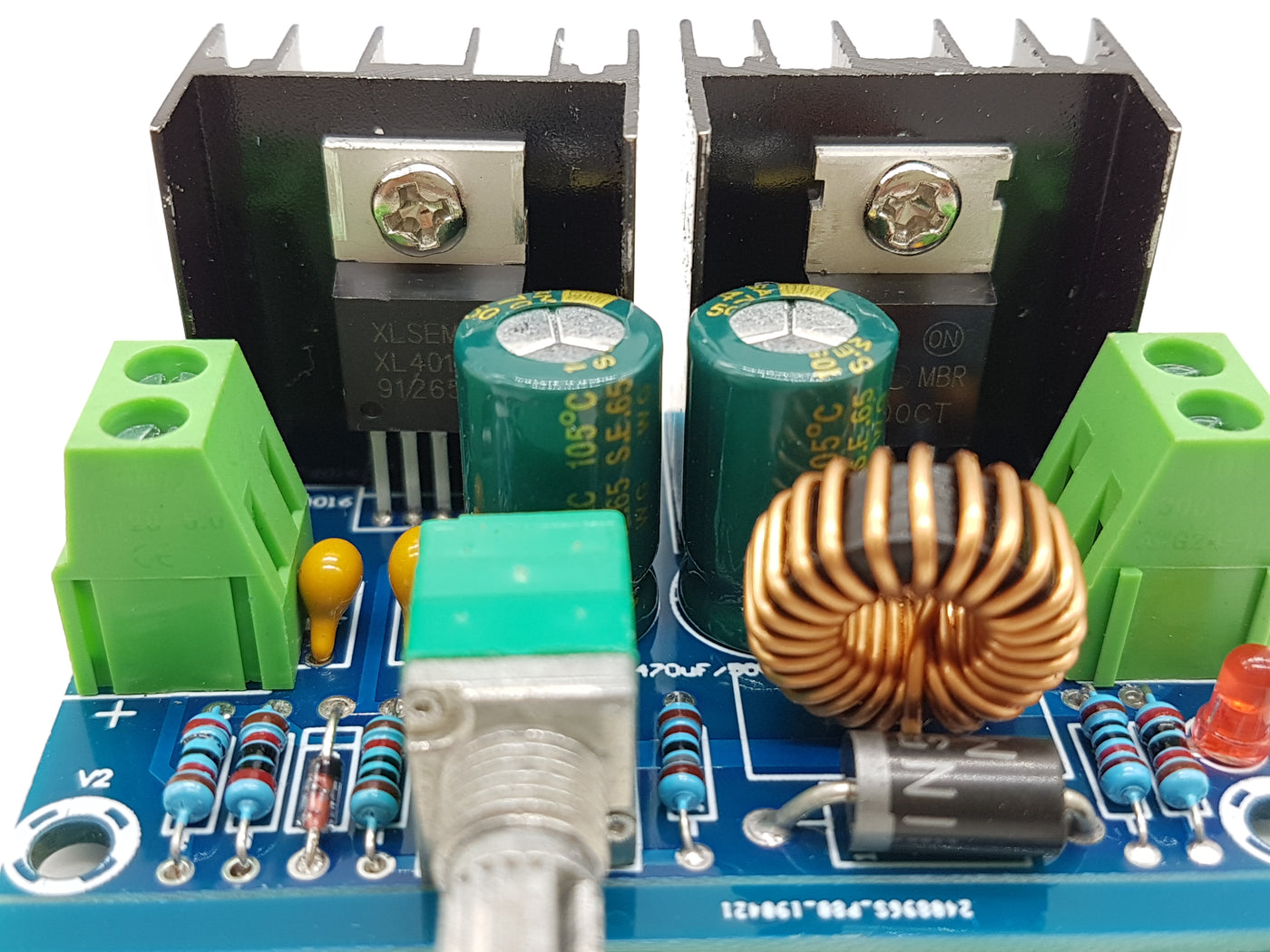

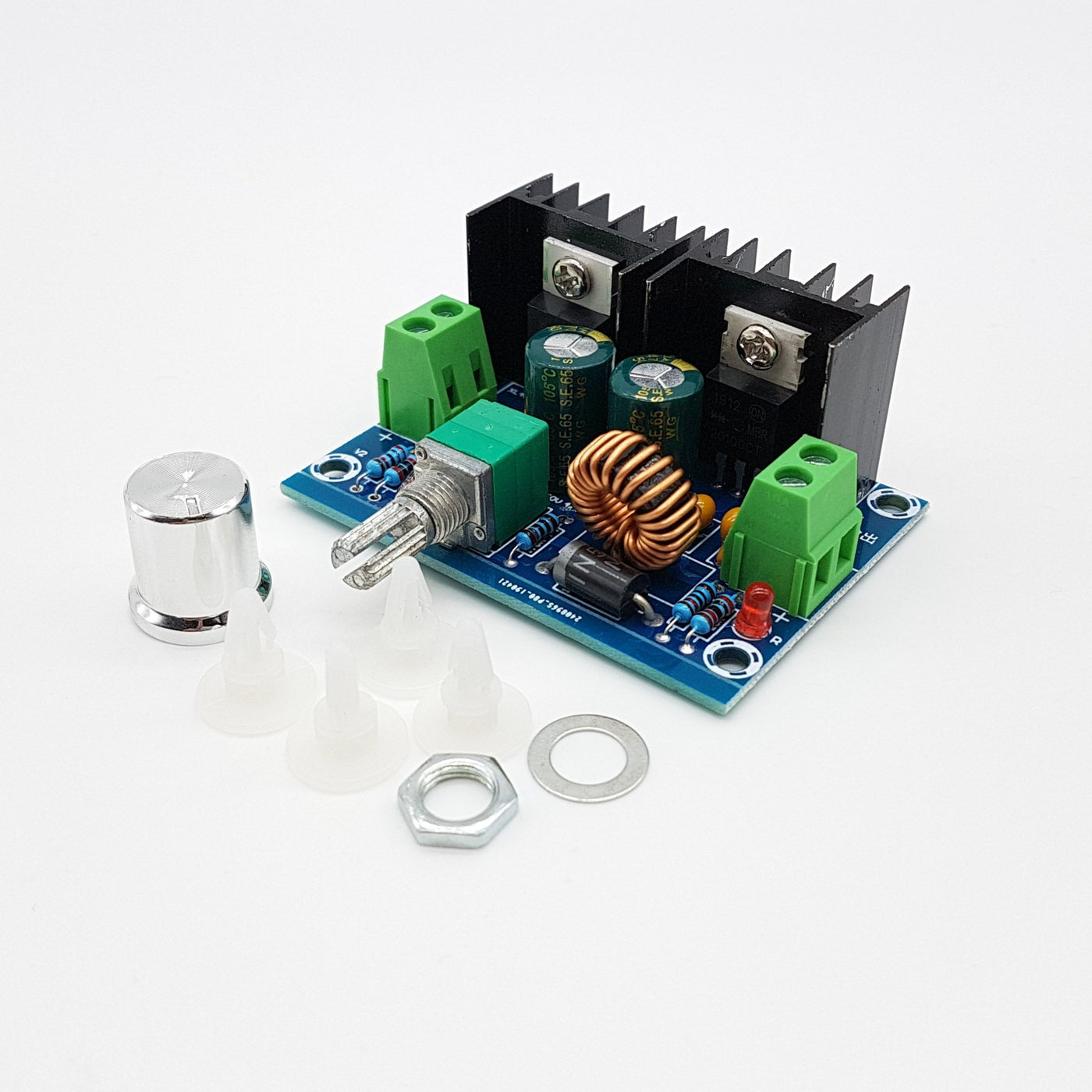

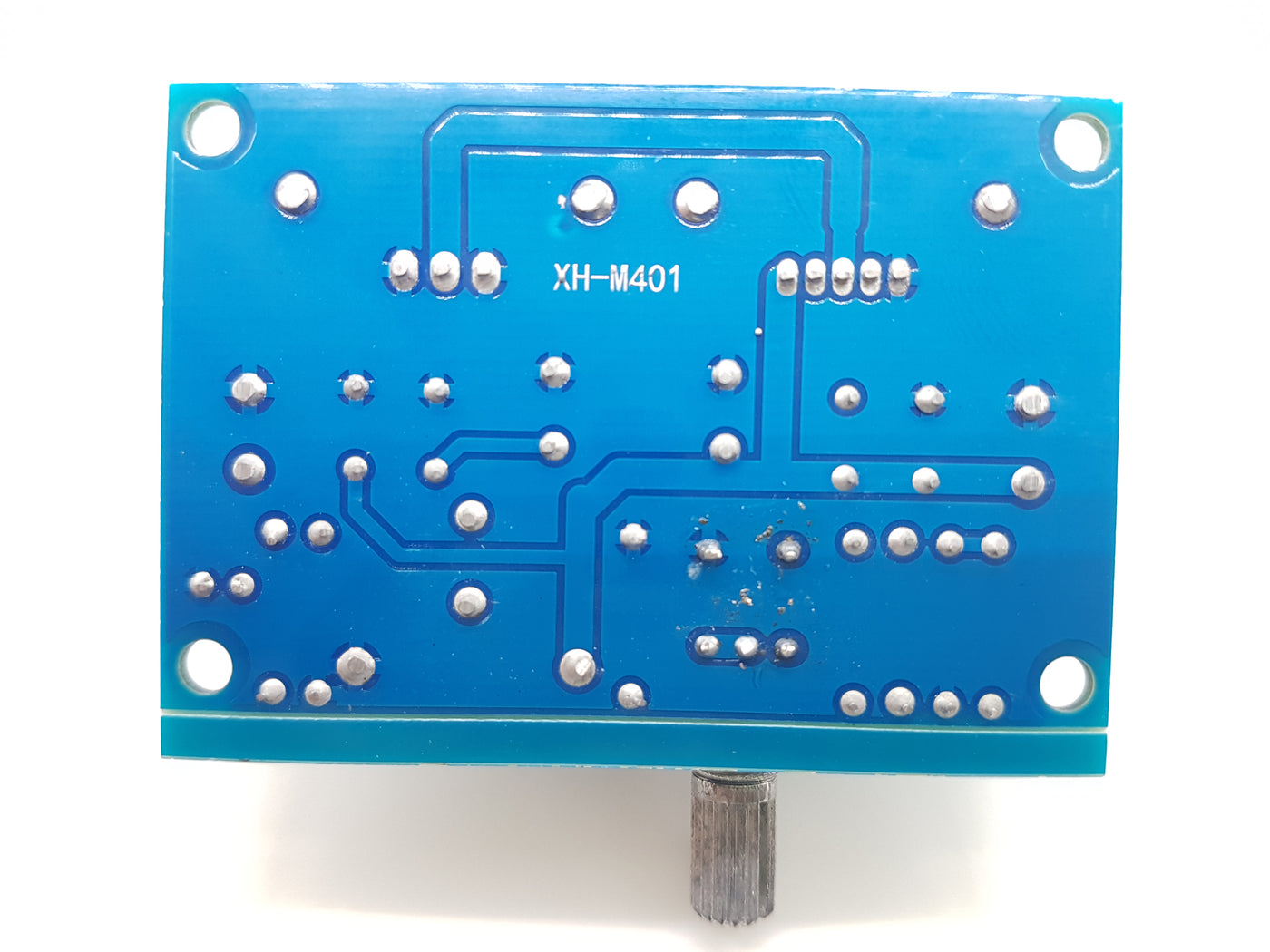

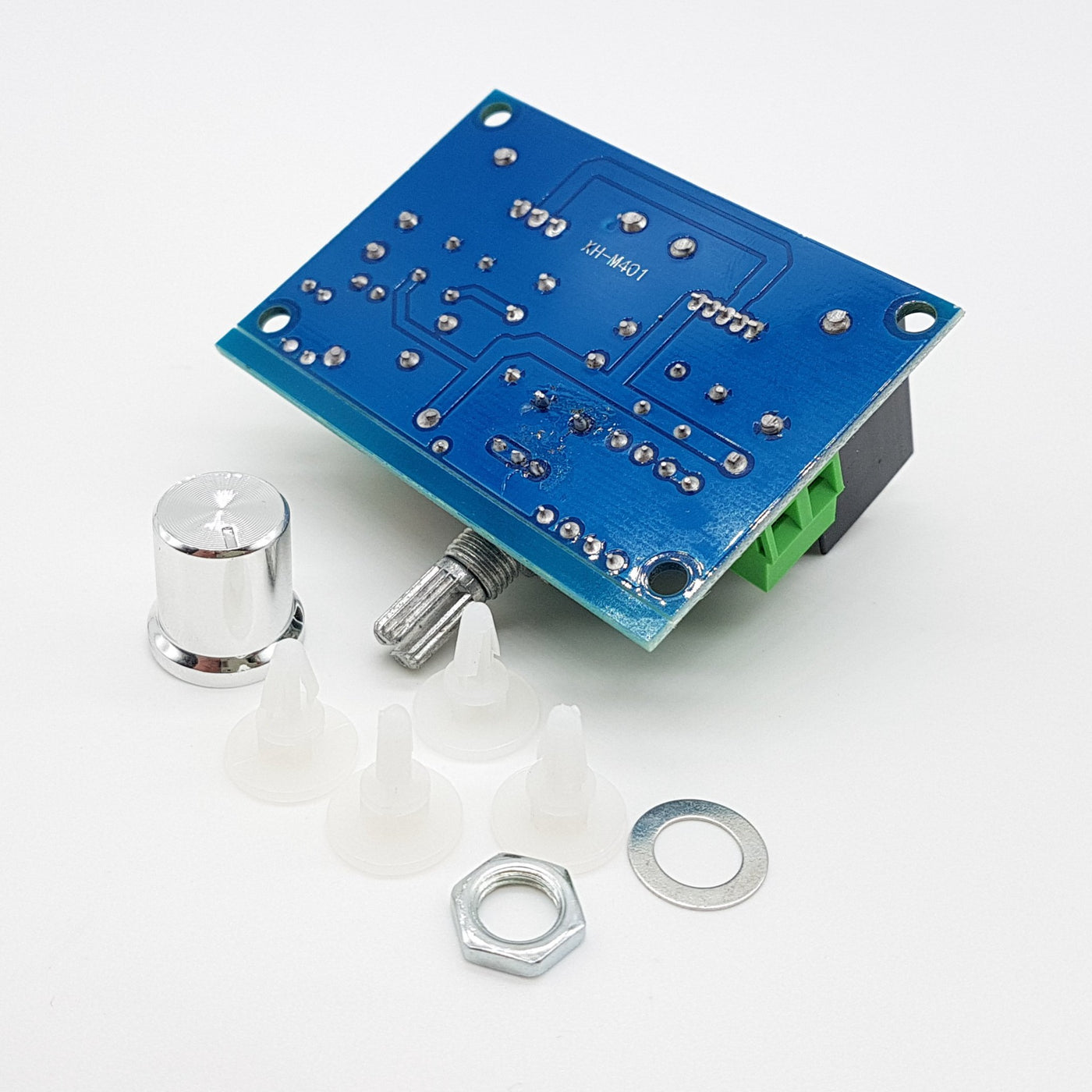

8A 200W DC-DC Step Down Buck Converter Power Supply Board
Details:
Product name: DC step-down module Converter Voltage regulating mode: PWM modulation Input voltage: DC4-40V Output voltage: DC1.25-36V Max output current: 8A (more than 5A for long time use,need Fan if over 5A) Max power: 200W Conversion efficiency: 94% Switching frequency: 180KHZ Dimensions: 61*41*27mm
Specification
Resources Datasheet
Tutorial
