USB3.0 HUB Expansion Board (1 to 4) for Raspberry Pi 5/4B/Jetson/RDK series

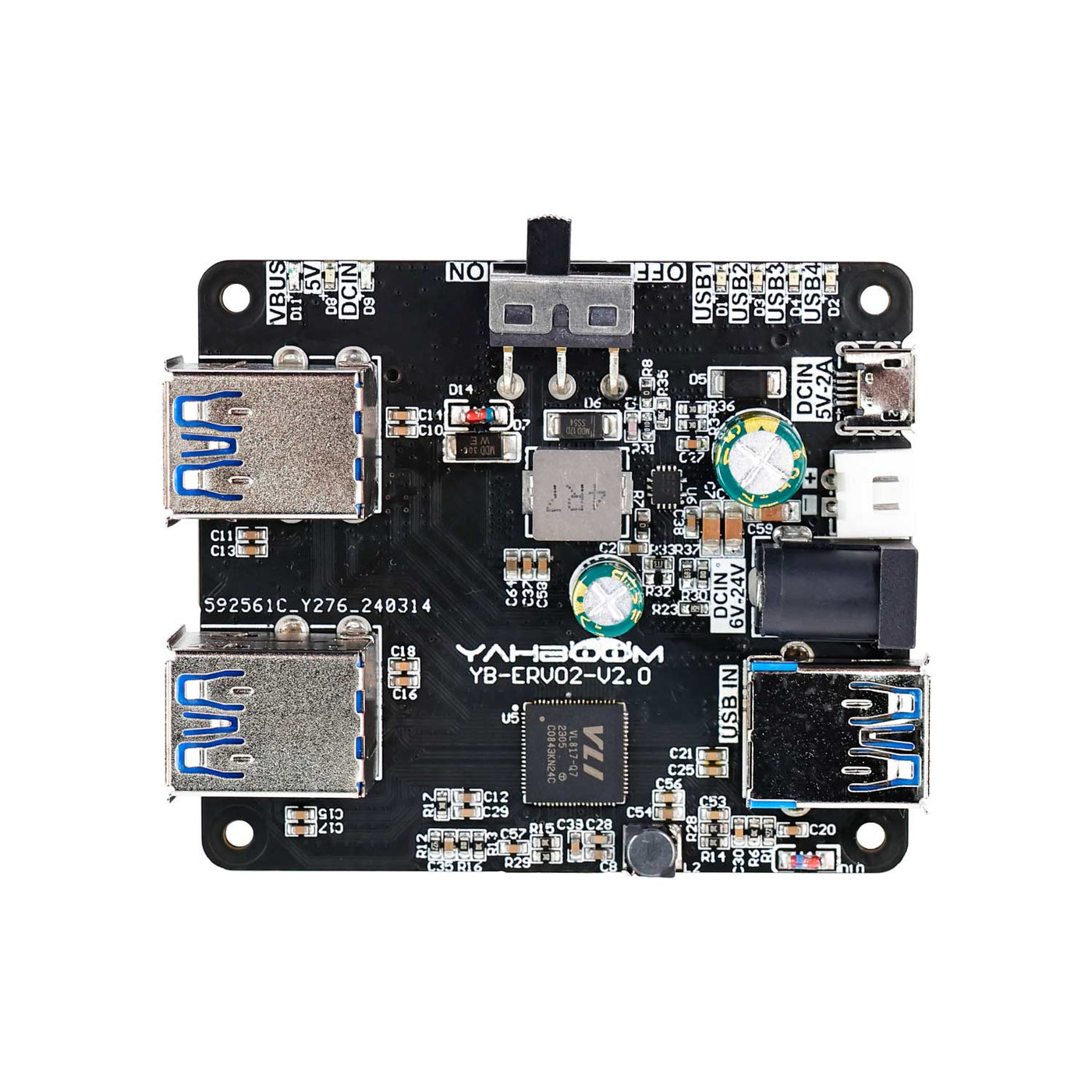

This USB HUB board is designed for makers, geeks and robotics developers, and is compatible with Raspberry Pi5/4B, RDK series, Jetson NANO series development boards. On-board VL817 HUB chip, 4 output USB3.0 ports, micro-USB, DC5.5*2.5 and XH2.54 three power supply interfaces, support external wide voltage power supply, the maximum total current can support 5A. Compared with ordinary USB HUB devices in the market, it can provide more stable data transmission and avoid transmission failure due to insufficient current.
Feature
Exquisite workmanship and reliable quality
Three power supply modes, support 9-24V external voltage input.
One input USB interface, 4PCS USB3.0 output interfaces, the transmission speed can reach 500MB/S.
Wide application, support robots, smart cars, Raspberry Pi5/4B, Jetson series boards, computers, etc.
Which boards is this USB3.0 HUB Expansion Board compatible with?
It is designed for makers and is compatible with Raspberry Pi 5 and 4B, Jetson NANO series, and RDK series development boards.
How many USB3.0 ports are provided and what are the power options?

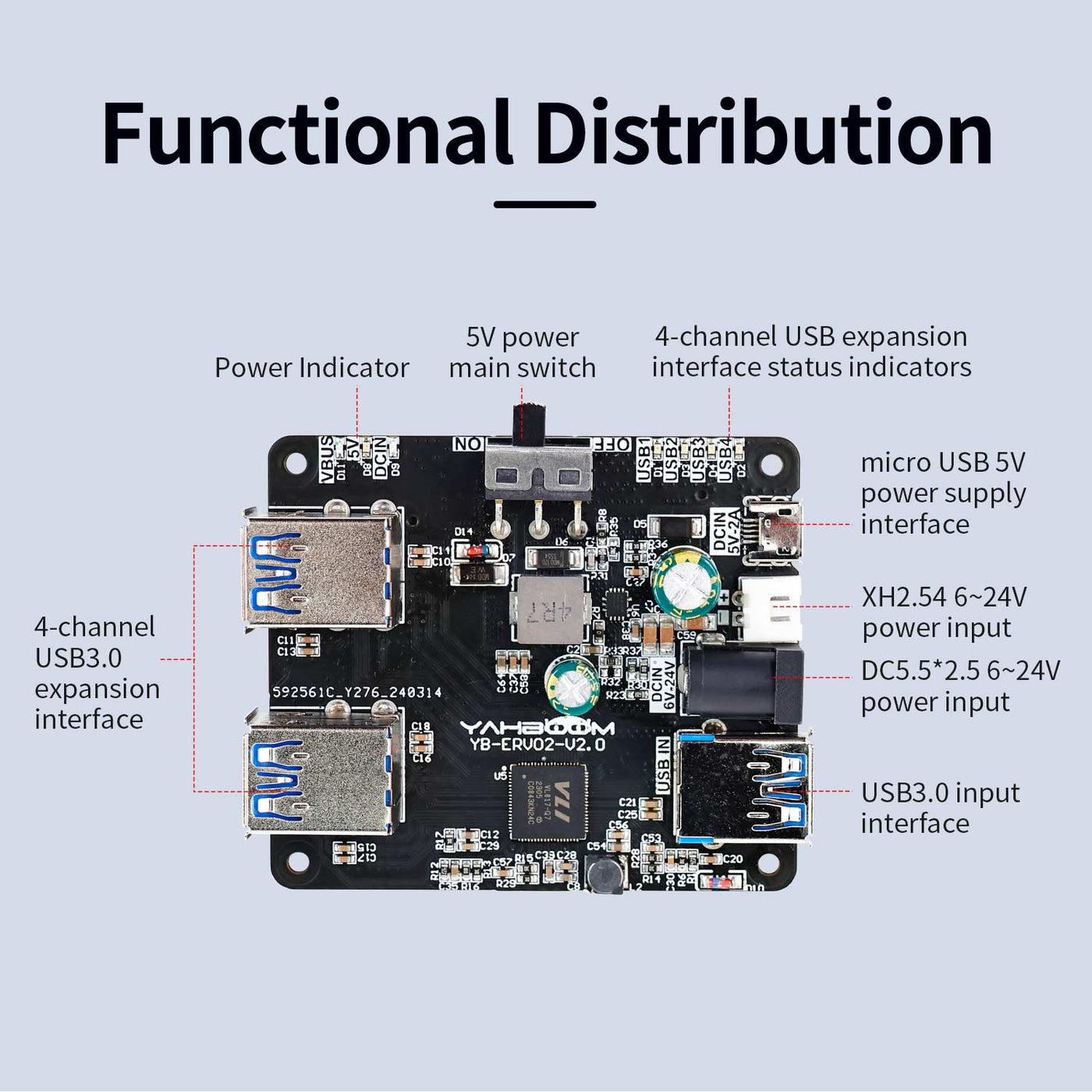

The board provides four USB3.0 output ports and has three power interfaces micro USB, DC5.5*2.5 and XH2.54, with support for 9-24V external voltage input and a maximum total current of 5A.
What makes the hub more stable for data transmission?
It uses the on board VL817 HUB chip to deliver stable data transmission and reduce transmission failures due to insufficient current.
What is the maximum data transfer speed of the hub?

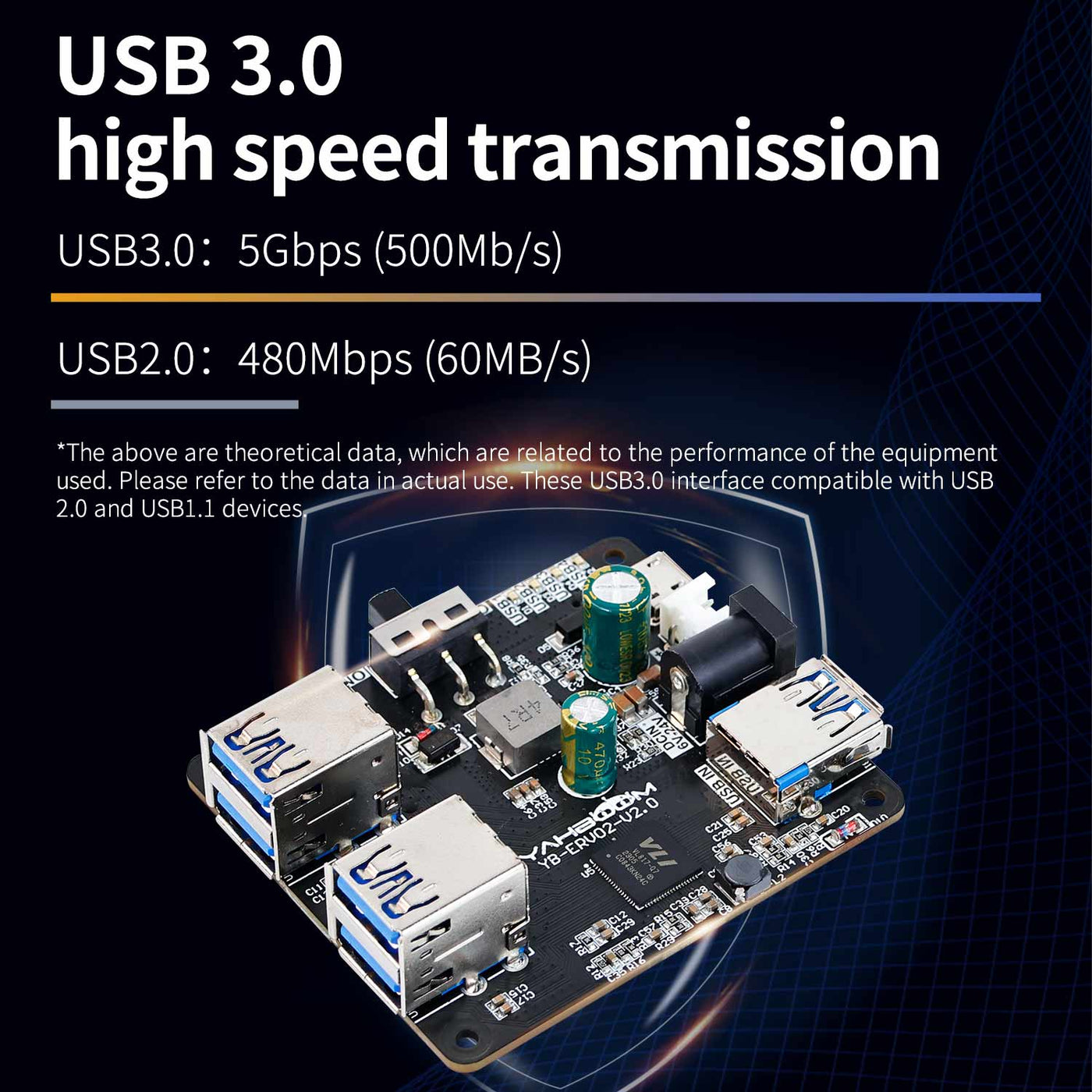

The transmission speed can reach 500 MB per second.
What are typical usage scenarios for this hub?

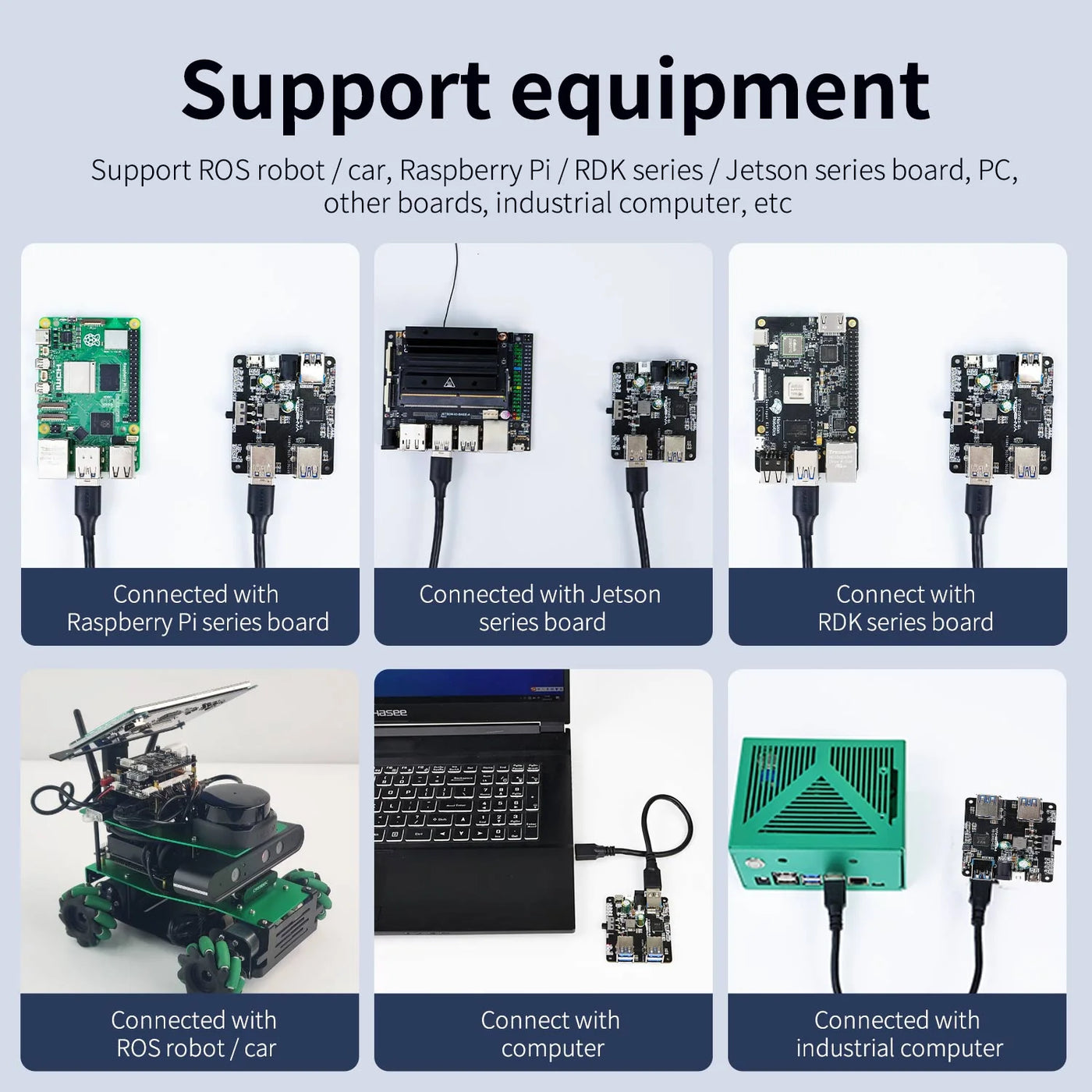

Suitable for robots, smart cars, Raspberry Pi 5/4B, Jetson series boards and computers.
Description
USB3.0 HUB Expansion Board (1 to 4) for Raspberry Pi 5/4B/Jetson/RDK series
This USB HUB board is designed for makers, geeks and robotics developers, and is compatible with Raspberry Pi5/4B, RDK series, Jetson NANO series development boards. On-board VL817 HUB chip, 4 output USB3.0 ports, micro-USB, DC5.5*2.5 and XH2.54 three power supply interfaces, support external wide voltage power supply, the maximum total current can support 5A. Compared with ordinary USB HUB devices in the market, it can provide more stable data transmission and avoid transmission failure due to insufficient current.
Feature
Exquisite workmanship and reliable quality
Three power supply modes, support 9-24V external voltage input.
One input USB interface, 4PCS USB3.0 output interfaces, the transmission speed can reach 500MB/S.
Wide application, support robots, smart cars, Raspberry Pi5/4B, Jetson series boards, computers, etc.
FAQ
Which boards is this USB3.0 HUB Expansion Board compatible with?
It is designed for makers and is compatible with Raspberry Pi 5 and 4B, Jetson NANO series, and RDK series development boards.
How many USB3.0 ports are provided and what are the power options?
The board provides four USB3.0 output ports and has three power interfaces micro USB, DC5.5*2.5 and XH2.54, with support for 9-24V external voltage input and a maximum total current of 5A.
What makes the hub more stable for data transmission?
It uses the on board VL817 HUB chip to deliver stable data transmission and reduce transmission failures due to insufficient current.
What is the maximum data transfer speed of the hub?
The transmission speed can reach 500 MB per second.
What are typical usage scenarios for this hub?
Suitable for robots, smart cars, Raspberry Pi 5/4B, Jetson series boards and computers.
