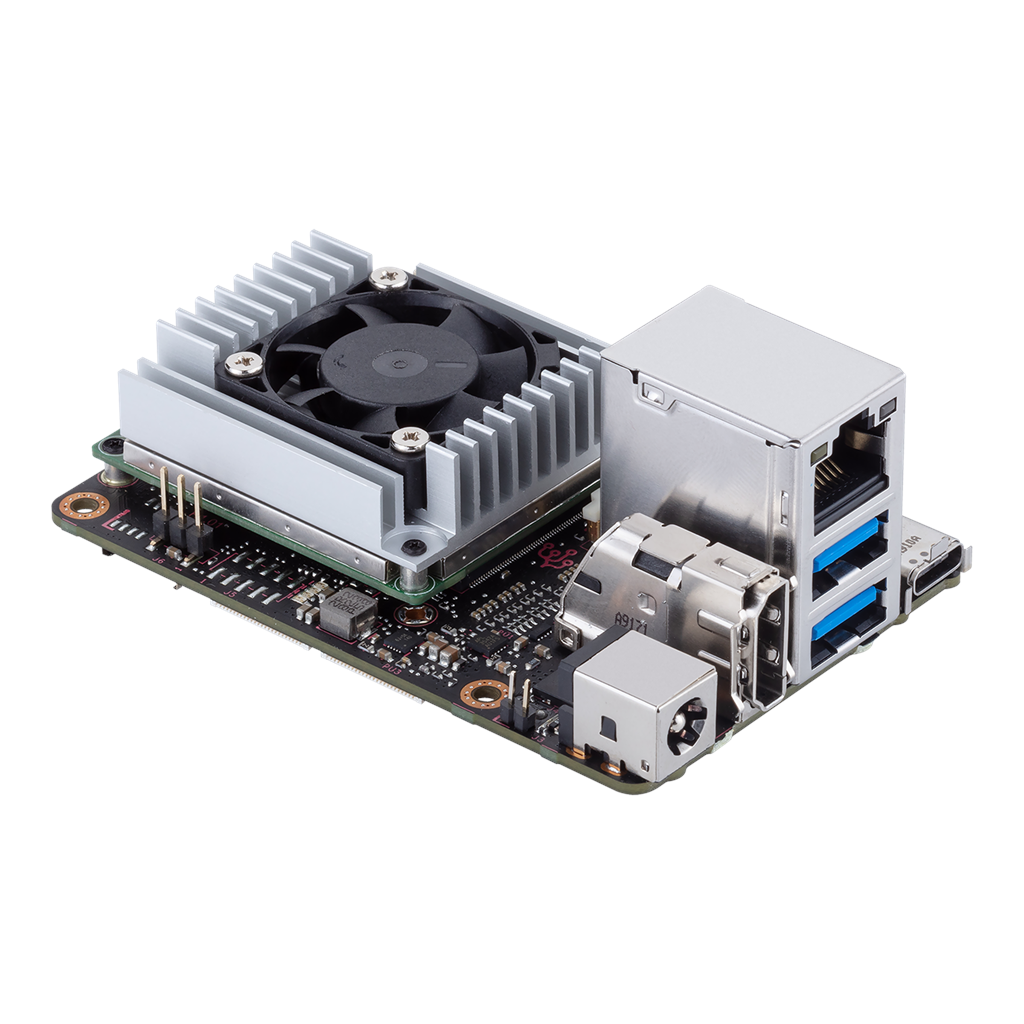

Asus Tinker Edge T

SKU: SBC1028

Regular price ₹ 18,999.99
Sale price ₹ 18,999.99 Regular price
Sale Sold out
Unit price
Tax included. Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

Develop and Deploy powerful AI applications

  • SBC developer board featuring the Google Edge TPU and ARM processor for AI
  • Google Edge TPU
  • More connectivity options for developers
  • Multi-platform tools for easy machine-learning model deployment and image burning
  • 4 TOPS performance
  • 0.5W/unit power consumption
  • TensorFlow Lite Supported


GPU GC7000 Lite
NN processor Google Edge TPU ML accelerator coprocessor
Display 1 x HDMI with CEC hardware ready
1 x 22-pin MIPI DSI
Memory Size Dual-CH LPDDR4 1GB
Storage 8GB eMMC
Micro SD(TF) card slot (push/pull)
Connectivity 1 x RTL8211F-CG Gb LAN
1 x 802.11 a/b/g/n/ac wireless & Bluetooth 4.2
USB 2 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen1 Type-C OTG
Camera Interface 2 x 24-pin MIPI CSI-2
Internal Headers 1 x 40-pin headers includes:
- up to 28 x GPIO pins
- up to 1 x SPI bus
- up to 2 x I2C bus
- up to 2 x UART
- up to 3 x PWM
- up to 1 x PCM/I2S
- 2 x 5V power pins
- 2 x 3.3V power pins
- 8 x ground pins
1 x Boot mode switch
1 x 2-pin Reset header
1 x 2-pin DC Fan header
Power Connector
(up to 45W)
12~19v DC Power Input Jack (5.5/2.5mm)
OS Support Debian 9
Dimension 3.37 inch x 2.125 inch (8.55 cm x 5.4 cm)
Environment Operation temperature: 0℃ ~ 50℃
Non operation temperature: -40℃ ~ 80℃
Non operation humidity: 0% ~ 85% (Non condensing)


AI accelerator (Edge TPU)

Tinker Edge T is a single-board computer (SBC) specially designed for AI applications. It features the Google Edge TPU, a machine learning (ML) accelerator that speeds up processing efficiency, lowers power demands and makes it easier to build connected devices and intelligent applications. With this onboard ML accelerator, Tinker Edge T is capable of performing four tera-operations per second (TOPS) using only 0.5 watts per unit of computation. It is also optimized for TensorFlow Lite models, making it easy to compile and run common ML models.



Most SBC motherboards only offer a 15 watt (5V 3A) power design, which can cause device and system instability when there are multiple connected devices. Other SBCs have power designs that lower the performance of their I/O ports. Tinker Edge R has a special power design that, together with DC and pin header dual power supply, delivers up to 65 watts of power, enabling stable system operation and full I/O performance, even with multiple connected devices. Additionally, an exclusive power-protection design activates automatically if the supplied current and voltage change significantly, effectively protecting the board and all connected devices.

  • 12~19V DC-in
  • Dual Power - DC
  • Power-protection Design


NXP i.MX 8M processor

With its powerful and modern quad-core ARM-based NXP i.MX 8M processor, Tinker Edge T offers a powerful solution for graphics, machine vision, video, audio, voice and safety-critical applications. Tinker Edge T features 1 GB of LPDDR4 memory, the 4th generation of low-power DDR DRAM technology, offering faster speeds and even lower power consumption for improved system performance and efficiency. Tinker Edge T also comes equipped with an onboard 8 GB eMMC and SD 3.0 interface that offers significantly faster read and write speeds for the OS, applications and file storage.


Tinker Edge T includes an active heatsink, which helps improve heat dissipation under heavy loading or in hot ambient environments.


More connectivity options for Developers

Tinker Edge T features a rich I/O interface, including one MIPI-DSI connection for displays and touch screens, and two MIPI-CSI connections for compatible cameras to enable computer vision for applications such as depth measurement, smart vending machine QR code payment systems and interactive advertising.

Tinker Edge T has a maker-friendly design that offers many carefully considered features to provide a superior experience for first-time builders and seasoned hobbyists alike. Programmable LEDs let makers develop custom lighting behaviors, such as system notifications and status indicators, and the color-coded GPIO header makes it easy to recognize respective pin headers.

Tinker Edge T also features a full-size HDMI port, USB Type-A, USB Type-C, gigabit LAN and integrated Wi-Fi and Bluetooth for internet and network connectivity.

  • MIPI-DSI x1 Support
  • MIPI-CSI x2 Support
  • Programmable LEDs
  • Color Coded GPIO


Enhanced User Experience

Machine Learning Developer Tools

ASUS provides a robust API and SDK that enables users to deploy ML models to Tinker Edge R easily for applications such as image classification and object detection. It also supports model conversion from Caffe, TensorFlow, TensorFlow Lite, ONNX, Darknet and more.

OS Flash Tool

Tinker Edge R comes with a Intuitive OS flash tool that enables easy OS image flashing to onboard eMMC drive, enabling you to get your system up and running quickly.


* We strongly recommend that you regularly backup all data stored in the device. ASUS shall not be liable for any damage to or loss of programs or data stored in the Tinker Board series, and shall not be responsible for data recovery, backup, or any charges arising therefrom.

* In no event shall ASUS be liable for any defect, damage or data loss arising from product repair or replacement.
