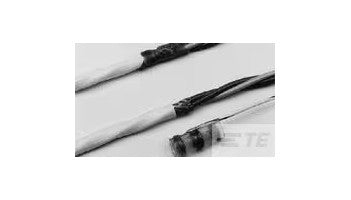

Product Description: RAY RAYCHEM CWT-5-S Solder Sleeves & Shield Tubing
The TE CONNECTIVITY / RAYCHEM CWT-5-S is a high-quality solder sleeve and shield tubing designed for reliable wire protection and management in electronic applications. Manufactured in Mexico, this product offers precise dimensions and robust performance suitable for various interconnect needs.
This solder sleeve is designed to provide reliable wire termination with a shrink-to size of approximately 0.079 inches after application. It is suitable for applications requiring splash protection and operates effectively up to 125°C. For detailed installation procedures and compliance information, please refer to the provided datasheet and related documents.
For more details, visit the product page on TE.com or search for the part number CWT-5-S for comprehensive specifications and application guidance.
