Need Support? Click Here
Free Delivery Above ₹999

Best seller

Waveshare

ESP32-C6 Mini Wi-Fi 6 Development Board Type B with 5-36V BT5 Zigbee Thread

SKU: WVSH0613

₹ 699.99

In stock | Ready to ship

⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
ESP32-C6 Mini Wi-Fi 6 Development Board Type B with 5-36V BT5 Zigbee Thread₹ 699.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Details

ESP32-C6 Mini Wi-Fi 6 Development Board Type B, 5 ~ 36V Wide Voltage Power Supply, Supports Bluetooth 5, IEEE 802.15.4 (Zigbee 3.0 and Thread)
ESP32-C6-Zero-B Mini Wi-Fi 6
Wide Voltage Development Board

Based on ESP32-C6FH8, onboard multi-function GPIO pins

Castellated Module, Suitable For SMD Applications,
Compatible with the ESP32-C6-Zero Pins

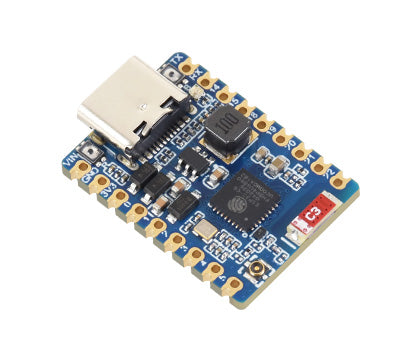

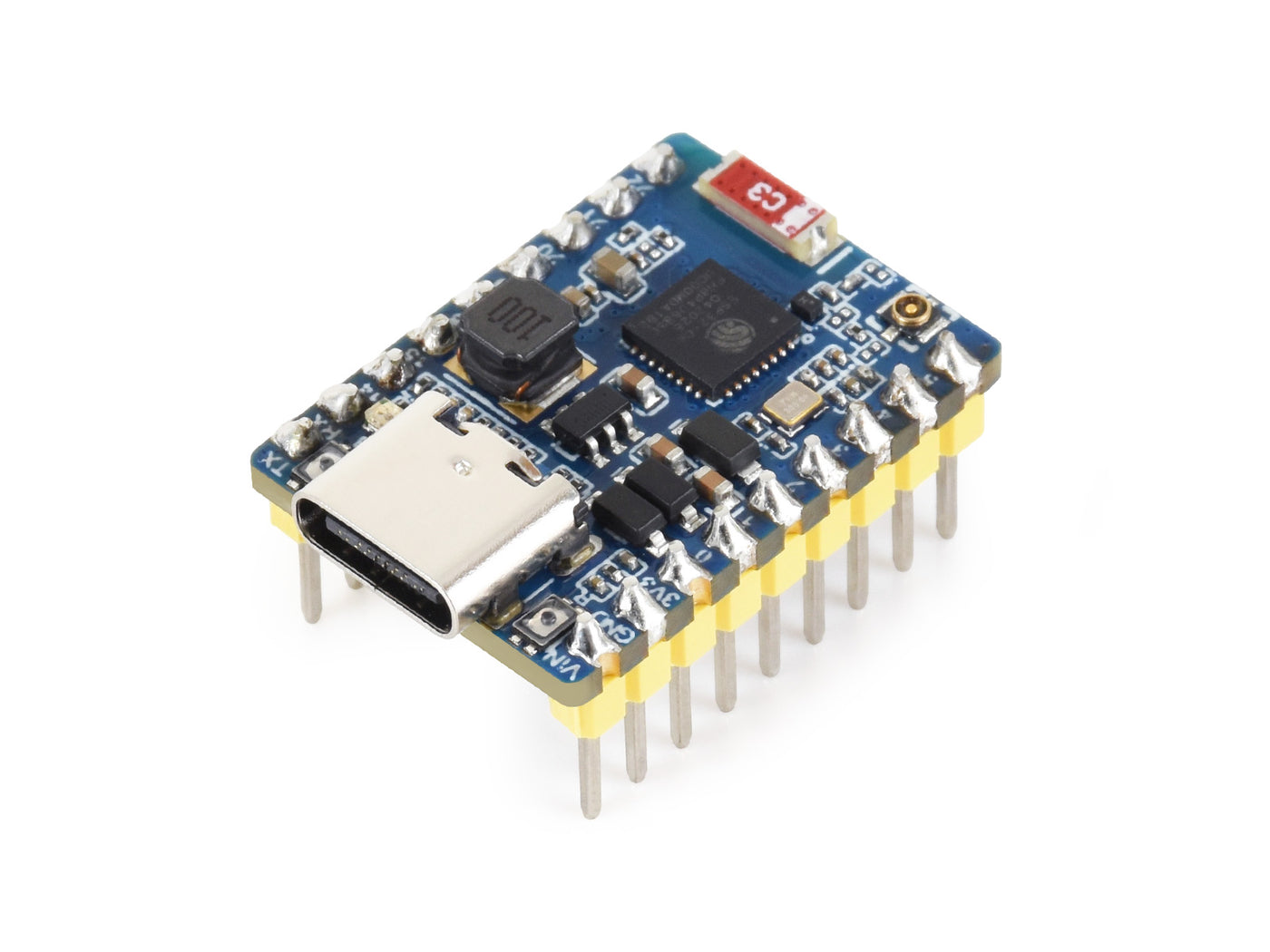

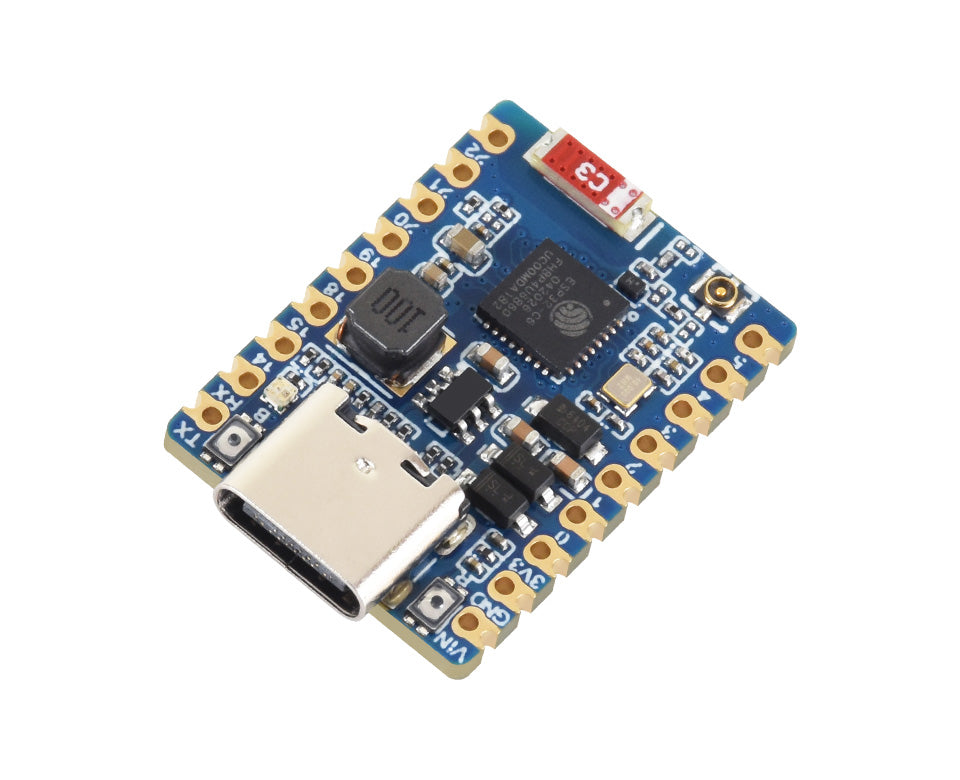

ESP32-C6-Zero mini development board, front view
Board specifications
  • Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz
  • Built-in 320KB ROM, 512KB HP Static RAM, 16KB LP Static RAM and 8MB Flash memory
  • Integrated Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
  • Onboard ceramic antenna (default) and IPEX 4 antenna socket, allowing antenna selection via GPIO7
  • Supports 5 ~ 36V wide voltage power supply for industrial applications
  • Castellated module, allows soldering directly to carrier boards
  • Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
  • Onboard USB Type-C port, adapting 22 × GPIO pins for flexible peripheral function configuration
Version Options

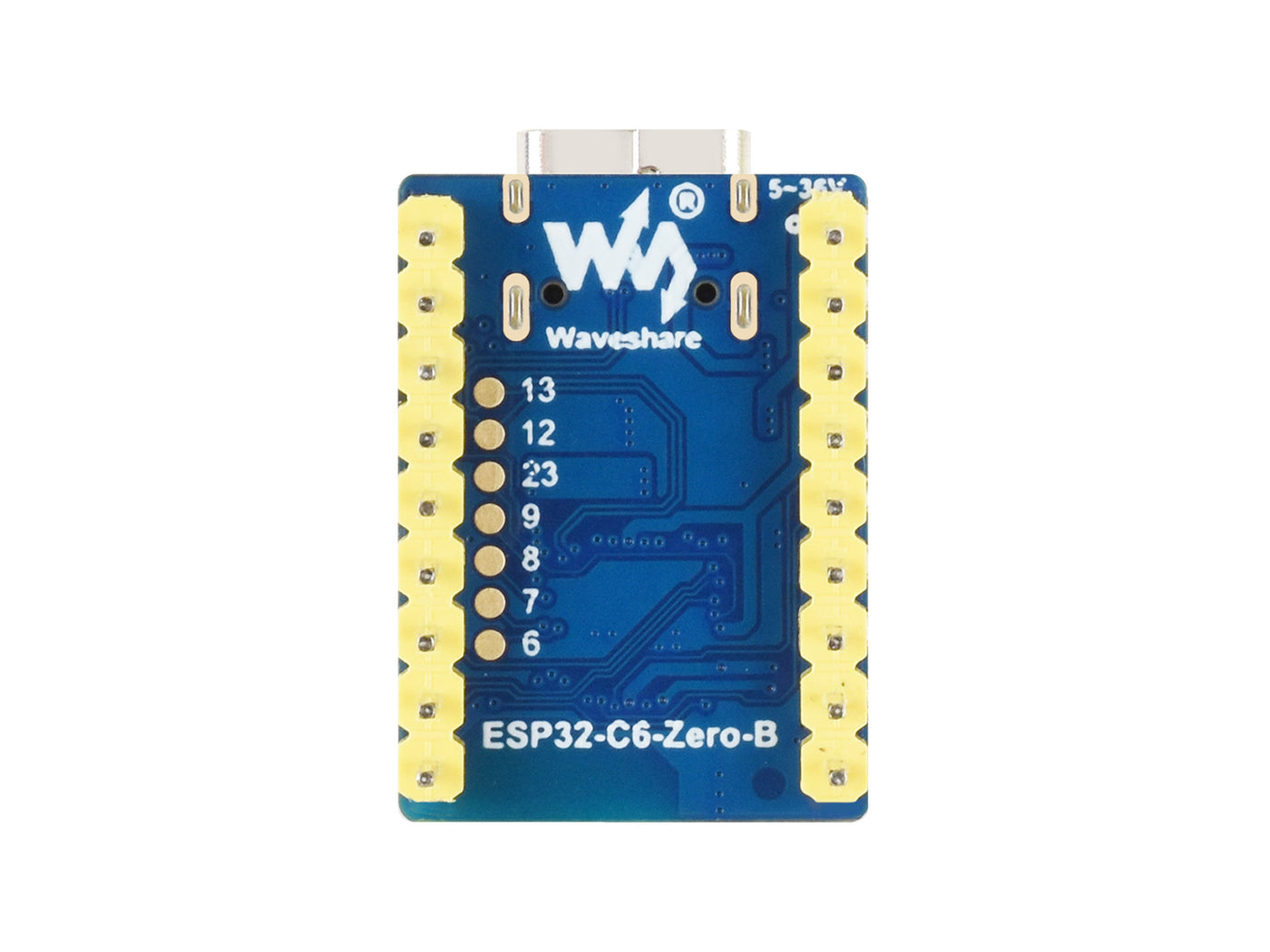

ESP32-C6-Zero, without pinheader

ESP32-C6-Zero-B
without pinheader

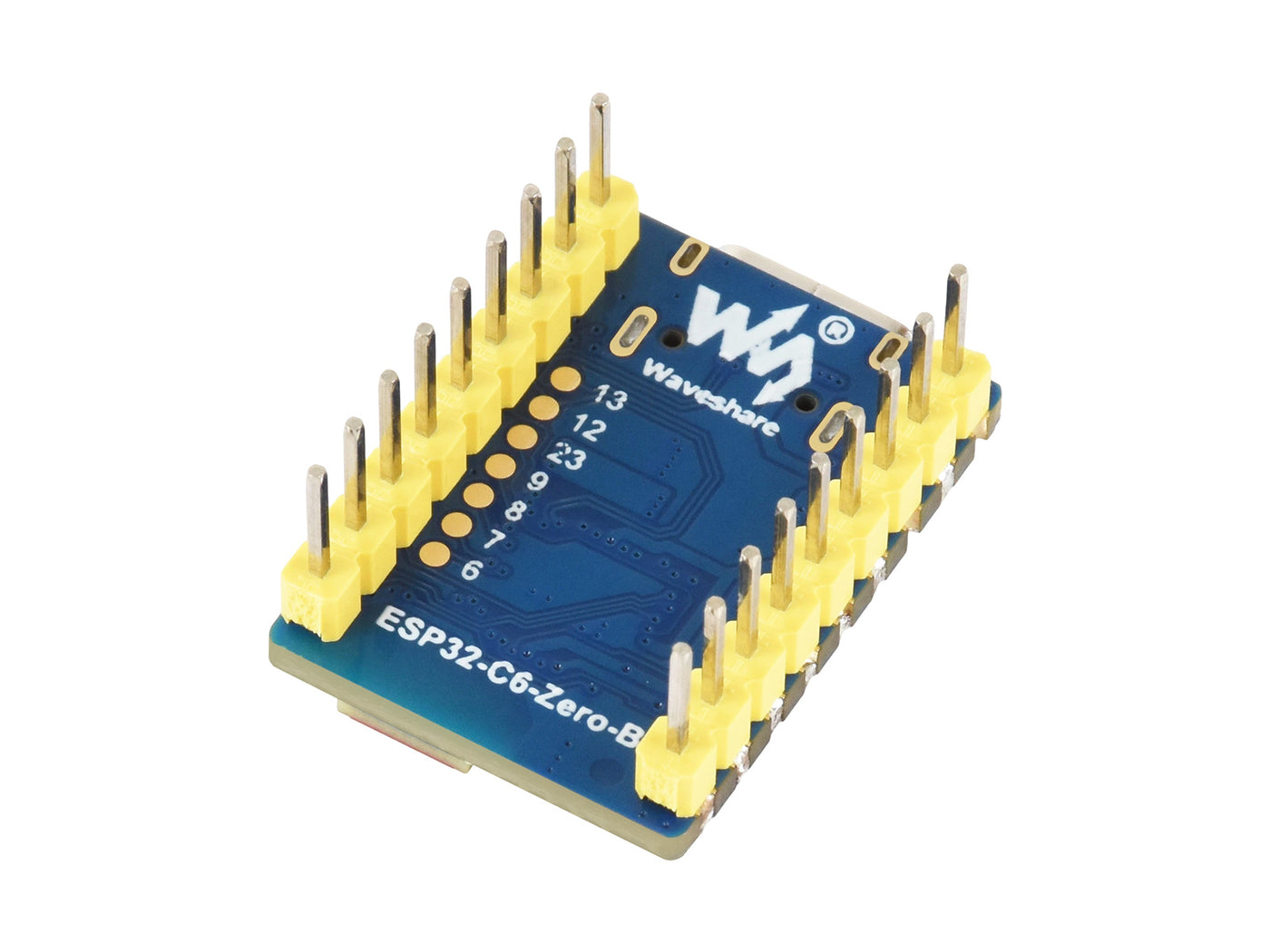

ESP32-C6-Zero-M, with pre-soldered header

ESP32-C6-Zero-B-M
with pre-soldered headers

ESP32-C6 suitable for AIoT applications

Powered by a high-performance 32-bit RISC-V processor and a low-power 32-bit RISC-V processor, the main frequency is up to 160 MHz, Powerful AI Computing Capability & Reliable security features

ESP32-C6 with high-performance 32-bit RISC-V processor

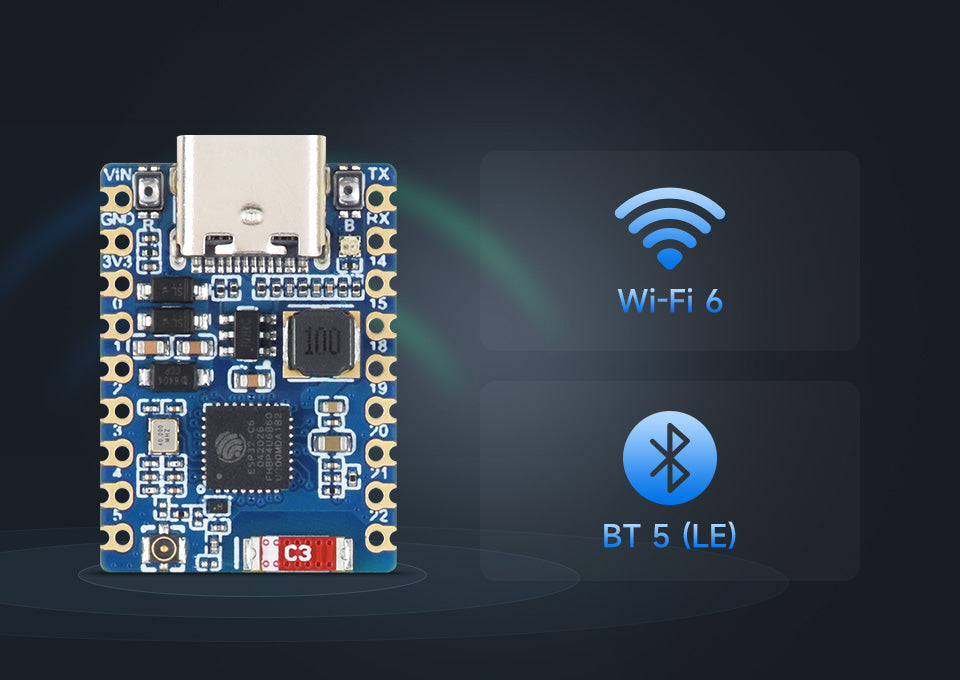

Wi-Fi 6 and BLE 5 support

Supports Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread)
Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh

ESP32-C6-Zero, with WI-FI 6 and BLE 5 support

Supports ESP-IDF, Arduino

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

ESP-IDF Arduino

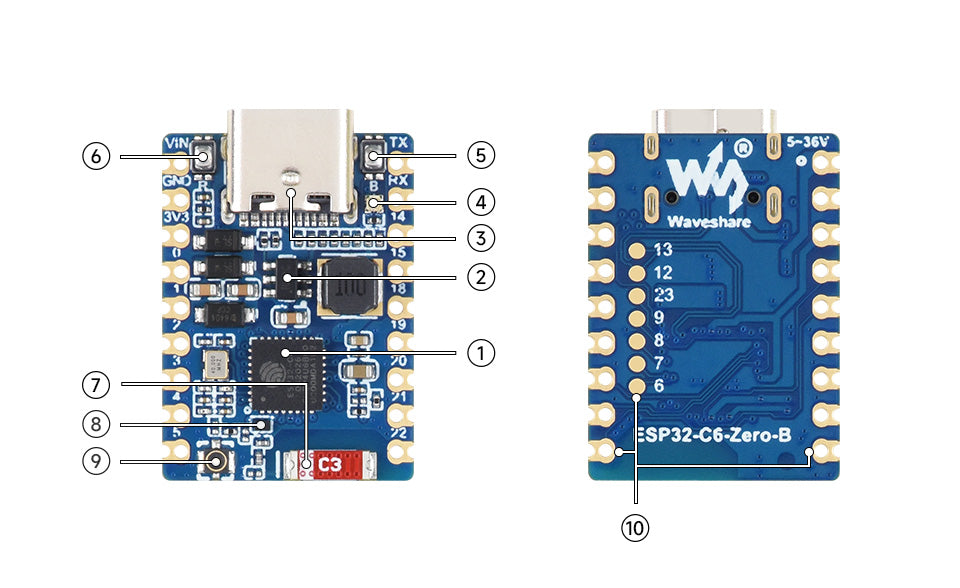

What's On Board

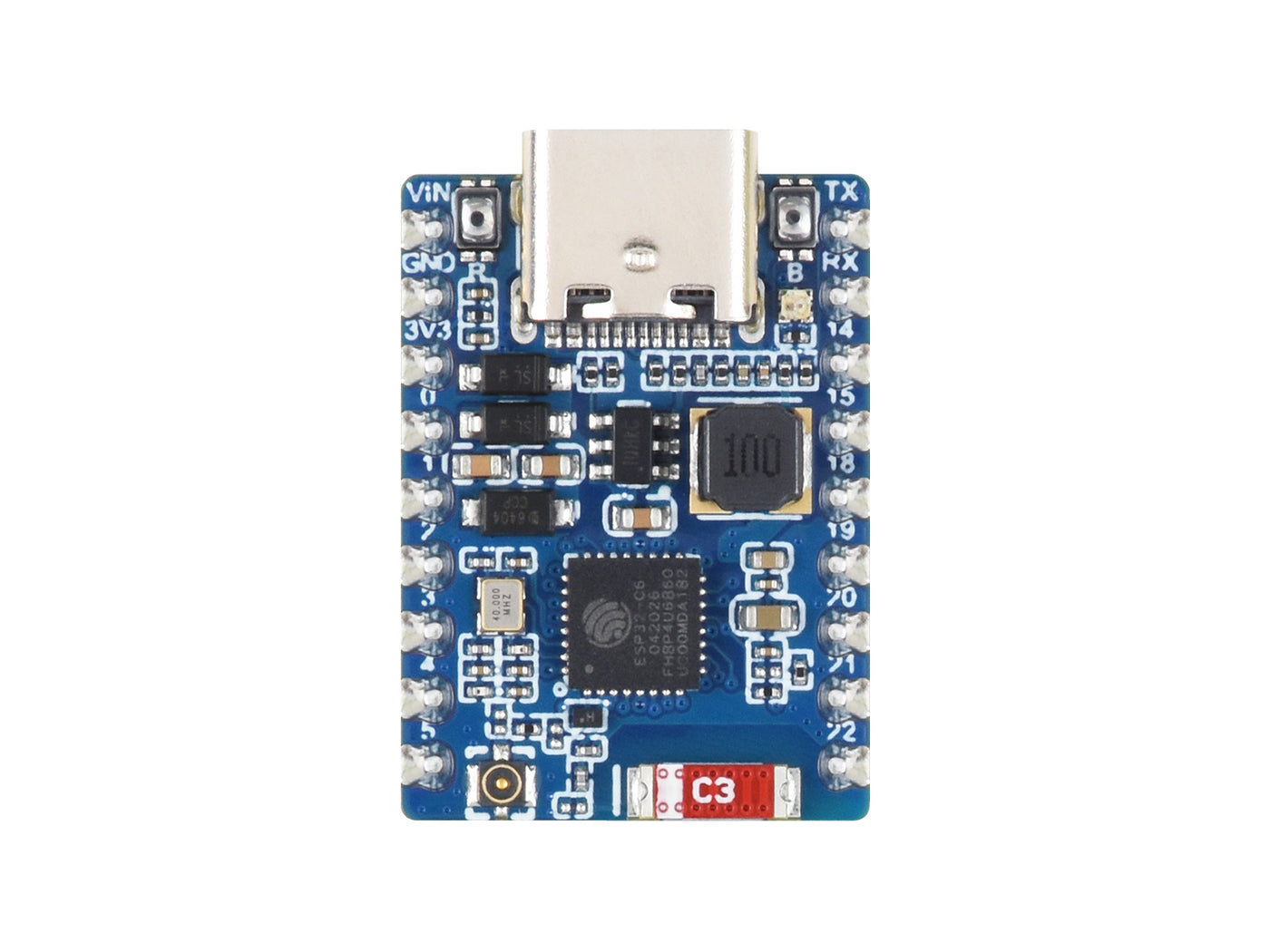

ESP32-C6-Zero, onboard components
  1. ESP32-C6FH8
    Built-in dual processors, up to 160MHz operating frequency
  2. SY8301
    Step-down DC/DC converter , supports up to 1A output
  3. USB Type-C port
    for downloading program and debugging
  4. WS2812 cool RGB LED
  5. BOOT button
    Press it and then press the RESET button to enter download mode
  1. RESET button
  2. 2.4G ceramic antenna
  3. Antenna selection chip
    supports switching between the onboard ceramic antenna (default) and the IPEX 4 antenna socket via GPIO7
  4. IPEX 4 antenna socket
    for connecting external antenna
  5. Adapting ESP32-C6FH8 pins

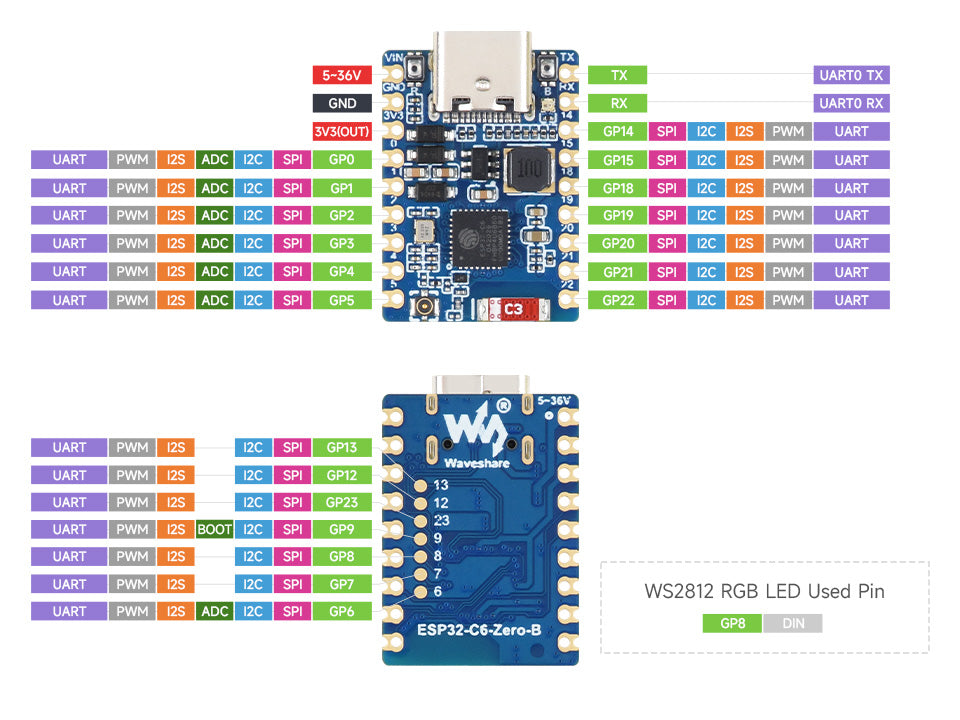

Pin definition
ESP32-C6-Zero, pin definition

outline dimensions
ESP32-C6-Zero outline dimensions
Resources & Services
Wiki: docs.waveshare.com/ESP32-C6-Zero-B
ESP32-Zero Product Selection
PRODUCT MCU Main Frequency Flash SRAM PSRAM Features
ESP32-S3-Zero-N8R8
ESP32-S3-Zero-N8R8 		ESP32-S3-PICO-1-N8R8 240MHz 8MB 512KB 8MB Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
ESP32-S3-Zero
ESP32-S3-Zero 		ESP32-S3FH4R2 240MHz 4MB 512KB 2MB
ESP32-C6-Zero
ESP32-C6-Zero 		ESP32-C6FH8 160MHz 8MB 512KB - Supports Wi-Fi 6, Bluetooth 5 (LE), and IEEE 802.15.4 (Zigbee 3.0 and Thread)
ESP32-C6-Zero-B
ESP32-C6-Zero-B 		ESP32-C6FH8 160MHz 8MB 512KB - Supports Wi-Fi 6, Bluetooth 5 (LE), IEEE 802.15.4 (Zigbee 3.0 and Thread), and 5~36V power input
ESP32-C5-Zero
ESP32-C5-Zero 		ESP32-C5-HF4 240MHz 4MB 384KB - Supports 2.4GHz and 5GHz dual-band Wi-Fi, Bluetooth 5 (LE), and IEEE 802.15.4 (Zigbee 3.0 and Thread)
ESP32-C3-Zero
ESP32-C3-Zero 		ESP32-C3FH4 160MHz 4MB 400KB -
ESP32-H2-Zero
ESP32-H2-Zero 		ESP32-H2FH4S 96MHz 4MB 320KB - Supports Bluetooth 5 (LE) and IEEE 802.15.4 (Zigbee 3.0 and Thread)

Weight: 0.004 kg

Quick Overview

ESP32-C6-Zero-B

ESP32-C6-Zero-B x1

ESP32-C6-Zero

ESP32-C6-Zero-B-M

ESP32-C6-Zero-B with pre-soldered headers x1

ESP32-C6-Zero-M
What wireless standards are supported on this board?
The board integrates WiFi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread) for versatile wireless connectivity, with an onboard ceramic antenna and an IPEX 4 antenna socket.
What is the input voltage range?
It supports a 5 to 36 V wide voltage power supply for industrial style applications.
What are the main processing and memory specifications?
It uses a high performance 32 bit RISC-V processor up to 160 MHz, with 320 KB ROM, 512 KB HP SRAM, 16 KB LP SRAM, and 8 MB Flash.
How can this module be used on a carrier board and what IO options are available?
It is a castellated module designed for SMD applications and is compatible with ESP32-C6-Zero pins. It provides access to 22 GPIO pins and includes a USB Type-C port for flexible peripheral configuration.
Does it support low power operation and how is power managed?
Yes, the design supports flexible clock and independent module power supply setting to realize low power consumption in different use cases.
