High-performance Development Board Based On ESP32-P4
Rich Human-machine Interfaces
This product is a multimedia development board based on ESP32-P4. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART and TWAI, etc. Additionally, it supports USB OTG 2.0 HS, and onboard 40PIN GPIO header which is compatible with some Raspberry Pi Pico HATs, enabling a wider range of application adaptability.
The ESP32-P4 adopts a 400MHz dual-core RISC-V processor and supports up to 32MB PSRAM, featuring USB 2.0, MIPI-CSI / DSI, H.264 encoder, and other peripherals, meeting the needs for low-cost, high-performance, and low-power multimedia development. It also integrates a Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, the ESP32-P4-Pico meets the requirements of Human-Machine interaction, efficient edge computing, and IO expansion.
| High-performance MCU with RISC-V 32-bit dual-core and single-core processors |
| Memory architecture: 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM |
| Powerful image and voice processing capability with JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, and H.264 encoder |
| 32 MB PSRAM in chip package with onboard 32 MB NOR Flash |
| Integrated peripherals: MIPI-CSI, MIPI-DSI, USB 2.0 OTG, SDIO 3.0 TF card slot, microphone interface, and speaker header |
| Dual 2×20 GPIO headers with 27 remaining programmable GPIOs |
| Security features: Secure Boot, Flash Encryption, cryptographic accelerators, TRNG, hardware access protection, access permission management, and privilege separation |
Optical Bonding Toughened Glass Panel, With 178° Wide Viewing Angle. Supports 10-Point Touch, provides a clear image and an excellent visual experience
| Model | 10.1-DSI-TOUCH-A |
| Resolution | 800 × 1280 (H × V) |
| Communication Interface | MIPI-DSI (2-lane) |
| Brightness | 400 cd/m² (supports customization for 1000 cd/m² high-brightness version) |
| Touch Chip | GT9271 |
| Outline Dimension | 147.0 × 239.0 mm |
| Display Area | 135.36 × 216.58 mm |
| Pixel Size | 0.1692 (H) × 0.1692 (V) mm |
| Contrast Ratio | 800:1 |
| Operating Temperature | 0 °C ~ 60 °C |
* the 10.1inch DSI LCD is only included in the ESP32-P4-Pico-KIT-B.
5MP | Manual Focus
Compatible with Raspberry Pi series boards
| Sensor | OV5647 | CMOS Size | 1/4 inch |
| Pixels | 5 MP | Aperture | F2.0 |
| Focal Length | 6 mm | Field of View | 60.6° |
| Night Vision Function | Not Supported | Focusing | Manual Focus |
* Please refer to the package content for detailed part list.

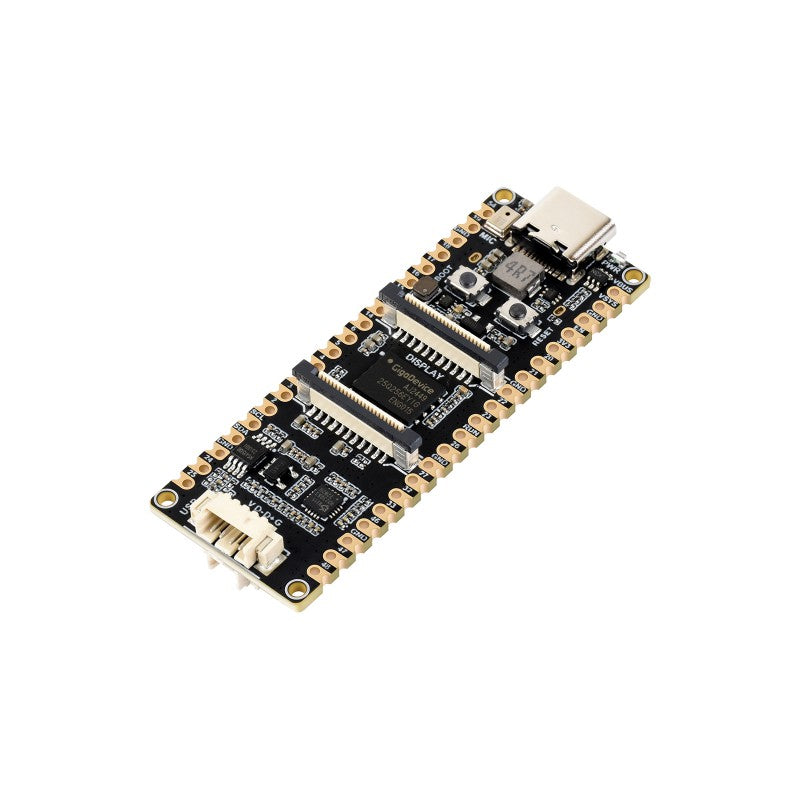

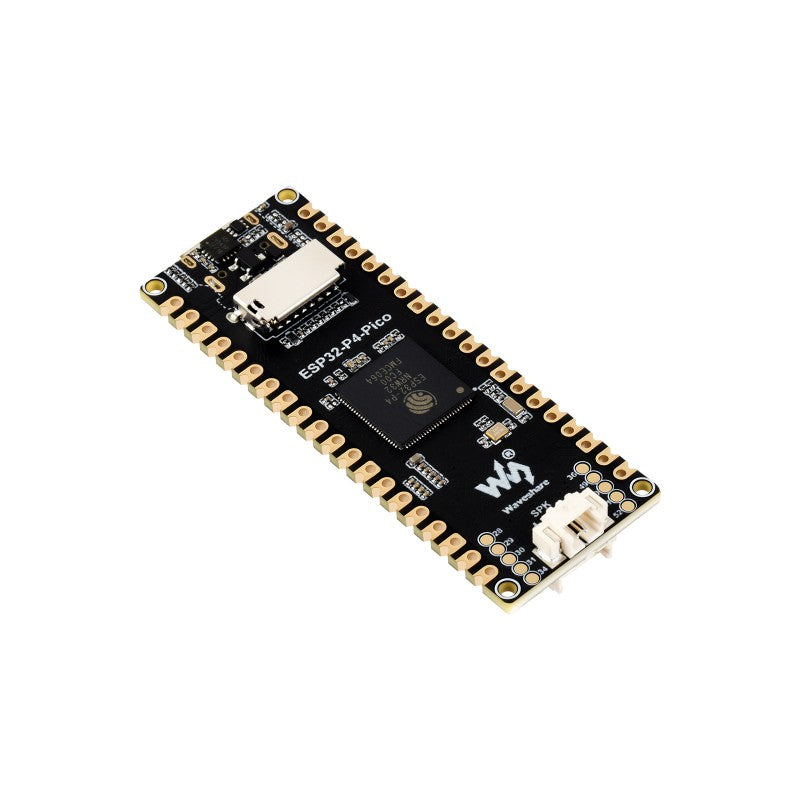

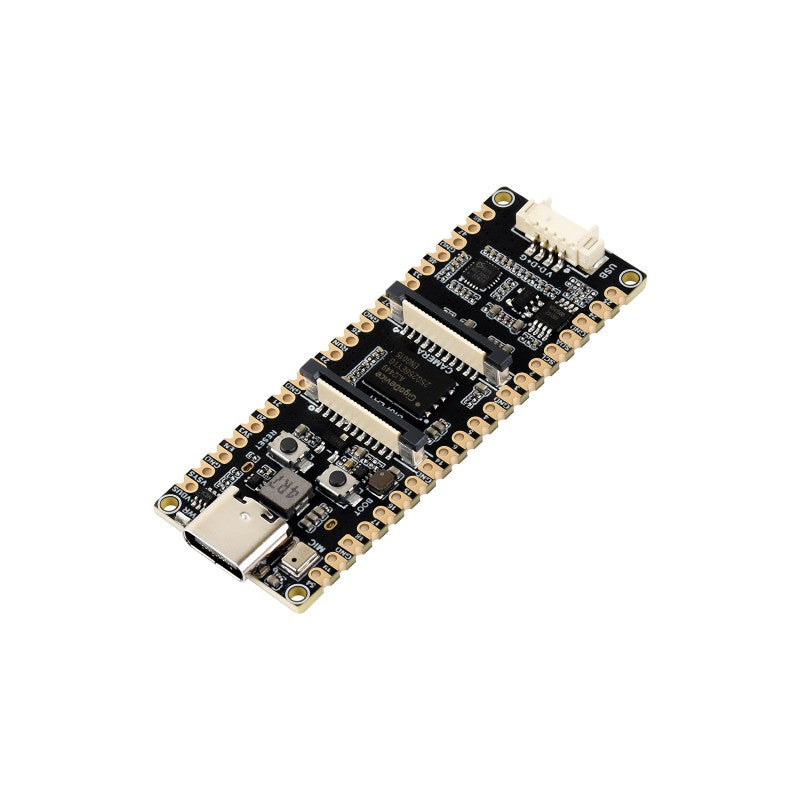

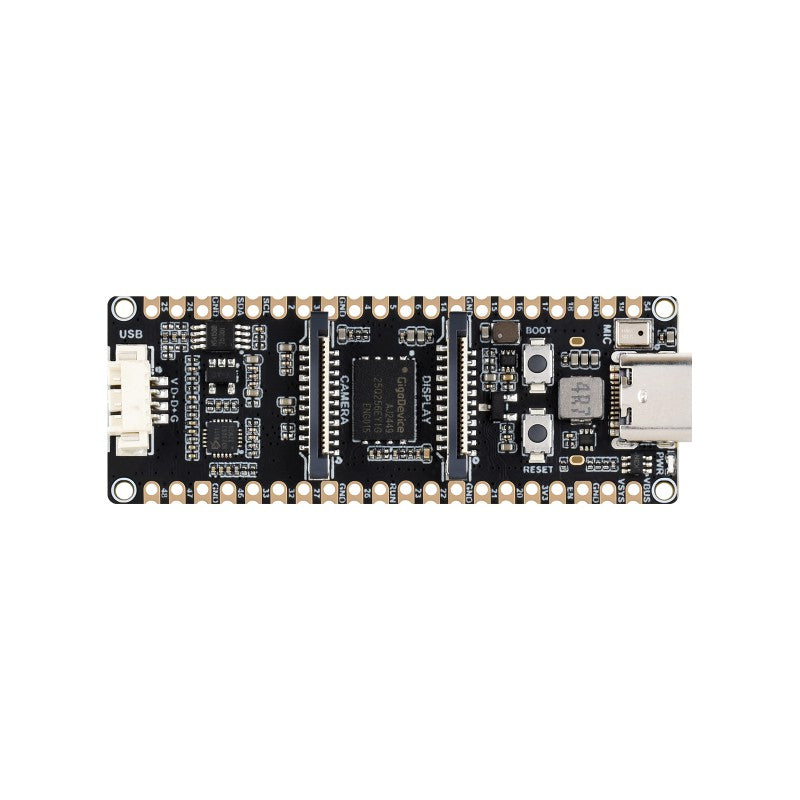

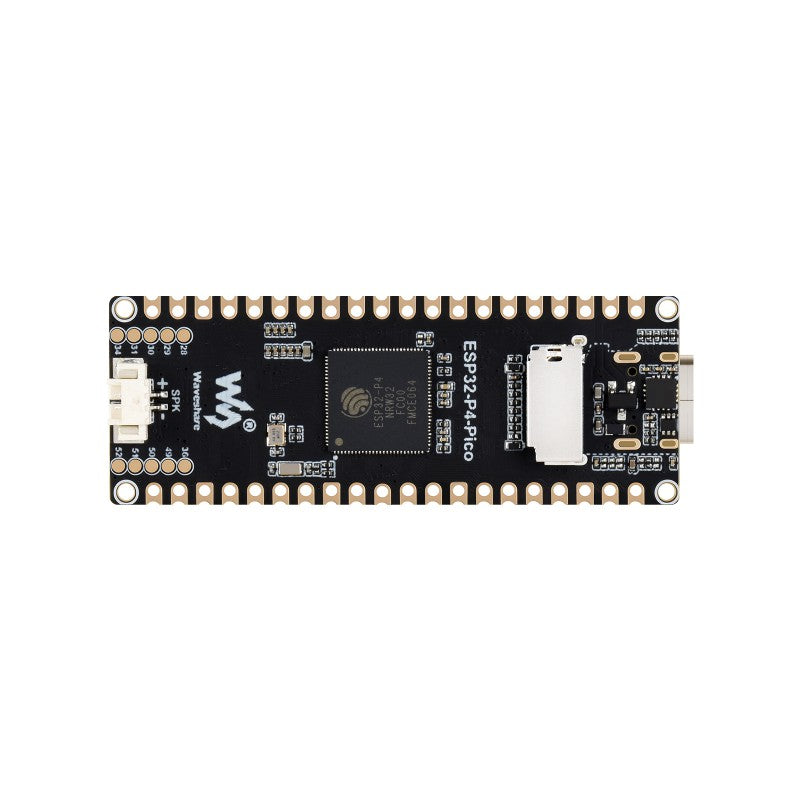

Adopts ESP32-P4 Module, onboard 32MB Nor Flash
|
1. ESP32-P4NRW32 ESP32-P4 chip, with 32MB PSRAM |
| 2. 32MB NOR Flash |
|
3. Display Interface MIPI-DSI (2-lane), supports 5 / 7 / 8 / 10.1 inch DSI screens |
|
4. Camera Interface MIPI-CSI (2-lane), supports OV5647 camera, etc. |
|
5. USB Type-C Port For power supply, program burning and debugging |
| 6. Onboard Microphone |
|
7. Speaker Header MX1.25 2P connector, supports 8Ω 2W speaker |
|
8. 4PIN USB Header USB OTG 2.0 High Speed interface |
|
9. BOOT Button Press it when powering on or resetting to enter download mode |
| 10. RST Button |
| 11. Power Supply Indicator |
|
12. TF Card Slot SDIO 3.0 interface protocol |
Wiki: www.waveshare.com/wiki/ESP32-P4-Pico
Weight: 0.012 kg
ESP32-P4-Pico
ESP32-P4-Pico x1
20PIN header x2

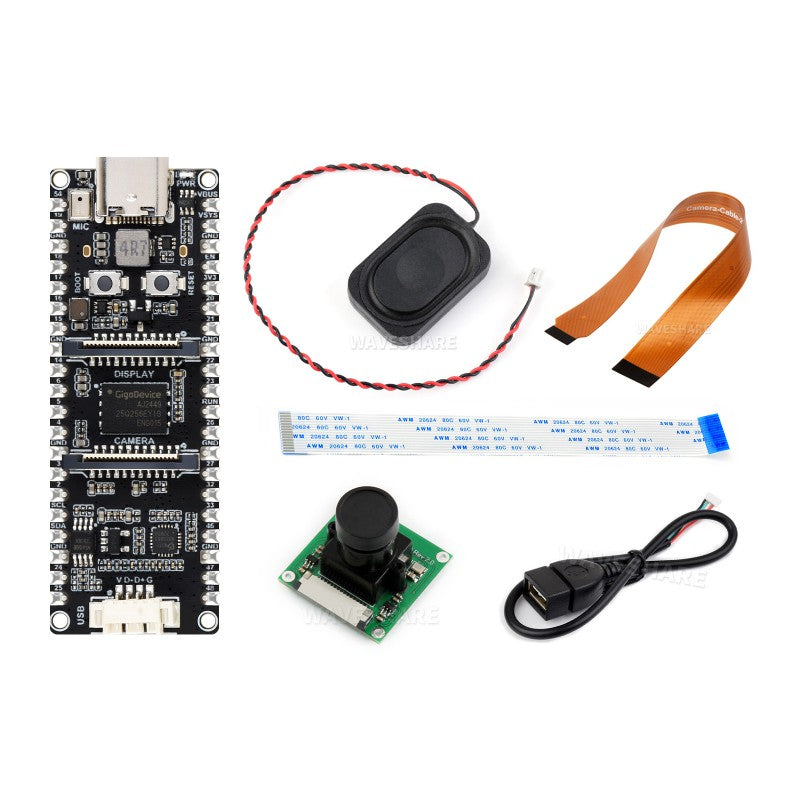

ESP32-P4-Pico-KIT-A
ESP32-P4-Pico-M x1
8Ω 2W speaker x1
Pi5-Camera-Cable-200mm x1
FFC 15PIN cable x1
RPi Camera (B) x1
MX1.25 4PIN to USB cable x1

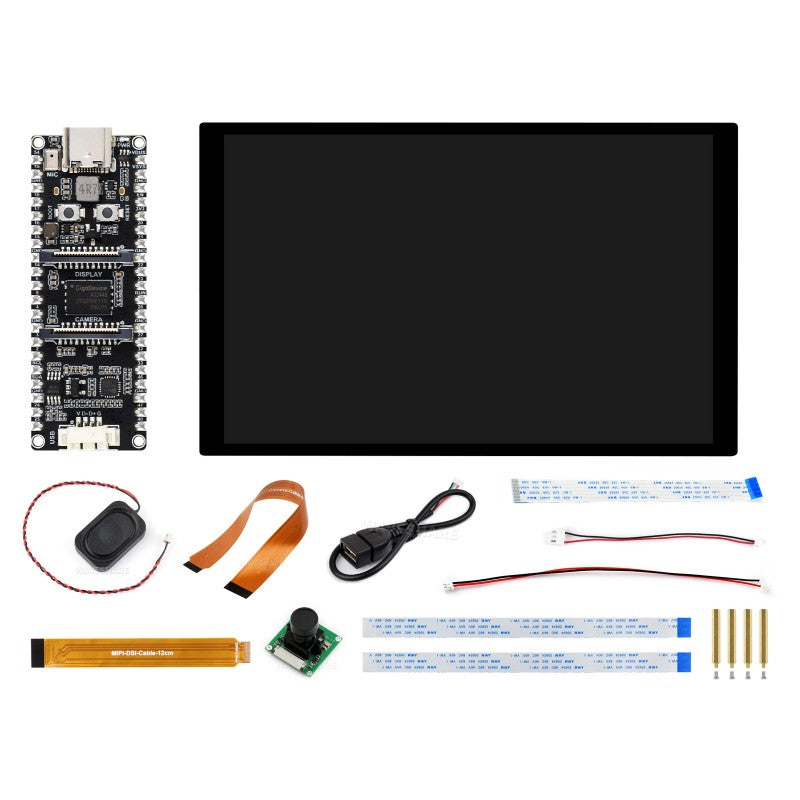

ESP32-P4-Pico-KIT-B
ESP32-P4-Pico-M x1
10.1-DSI-TOUCH-A x1
8Ω 2W speaker x1
Pi5-Camera-Cable-200mm x1
FFC 15PIN cable x1
RPi Camera (B) x1
MX1.25 4PIN to USB cable x1
MIPI-DSI-Cable-12cm x1
MX1.25 2PIN to 2.54 3PIN cable x1
FFC 22PIN cable ~200mm x2
MX1.25 2PIN to MX1.25 4PIN cable ~150mm x1
Standoffs x1
