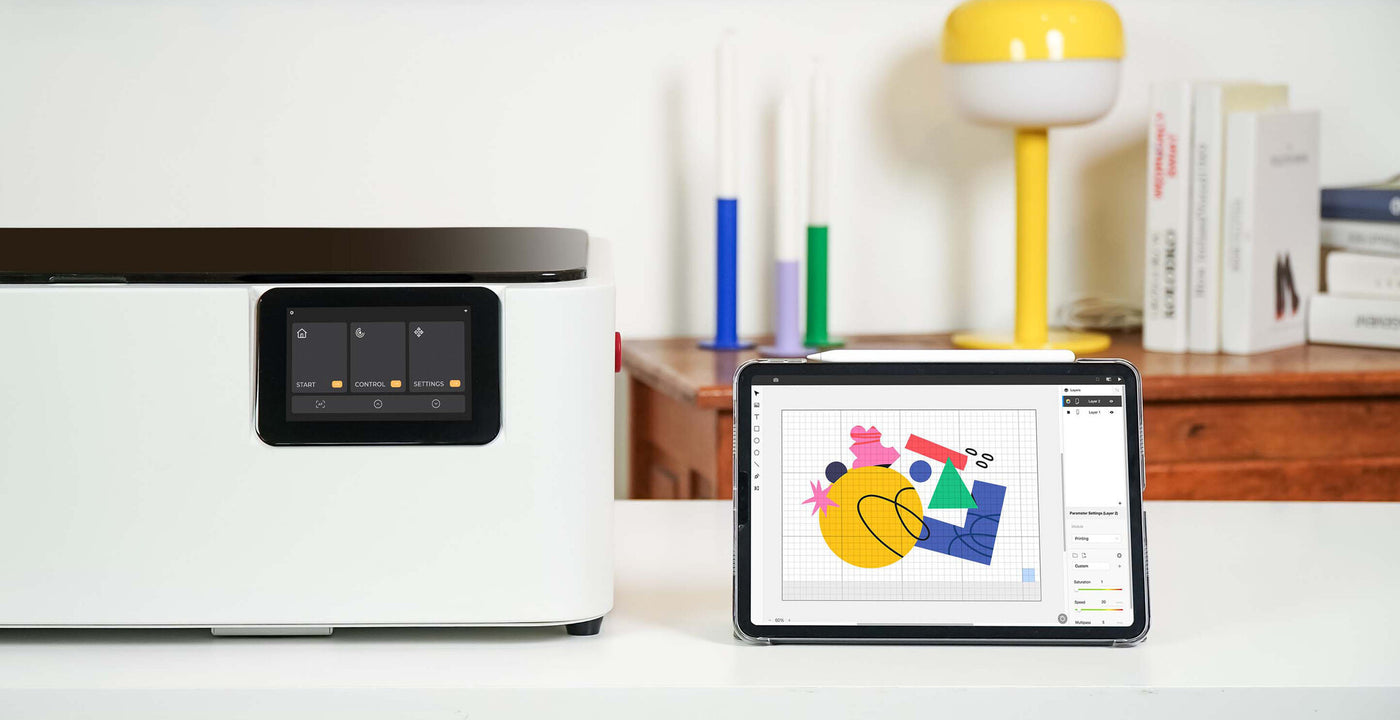

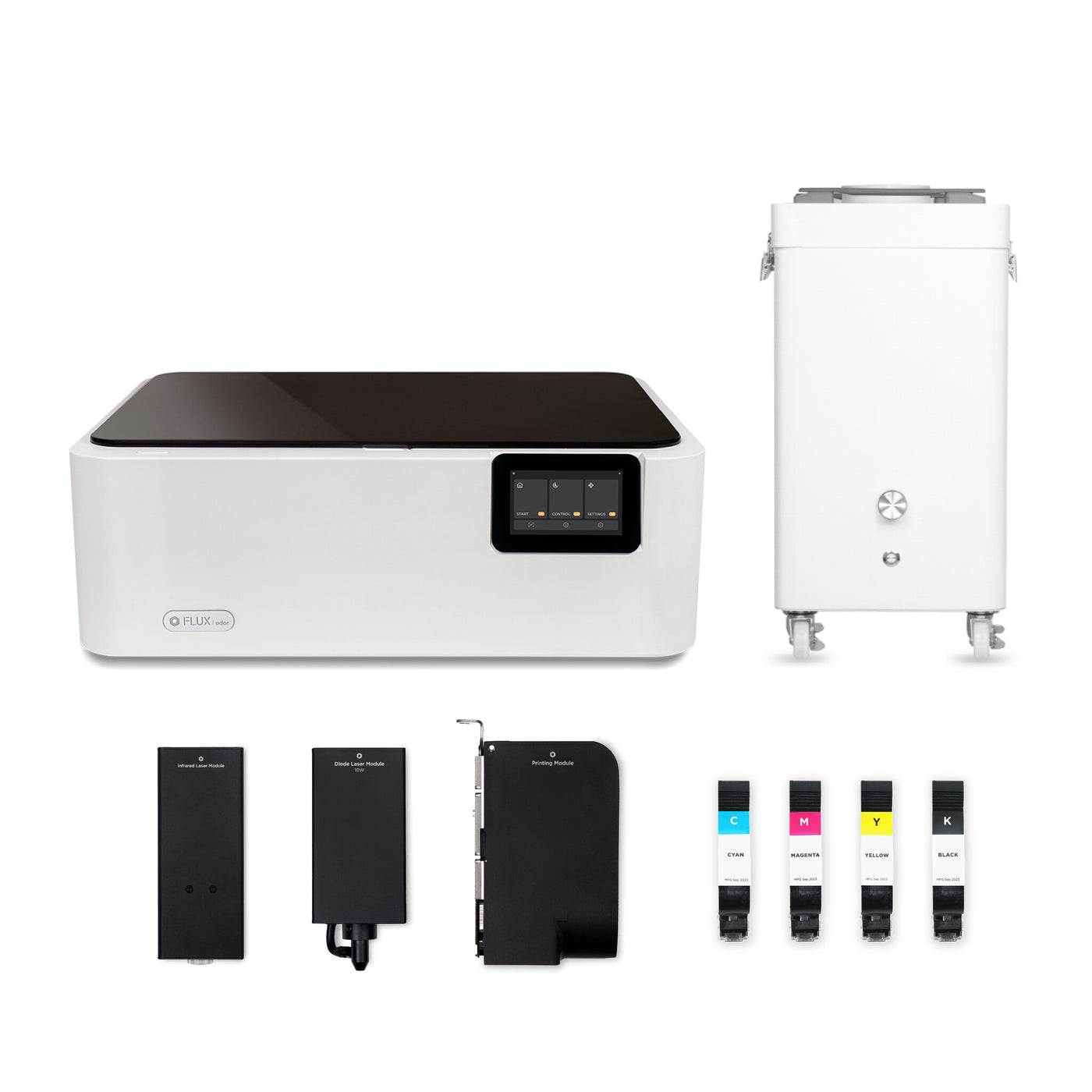

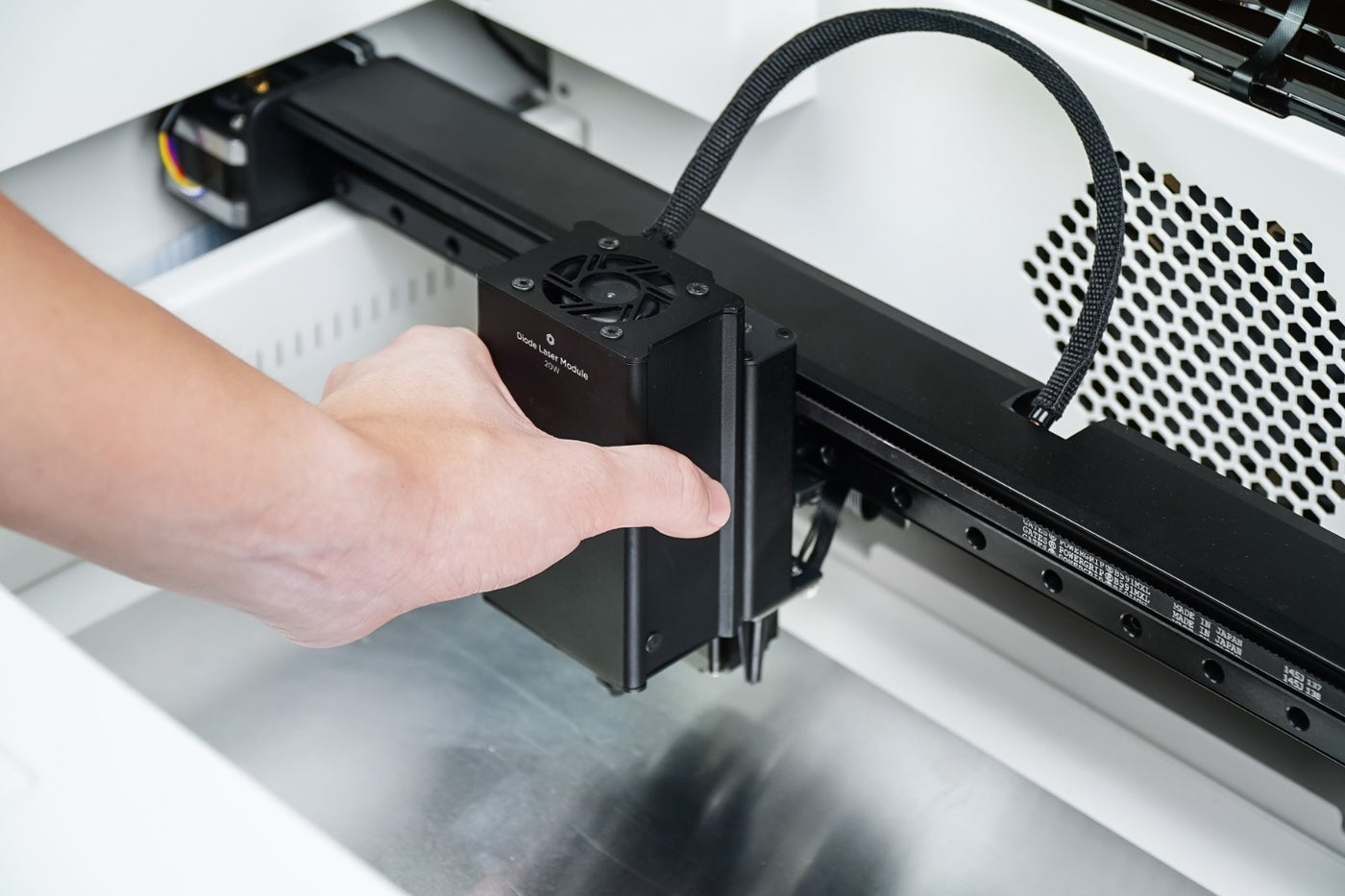

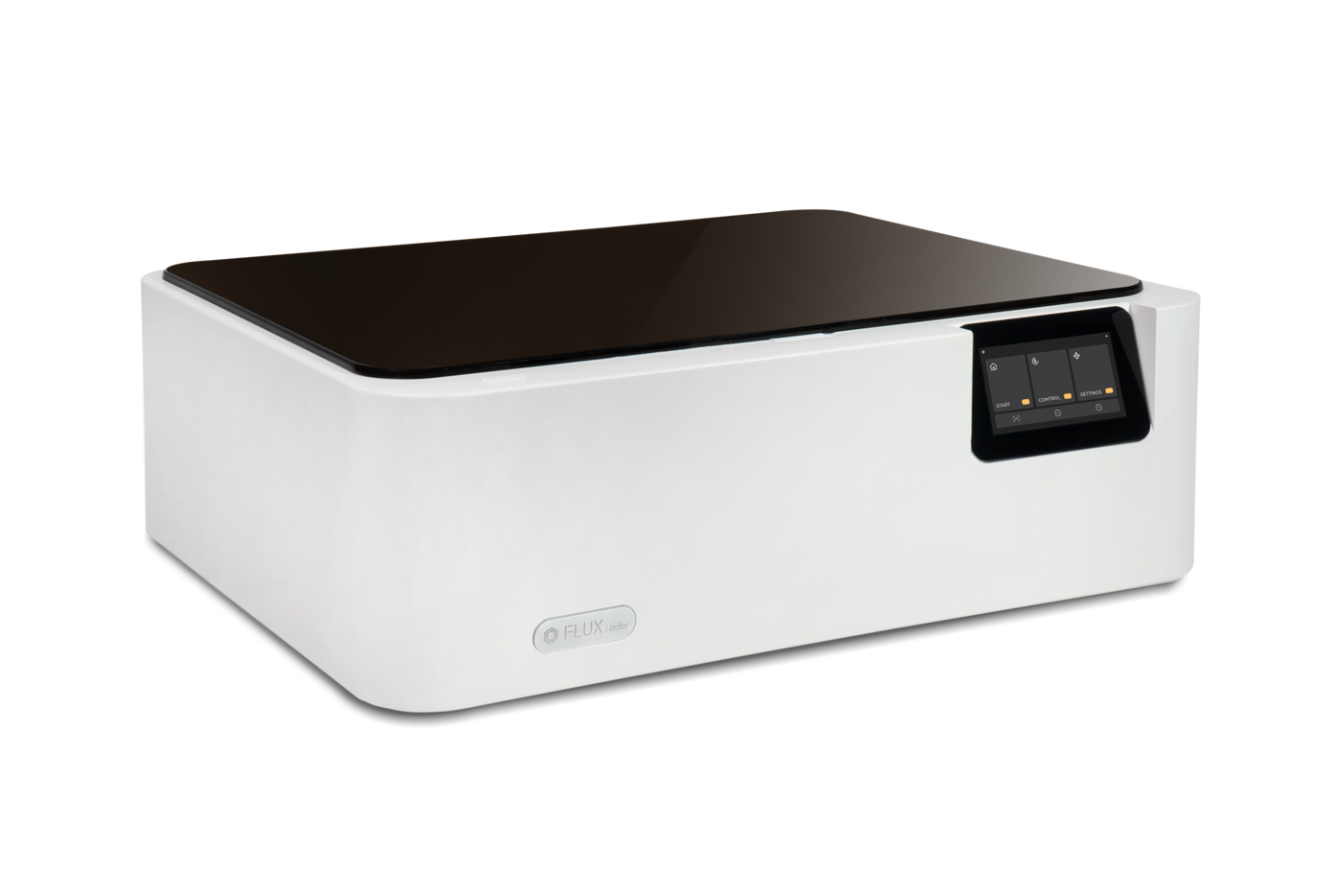

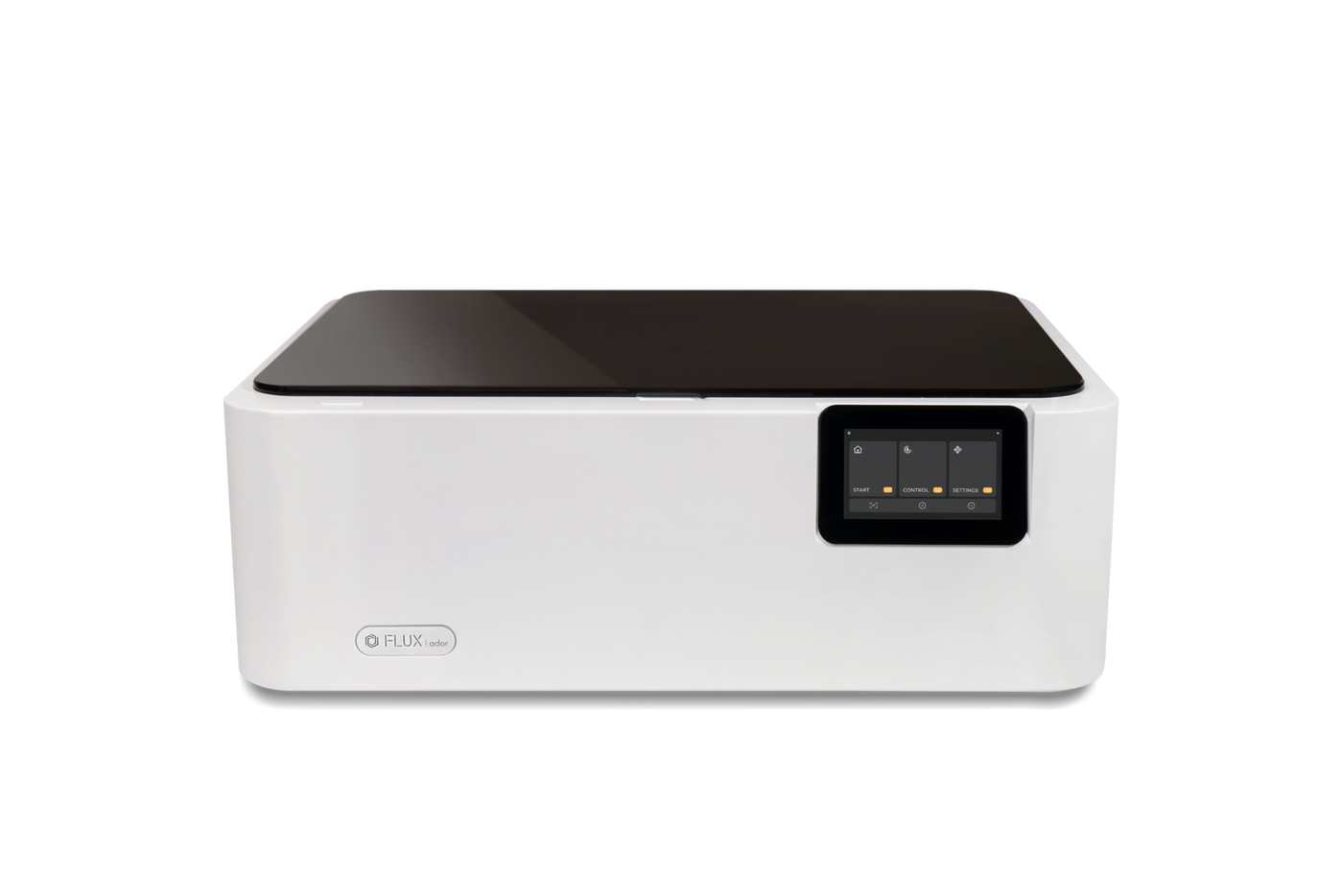

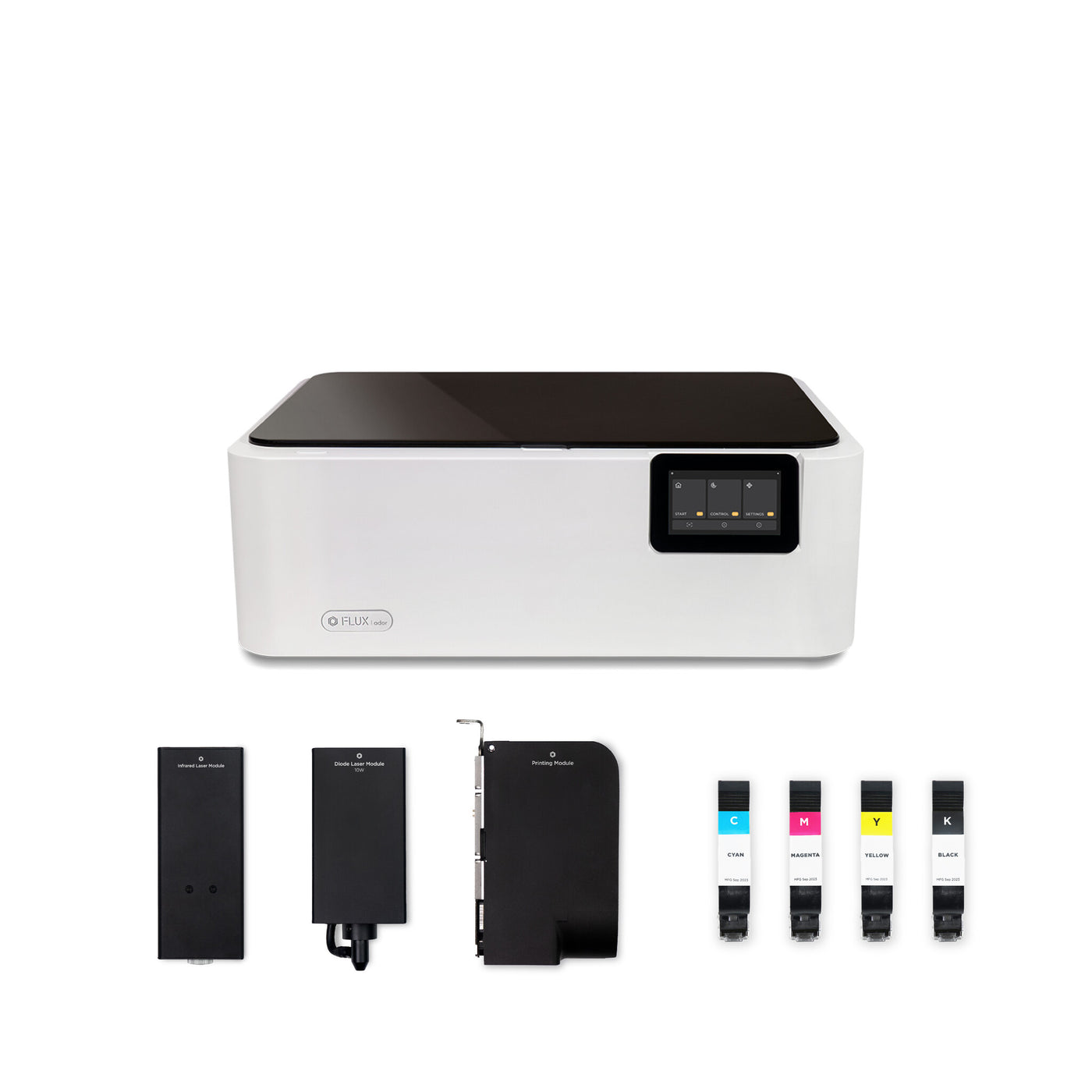

Meet FLUX Ador, the world's first color printing laser cutter. Powered by three high-quality, interchangeable modules, Ador enables you to engrave and cut though a wide range of materials while enhancing your projects with a pop of color.
3-in-1 Laser Cutter |
|||||
10 W / 20 W Diode Laser |
2 W Infrared Laser |
Color Printing |
|||
Class 1 Safety |
8 MP High-Res Preview |
||||
|
Super Speedy 400 mm/s |
|||||

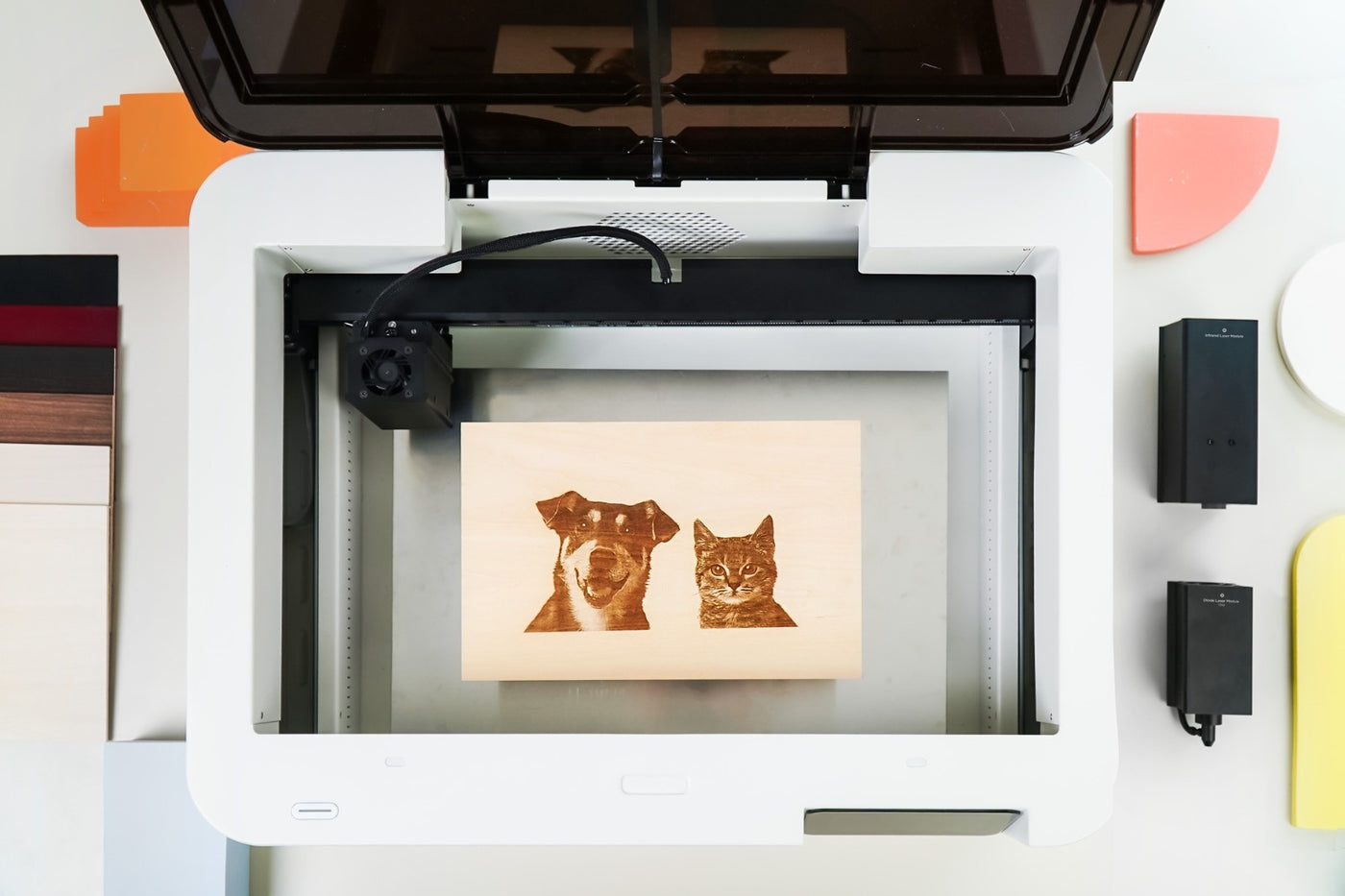

BIG WORKSPACE, BIG IDEAS
Ador offers a big working space of 430 mm x 300 mm, with a depth of 30 mm, expanding the horizons of your creativity.
AIR ASSIST
Bid farewell to unsightly burn marks on your wood pieces and other materials.
YOUR SAFETY IS OUR PRIORITY

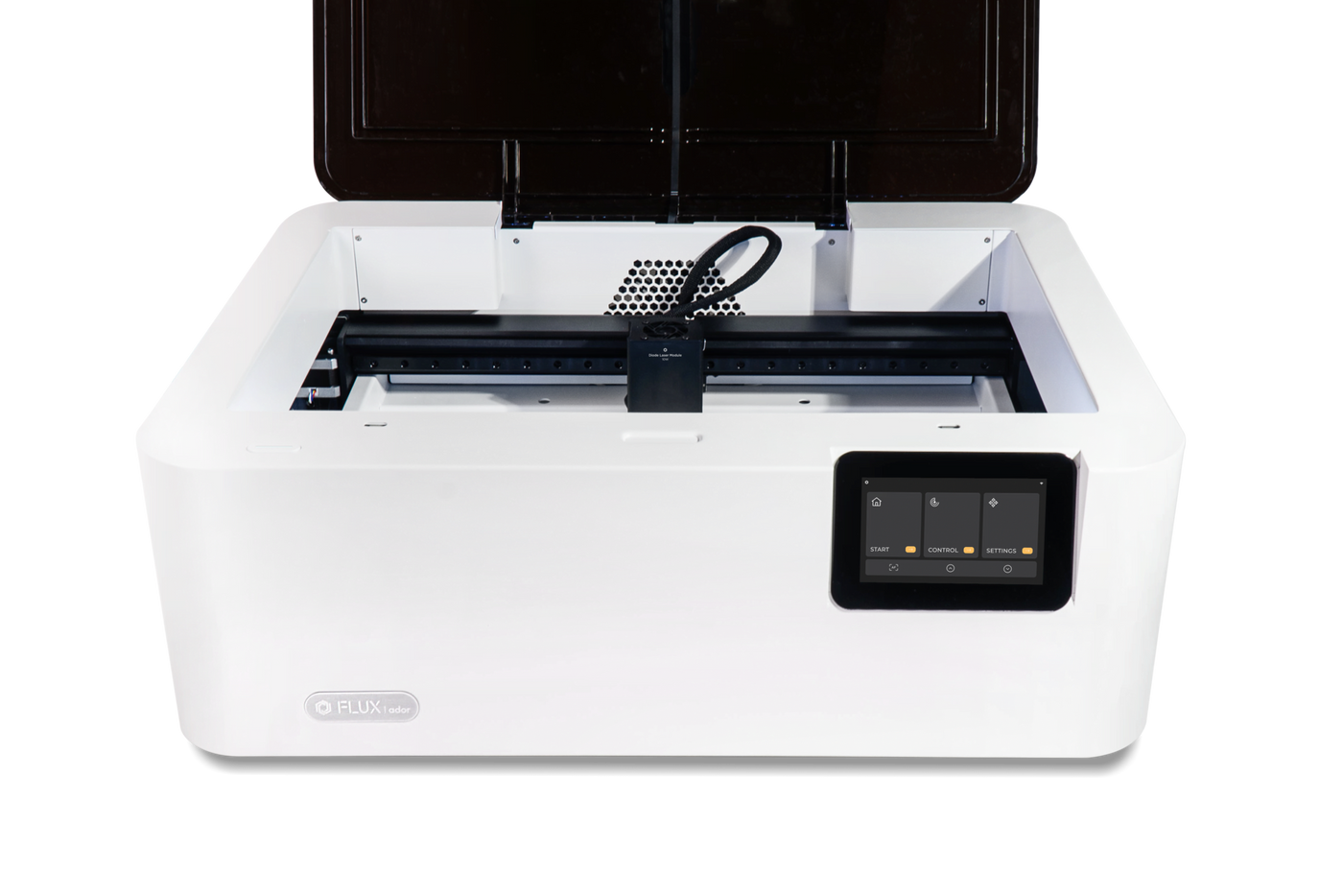

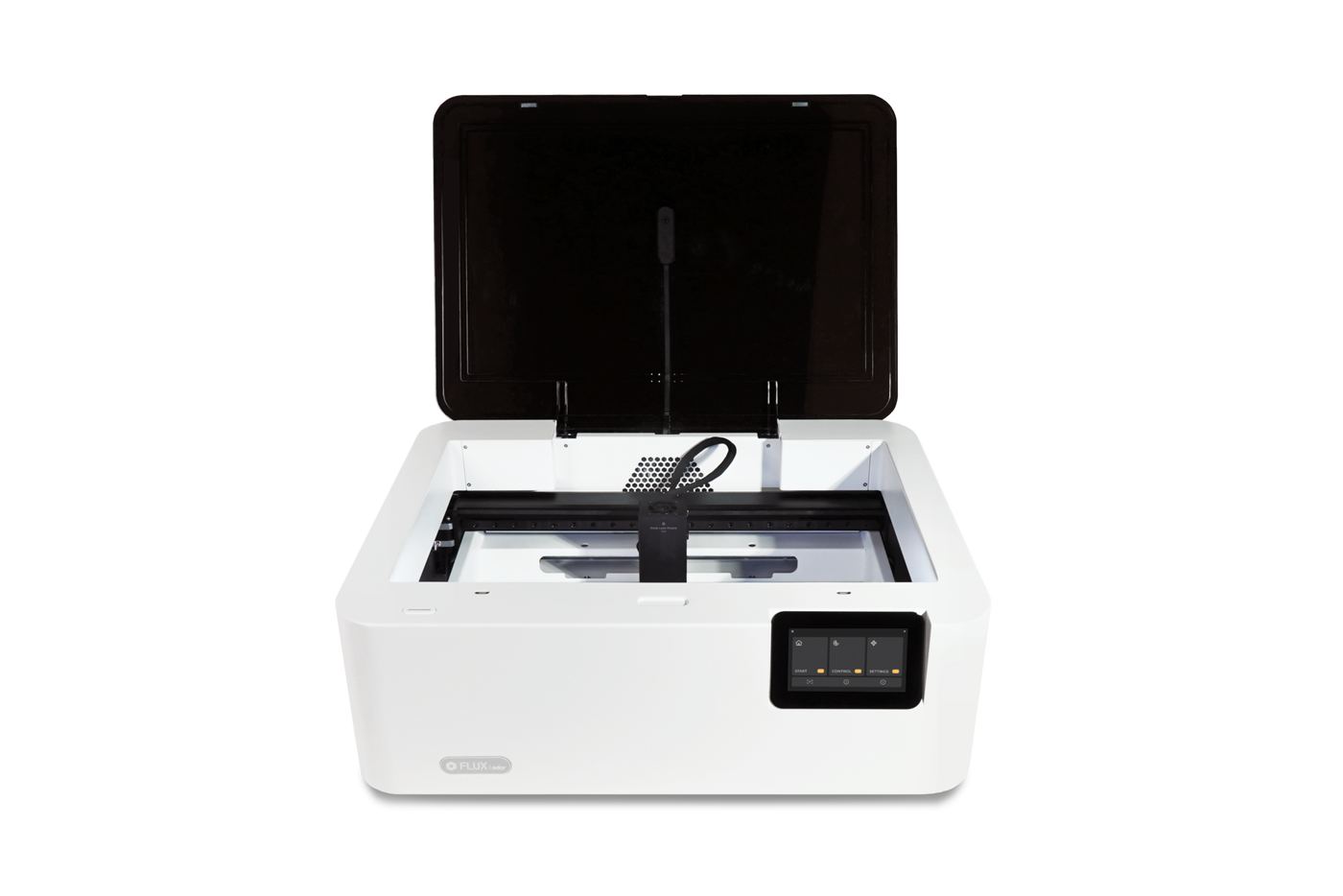

ENCLOSED DESIGN WITH LASER-SAFE MATERIAL
Shield your vision with OD5-grade material. Less than 0.01% of the laser light passes through the lid.
RUN INTO AN EMERGENCY?
Press the red emergency button on the right side of the machine to instantly cut power when hazards occur.
BEAM AIR, YOUR 4 - LAYER FILTER PROTECTION
Beam Air uses a highly effective 4-layer filtration system and a brushless motor with superior air intake to block harmful molecules and odours generated during laser engraving or cutting.
FLUX ADOR SPECIFICATIONS
| Dimensions: | 637 x 488 x 226 mm |
| Weight: | 19 kg |
| Work Area: | X&Y: 10 W / 20 W Diode laser: 430 x 300 mm (X & Y varies with different modules) Z: 30 mm (for all modules) & 20 mm (with prism) |
| Camera Preview Area: | Whole work area |
| Voltage: | AC 110 - 240 V |
| Touch Panel: | Yes, 8 inches (diagonal) |
| Camera: | 8 MP |
| I / O: | USB / WiFi |
| Laser Spec: | 10 W / 20 W Diode laser Module |
| Laser Wavelength: | - |
| Laser Moving Speed: | 0 ~ 400 mm/s |
| Laser Cutting Thickness: | Varies for different materials |
| Software Mode: | Vector / Graphic (monochrome, gray scale) |
| Software Operating System: | Windows / macOS / Linux |
| Software File Type: | JPG / PNG / SVG / DXF |
