GNSS L1+L2+L5Ā Multi-GNSS & Multi-Frequency Active Antenna

Sunproofā€ƒ|ā€ƒHigh Temperature Toleranceā€ƒ|ā€ƒIP67 Waterproof

Supports Multiple GNSS Such As BD, GPS, GLONASS, Galileo, Etc.

Ā

Specifications

FREQUENCY RANGE BDS B1/B2/B3
GPS L1/L2/L5
GLONASS G1/G2/G3
GALILEO E1/E2/E5a/E5b/E6		 PHASE CENTER ERROR Ā±2mm
LNA GAIN 40Ā±2dB POLARISATION Right-Hand Circular Polarization
GAIN 4dBi CONNECTOR SMA-J
VSWR ā‰¤2.0 ANTENNA SIZE 108Ɨ76Ɨ27mm
OUTPUT IMPEDANCE 50Ī© CABLE RG174
WORKING CURRENT ā‰¤45mA CABLE LENGTH 5m
WORKING VOLTAGE DC 3.0~18.0V WORKING TEMPERATURE -40~70ĖšC
AXIAL RATIO ā‰¤3.0dB STORAGE TEMPERATURE -55~85ĖšC
NOISE FIGURE ā‰¤1.8dB MOUNTING Magnetic base


Ā

Application Example

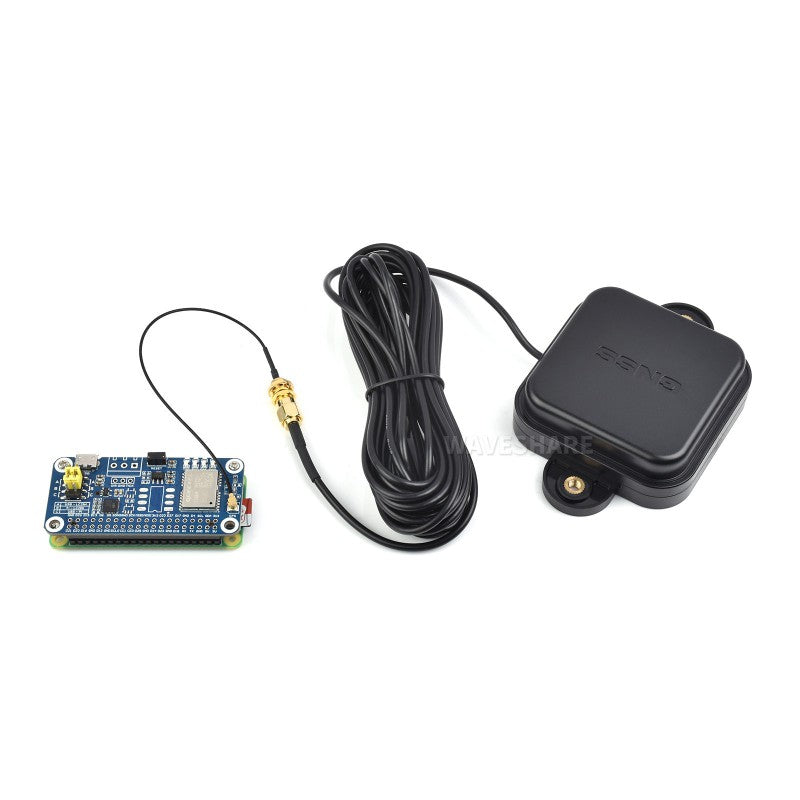

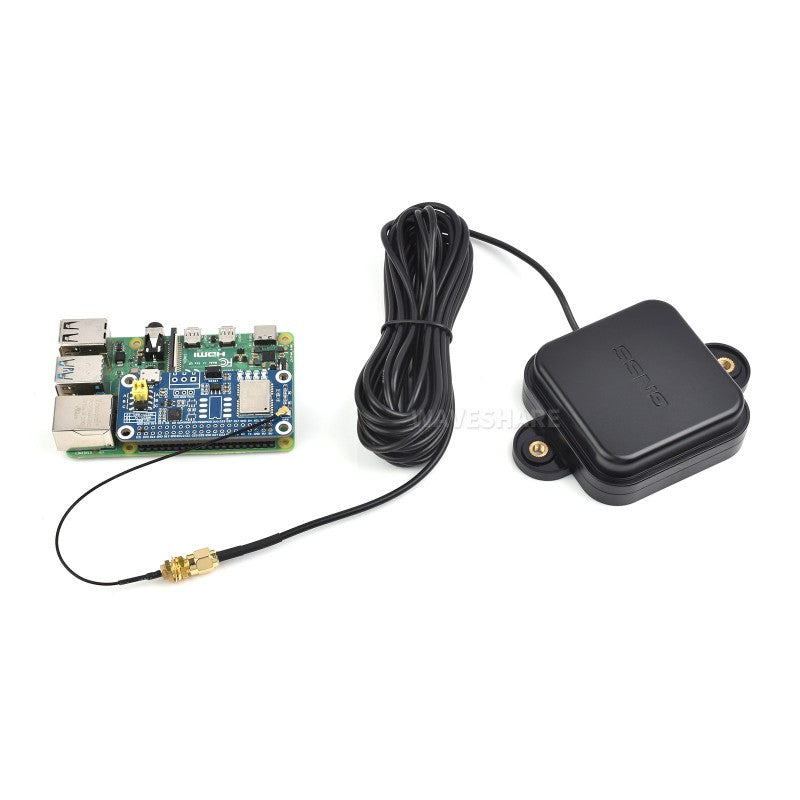

* for reference only, the Raspberry Pi board and GPS HAT are NOT included


Ā

Application Scenarios

Ā

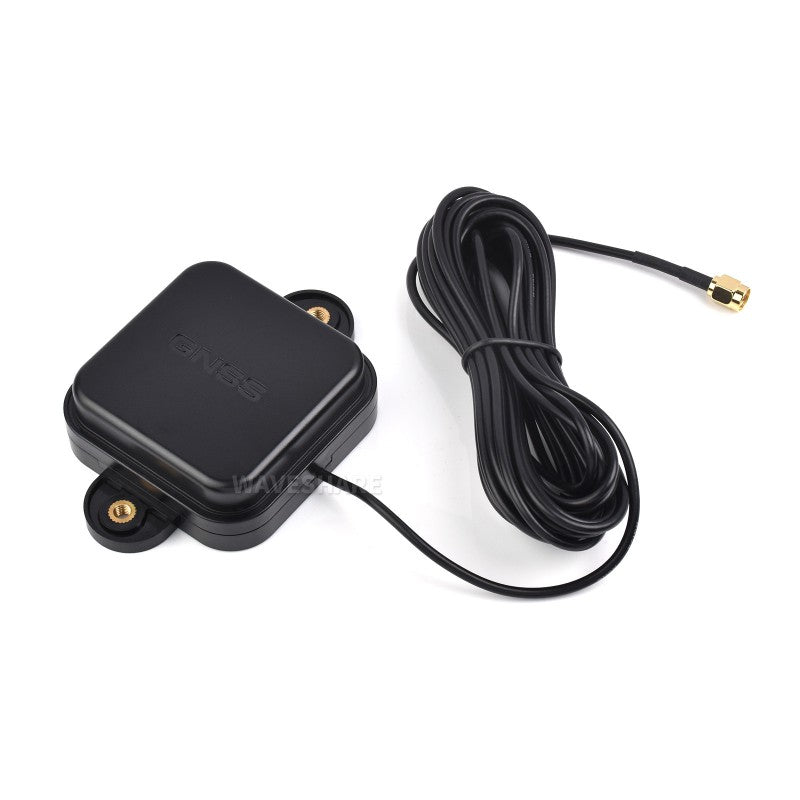

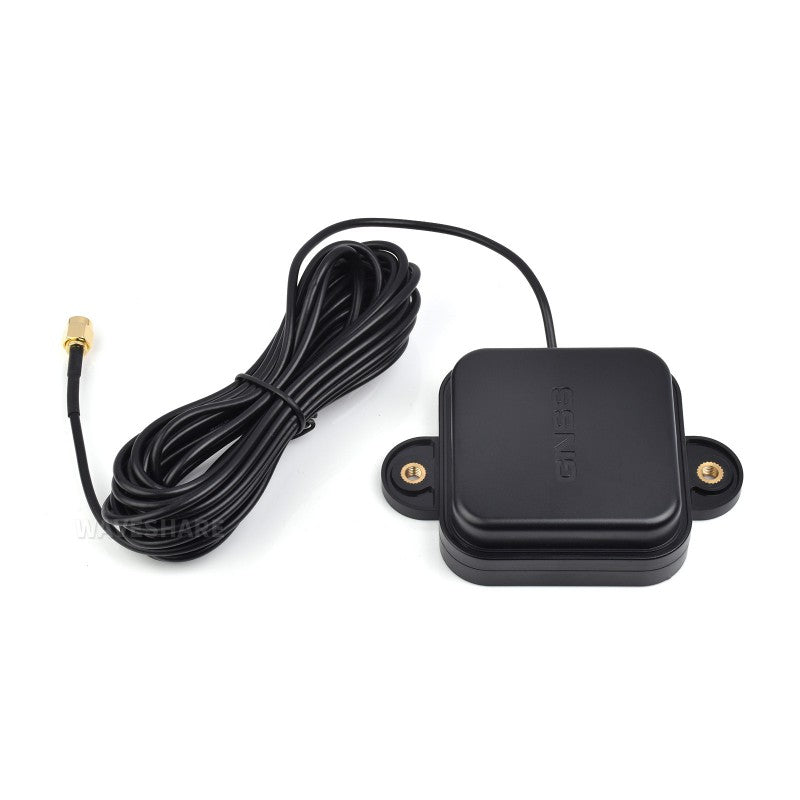

Product Show



Ā Ā

Outline Dimensions

Note: supports mass customization for cable length and antenna connector

What GNSS systems and frequency bands does this antenna support?
The antenna supports multiple GNSS including BD GPS GLONASS and Galileo with L1 L2 and L5 bands for GPS, BDS, GLONASS and E1 E2 E5a E5b E6 for Galileo.
What are the environmental ratings and mounting options?
It is sunproof and high temperature tolerant with IP67 waterproof rating. The working temperature is -40 to 70 degrees C and it uses a magnetic base for mounting.
What are the electrical and interface specifications?
The antenna has 50 ohm output impedance, a SMA J connector, and a 5 meter RG174 cable. It operates from DC 3.0 to 18.0 volts and draws up to 45 mA.
Can this antenna be used with Raspberry Pi or other embedded boards?
The reference indicates use with a Raspberry Pi board and shows the GPS HAT as an example; the GPS HAT is not included with the antenna.
Is it possible to customize cable length or connector type?
Yes, mass customization for cable length and antenna connector is supported.
