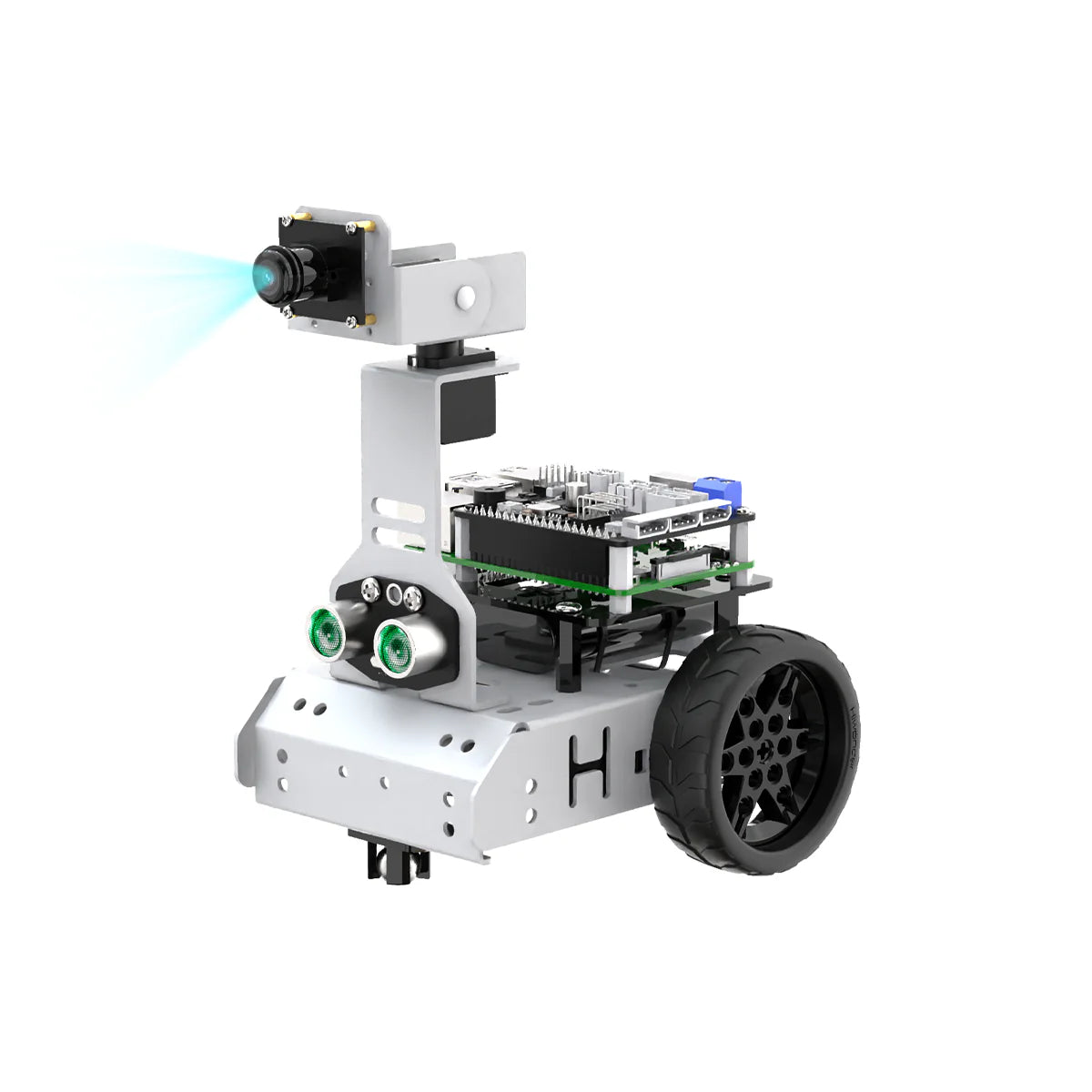

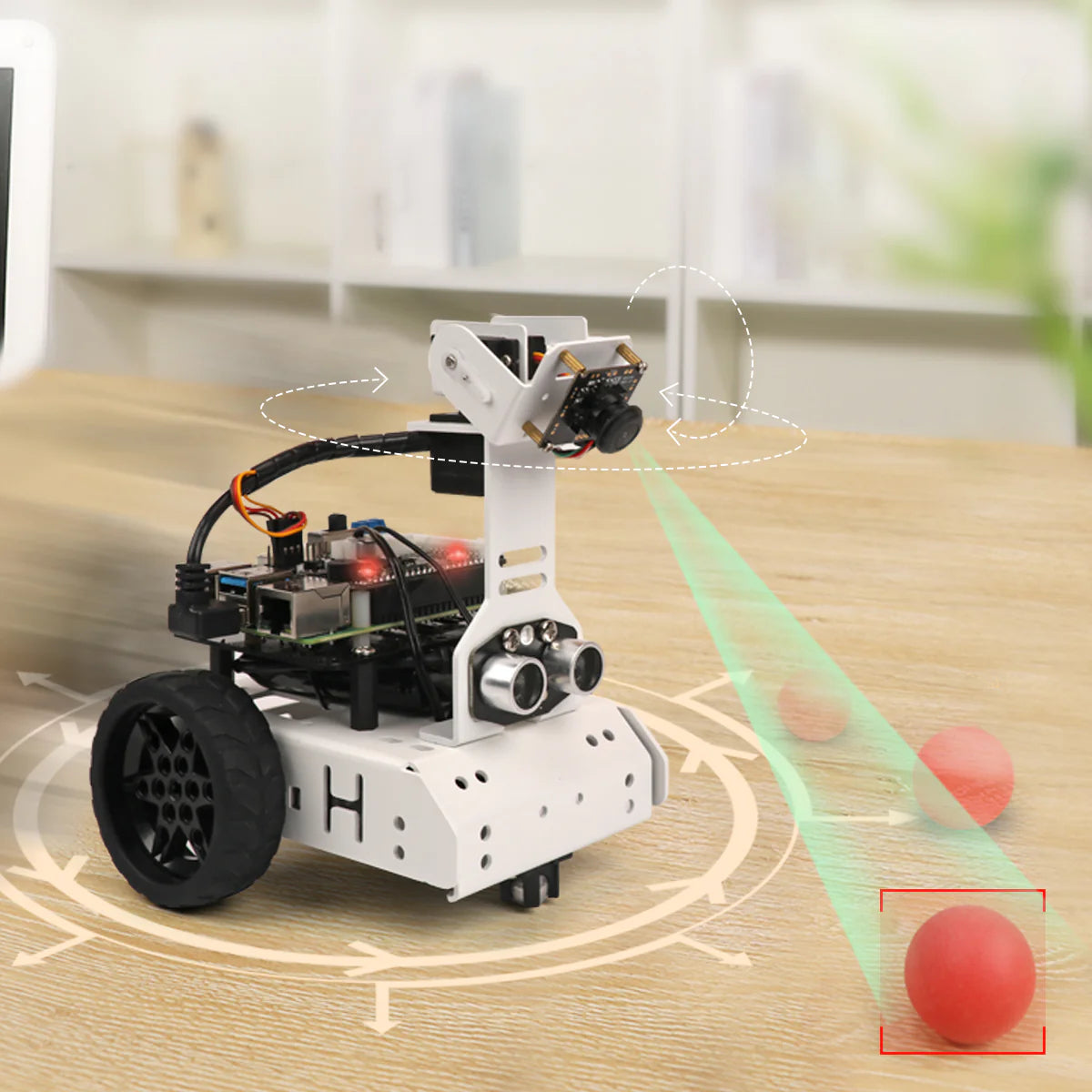

GoGoPi is an AI vision robotic vehicle kit based on Raspberry Pi. Equipped with pan-tilt of 2 degrees of freedom and HD camera, it can realize color tracking, face tracking, finger recognition, etc. GoGoPi is also loaded with RGB glowing ultrasonic which enables it to control the glowing light and avoid the obstacle intelligently.
In addition, various sensors can be installed on GoGoPi for more perception functions. It supports Python programming with detailed tutorials and is open source for your AI learning.
> Support AI vision games
> Provide Python source code

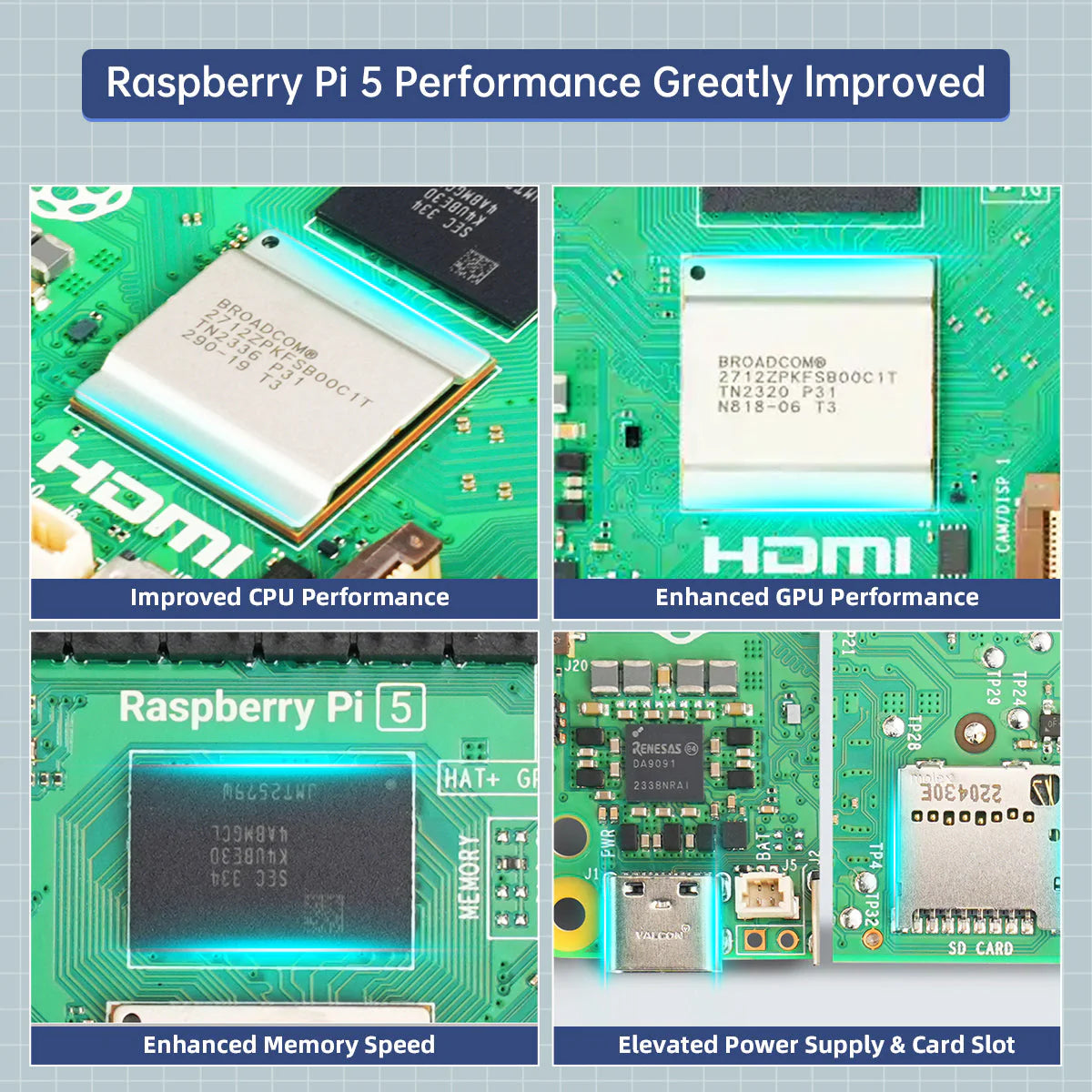

> Powered by Raspberry Pi 4B/5 controller
> Phone App and VNC remote desktop control
> Not assembled. Detailed tutorials are provided
> Equipped with HD camera for realistic remote control
> Powered by Raspberry Pi 4B/5 controller
> HD camera is installed to catch real-time image
> 2DOF and up to 360 degrees vision
> Support Python programming and detailed tutorials are provided
> Support phone App and VNC remote desktop control
> Glowing ultrasonic sensor for precise obstacle detection and avoidance
Ā
Color Tracking
Through OpenCV, GoGoPi can intelligently track the target color which has been set in the APP, and light up in corresponding color.
Ā

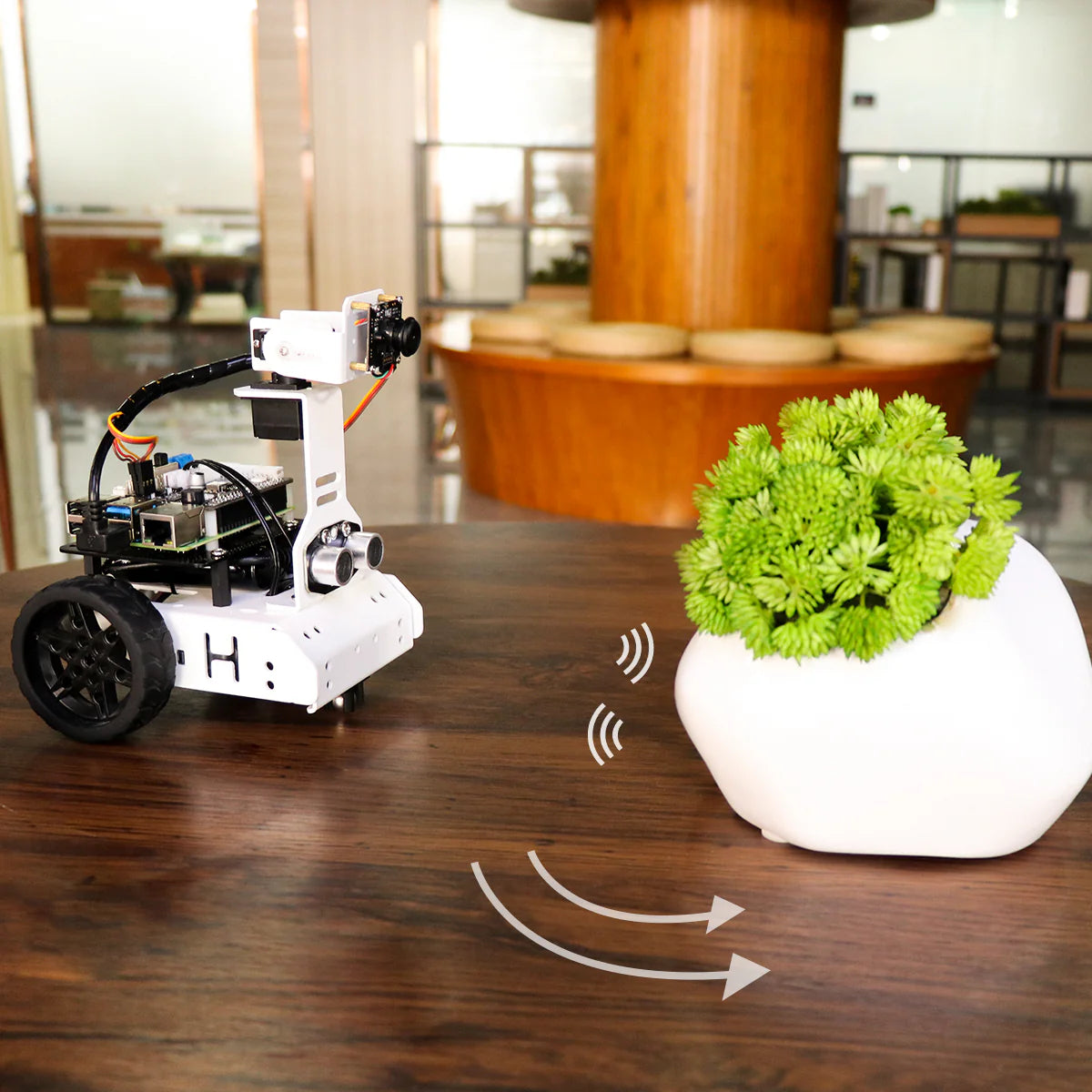

Obstacle Avoidance
Equipped with glowing ultrasonic sensor, GoGoPi can detect and avoid obstacle smartly. Glowing color can be adjusted through the APP.
Ā

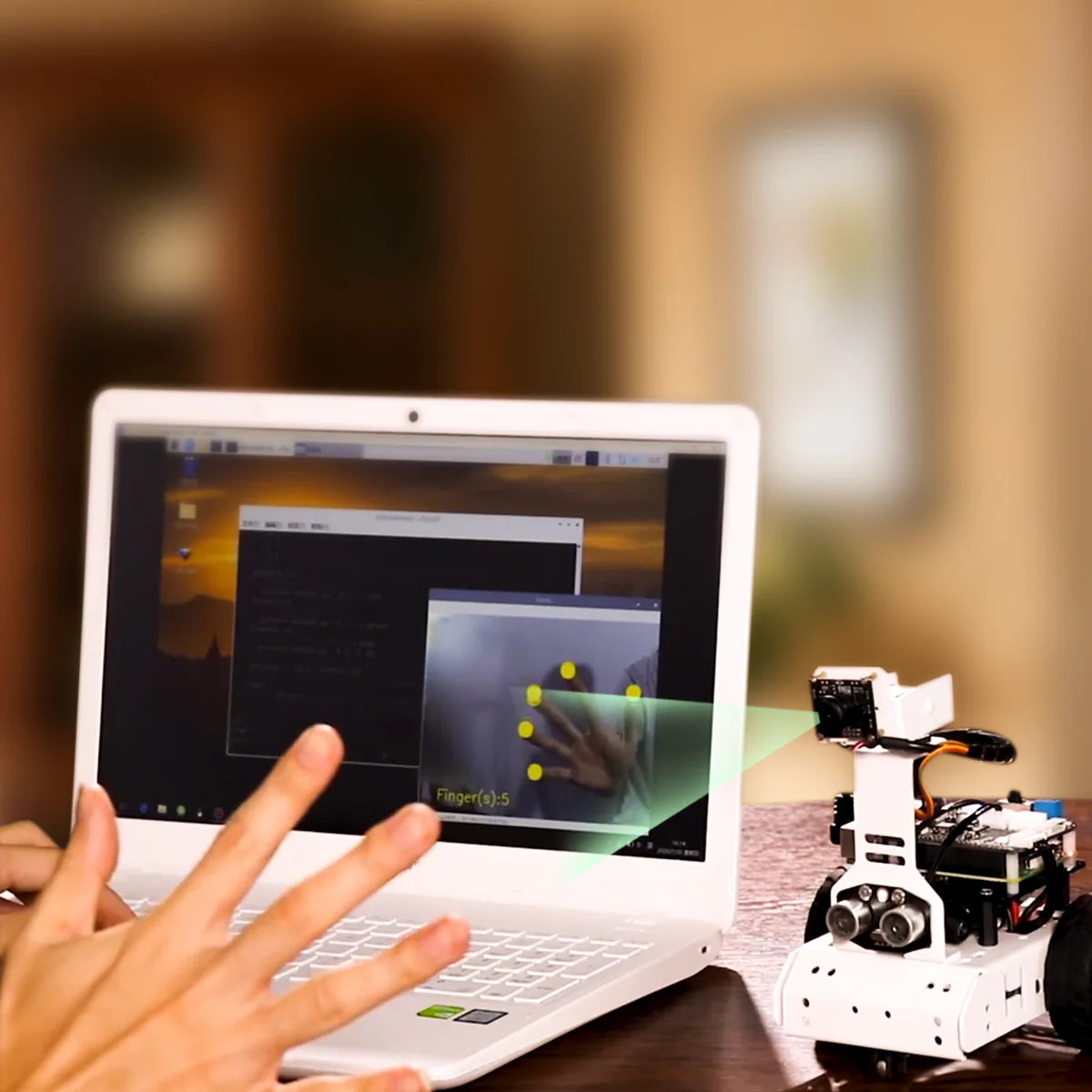

Finger Recognition
GoGoPi can identify the numbers of finger via OpenCV, and then interact with user, for example honking, turning, changing the light color, etc.
Ā
Remote Control
GoGoPi supports APP remote control. The HD camera returns the FPV image to the APP, which makes the remote control more exciting and realistic.
Ā

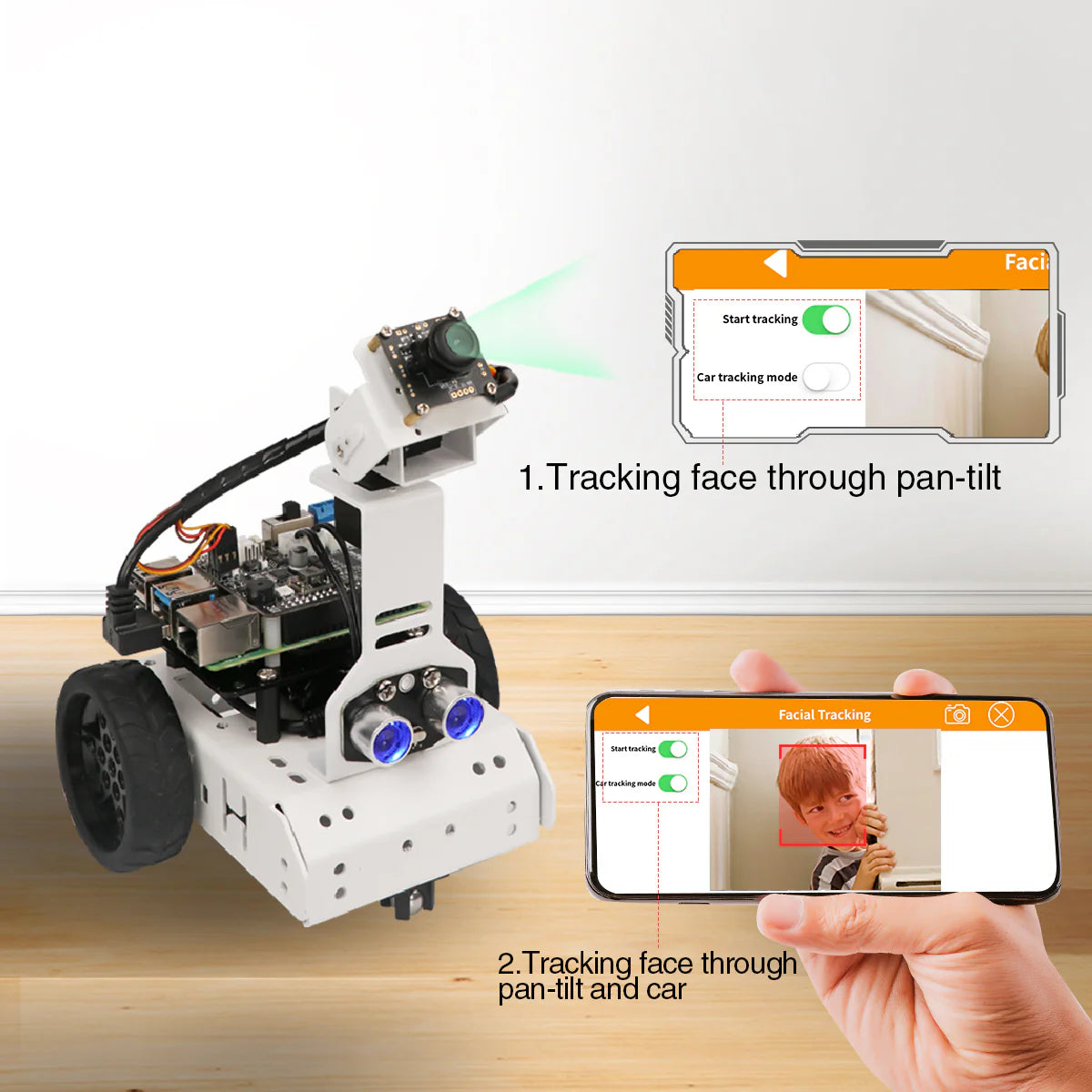

Face Tracking
Combining with OpenCV, GoGoPi can detect and track human face. Switch pan-tilt mode and car tracking mode via APP for flexible face tracking.
Ā
Attributed to DOF pan-tilt, its up and down view is up to 130Ā°and rotation angle reaches 180Ā°.
Ā
3 IIC and 2 GPIO interfaces for various sensor expansions give GoGoPi more perception functions.
Ā
Android/iOS APP control
GoGoPi supports Android and iOS smart phone APP remote control. Conveniently, users can start the AI vision games through the APP.
Ā

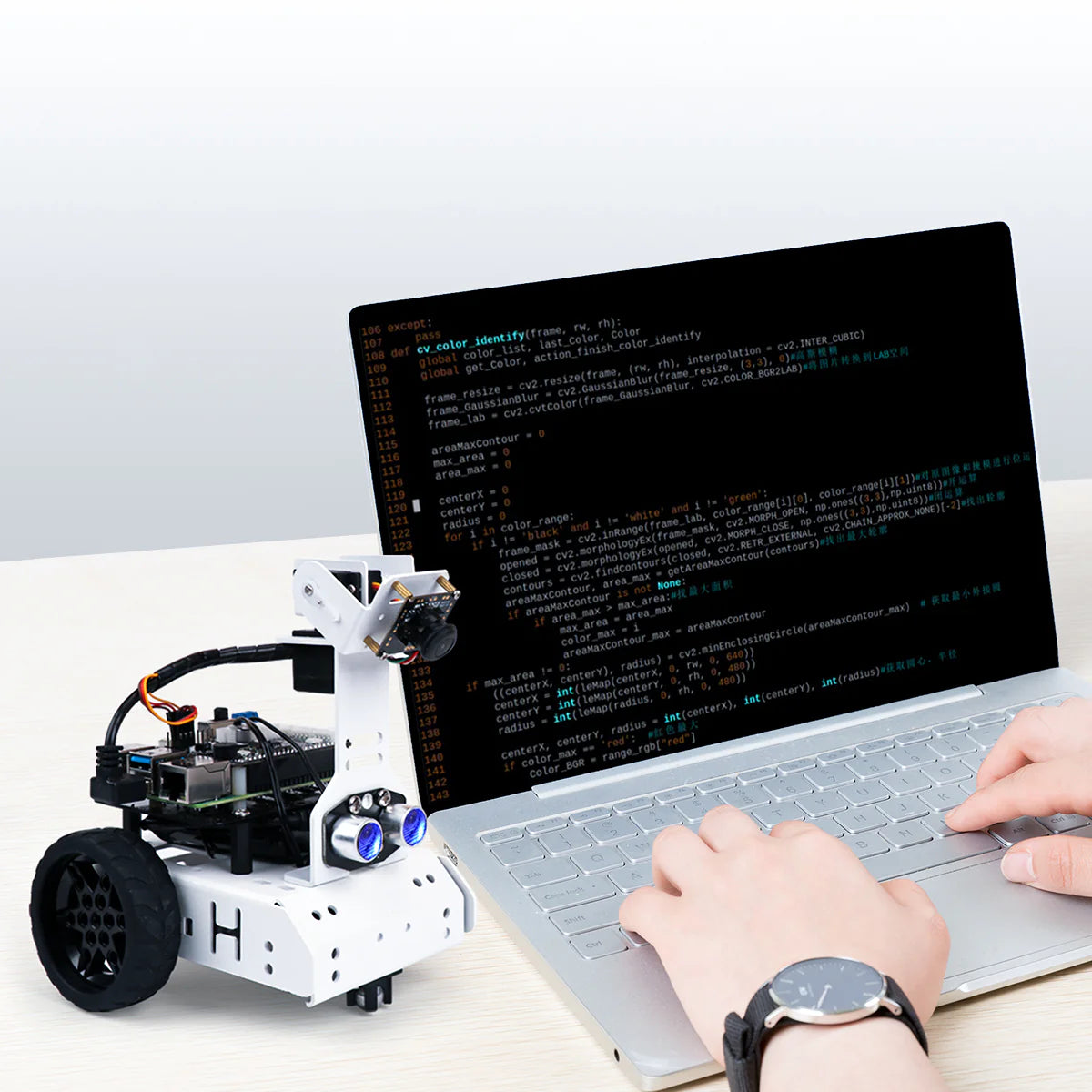

Python codes
Python codes for AI vision games are open source with annotations making it convenient for AI learning.
Ā
Ā
Ā
Ā
Ā
Ā
| Item | Specification |
|---|---|
| Weight | 0.5kg |

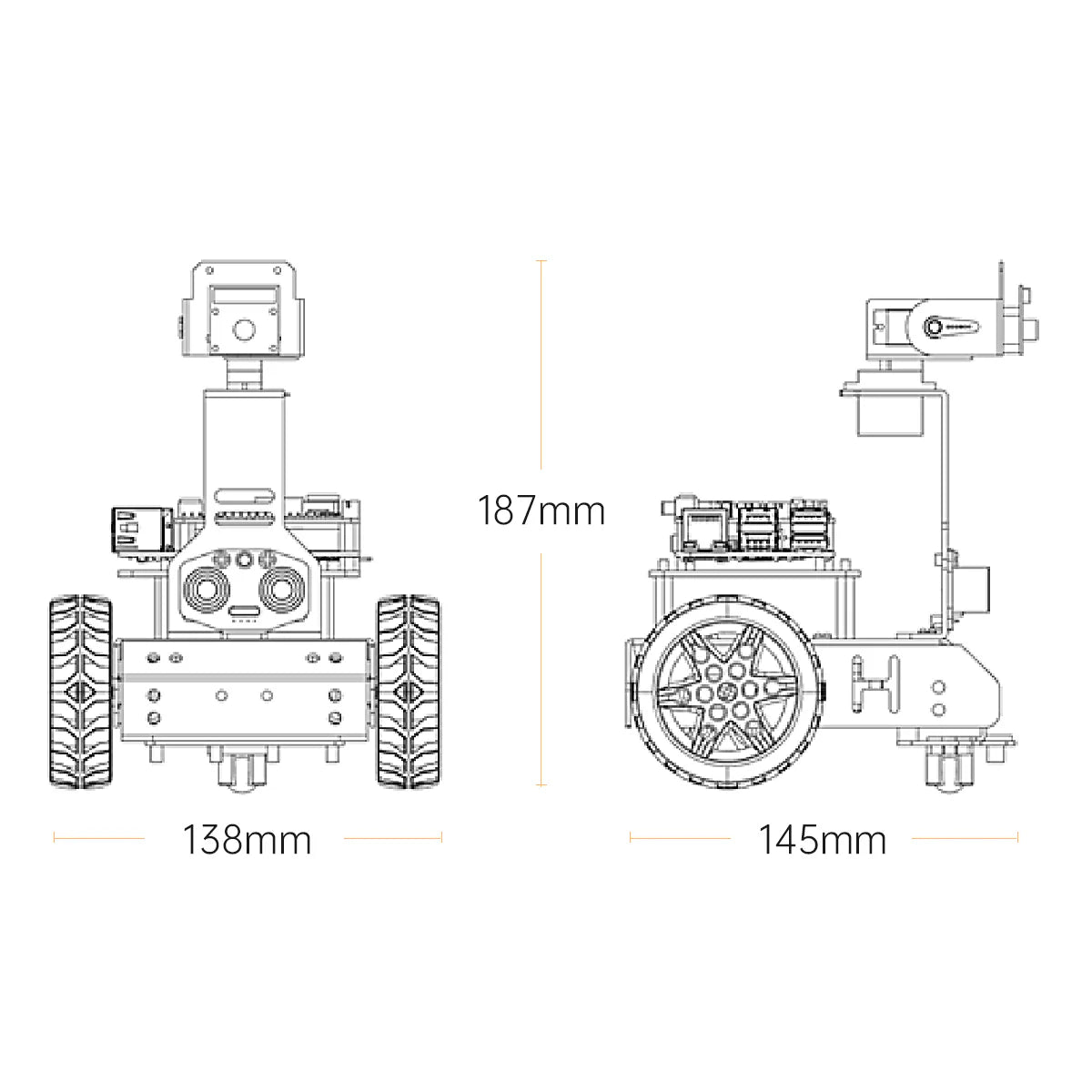

| Size | 145*138*187 mm |
| Material | Metal bracket and acrylic sheet |
| Camera resolution | 480P |
| Freedom degree | 2DOF |
| Battery | 7.4 V 2200mAh lithium |
| Battery life | 60min |
| Hardware | Raspberry Pi 4B/5 and Raspberry Pi expansion board |
| Software | VNC + iOS/Android APP |
| Connection | Wi-Fi / Ethernet |
| Serial Command Control Method | Serial command |
| Servo | LFD-01 anti-blocking servo |
| Servo Size | 32.5*12*29.85mm |
| Servo Torque | 1.8kg.cm @ 6V |
| Control method | Phone control / Computer |
| Package size | 26*19*15 cm |
| Package weight | 1.2kg |
Ā
Ā
https://drive.google.com/drive/folders/1s50uUGJ0rrzCuwpofrkAfmOJoJpjN-jT
