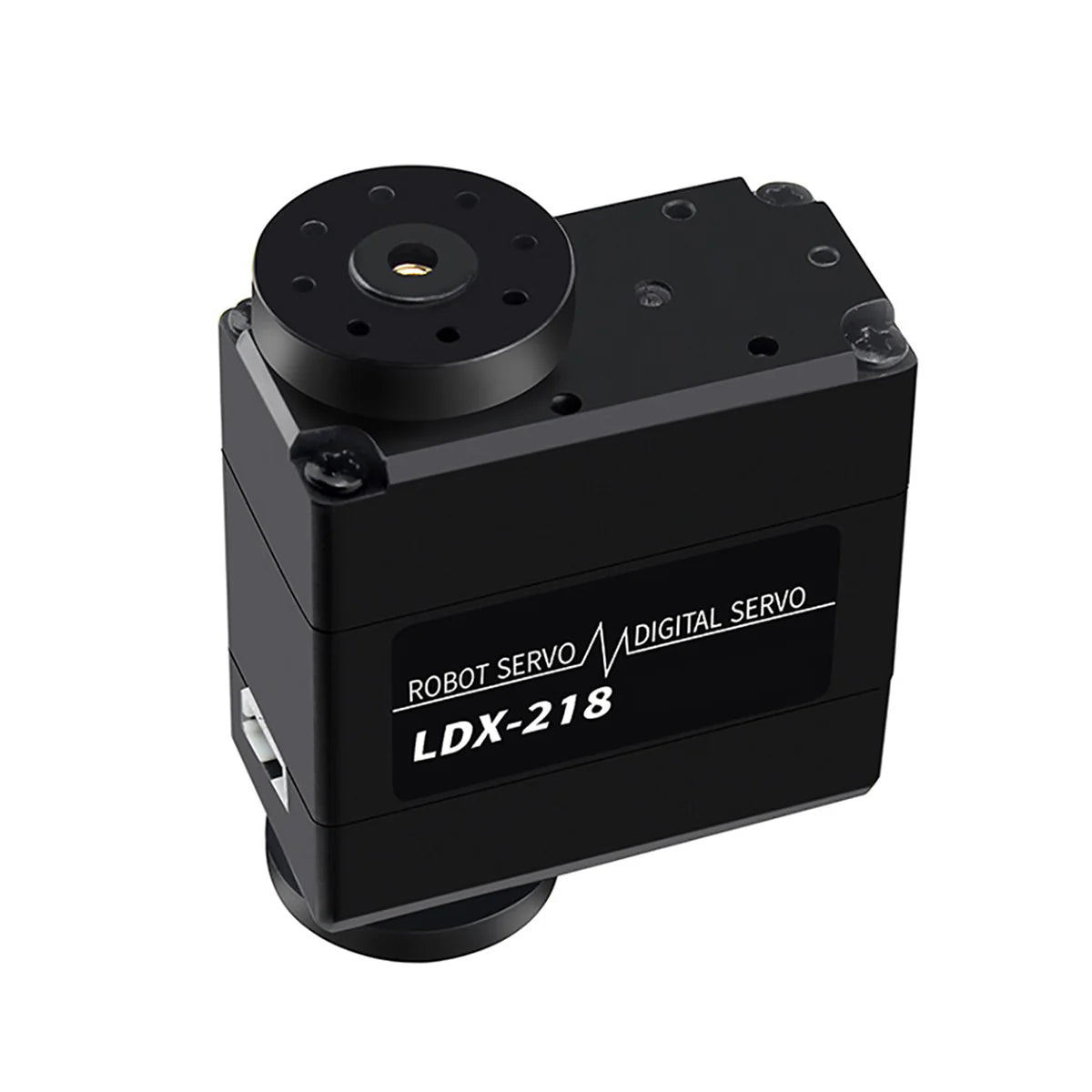

Hiwonder LDX-218 is a full metal gear standard digital servo with 17kg high torque and dual ball bearing for the robot. The control angle is 180 degrees.

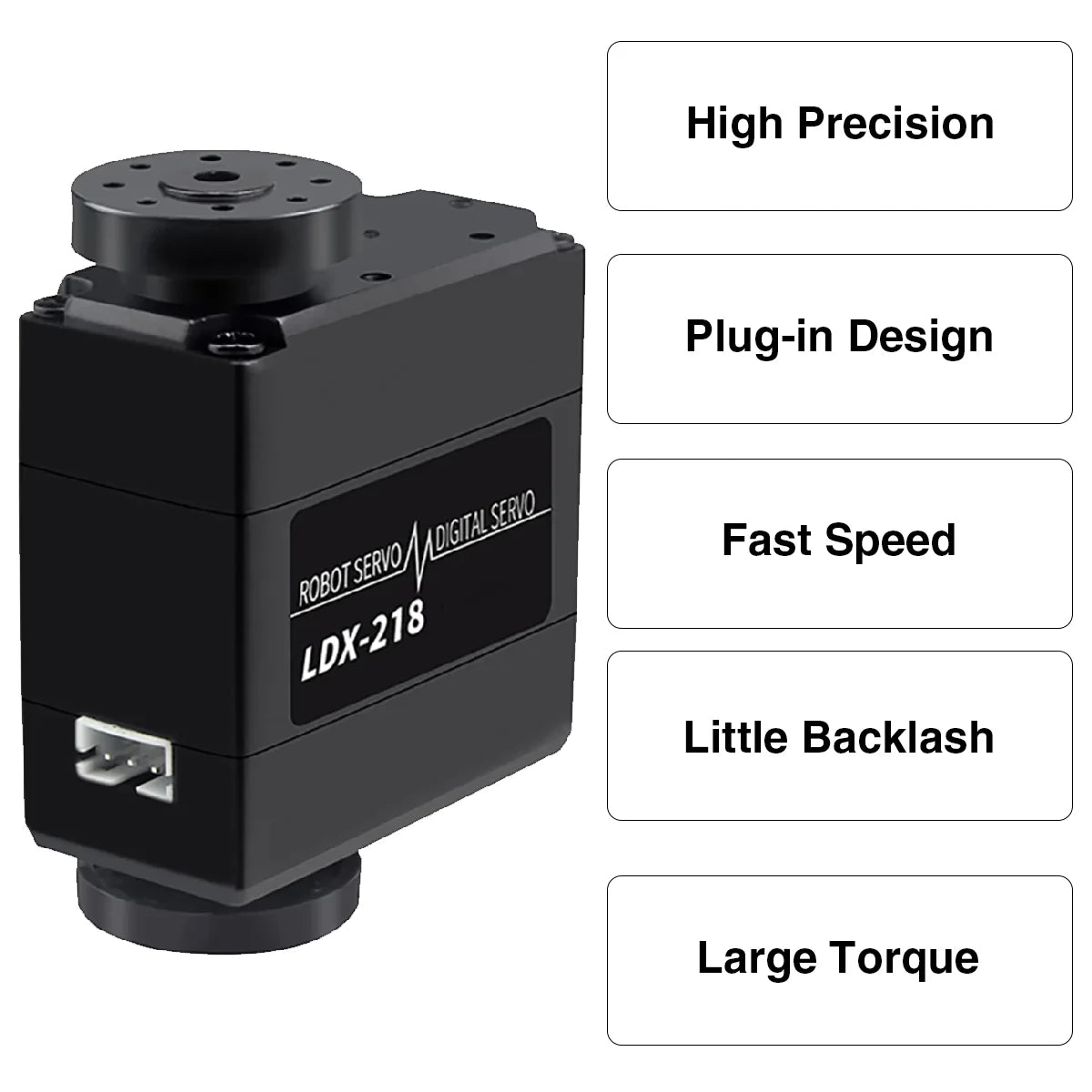

> 20kg large torque.

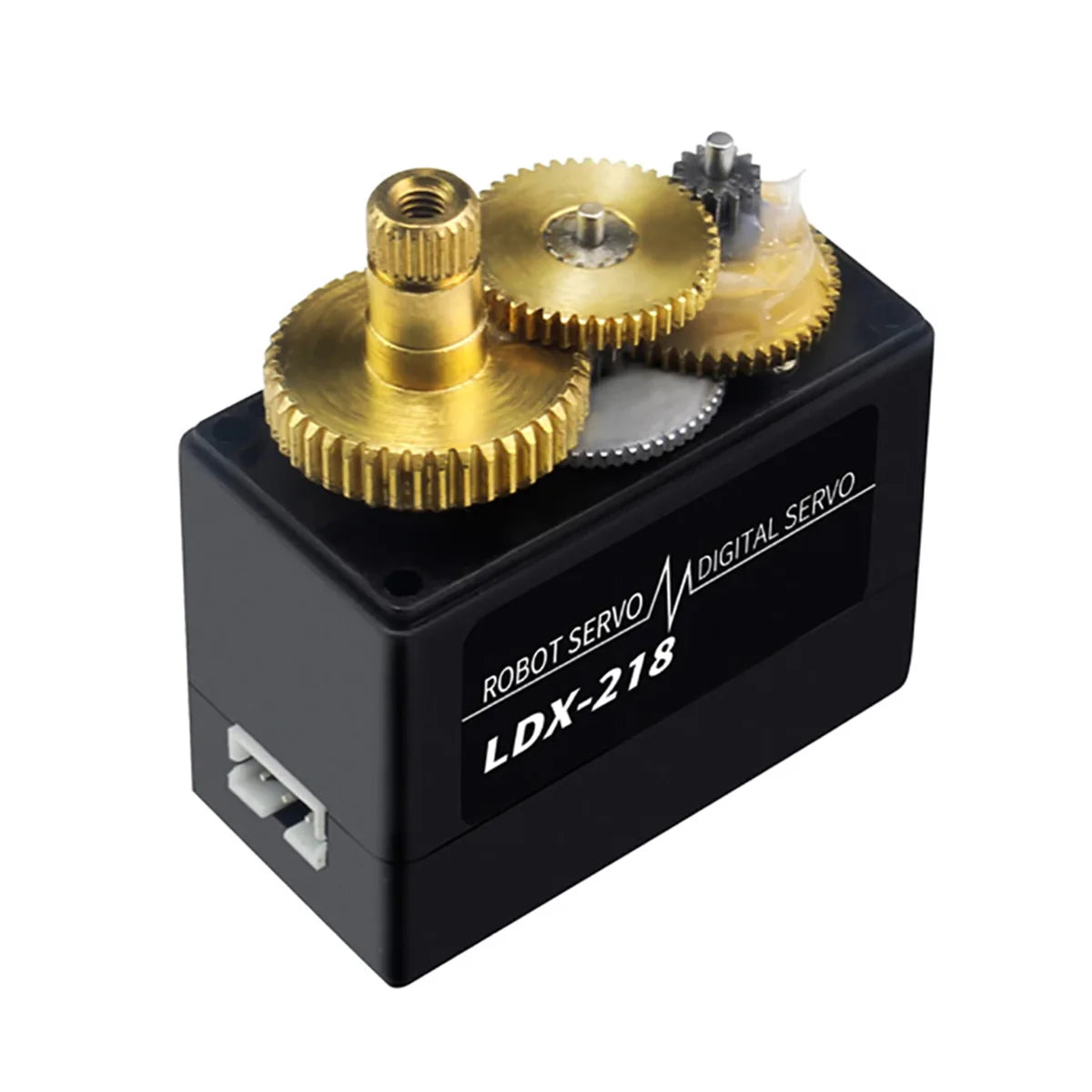

> Full metal gear significantly improves servo’s accuracy and extends its service time
> Dual ball bearing: one is the driving ball bearing, the other is the assistant ball bearing (support role)

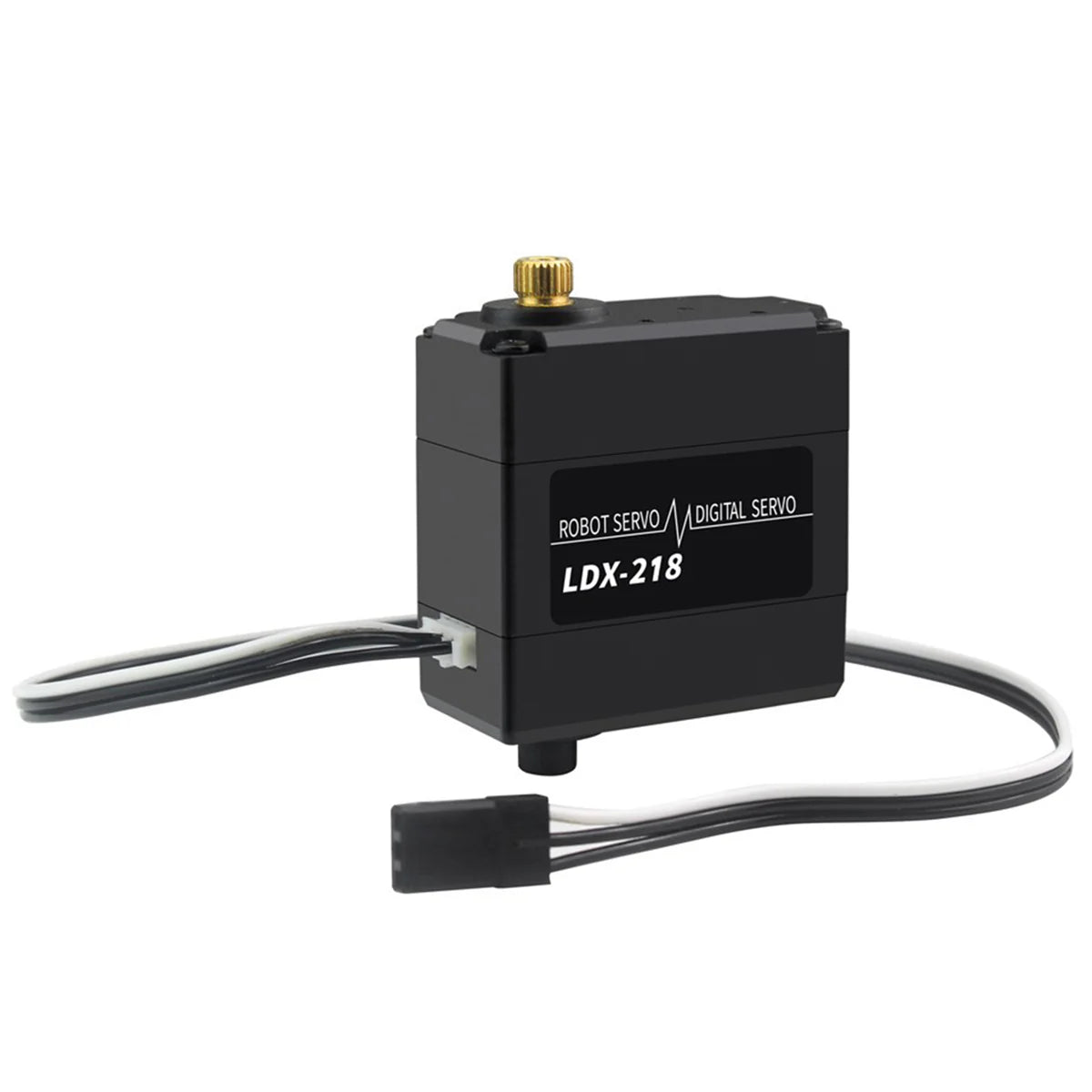

> Convenient plug-in wire. In robots making the process, it is very convenient for you to replace the servo, and the wiring will become much easier
> Use high-precision potentiometer with a new design. Accuracy and linearity have been greatly improved! Accurate movement can help you build up robots
 Imported Potentiometer |
 Simple Wiring |
 180° Rotation |
 17kg Large Torque |
 All Metal Gear |
 |
 |

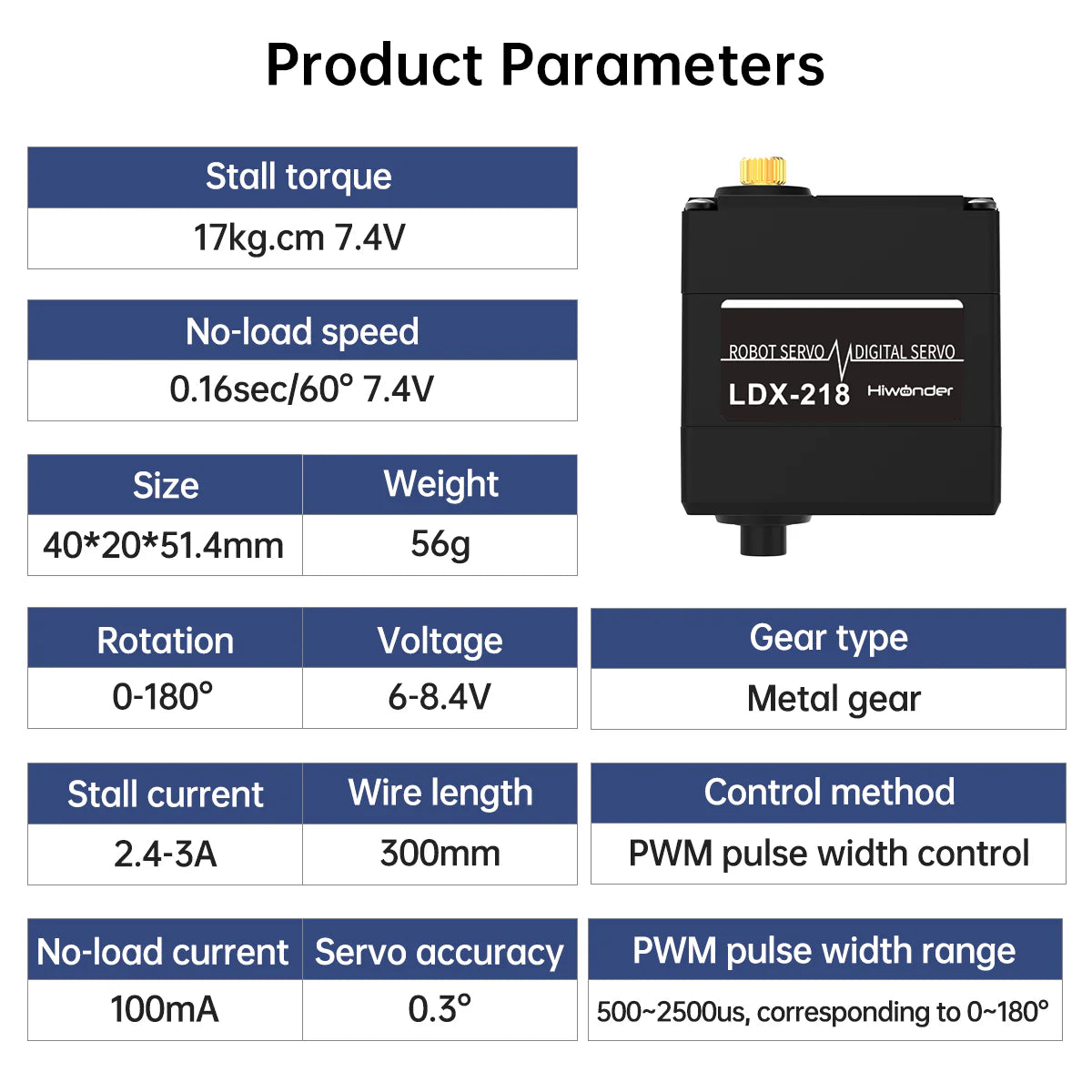

| LDX-218 Specifications | |
|---|---|
| Weight | 56g (1.97OZ) |

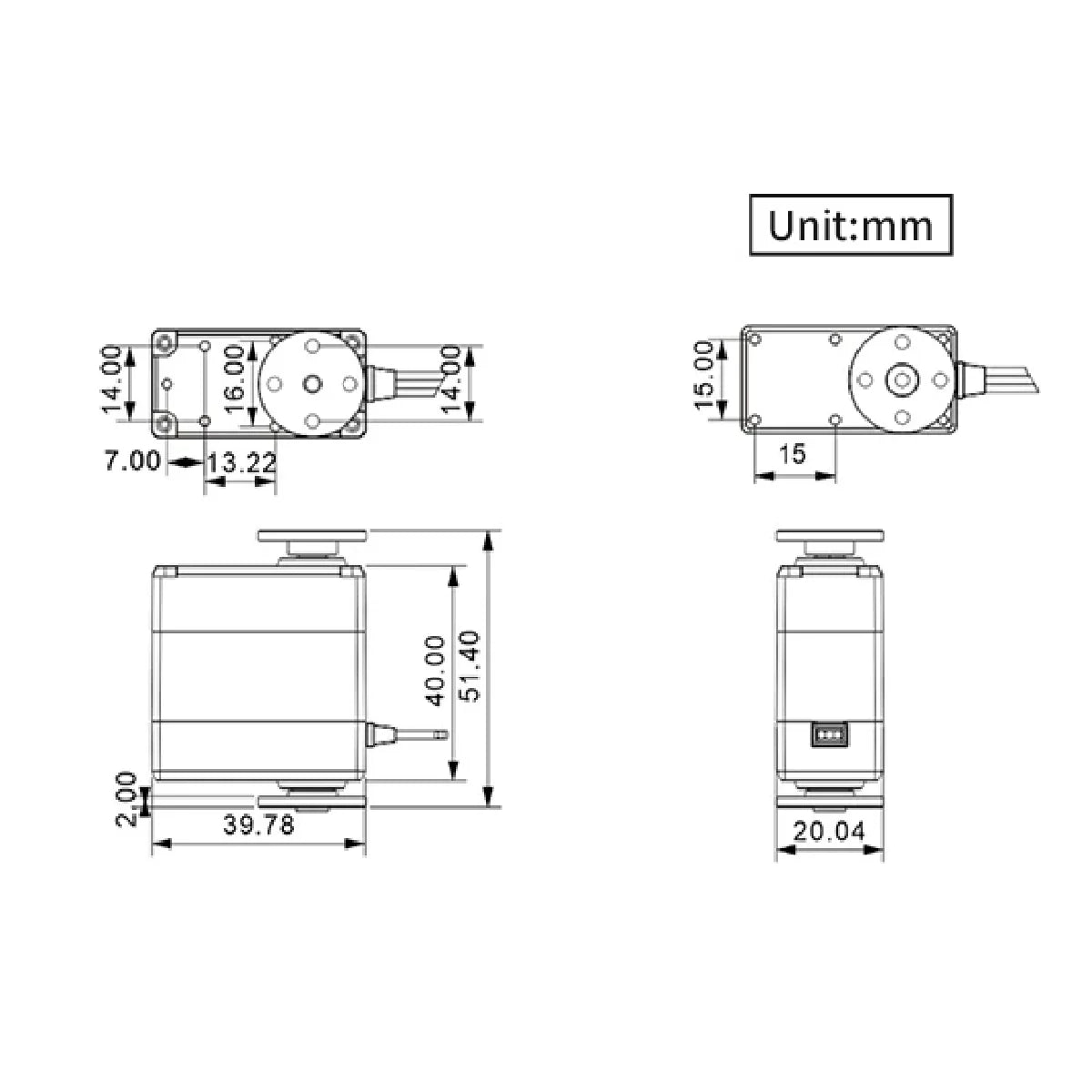

| Dimension | 40mm × 20mm × 51.4mm (1.57in × 0.78in × 2.02in) |
| Speed | 0.16sec/60° (7.4V) |
| Accuracy | 0.3° |
| Torque | 15 kg·cm (208 oz·in) @6V; 17 kg·cm (236 oz·in) @7.4V |
| Working Voltage | 6–8.4V |
| Min Working Current | 1A |
| No-load Current | 100mA |
| Spline | 25T (6mm diameter) |
| Default Wire | 30cm (13.78 inch) in length |
| Control Method | PWM |
| Pulse Width | 500~2500µs to (0~180°) |
| Pulse Period | 20ms |
| Package List | 1× Digital Servo 1× 30cm Servo Wire 1× Primary Servo Horn (4mm / 0.157in thick) 1× Assistant Servo Horn (2mm / 0.078in thick) 15× M2×5 Self-Tapping Screws 2× Bracket |

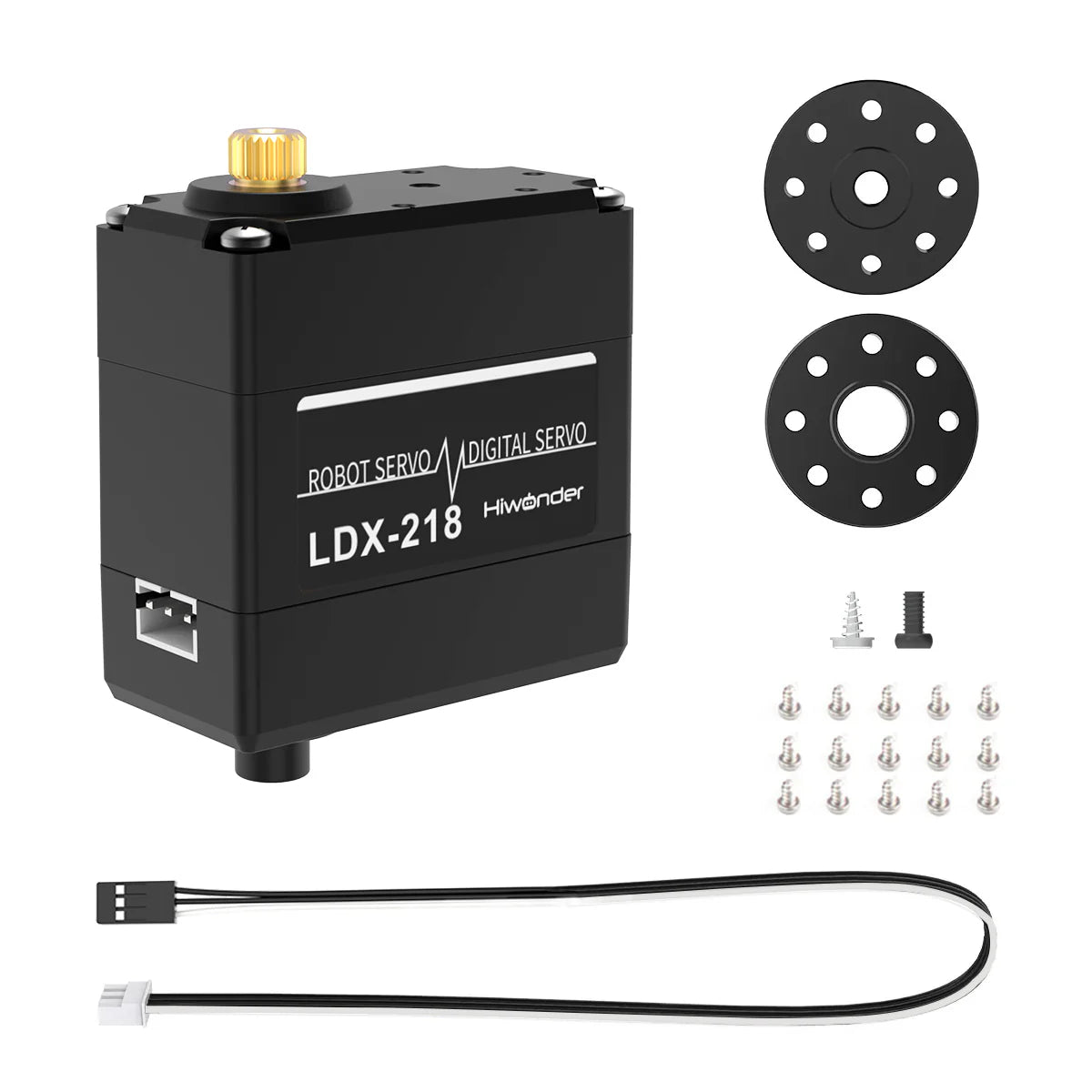

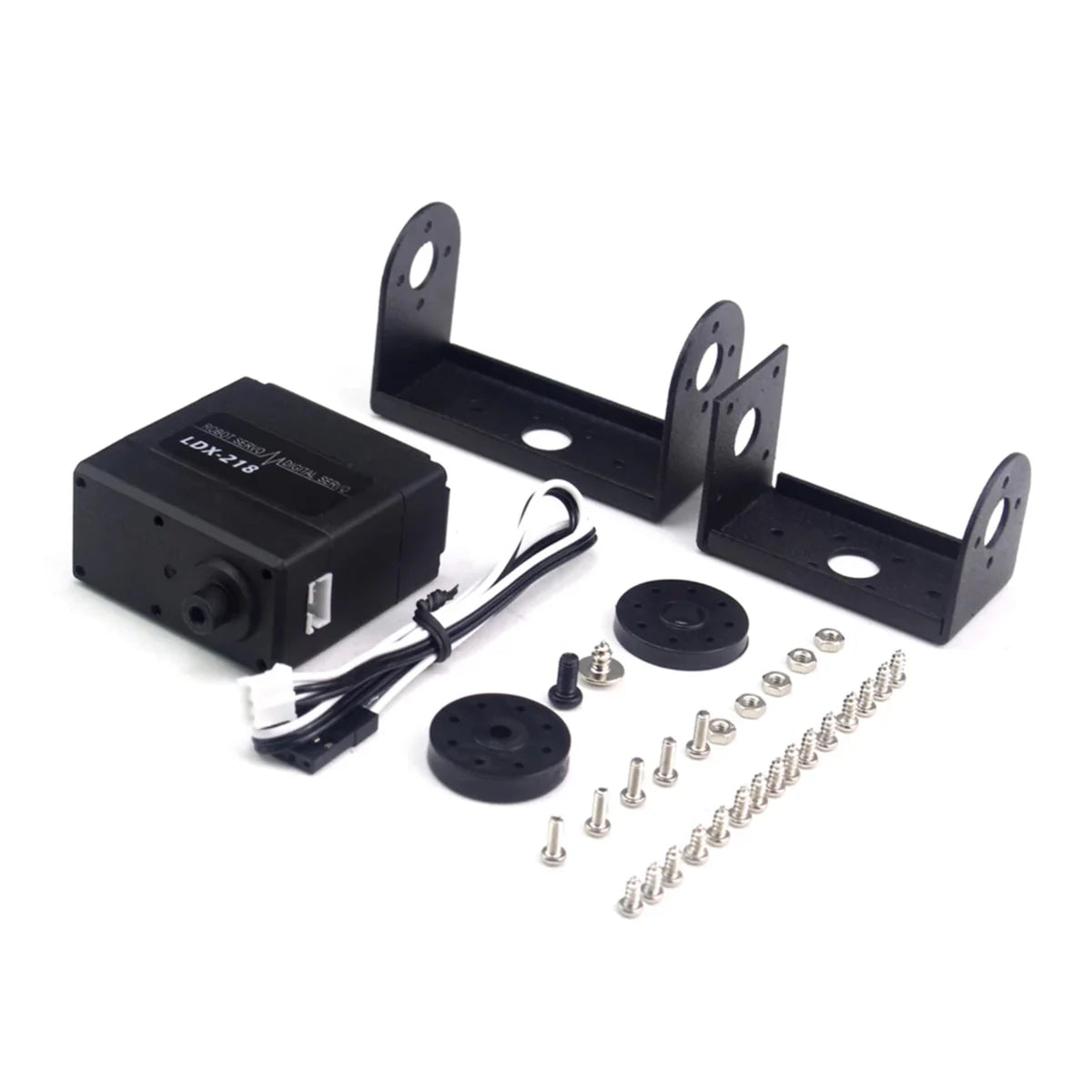

Packing List
1* digital servo
1* 30cm servo wire
1* primary servo horn (4mm/0.157in thick)
1* assistant servo horn (2mm/0.078in thick)
15* M2*5 self-tapping screws

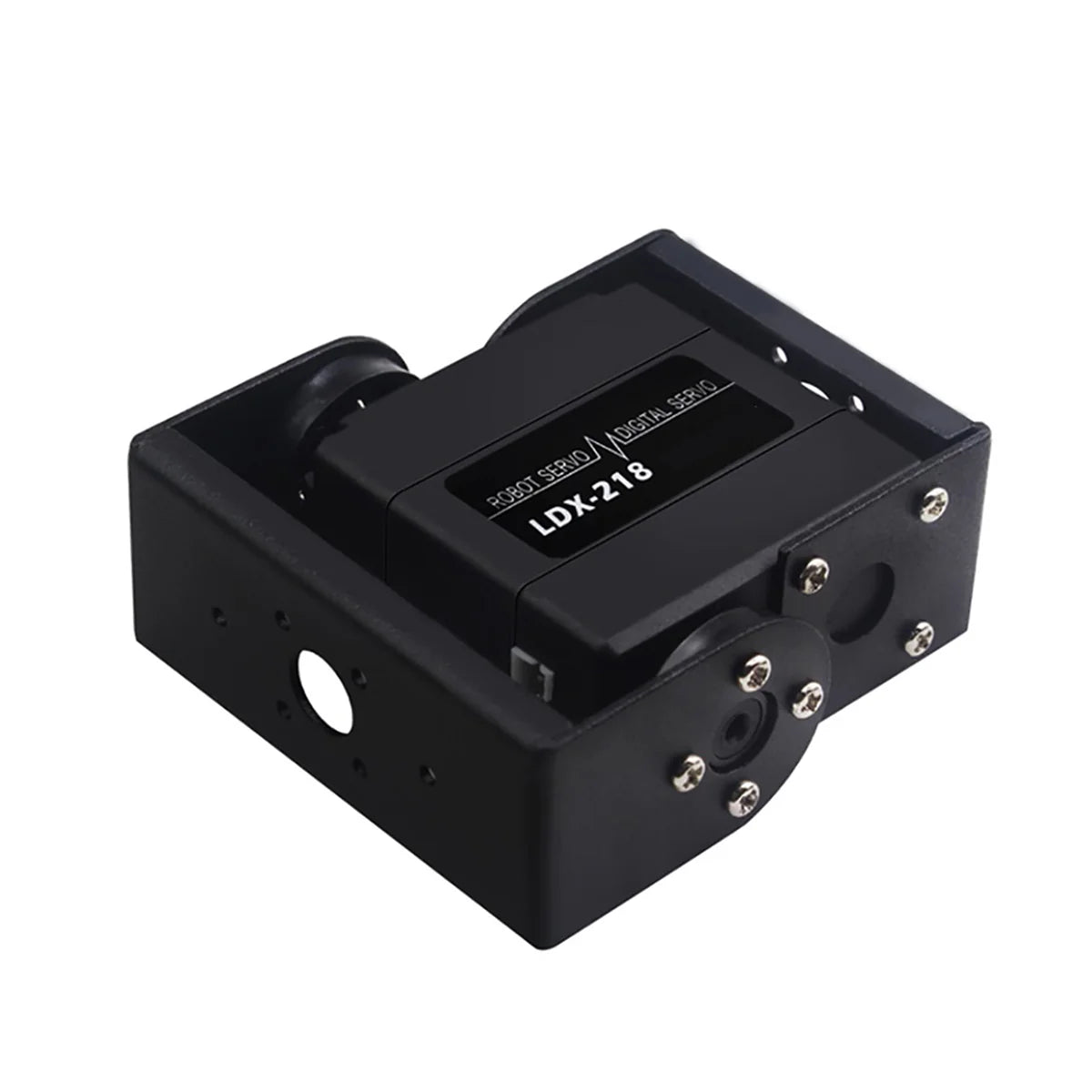

2* servo bracket
