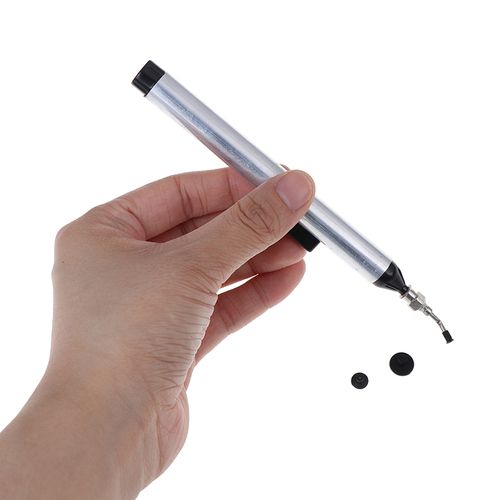

Stable alternative to tweezers for the pickup and placement of delicate SMD components. Soft ESD-sate conductive silicone suction cups won't scratch or damage sensitive parts.
Included 3 size of suction headers , ( small size for 3g , medium size for 18g and large size for 40g )
How to Use:
Install a proper IC suction header on suction pencil
Place the suction header level on IC
Press down the button on the suction pencil to let out the air within the vacuum unit, then release the button to produce vacuum suction force to pick up IC
Put the IC on a proper place, press down the button, the vacuum unit discharges air to let the IC fall off the suction header
