RS485 TO ETH (B) |
RS485 TO ETH (C) |
The RS485 TO POE ETH (B) is the hardware upgrade version, supports PoE Ethernet port
power supply, with power and signal isolation protection, which is safer for industrial
applications. All three versions have the same software functionality.
Ā

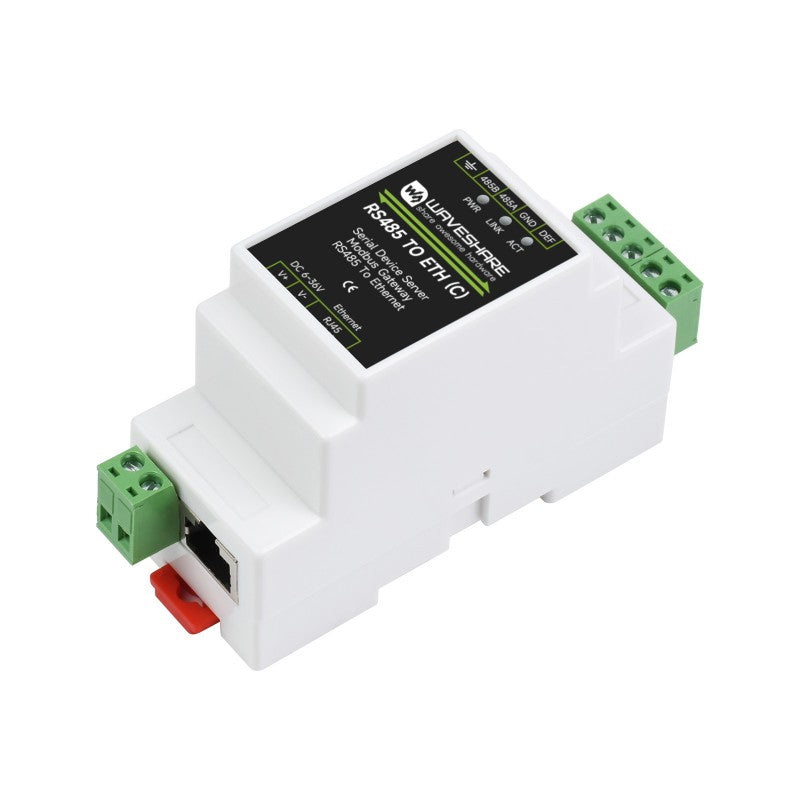

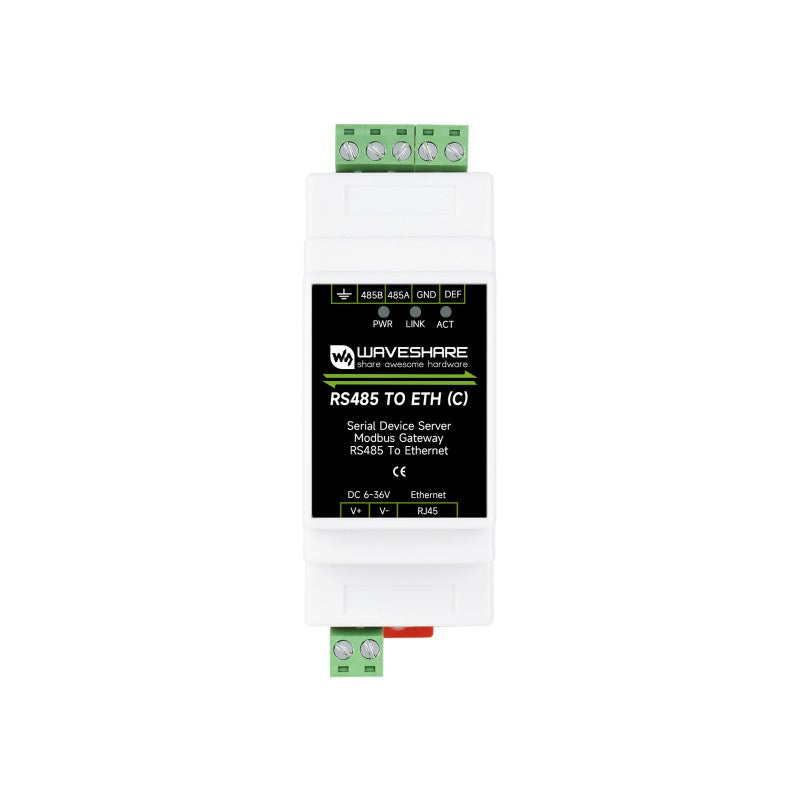

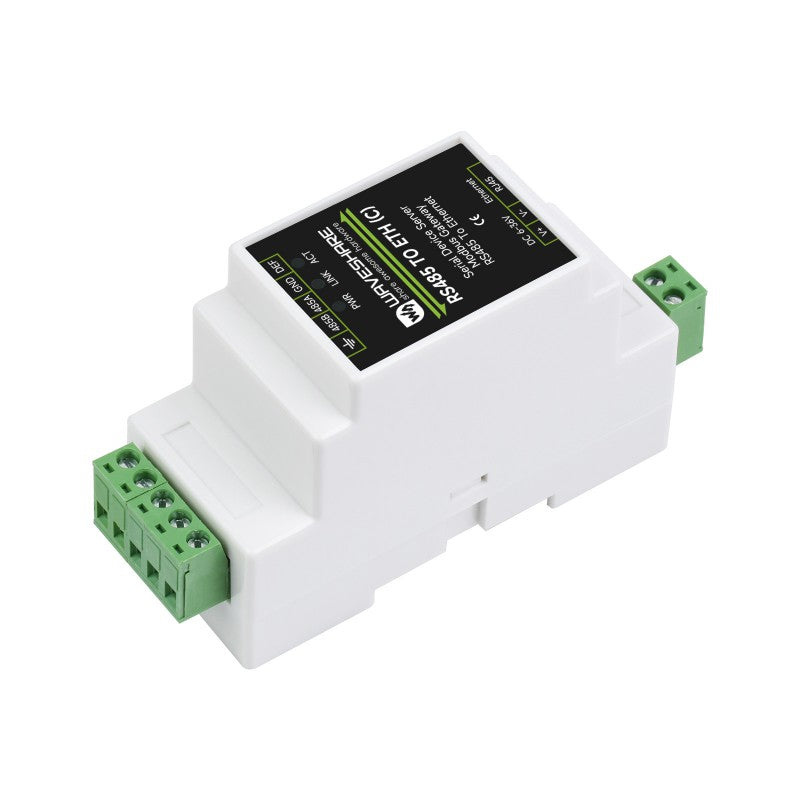

This is a RS485 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. The module features RS485 and Ethernet port (POE function is optional), uses screw terminals for power input. Rail-mount case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring.....
Ā

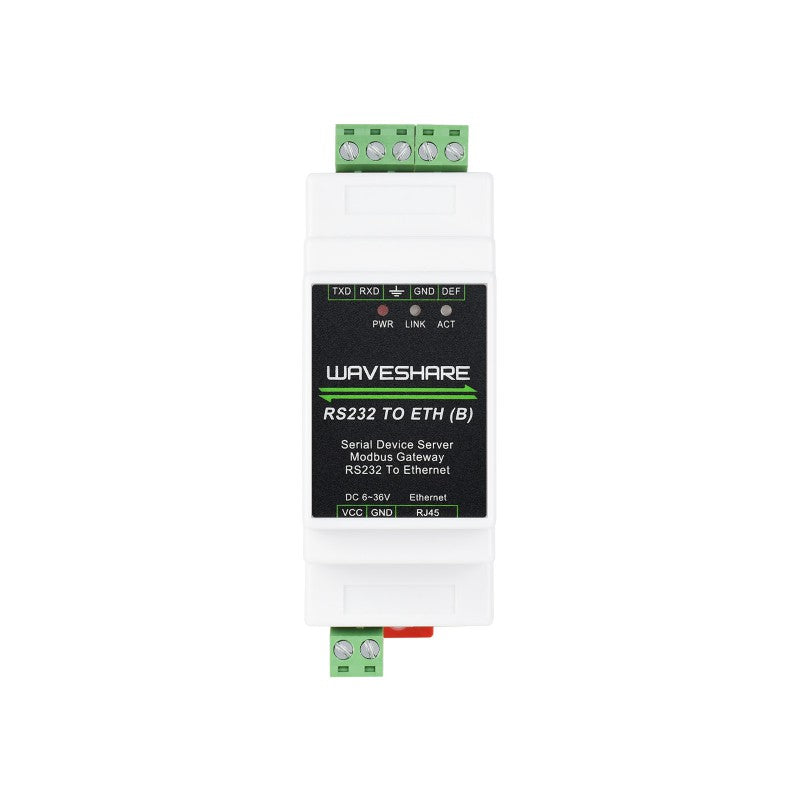

| PRODUCT | RS485 TO ETH (B) | RS485 TO ETH (C) | RS485 TO POE ETH (B) | RS232/485/422 TO ETH (B) | RS232/485/422 TO POE ETH (B) |
| Product Type | Serial server, Modbus Gateway, MQTT Gateway | ||||
| Basic Function | Bi-directional transparent data transmission between RS485 and Ethernet | Bi-directional transparent data transmission between RS232/485/422 and Ethernet | |||
| Communication interface | RS485 port Ć1, Ethernet port Ć1 | RS232 port Ć1, RS485 port Ć1, RS422 port Ć1, Ethernet port Ć1 | |||
| Power supply | 9 ~ 24V DC screw terminal | 6 ~ 36V DC screw terminal | 6 ~ 36V DC screw terminal, or PoE port | DC 5.5 power port, 6 ~ 36V DC screw terminal | DC 5.5 power port, 6 ~ 36V DC screw terminal, or PoE port |
| Isolation Protection | N/C | Power isolation, Signal isolation | |||
| COMMUNICATION | |||||
| Ethernet | Common network portĀ | PoE network port, supports IEEE 802.3af standard | Common network portĀ | PoE network port, supports IEEE 802.3af standardĀ | |
| 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection | |||||
| Serial port | RS485 | Isolated RS485 | Isolated RS232/485/422 | ||
| SERIAL SPECIFICATION | |||||
| Baudrate | 300 ~ 115200 bps | ||||
| Parity bit | none, odd, even, mark, space | ||||
| Data bit | 5 ~ 9 bits | ||||
| Flow control | N/A | ||||
| SOFTWARE | |||||
| Protocol | ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS | ||||
| Configuration | host, web browser, device management functions library | ||||
| Communication method | TCP/IP direct communication, VCOM | ||||
| Operating mode |
TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast | ||||
| ENVIRONMENT REQUIREMENT | |||||
| Operating temperature | -40ā ~ 85ā | ||||
| Humidity range | 5% ~ 95% relative humidity | ||||
| Dimensions | L Ć W Ć H: 87 Ć 36 Ć 59 mm | L Ć W Ć H: 88.7 Ć 72.5 Ć 24.2 mm | |||
Ā
Bi-Directional transparent data transmission between RS485 and Ethernet
Ā

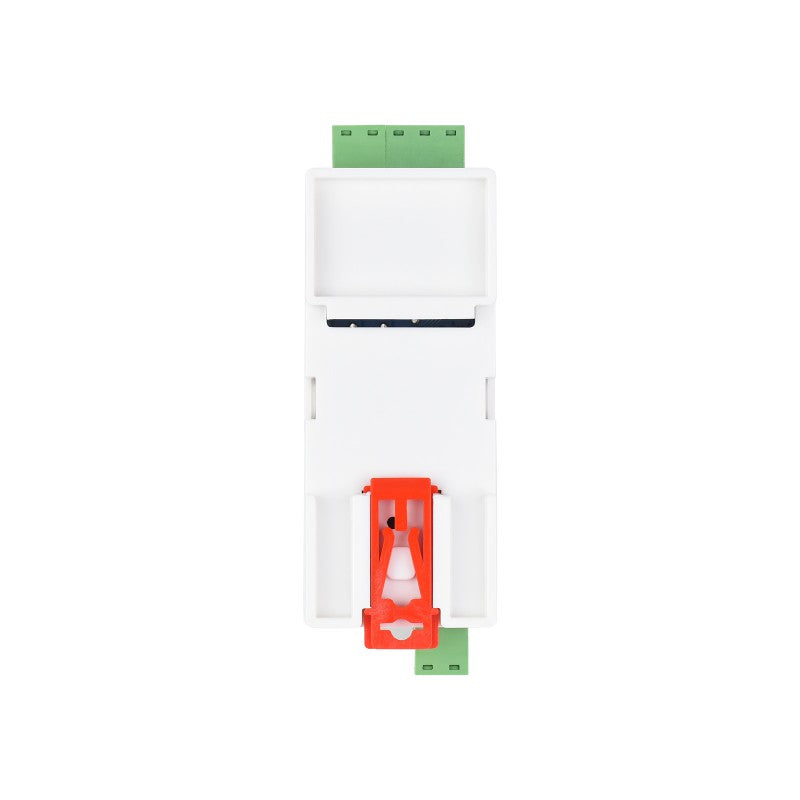

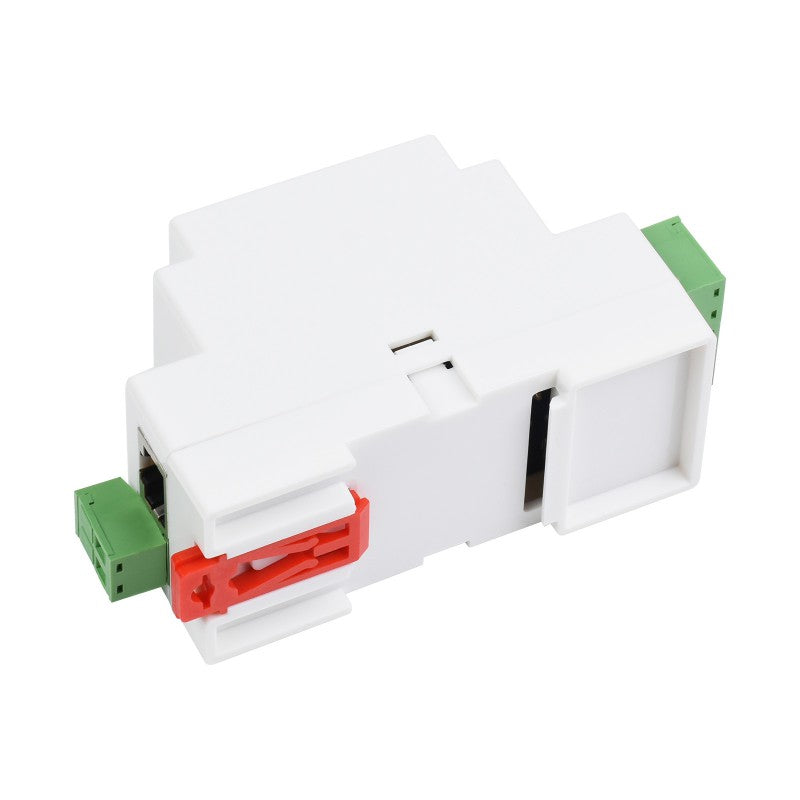

Easy to combine multi rail-mounted serial server together, more freely
Ā
Suitable for Modbus gridding upgrade, can be used with 3D configuration software
Ā
Supports TCP server / TCP client / UDP mode / UDP multicast
Ā
More flexible conversion between different protocols
When used as MQTT gateway, the devices can upload serial data to MQTT server by MQTT protocol through transparent transmission, supported servers including Baidu Cloud MQTT, Alibaba Cloud MQTT, China Mobile OneNet, etc. The acquired Modbus RTU or non-standard serial data can be parsed into JSON format and packaged into MQTTdata packet for uploading.
When used as JSON data acquisition gateway, the devices can be connected to data acquisition instruments through RS485 connection, then acquire data automatically, convert the data into JSON format, and finally post it to server. The acquired data supports Modbus RTU 645 instrument 97 version, 645 instrument 07 version, as well as sorts of non-standard RS485 protocols. The uploaded data format can be configured via host, and the JSON upload protocol can be MQTT protocol, HTTP POST protocol, HTTP GET protocol, and so on.
Ā
Different network devices will be identified and responsed respectively,Ā no more crosstalk issue while communicating with multi network devices
Ā
Easy for cloud communication and device identification
Ā
Getting network time info for serial output or data upload
Ā
Supports Web browser configuration, obtaining dynamic IP via DHCP,
DNS protocol connected domain server address
Ā
* for the power supply range, please refer to the label of the corresponding version.
Ā
Ā
Wiki:Ā www.waveshare.com/wiki/RS485_TO_ETH_(B)
Wiki:Ā www.waveshare.com/wiki/RS485_TO_ETH_(C)
Ā
Weight:Ā 0.1145 kg
The power supply of this product is not included, it is recommended to used with a 12V Industrial DIN-Rail Power Supply
