Compatible with Jetson AGX Orin Module |
||
|
AI Performance |
Jetson AGX Orin 64GB,Ā 275 TOPS |
Jetson AGX Orin 32GB, 200 TOPS |
|
GPU |
NVIDIA Ampere architecture with 2048 NVIDIAĀ® CUDAĀ®cores and 64 Tensor cores |
1792-core NVIDIA Ampere architecture GPU with 56 Tensor Cores |
|
CPU |
12-core Arm Cortex-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
8-core ArmĀ® CortexĀ®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
|
DL Accelerator |
2x NVDLA v2.0 |
|
|
Vision Accelerator |
PVA v2.0 |
|
|
Memory |
64GB 256-bit LPDDR5 204.8GB/s |
32GB 256-bitĀ LPDDR5 204.8GB/s |
|
Storage |
64GB eMMC 5.1 |
|
|
Video Encode |
2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265) |
1x 4K60 (H.265) | 3x 4K30 (H.265) | 6x 1080p60 (H.265) |12x 1080p30 (H.265) |
|
Video Decode |
1x 8K30 | 3x 4K60 | 6x 4K30 | 12x 1080p60 | 24x 1080p30 (H.265) |
1x 8K30 (H.265) | 2x 4K60 (H.265) | 4x 4K30 (H.265) | 9x 1080p60 (H.265) | 18x 1080p30 (H.265) |
|
Power |
15W-60W |
|
|
Carrier Board |
||
|
I/O |
Ethernet |
1 x LAN0 RJ45 GbE(10/100/1000Mbpsļ¼ |
|
USB |
3x USB3.1; 1x USB3.1 Type C(Host mode), 1x USB2.0 Type C(Device mode), |
|
|
DI/DO |
4x DI,4x DO,3x GND_DI,2x GND_DO,1x GND_ISO,1x CAN 1x RS232/RS422/RS485 |
|
|
Display |
1x HDMI 2.1 Type A 7680x4320 |
|
|
SATA |
2x SATA III 6.0Gbps) at 30 Hz |
|
|
SIM |
1x Nano SIM card slot |
|
|
Button |
Reset Button, Recovery Button |
|
|
Expansion |
Mini PCIE |
1x Mini PCIe for LoRaWANĀ®/4G/Series Wireless (Module not included) |
|
M.2 Key B |
1x M.2 Key B (3042/3052) support 4G/5G (Module not included) |
|
|
M.2 Key E |
1x M.2 Key E |
|
|
M.2 Key M |
1x M.2 Key M (PCIE 4.0) |
|
|
Fan |
1x Fan connectors (5V PWM) |
|
|
TPM |
1x TPM 2.0 connector (Module not included) |
|
|
RTC |
1x RTC socket (CR1220 included) 1x RTC 2-pin |
|
|
Camera |
2x Expansion connector (8lanes for each connector) |
|
|
PCIE |
1x PCIE |
|
|
Power |
Power Supply |
DC 12V-36V Terminal block 2 pin |
|
Power Adapter |
24V/5A Power Adapter(Without power cord) |
|
|
Mechanical |
Dimensions (W x D) |
176 x 163mm (Module not included) |
|
Operating Temerature |
-20~60ā |
|
|
Weight |
225gĀ (Module not included) |
|
AI Robot Development
With AGX Orin module, this most powerful embedded AI system lets you create advanced robotics and edge AI applications for manufacturing, logistics, and healthcare. Itās the most powerful embedded system, pushing the limits of AI robotics. The Isaac robotics platform offers NVIDIA-accelerated systems, libraries, and generative AI models to enhance AI perception, manipulation, and simulation in robotics.
Learn about Isaac robotics platform.
Ā
Vision AI
Jetson AGX Orin supports real-time video analytics with up to 23 1080P streams simultaneously. NVIDIA Metropolis, an application framework that combines visual data and AI, equips developers with the tools and ecosystem to enhance operational efficiency and safety across diverse industries.
Jetson AGX Orin offers unmatched AI compute power, large unified memory, and comprehensive software stacks, making it the ideal platform for energy-efficient generative AI applications. It supports fast inference for any generative AI model based on the transformer architecture and leads in edge performance according to MLPerf benchmarks. Quickly deploy generative AI models on text generation, multimodal models, image generation via jetson-examples.
|

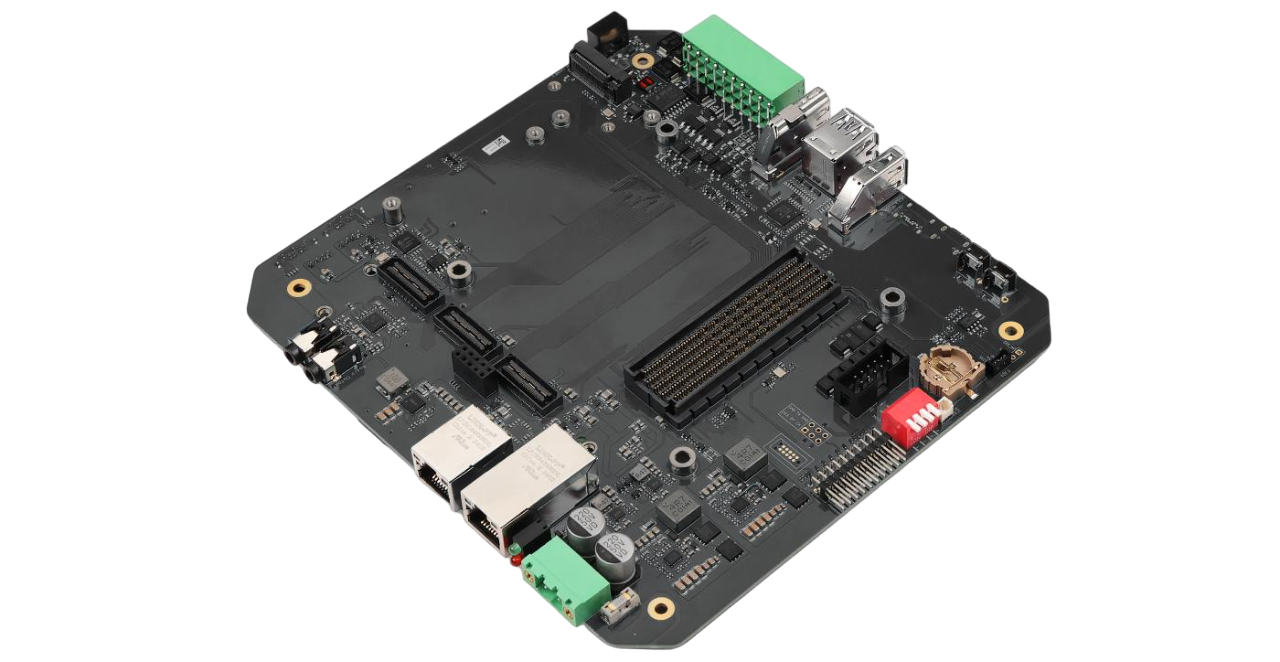

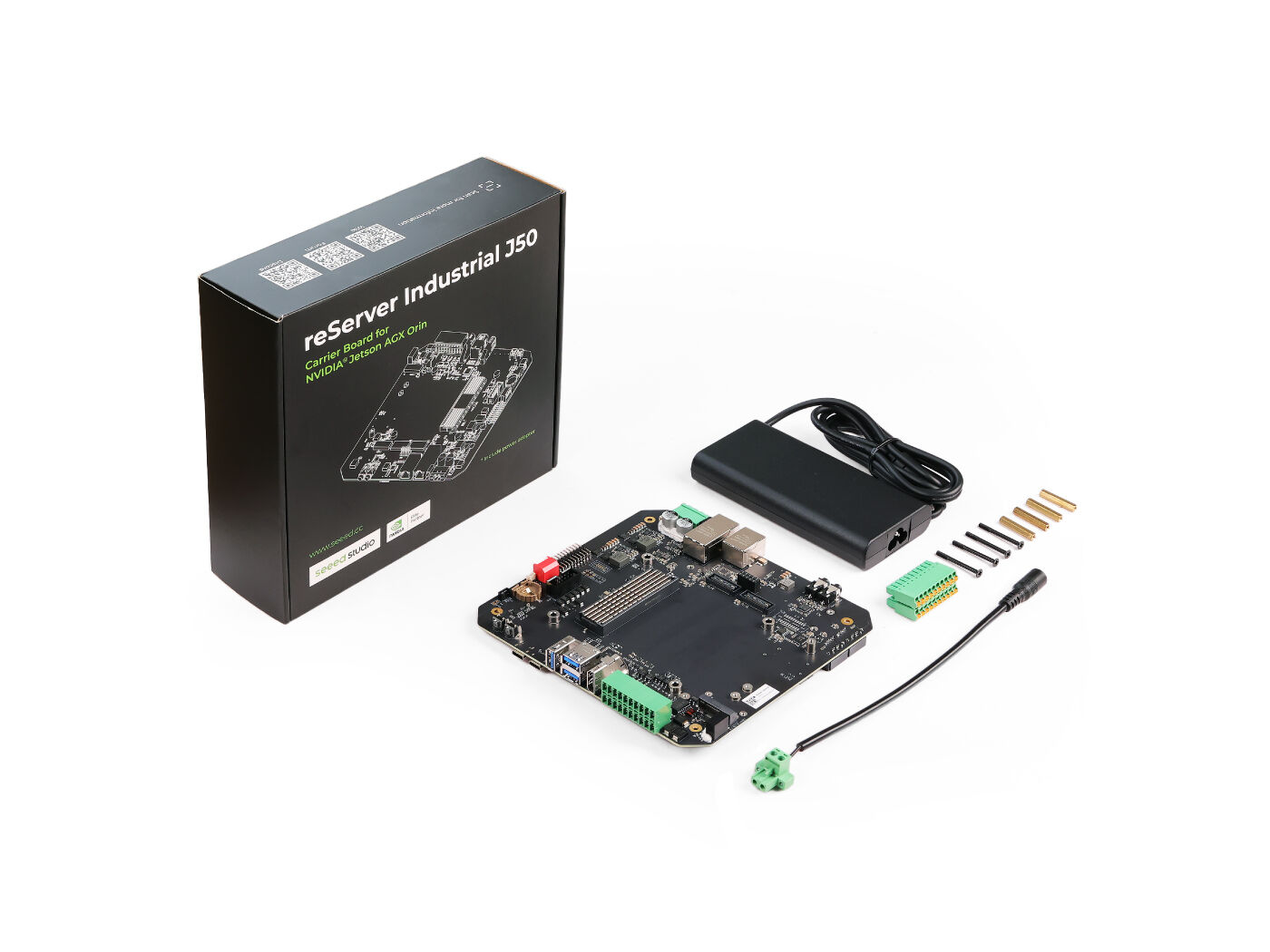

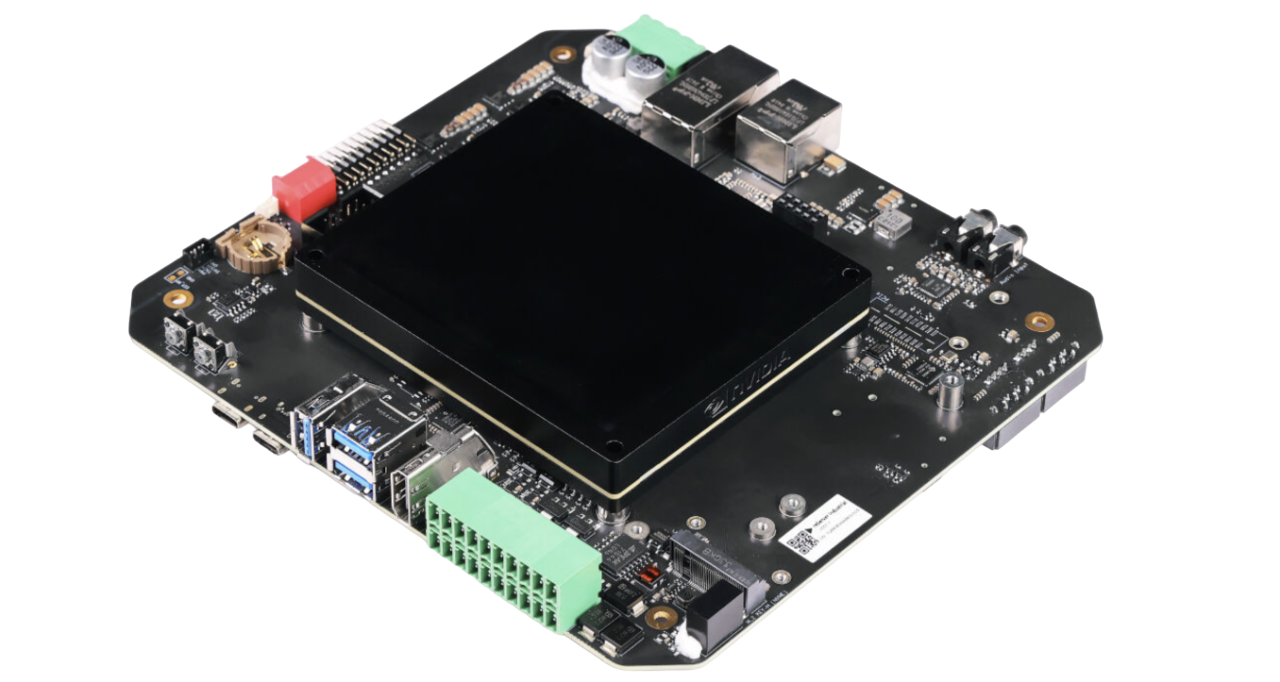

reServer Industrial J501Ā Carrier Board for Jetson AGX Orin |
x1 |
|
Power Adapter AC Power Brick 120W (Power cable not included) |
x1 |
|
Terminal Connector 20pin |
x1 |
|
2-PinĀ TerminalĀ BlockĀ PowerĀ Connector |
x1 |
No reviews yet. Be the first to share your experience!
