JCB010L GPS/GLONASS+LTE Combination Antenna

SKU: ELC8922

₹ 899.99 ₹ 1,249.99

In stock | Ready to ship

⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
JCB010L GPS/GLONASS+LTE Combination Antenna₹ 899.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

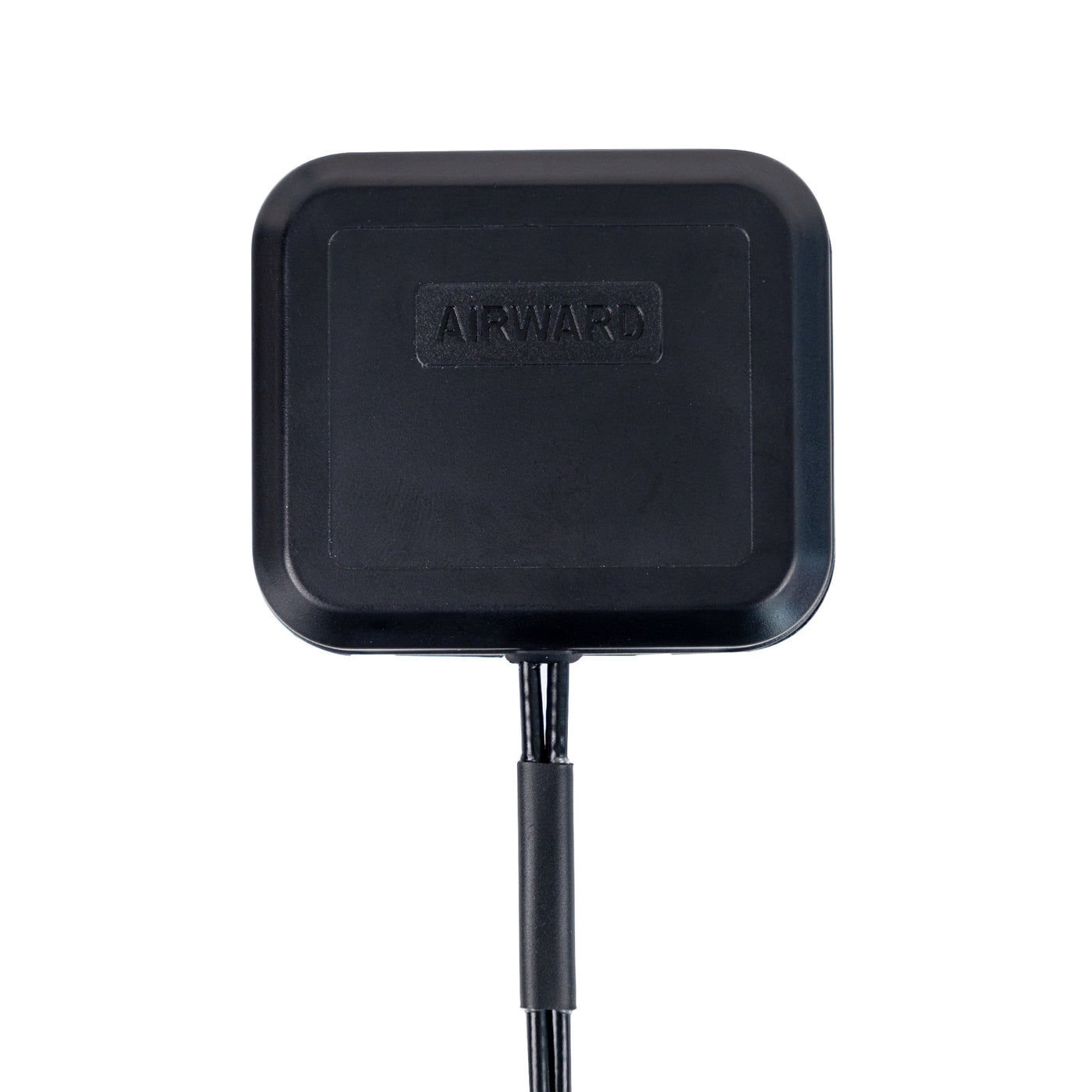

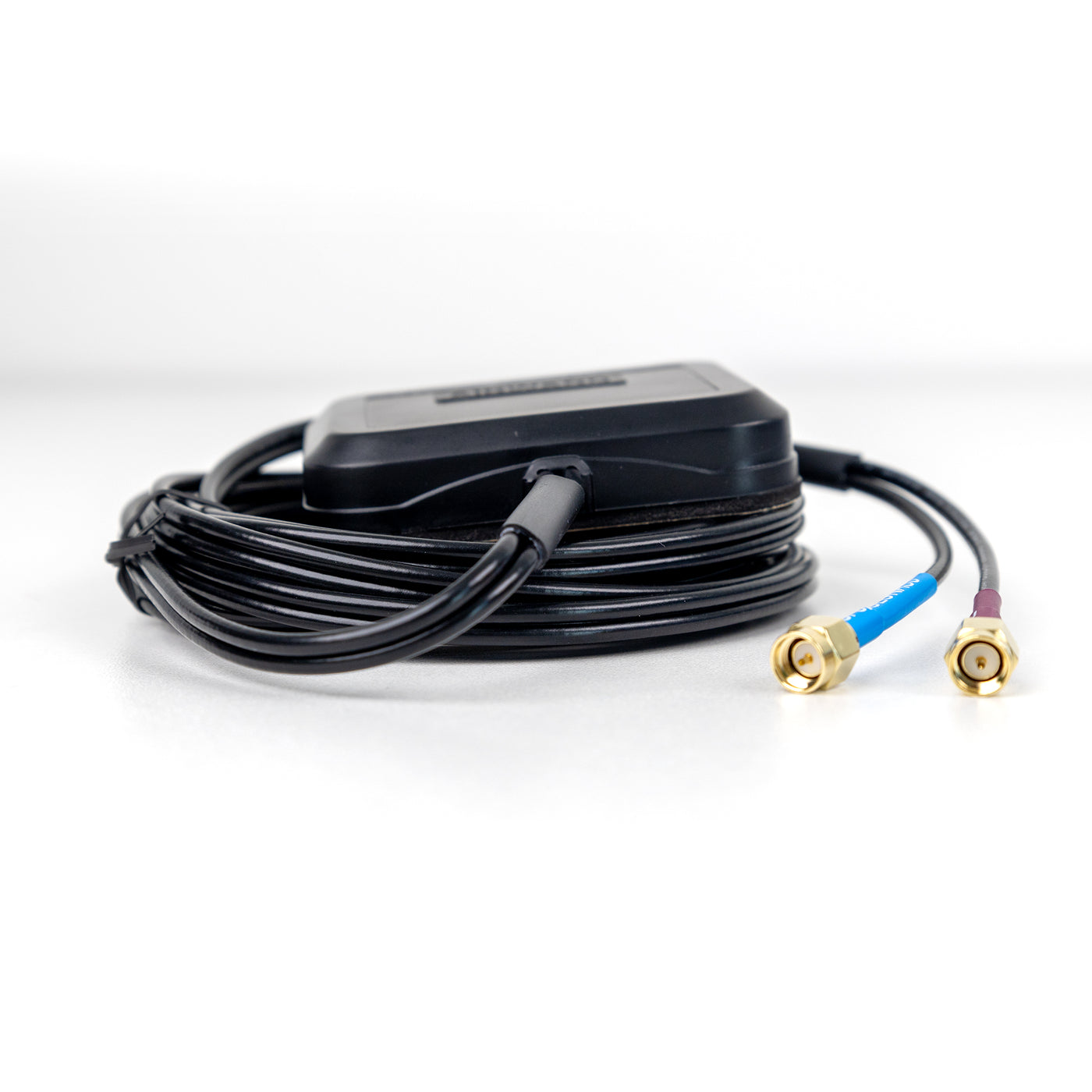

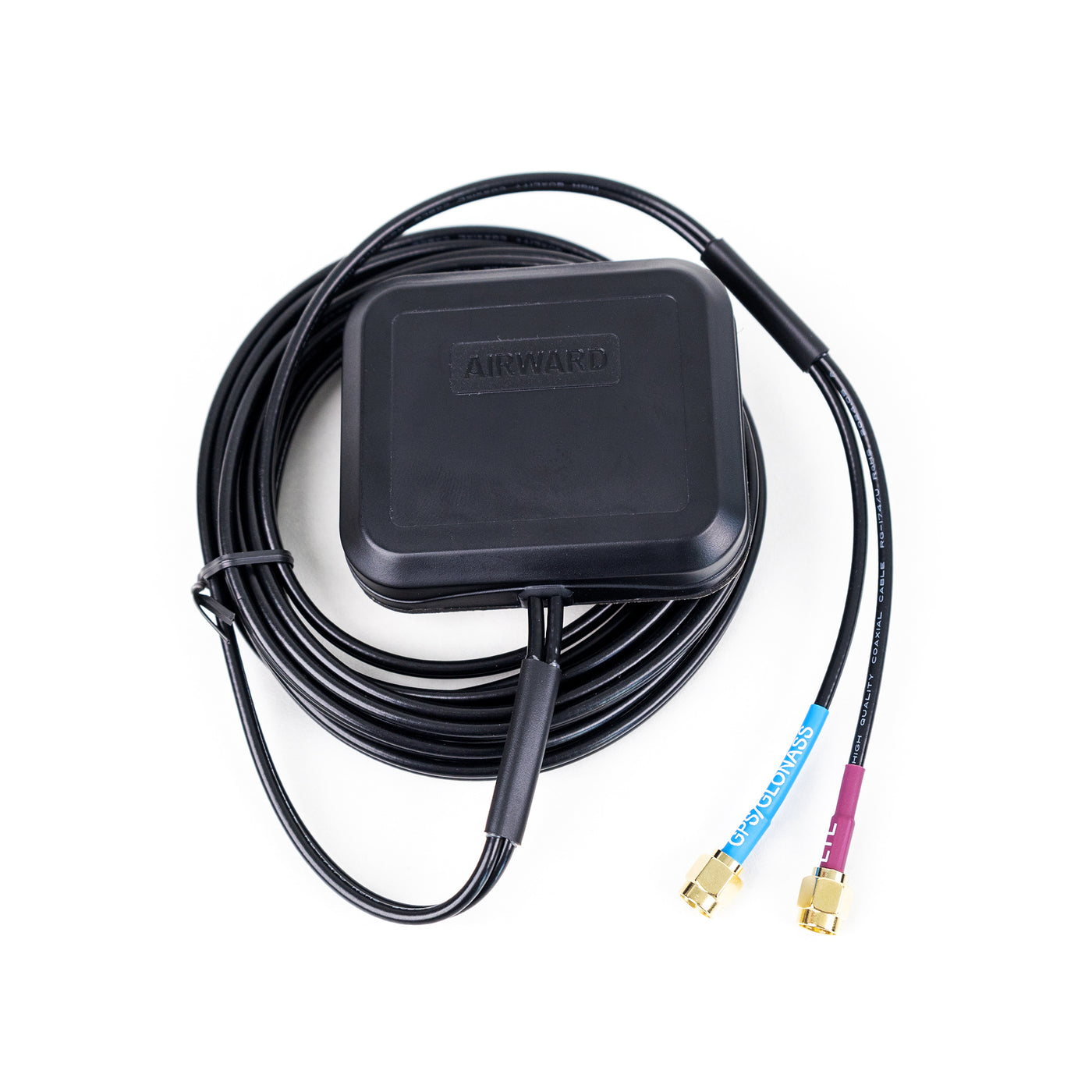

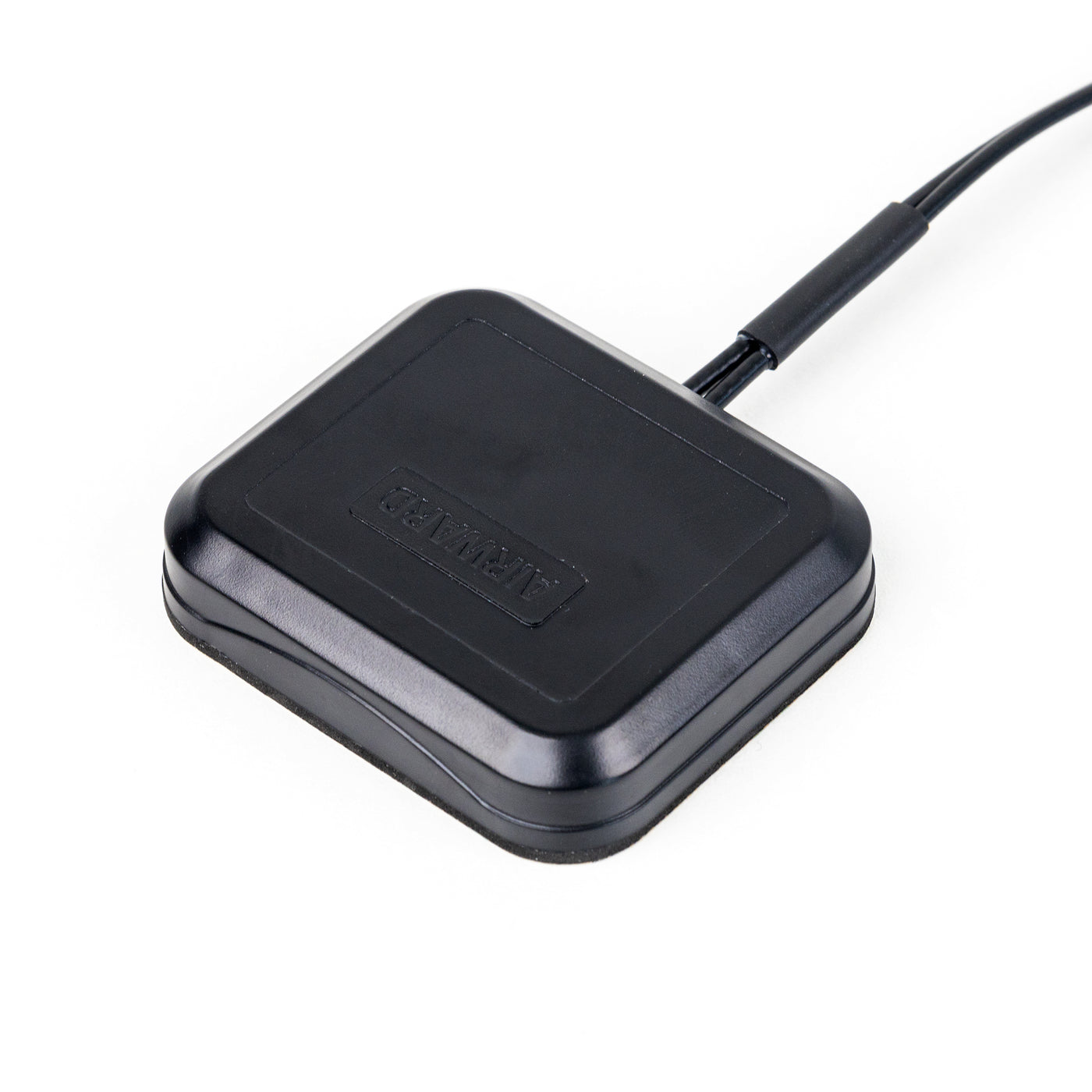

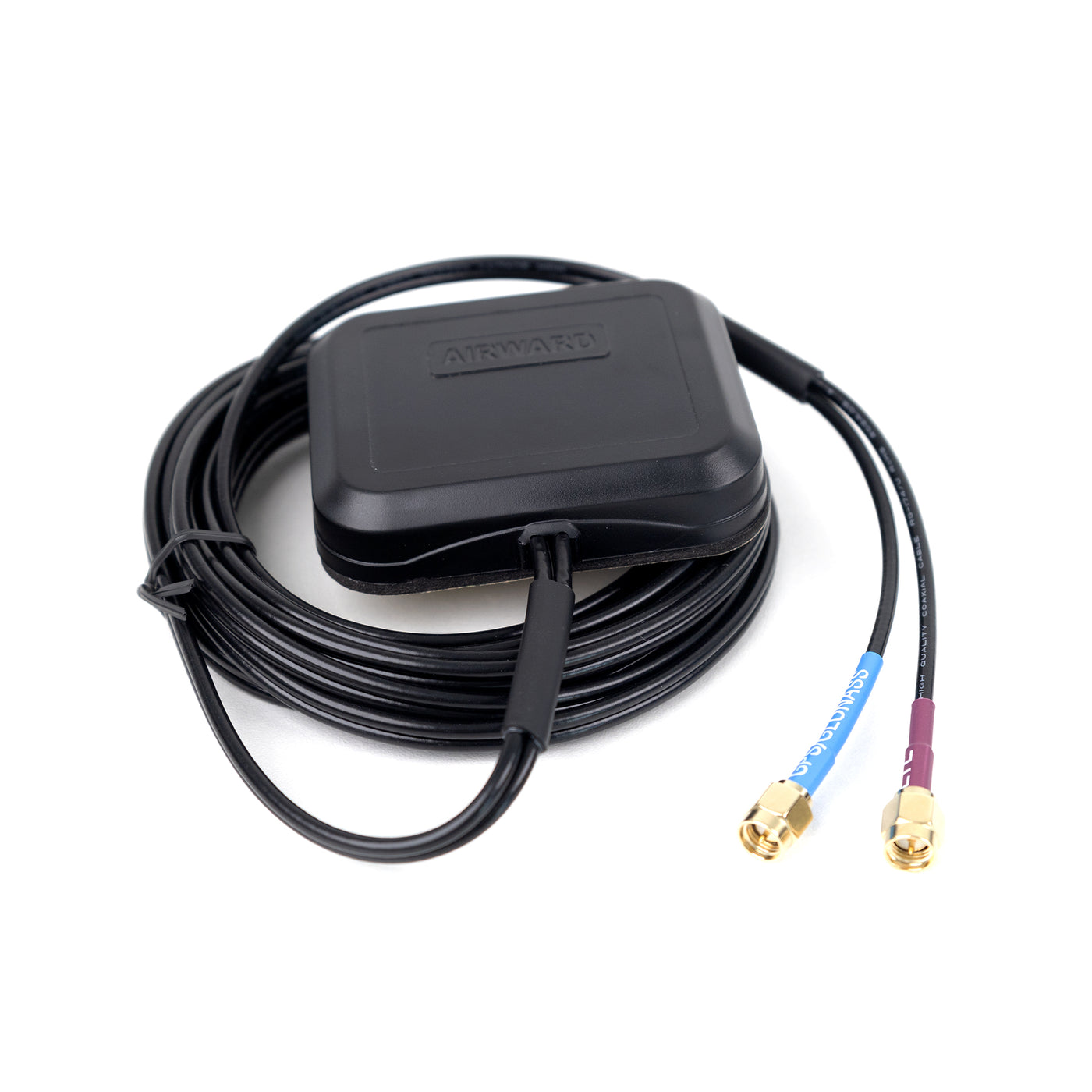

JCB010 High quality low profile mini GPS GSM antenna for car tracker. Magnet/adhesive mounting, 74*63*14mm size, SMA or other connectors.


Specifications:

Item

Specifications

GPS Antenna

Dielectric

Antenna

Center Frequency

1575.42±3MHz

Band Width

CF±5MHz

Polarization

RHCP

Gain

2dBic（Zenith）

V.S.W.R

＜1.5

Impedance

50Ω

Axial Ratio

3dB（max）

LNA

Gain

28±2dB

Noise Figure

＜1.5dB

V.S.W.R

＜2.0

Supply Voltage

2.2~5V DC

Current Consumption

＜15mA

GSM Antenna

Frequency Range

824~960MHz/1710~2170MHz

V.S.W.R（min）

＜2.0

Polarization

Linear

Gain

2dBi

Impedance

50Ω

Mechanical

Cable

RG174

Connector

SMA/MCX/FAKRA or others

Radome Material

ABS

Mounting Method

Magnet/Adhesive

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%

Ingress Protection

IP66

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant

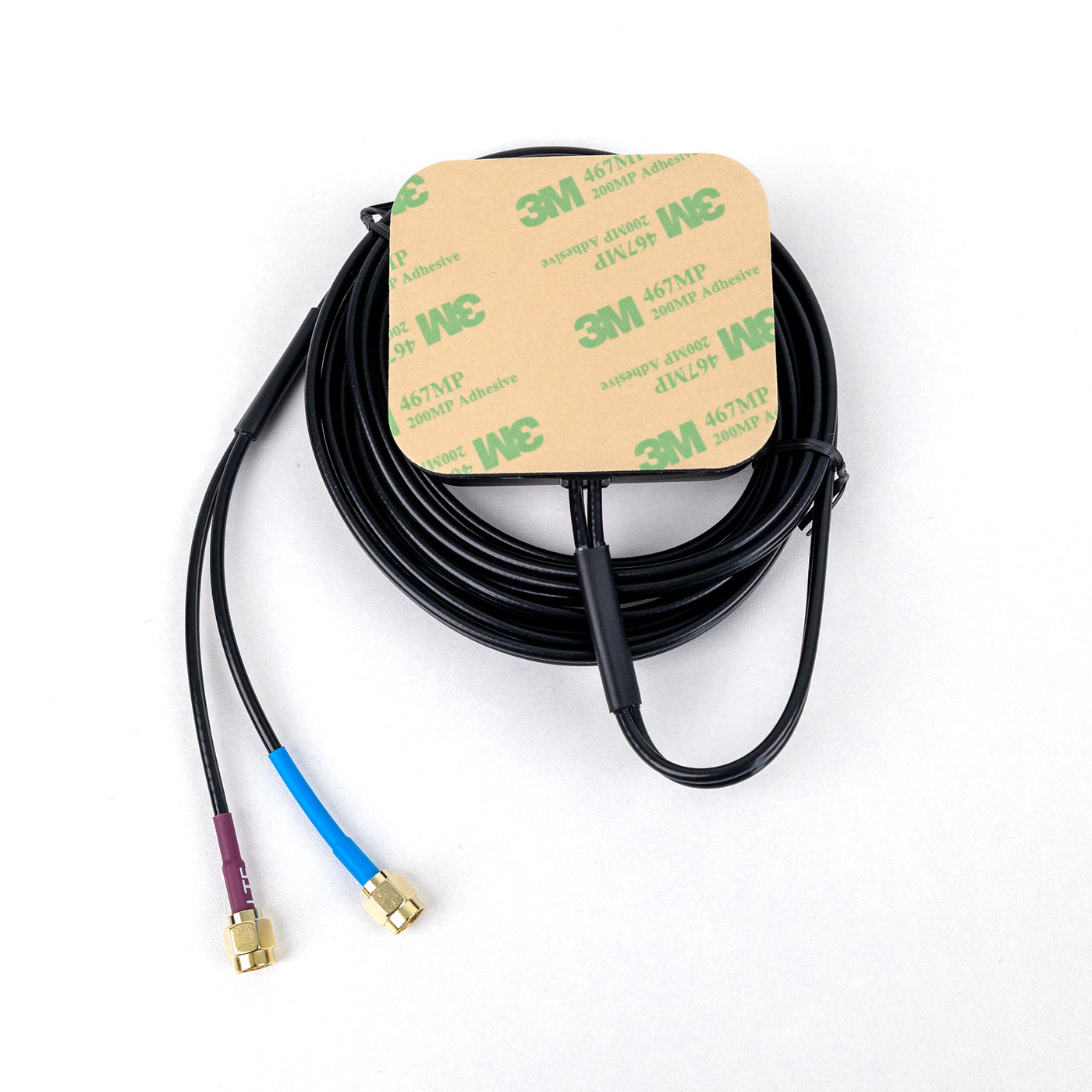

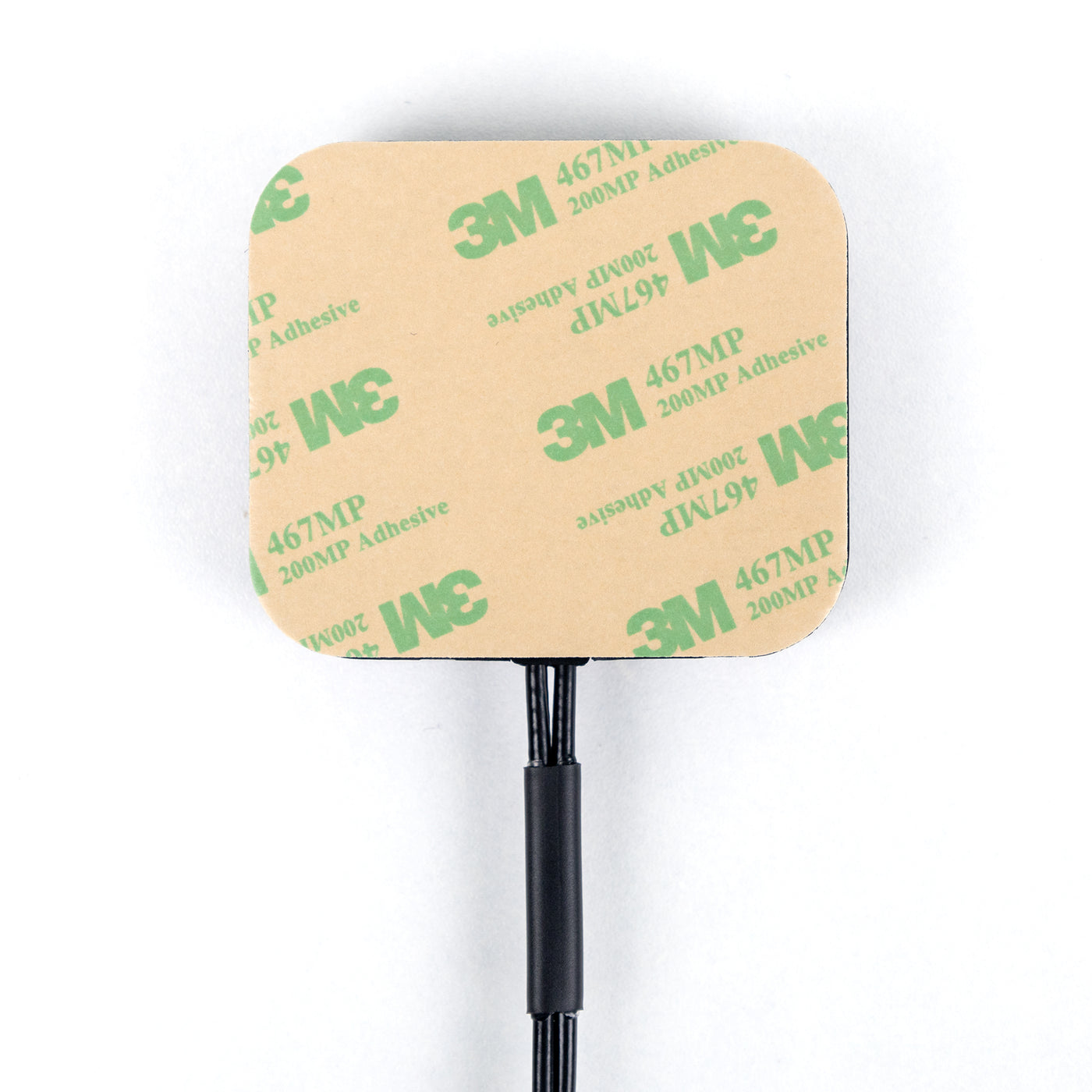

What mounting options does this antenna support and how is it installed?
It supports magnet and adhesive mounting. The compact unit uses a RG174 cable and can be fitted with SMA, MCX, FAKRA or other connectors as available.
What signals does the antenna support for navigation and communication?
The device includes a GPS antenna with center frequency 1575.42 MHz and supports GSM bands 824-960 and 1710-2170 MHz. It is designed as a GPS GLONASS plus LTE combination antenna.
What are the environmental and durability specifications?
The assembly is IP66 rated, operates from minus 40 to plus 85 degrees Celsius, and supports relative humidity up to 95 percent.

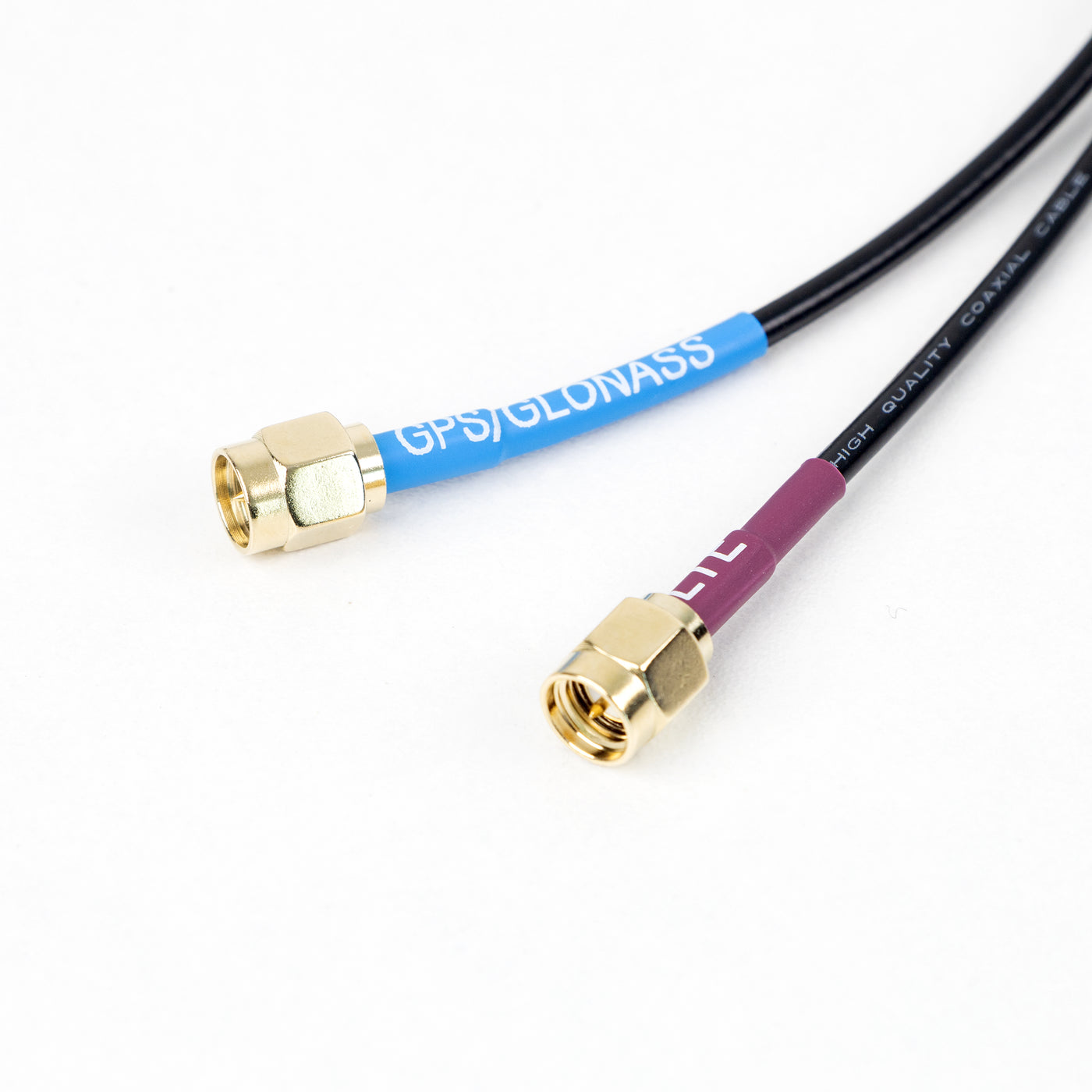

What connector options are available and can I choose a different connector?
Cable is RG174 and connector options include SMA, MCX, FAKRA or other types as specified by the model.
Is there a warranty or return policy for this item?
Warranty and return terms are not listed in the provided information. Please contact the seller for details.
