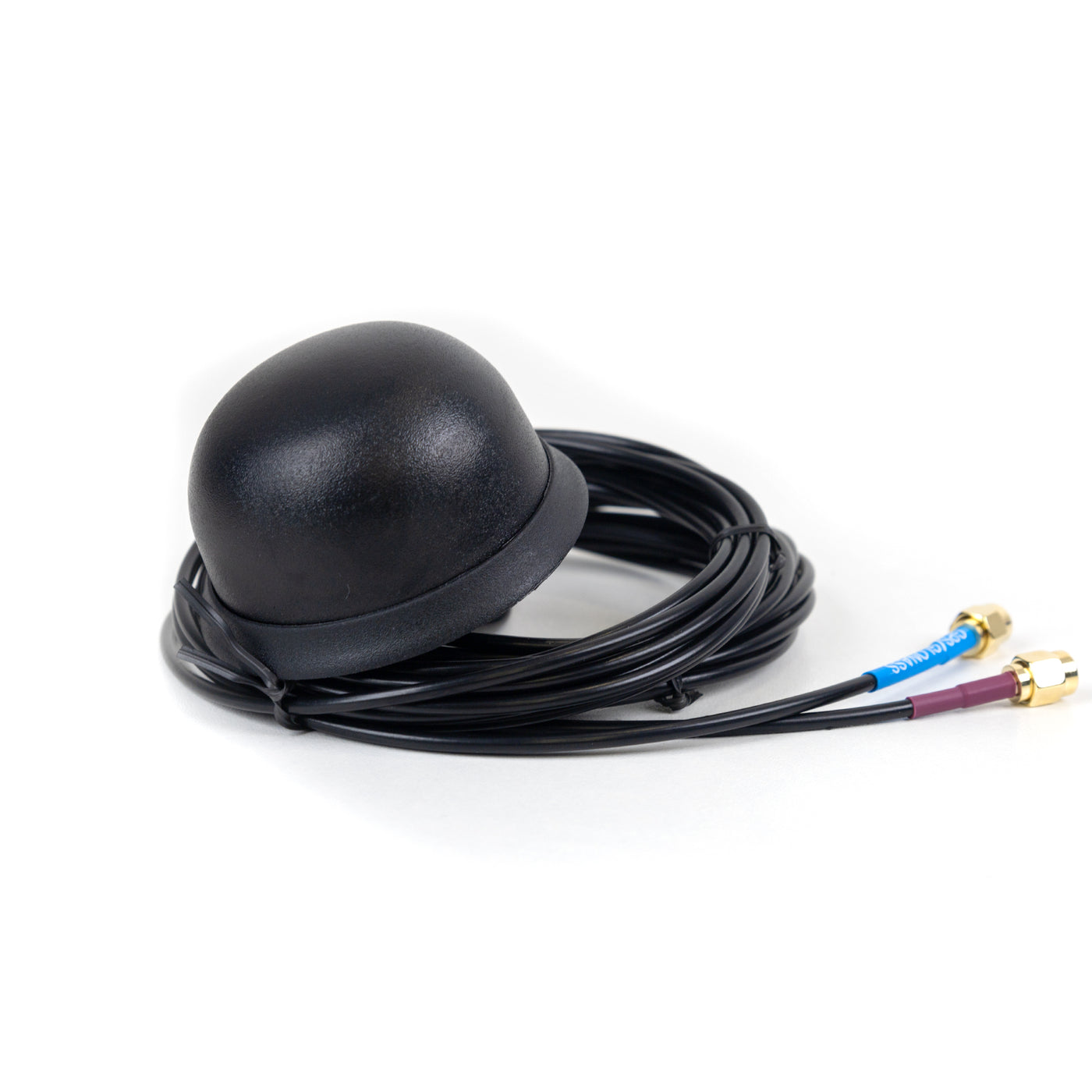

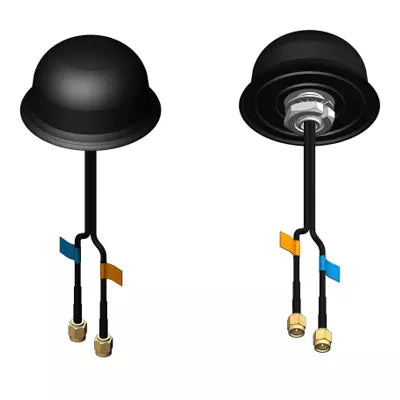

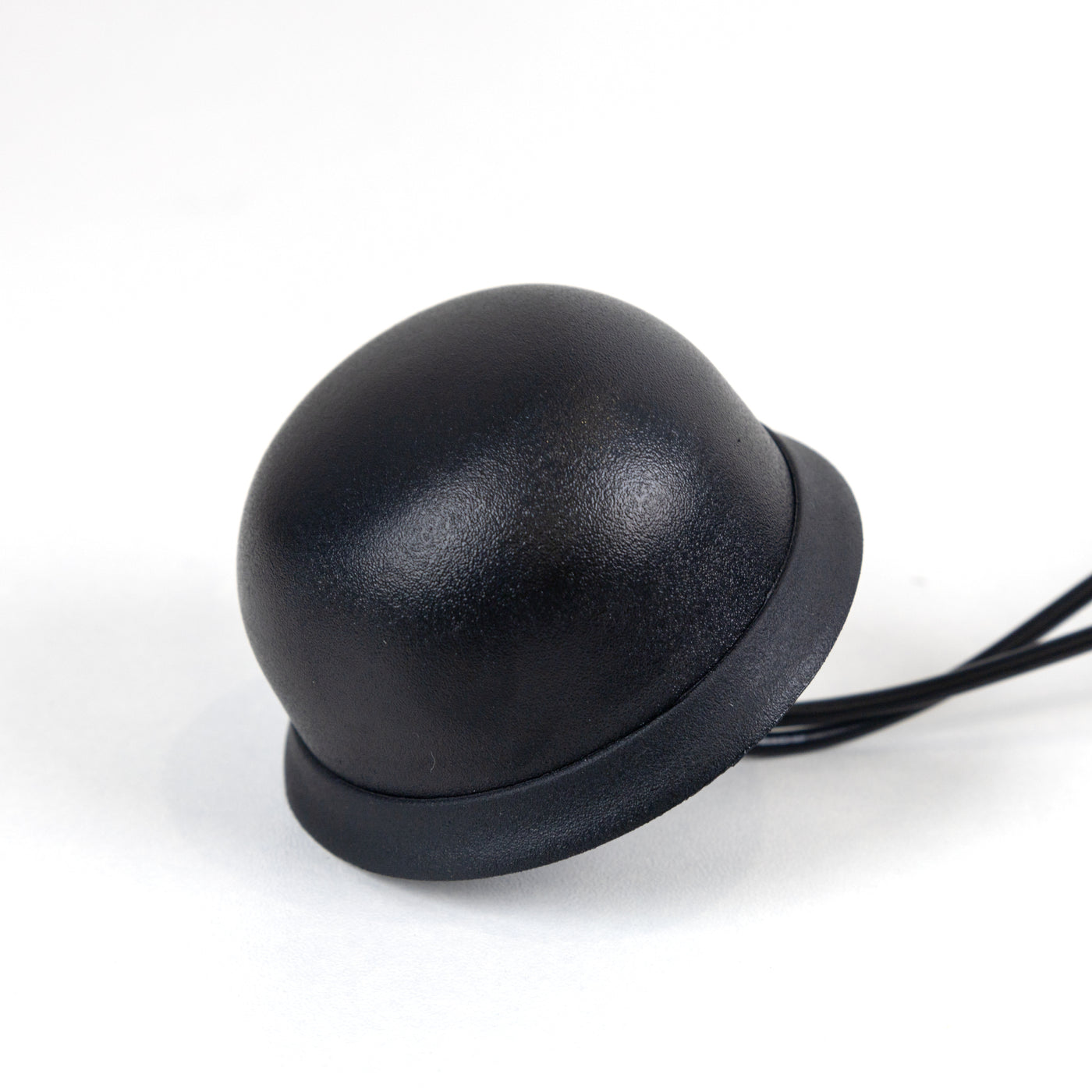

JCB602 GPS+GSM Combination Antenna

SKU: ELC8927

₹ 1,199.99 ~~₹ 1,249.99~~

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

JCB602 GPS+GSM Combination Antenna₹ 1,199.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

The JCB602 from JC Antenna is a compact, high-performance combination antenna that integrates both GPS and GSM functionalities. Designed for reliable positioning and communication, it features a strong magnetic base for easy mounting and stable signal reception. Ideal for vehicle tracking, telematics, and IoT applications, this antenna ensures consistent performance across GPS and GSM bands, all in a rugged, low-profile design.

Specifications:

Item			Specifications
GPS Antenna	Dielectric Antenna	Center Frequency	1575.42±3MHz
		Band Width	CF±5MHz
		Polarization	RHCP
		Gain	2dBic（Zenith）
		V.S.W.R	＜1.5
		Impedance	50Ω
	LNA	Gain	28±2dB
		Noise Figure	＜1.5dB
		V.S.W.R	＜2.0
		Supply Voltage	2.2~5V DC
		Current Consumption	＜15mA
GSM Antenna		Frequency Range	824~960MHz/1710~2170MHz
		V.S.W.R	＜2.0
		Polarization	Linear
		Gain	2.0dBi
		Impedance	50Ω
Mechanical		Cable	RG174

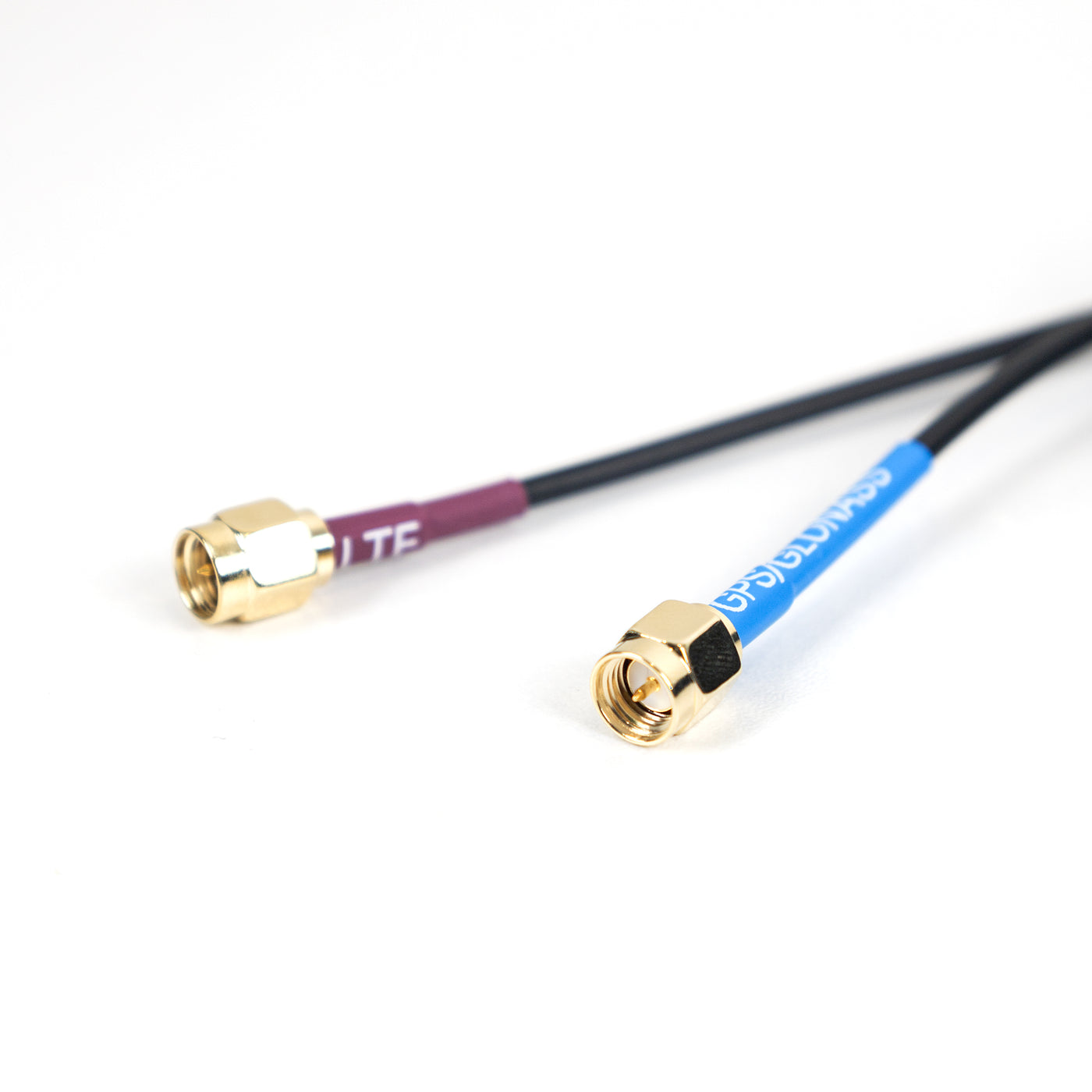

		Connector	SMA/MCX/FAKRA or others
		Material	Radome:ABS/Base:Cast Aluminum

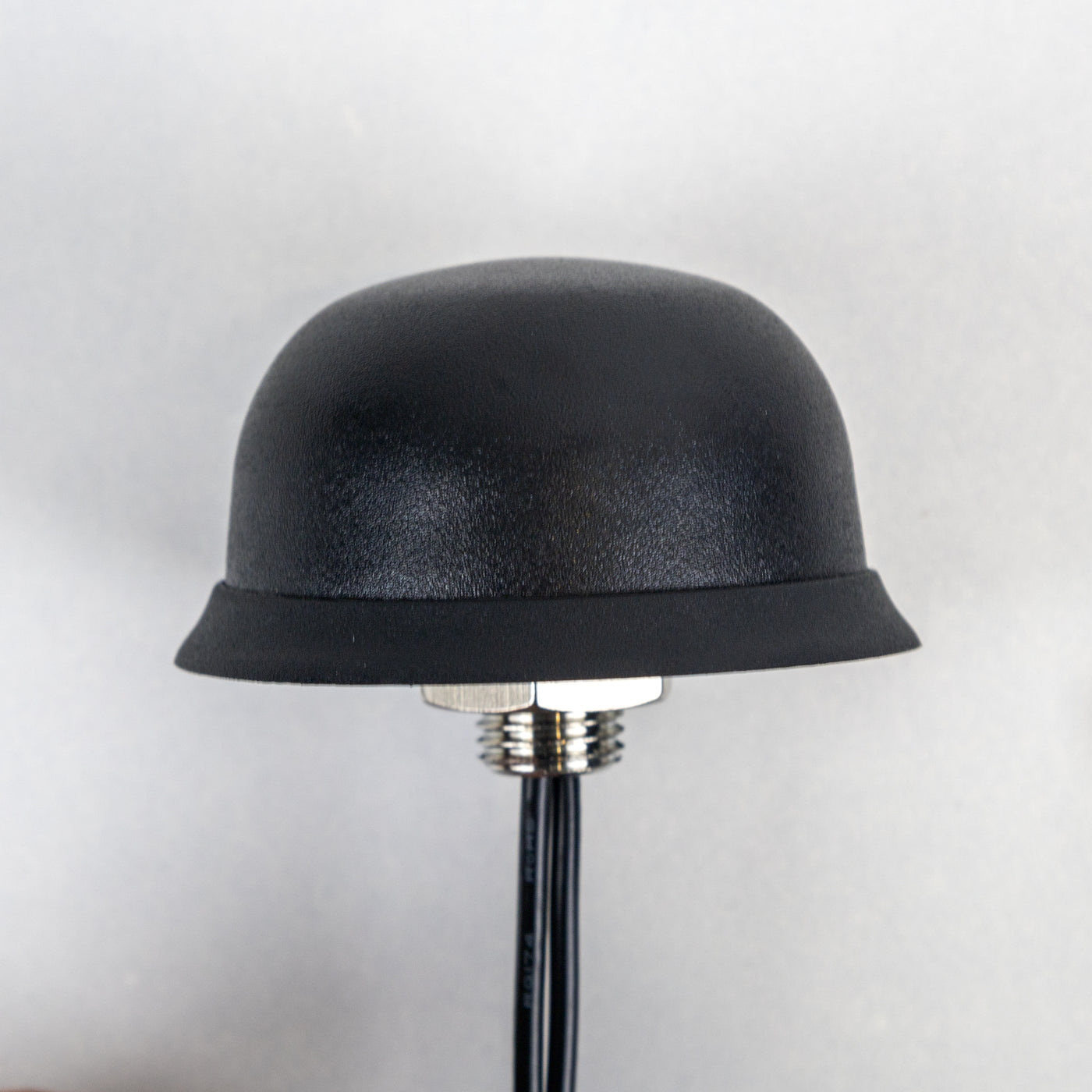

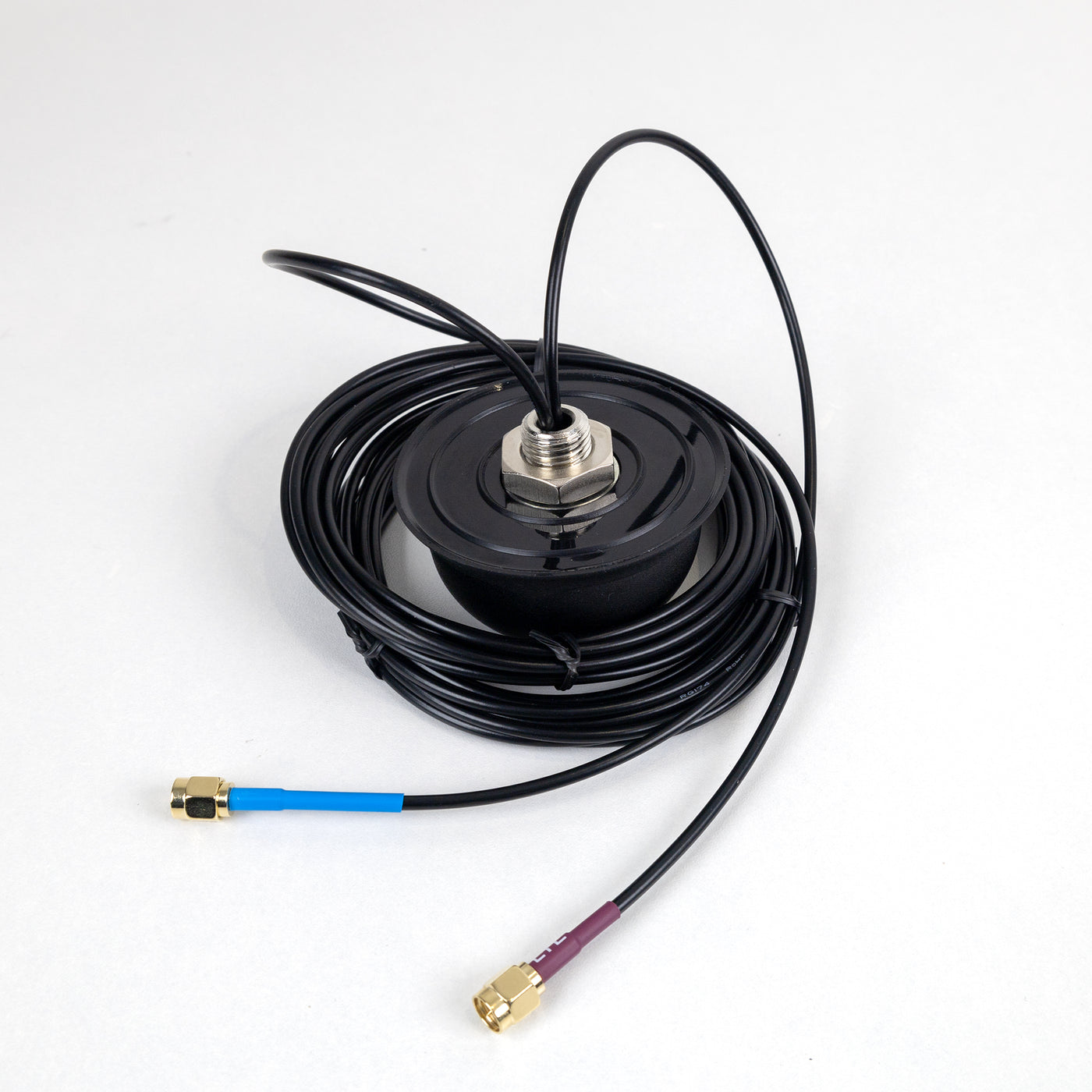

		Mounting Method	Screw
Environmental		Operating Temperature	-40℃~+85℃
		Relative Humidity	Up to 95%
		Ingress Protection	IP67 (exclude cable outlet)
		Vibration	10 to 55Hz with 1.5mm amplitude 2hours
		Environmentally Friendly	ROHS Compliant

What functions does this antenna provide and what are its typical uses?

It combines GPS positioning and GSM communication in a compact design, suitable for vehicle tracking, telematics, and IoT applications.

What are the GPS and GSM specifications and electrical characteristics?

GPS center frequency 1575.42 MHz with a tolerance of 3 MHz RHCP polarization and 50 ohm impedance. The GPS LNA gain is 28 dB with a tolerance of 2 dB. For GSM the frequency ranges are 824 to 960 MHz and 1710 to 2170 MHz with 50 ohm impedance and linear polarization and the GSM gain is 2.0 dBi.

How is mounting performed and how does it hold up in harsh environments?

It uses a strong magnetic base for easy mounting and a rugged design with IP67 protection and an operating temperature range from minus 40 C to 85 C.

What power and connector options are available?

Supply voltage is 2.2 to 5 V DC and current consumption is less than 15 mA. The cable options include SMA, MCX, FAKRA or others.

Is this antenna suitable for outdoor use and what environmental ratings does it have?

Yes, it is IP67 rated excluding the cable outlet and supports relative humidity up to 95 percent. It operates from minus 40 C to 85 C and is designed for vehicle tracking and IoT deployments.
