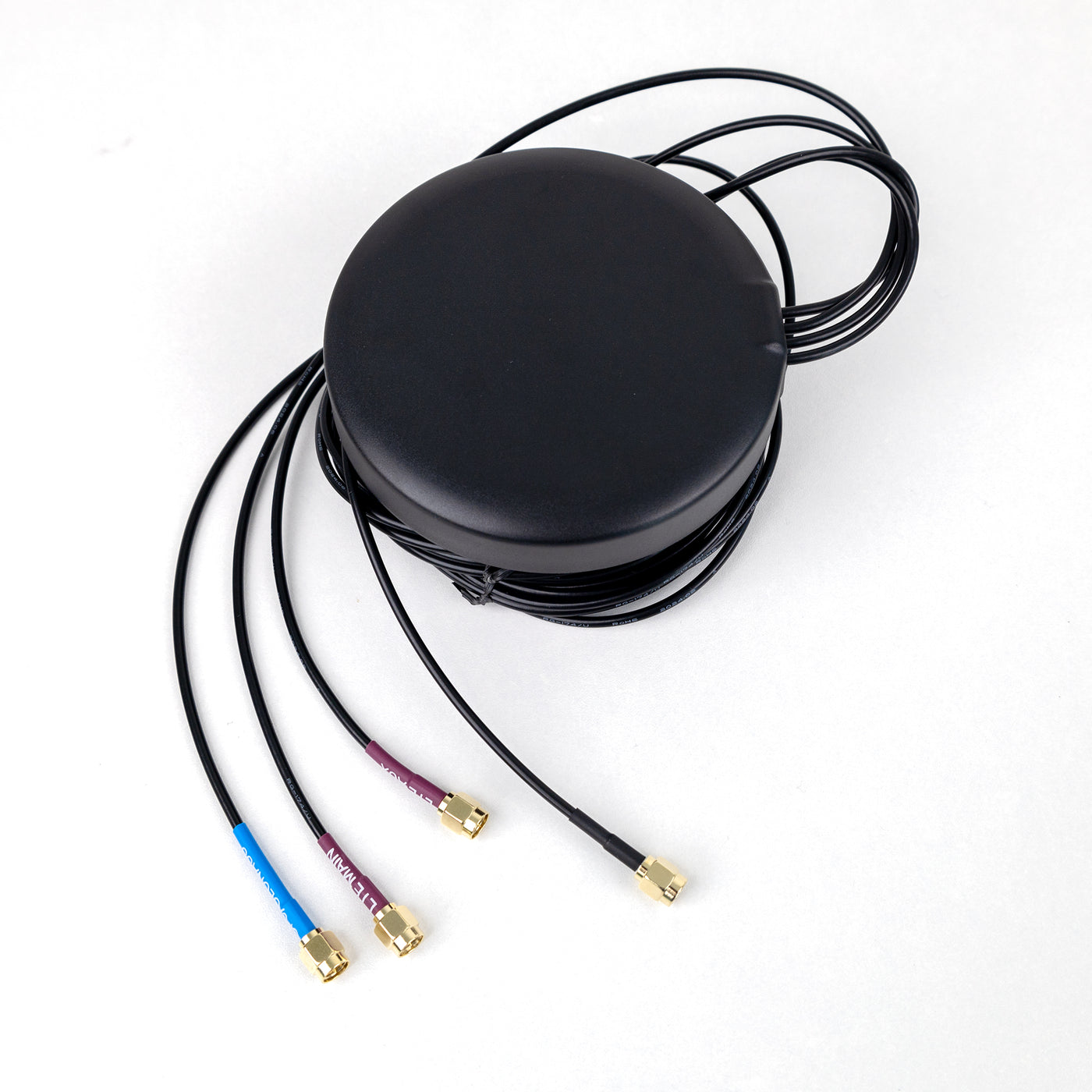

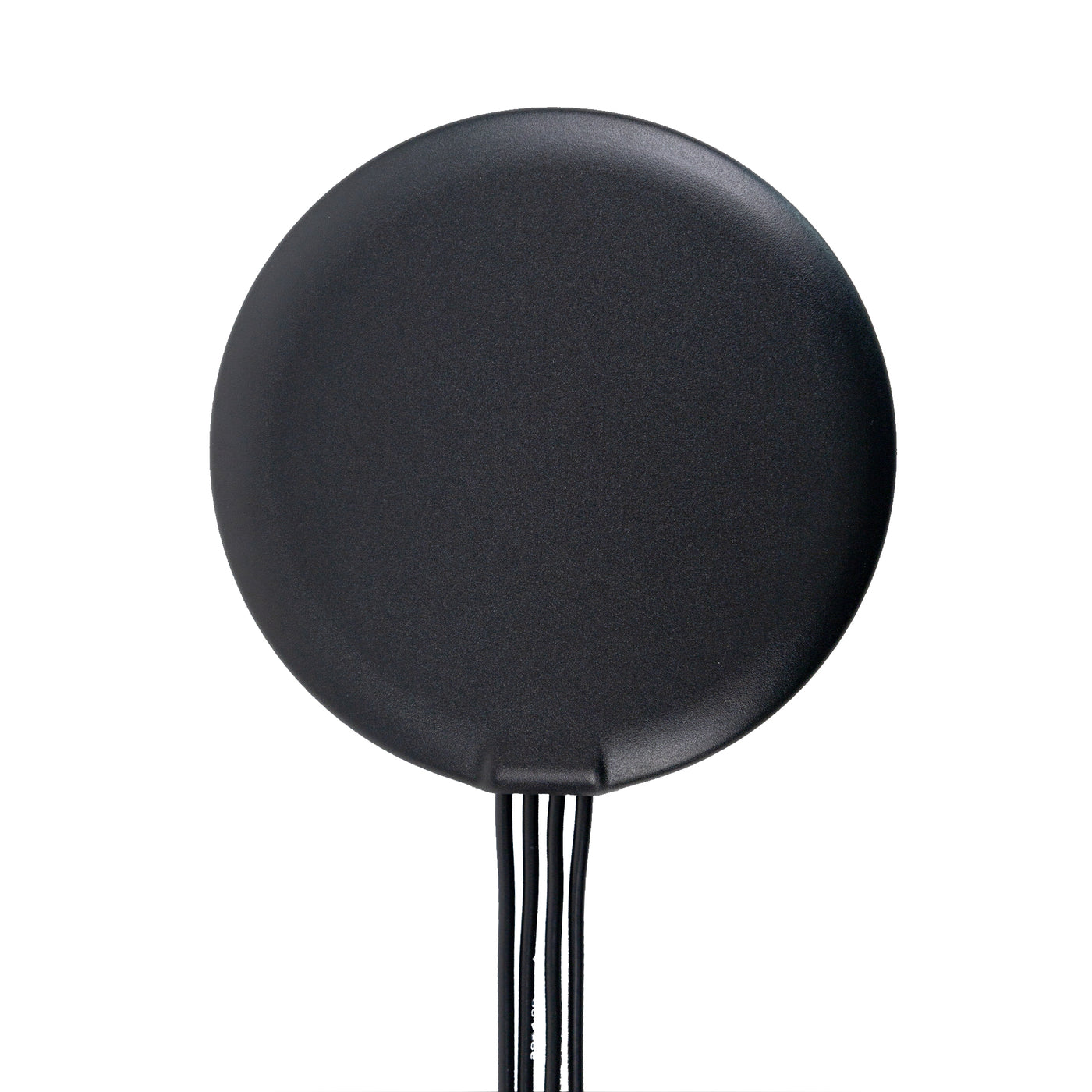

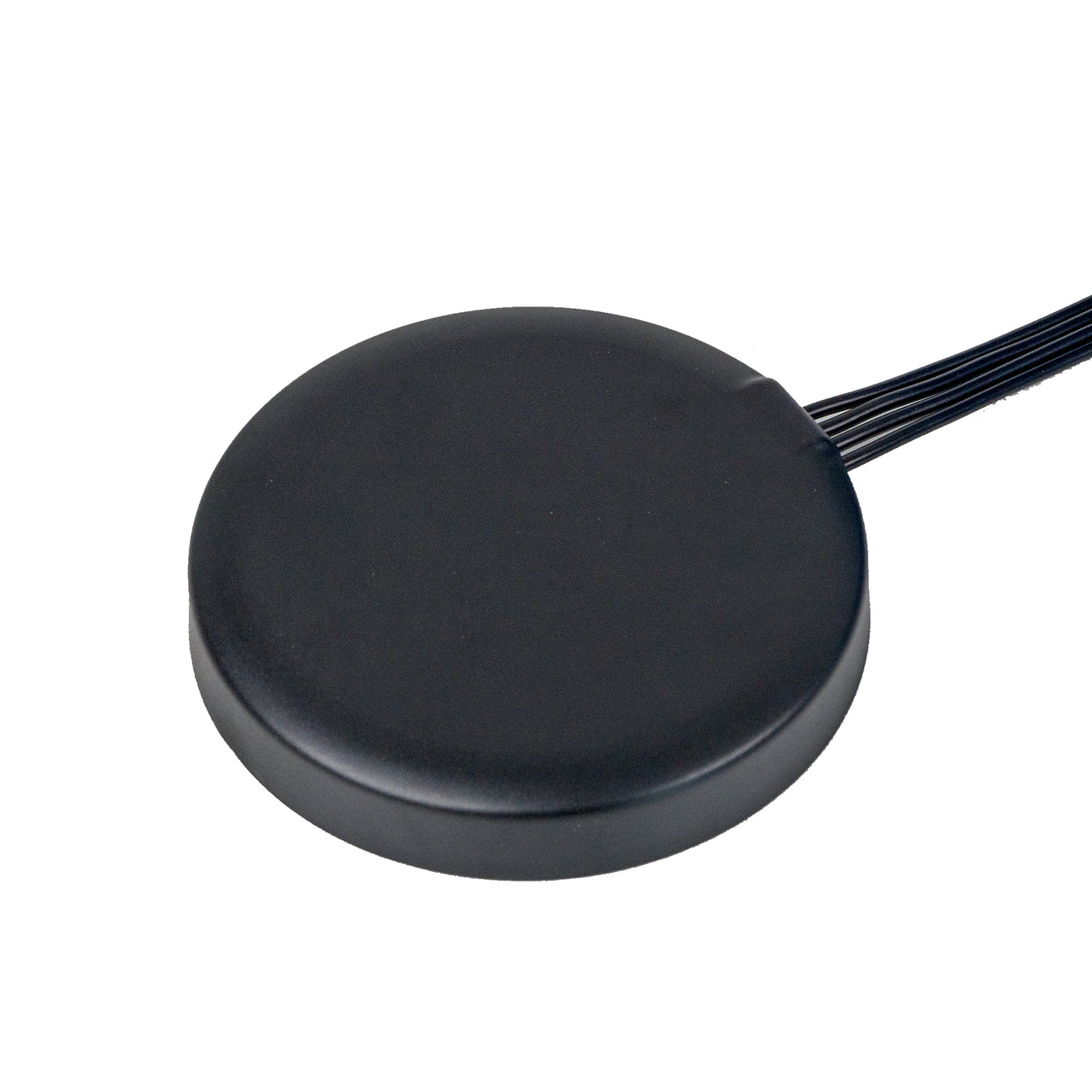

JCE316LM GNSS + LTE MIMO + WIFI Combination Antenna

SKU: ELC8933

₹ 2,699.99 ~~₹ 3,249.99~~

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

JCE316LM GNSS + LTE MIMO + WIFI Combination Antenna₹ 2,699.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

The JC Antenna JCE316LM is a high-performance, low-profile combination antenna designed for next-generation connectivity. Featuring integrated GNSS (GPS/GLONASS/BeiDou) for precise navigation, LTE MIMO for high-speed, multi-channel cellular communication, and dual-band WiFi for seamless wireless access, this 3-in-1 antenna delivers exceptional reliability across all networks.

Engineered for rugged environments and outdoor deployment, the JCE316LM is ideal for smart transportation, fleet tracking, telematics, and industrial IoT applications. Its compact design, robust housing, and easy adhesive or magnetic mounting make it the go-to choice for integrators seeking optimal signal performance in space-constrained installations.

Key Features:

Multi-band support: GNSS, LTE MIMO (2x2), and dual-band WiFi (2.4/5GHz)
High gain and low VSWR for maximum efficiency
IP-rated enclosure for outdoor and automotive use
Customizable connectors and cable lengths
Perfect for 5G-ready and mission-critical systems

Boost your connectivity with the JCE316LM combo antenna — optimized for precision, performance, and durability.

Specifications:

Item			Specifications
GNSS Antenna	Dielectric Antenna (2 Pins)	Frequency Range	1561.098~1602MHz
		Polarization	RHCP
		Gain	5dBic（Zenith）
		V.S.W.R	＜1.5
		AxialRatio	3dB
	LNA	Gain	28±2dB
		Noise Figure	≤1.5dB
		V.S.W.R	＜2.0
		Supply Voltage	3~5V DC
		Current Consumption	＜20mA
LTE Antenna MIMO		Frequency Range	698~960MHz/1710~2690MHz
		V.S.W.R	≤3.0
		Polarization	Linear
		Gain	2.0dBi
		Impedance	50Ω
WIFI Antenna		Frequency Range	2400~2483.5MHz/4900~5825MHz
		Polarization	Linear
		Gain	3dBi
		V.S.W.R	≤2.0
		Impedance	50Ω

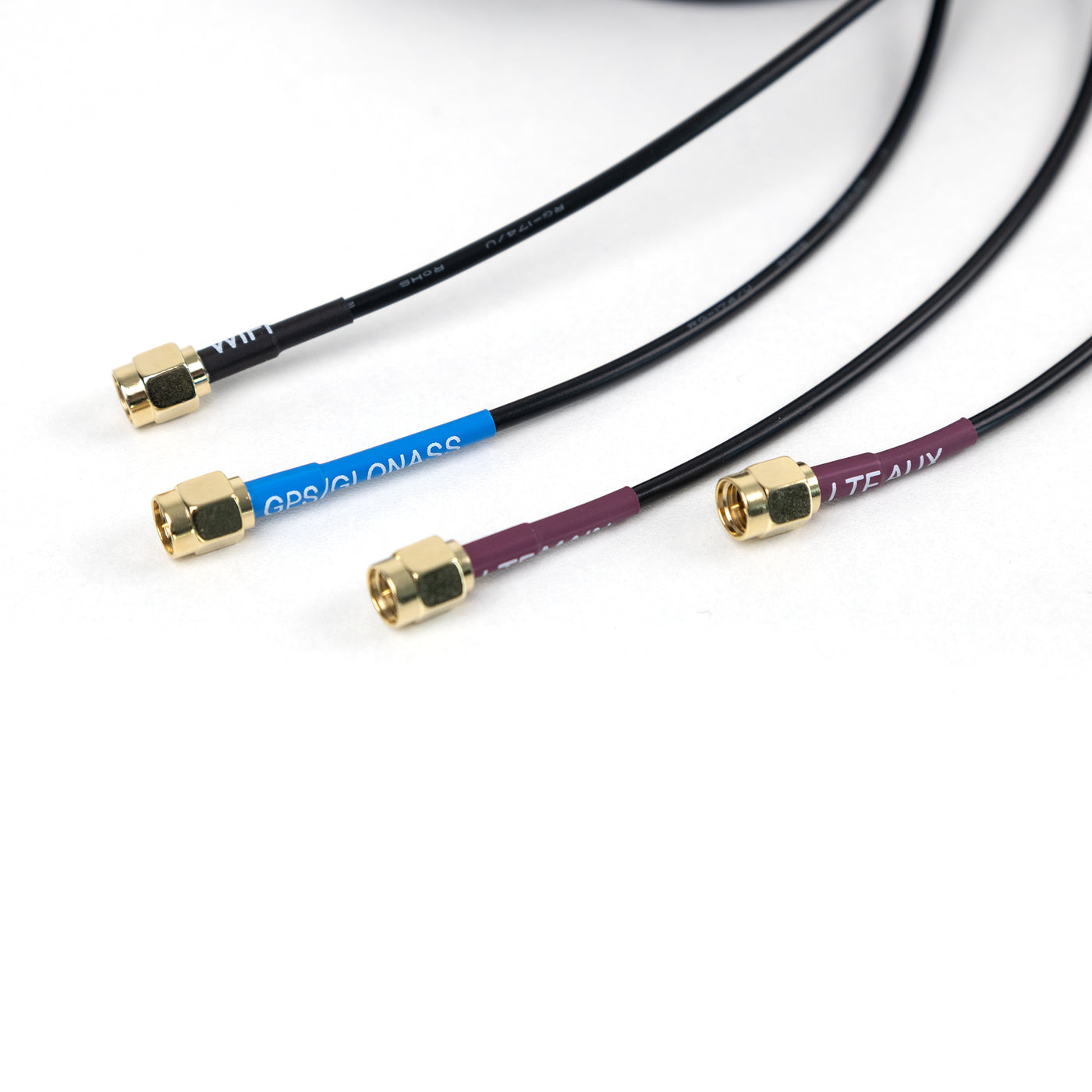

Mechanical		Cable	RG174 or others
		Connector	SMA or others
		Material	ABS

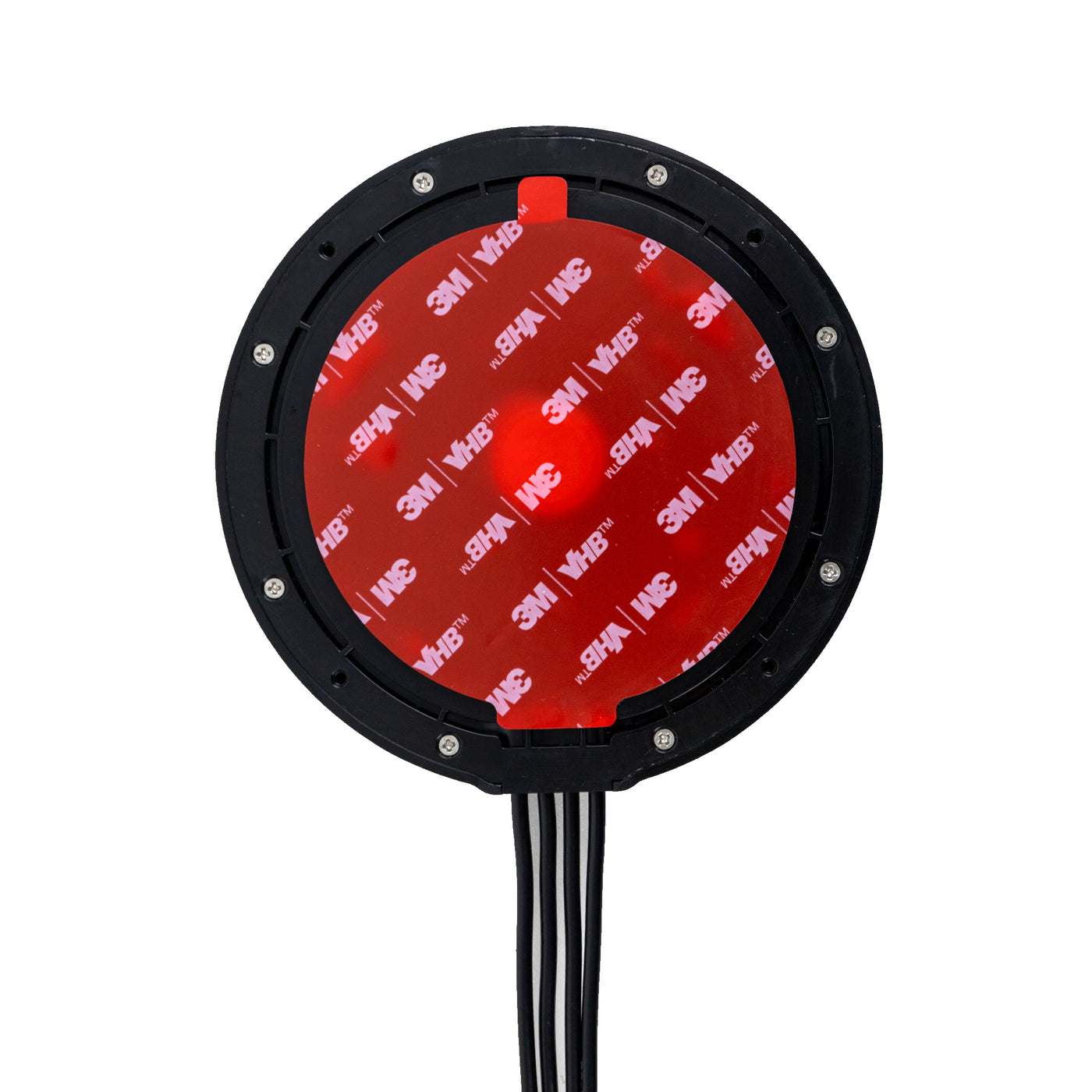

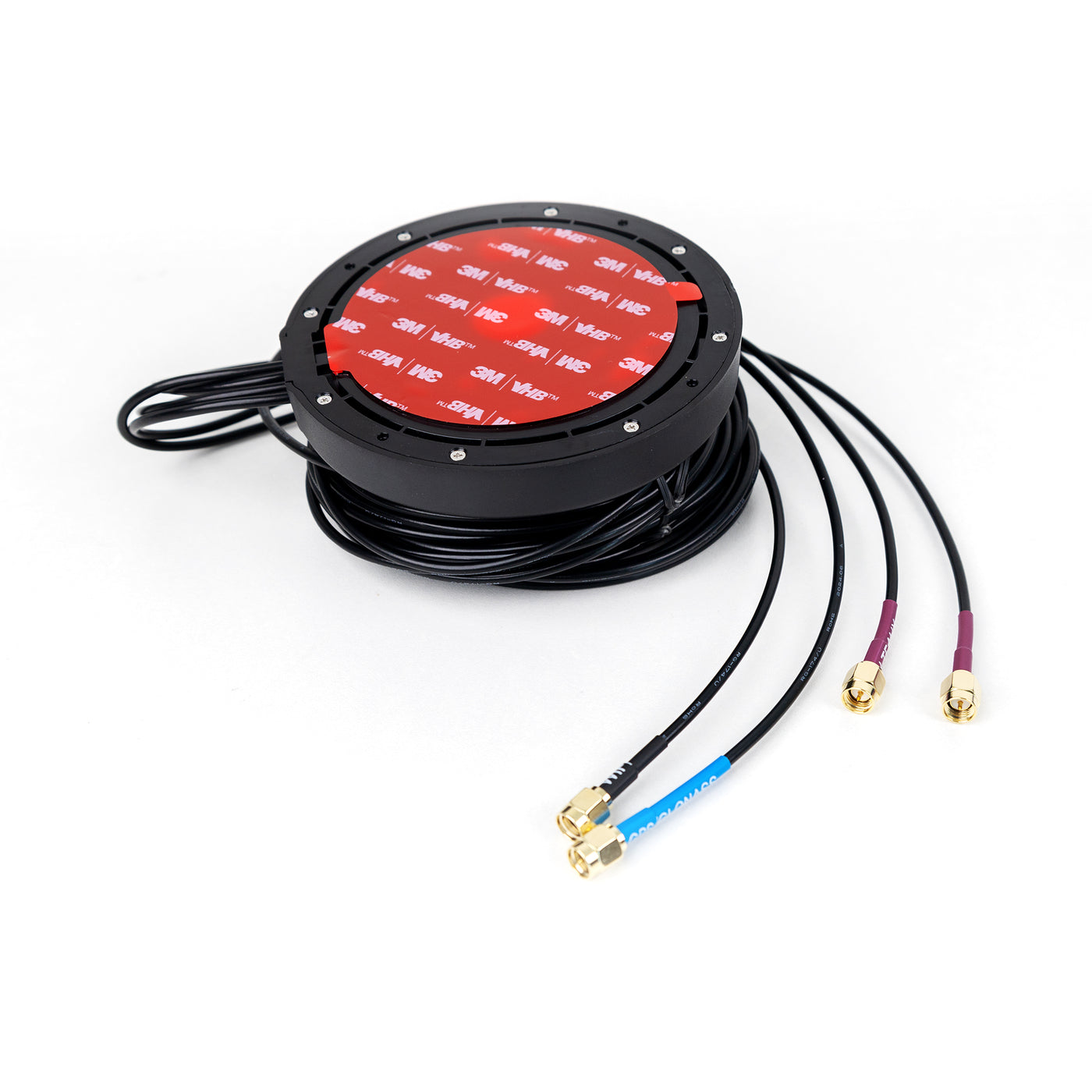

		Mounting Method	Adhesive/Magnet
Environmental		Operating Temperature	-40℃~+85℃
		Relative Humidity	Up to 95%
		Ingress Protection	IP67
		Vibration	10 to 55Hz with 1.5mm amplitude 2hours
		Environmentally Friendly	ROHS Compliant

What networks and features does the JC Antenna JCE316LM provide in a single unit?

It combines GNSS (GPS GLONASS BeiDou), LTE MIMO (2x2), and dual band WiFi (2.4 and 5 GHz) in a rugged IP67 enclosure for outdoor use, with adhesive or magnet mounting.

What are the frequency ranges and key performance figures for the GNSS, LTE, and WiFi components?

GNSS operates 1561.098 to 1602 MHz with 5 dBic zenith gain, axial ratio 3 dB, LNA gain 28 plus minus 2 dB, noise figure less or equal 1.5 dB and VSWR less than 2.0. LTE MIMO covers 698 to 960 MHz and 1710 to 2690 MHz with VSWR up to 3.0 and 2.0 dBi gain. WiFi covers 2.4 to 2.4835 GHz and 4.9 to 5.825 GHz with 3 dBi gain and VSWR up to 2.0.

How can I connect and mount this antenna?

The unit offers customizable connectors and cable lengths; options include RG174 or other cables and SMA or other connectors; mounting is via adhesive or magnet.

Is this antenna suitable for outdoor deployments and future networks such as 5G?

Yes, it is designed for rugged environments with an IP67 enclosure and is described as 5G ready for mission critical systems.

What are the environmental and electrical operating conditions I should know?

Operating temperature is -40C to 85C, humidity up to 95 percent, supply voltage 3 to 5 V DC, and current consumption less than 20 mA.
